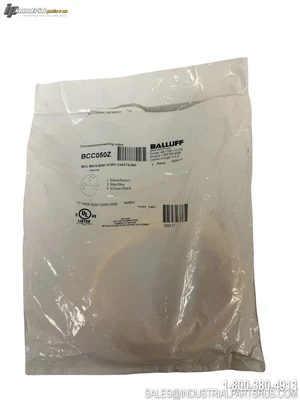

NEW BALLUFF BCC050Z

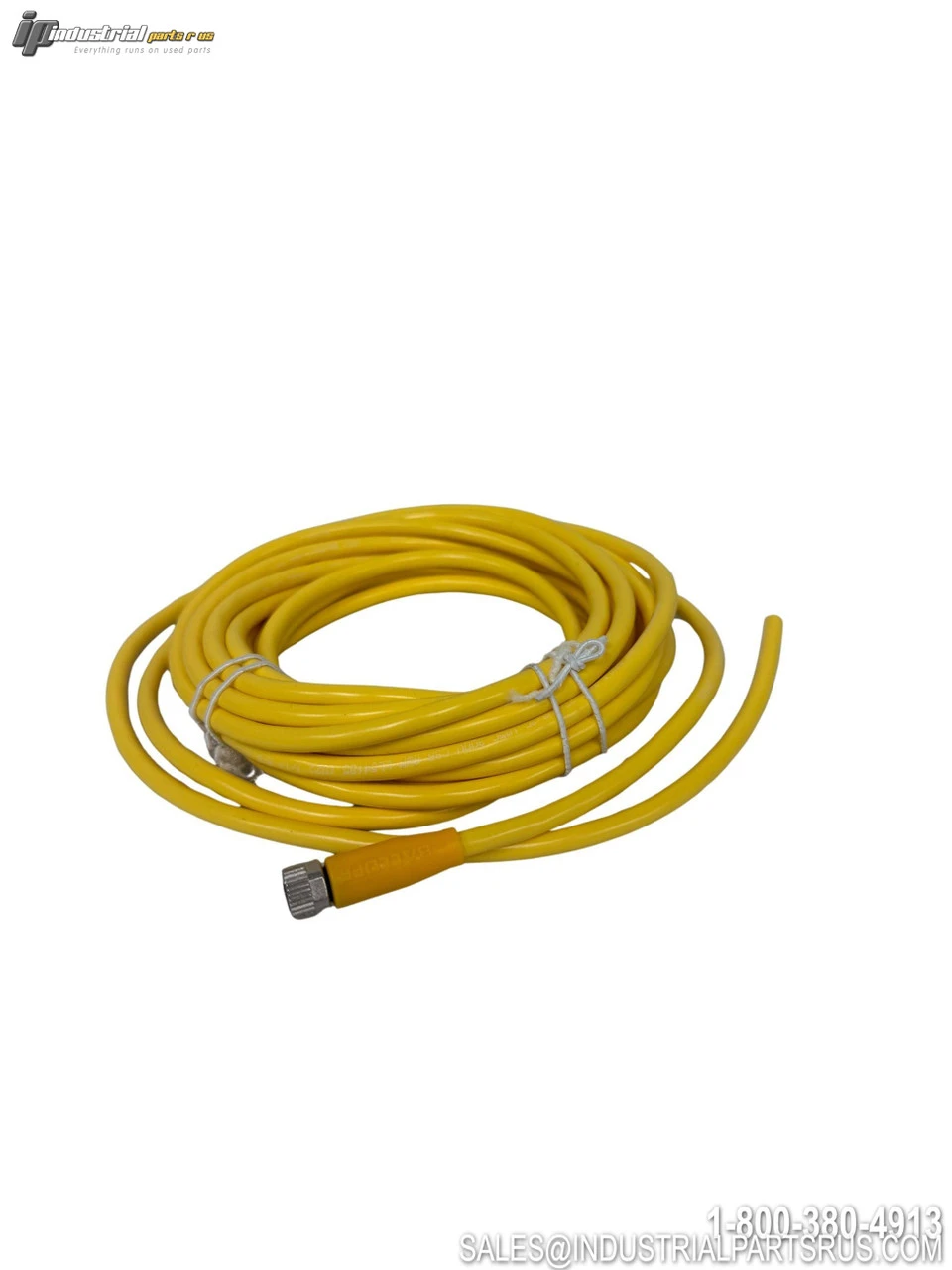

The Balluff BCC050Z is a single-ended cordset designed for industrial automation connectivity applications. This cable features an M8x1 female connector with 3-pin A-coded configuration and 5-meter length yellow PVC cable with drag chain compatibility. It provides reliable signal and data transmission in industrial environments with IP67 protection rating.
Specification
Value
Brand
Balluff
Model/Part Number
Bcc050z
Series
BCC
Full Part Number
BCC M313-0000-10-001-VX43T2-050
Product Type
Single-Ended Cordset
Connector Type
M8x1 Female
Connector Pins
3-Pin
Connector Configuration
A-Coded
Connector Orientation
Straight
Cable Length
5m
Cable Color
Yellow
Cable Material
PVC (Polyvinyl Chloride)
Number of Conductors
3
Conductor Cross Section
22 AWG
Operating Voltage
60 VDC / 60 VAC
Rated Current
4.0 A (at 40°C)
Cable Temp Fixed Routing
-40°C to +105°C
Cable Temp Flexible Routing
-5°C to +105°C
Protection Rating
IP67, IP69K
Drag Chain Compatible
Yes
Approvals
CE, cULus, EAC, WEEE
We warranty all items for 30 days from date of purchase.

SKU: AI1152
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Balluff
Part Number: BCC050Z
Shelf: K-61 Tub 2
Model: BCC050Z
MPN: BCC050Z
Type: Communication Module
