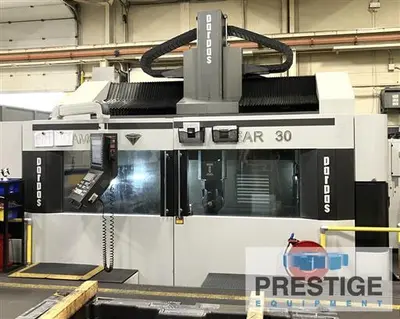

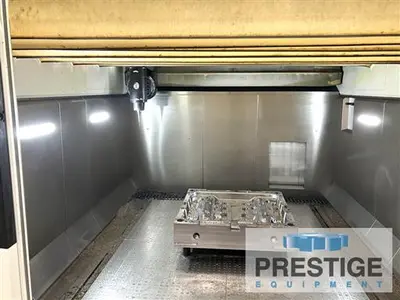

USED 2017 PARPAS DIAMOND LINEAR 30 5-AXIS

Specifications:
Gantry Travel, X-Axis: 118.11”
Head Travel, Y-Axis: 102.36”
Ram Stroke, Z-Axis: 55.11"
C-Axis, Ram Rotation: .001 Degrees
C-Axis, Ram Range: +/- 370 Degree
A-Axis, Head Sweep: +/- 110 Degrees
Work Table: 122.04" x 110.23"
Spindle Speeds: 20,000 RPM
Spindle taper: HSK-63-A
Spindle Motor: 52 HP
Approximate Footprint: 296.4" x 259.84"
Approximate Height: 226.9"

Equipped With:
Heidenhain TNC 640 CNC Control
120 Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
High Pressure Coolant Through Spindle 50 Bar
Air Through Spindle
Blum Laser Tool Pick Up
M&H Radio Frequency Probe
Losma Brand Paper Coolant Filter System
Dual Chip Conveyors

Features:
Heidenhain TNC 640 CNC Control
120 Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
High Pressure Coolant Through Spindle 50 Bar
Air Through Spindle
Blum Laser Tool Pick Up
M&H Radio Frequency Probe
Losma Brand Paper Coolant Filter System
Dual Chip Conveyors
