USED 2018 SOUTHWESTERN TRAK TRL 1630SX
Overview
Description

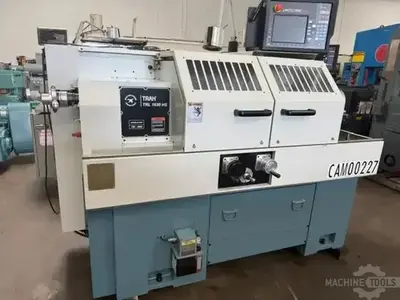

Southwestern TRAK TRL 1630SX Flat Bed CNC Lathe
Specifications
General Info
Stock #: 163260007
Location: CA
Brand: Southwestern TRAK
Model: TRL 1630SX
Year: 2018
Approx. Shipping Weight: 3,000 lbs
Approx. Shipping Dimensions: 82"L X 46"W X 67"H
Loading Fee: Free Loading
Specifications
Height of Centers: 8"
Swing Over Bed: 16"
Swing Over Cross Slide: 8.6"
Swing Over Saddle Wings: 16"
Max Distance Between Centers: 30"
Spindle Taper: A2-4
Spindle Speed Range: 150-2500 RPM (Variable)
Spindle HP: 7.5 HP
Spindle Bore: 1.57"
Taper In Headstock Spindle: #5 MT
Tailstock Quill Travel: 6.3"
Tailstock Quill Diameter: 2.36"
Tailstock Quill Taper Hole: #5 MT
Electrical: 230V / 3-Phase (60hz)
Equipped With

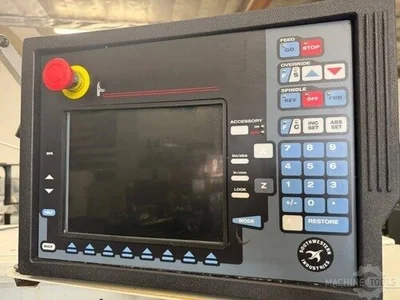

ProtoTRAK SLX Control, 2-Axis DRO During Manual Operation, Constant Surface Speed & Programmable Spindle Speeds, Servo Motors & Ground Ballscrews, AC Spindle Drive, Electronic Handwheels for X & Z Manual Traverse, Jogstick for Convenient Jog at Rapid Travels, Dorian Quick Change Toolpost,Hardened & Ground Bed Ways, Automatic Central Lubrication System for the Slide Ways & Ballscrews, Coolant System, Enclosure
Additional Info
This machine can be demoed under power upon request.
