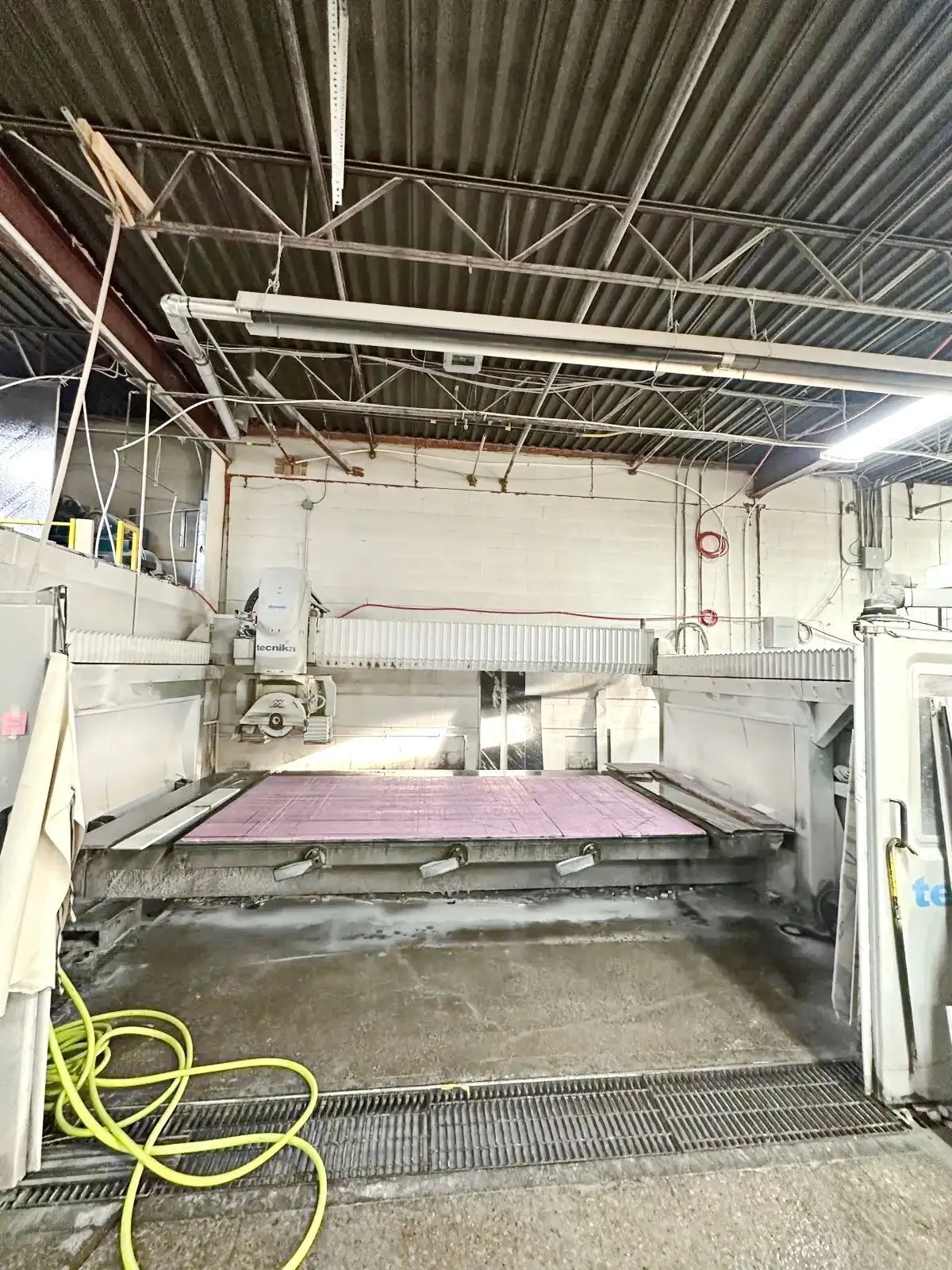

2017 Denver Tecnika 5-Axis CNC Automatic Bridge Saw, X-Drive, Rotating Cutting Head, Extended Y-Axis, Hydraulic Tilting Work Table, Miter Cutting Capability, OSAI CNC Control W/ Taglio Touch Drive Software
| RPM (Saw Blade) | 6,000 RPM | 6,000 RPM |
| Motor | 17.5 hp | 13 kW |
| X-Axis Travel | 137.8" | 3,500.1 mm |
| Y-Axis Travel | 104.3" | 2,649.2 mm |
| Z-Axis Travel | 14.6" | 370.84 mm |
| A-Axis (Tilt) | 0 ~ 90° | 0 ~ 90° |
| X-Axis Speed | 1,260 in/min. | 32 m/min. |
| Y-Axis Speed | 1,260 in/min. | 32 m/min. |
| Z-Axis Speed | 590 in/min. | 15 m/min. |
| Made In | San Marino | San Marino |
| Control | CNC (OSAI) | CNC (OSAI) |
| Dimensions | 237" X 173" X 110" (Approx.) | 237" X 173" X 110" (Approx.) |
| Weight | 8,400 lb | 8,400 lb |
5-axis cutting head (X-Drive)
Taglio Touch drive software
Extended Y-axis capacity (~104")
Hydraulic tilting work table
Slab cutting table
Miter cutting capability (0-90° tilt)
Rotating cutting head (0-180°)
Monoblock bridge design
Flexible pendant control ARM
ISO tool holder for milling
Includes milling bit & blades (porcelain, granite)
Enclosed cutting area
