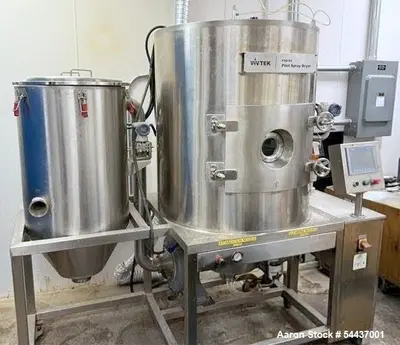

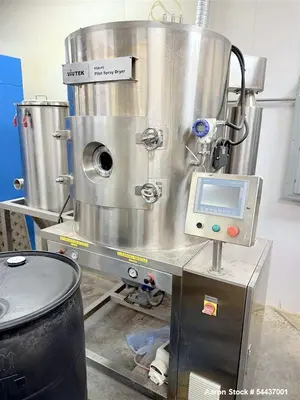

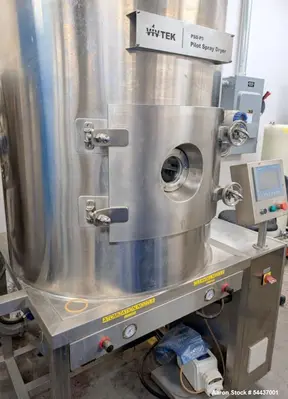

Used Vivtek PSD-P5 Pilot Spray Dryer – Food-Grade Powder Production System with Dust Collection (2023)

Used Vivtek Instruments Pilot Spray Dryer, Model PSD-P5. 5-8 kg/hour (approx. 11-17.5 lbs./hour) evaporation capacity. 32" diameter x 60" long drying chamber. 6" diameter x 16" long cyclone. Two-fluid atomizer: 1, 1.5, and 2 mm. 280 degrees C. (538 degrees F.) max. temperature. 12 kW heater. 750W air blower. 3ph/230V. With dust collector. Built 2023. Previously used for food/beverage emulsion powder.

Used Equipment Facts About This Machine
Manufacturer: Vivtek Instruments
Model: PSD-P5
Year Built: 2023
Condition: Used

Product Description
The Vivtek PSD-P5 Pilot Spray Dryer is a compact, high-performance drying system designed for pilot-scale and small production powder applications. Previously used for food and beverage emulsion powders, this unit is ideal for R&D, formulation development, and specialty production environments.
With an evaporation capacity of 5–8 kg/hour (11–17.5 lbs/hour), the PSD-P5 delivers efficient and consistent drying performance. The system features a 32" diameter x 60" long drying chamber and a 6" x 16" cyclone separator for effective powder recovery.
Equipped with a versatile two-fluid atomizer (1 mm, 1.5 mm, and 2 mm nozzles), this spray dryer allows for precise particle size control across a range of formulations. A 12 kW heater supports drying temperatures up to 280°C (538°F), while a 750W air blower ensures stable airflow and drying conditions.
The unit includes a dust collector for improved product recovery and clean operation. Designed for hygienic and controlled processing, this system is ideal for food-grade and specialty powder applications.

Specifications

Manufacturer: Vivtek Instruments

Model: PSD-P5

Condition: Used

Year: 2023

Evaporation Capacity: 5–8 kg/hr (11–17.5 lbs/hr)

Drying Chamber: 32" diameter x 60" length

Cyclone Separator: 6" diameter x 16" length

Atomizer Type: Two-fluid atomizer

Nozzle Sizes: 1 mm, 1.5 mm, 2 mm

Maximum Temperature: 280°C (538°F)

Heating Capacity: 12 kW

Air Blower: 750W

Dust Collection: Included

Electrical Requirements: 3 Phase / 230V

Applications

Pilot-scale spray drying
Food and beverage powder production
Emulsion drying
Pharmaceutical powder processing
Nutraceutical powder manufacturing
Chemical drying applications
R&D and formulation testing
Flavor and ingredient encapsulation
Specialty powder production
Laboratory and pilot plant operations

What Products Would This Be Used For

Milk powders
Beverage powders
Emulsified food powders
Nutritional supplements
Flavor encapsulates
Protein powders
Pharmaceutical powders
Chemical powders
Specialty food ingredients
Dry emulsions
