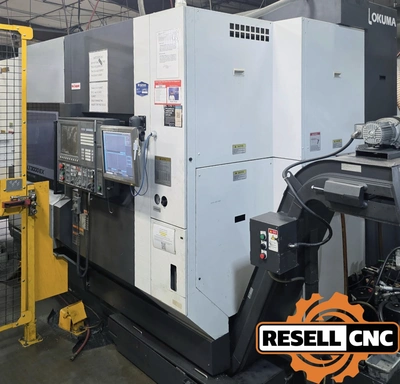

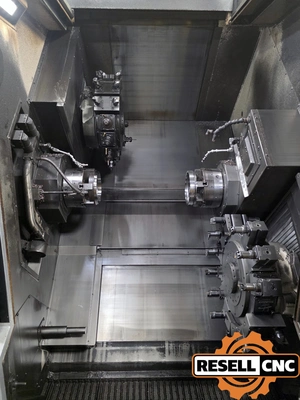

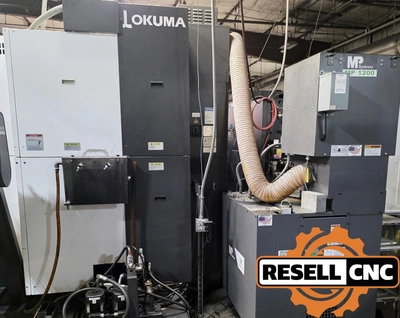

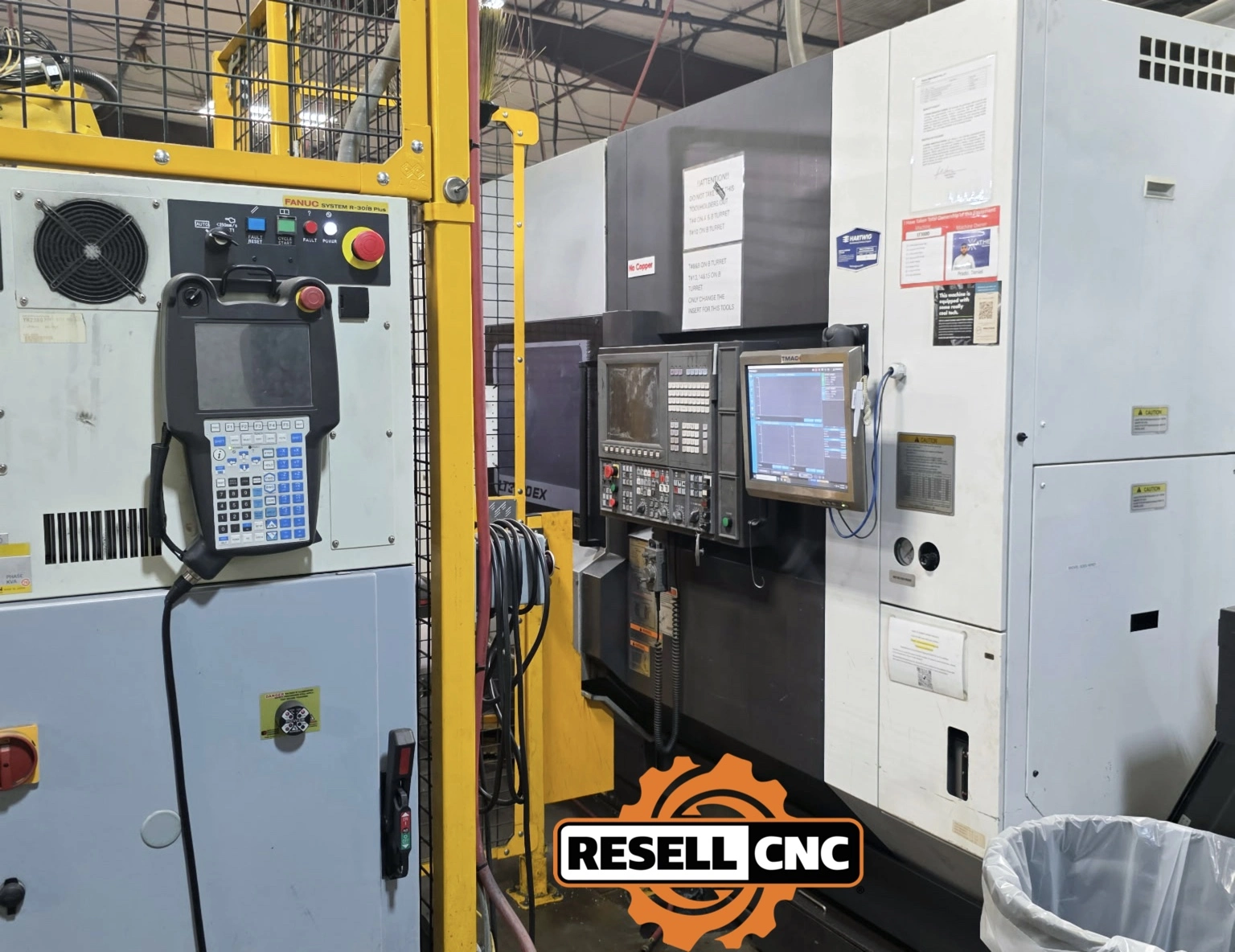

USED 2019 Okuma LT3000EX

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Collision Avoidance System

Thermal Active System

Additional Machine Specs: Linear Roller Guide Ways

Disk Break Clamping

Y-Axis: 4.92"

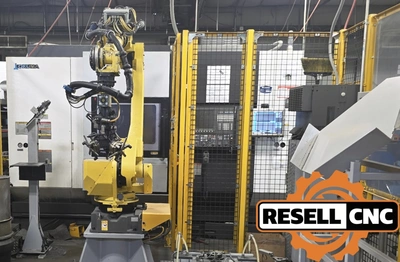

**Robot package NOT included**

Bar Capacity: 2.56
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor

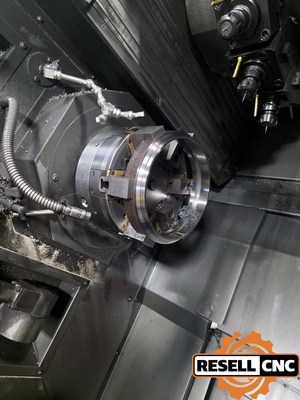

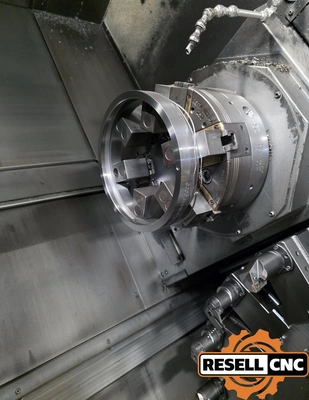

Chuck Description: 6-Jaw Chuck

Chuck Size: 10.0

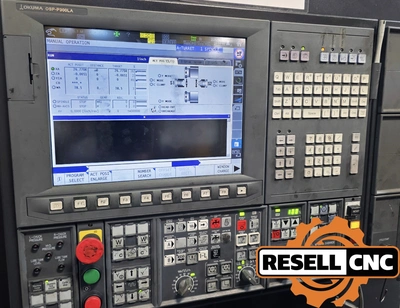

Control Make Model: OSP CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 30.0
Live Milling Hp: 9.5
Live Milling Max Rpm: 6000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 13.77
Max Swing Over Bed: 21.66
Programmable Tailstock: false
Rapid Traverse: 1181/787/1574
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 3.15
Spindle Motor: 30
Spindle Nose: A2-6
Spindle Speed: 5000.0
Sub Spindle: false
Tailstock: false
Tool Positions: 32.0
Twin Turret: false
X Travel: 10.0
Y Axis: true
Z Travel: 36.61
