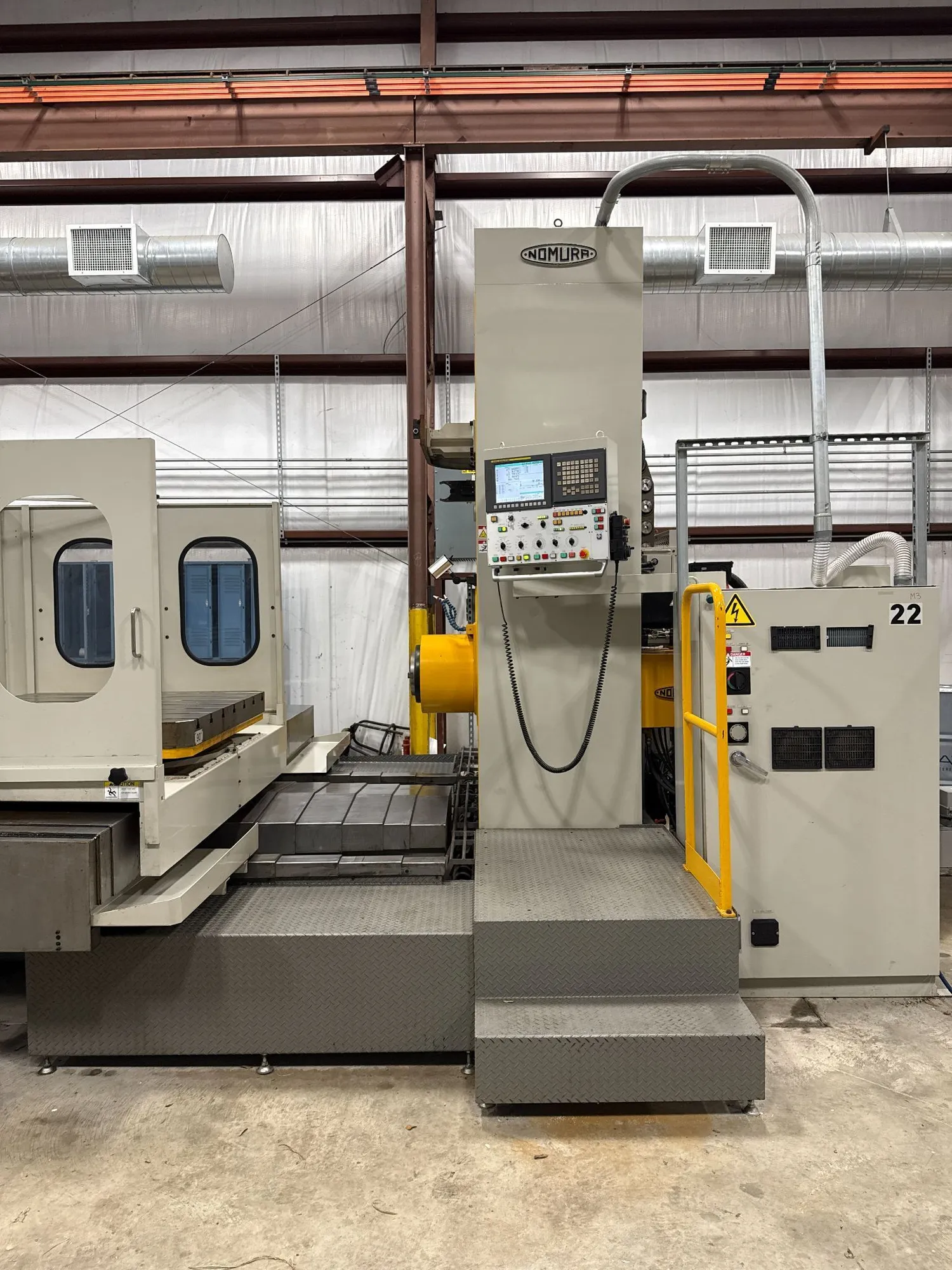

USED 2015 NOMURA HBA 110T-R2
Overview
Description
NOMURA HBA 110T-R2 Horizontal CNC Boring Mill. Equipped with 5-axis Fanuc control, coolant through spindle, chip auger, and 30-tool automatic changer. Specs include a 4.33" spindle size, 51.2" X travel, and 46.3" Y travel. Perfect for demanding machining tasks.
Specifications
| Spindle Size | 4.33" | 109.98 mm |
|---|---|---|
| X-Horiz Tvl of Table | 51.2" | 1,300.5 mm |
| Y-Vert Tvl of Head | 46.3" | 1,176 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 45" | 1,143 mm |
| Table-L | 45" | 1,143 mm |
| Spindle Tvl. | 34.4" | 873.76 mm |
Nomura HBA 110-R2
New 2015
Spindle Diameter 4.33"
Spindle Taper Cat-50
Spindle Speed 5 to 3,000 RPM
Spindle Motor 30 HP
W-Axis Travel (Spindle) 15"
Y-Axis Travel (Headstock Vertical Travel) 46"
X-Axis Travel (Table Cross Travel) 51"
Z-Axis Travel (Table in and out) 34"
Rotary Table Size 45" x 45"
B-Axis Min Indexing Angle on Table 0.001 Degree (Scale Feedback)
Max Load on Table 6,600 Lbs
Required Floor Space 148" x 222" x 139" H
Approximate Machine Weight 31,000 Lbs
Equipped With
Fanuc Oi-MD 5-Axis CNC Control
(Available with ITS Model CH 12 Facing and Contouring Head at Extra Cost)
Coolant Through Spindle
Table Enclosure
Chip Auger (chip conveyor not going with machine - has chip auger)
30 Position Automatic Tool Changer
Very low hours, Bought multiple machines for a project that never materalized.
