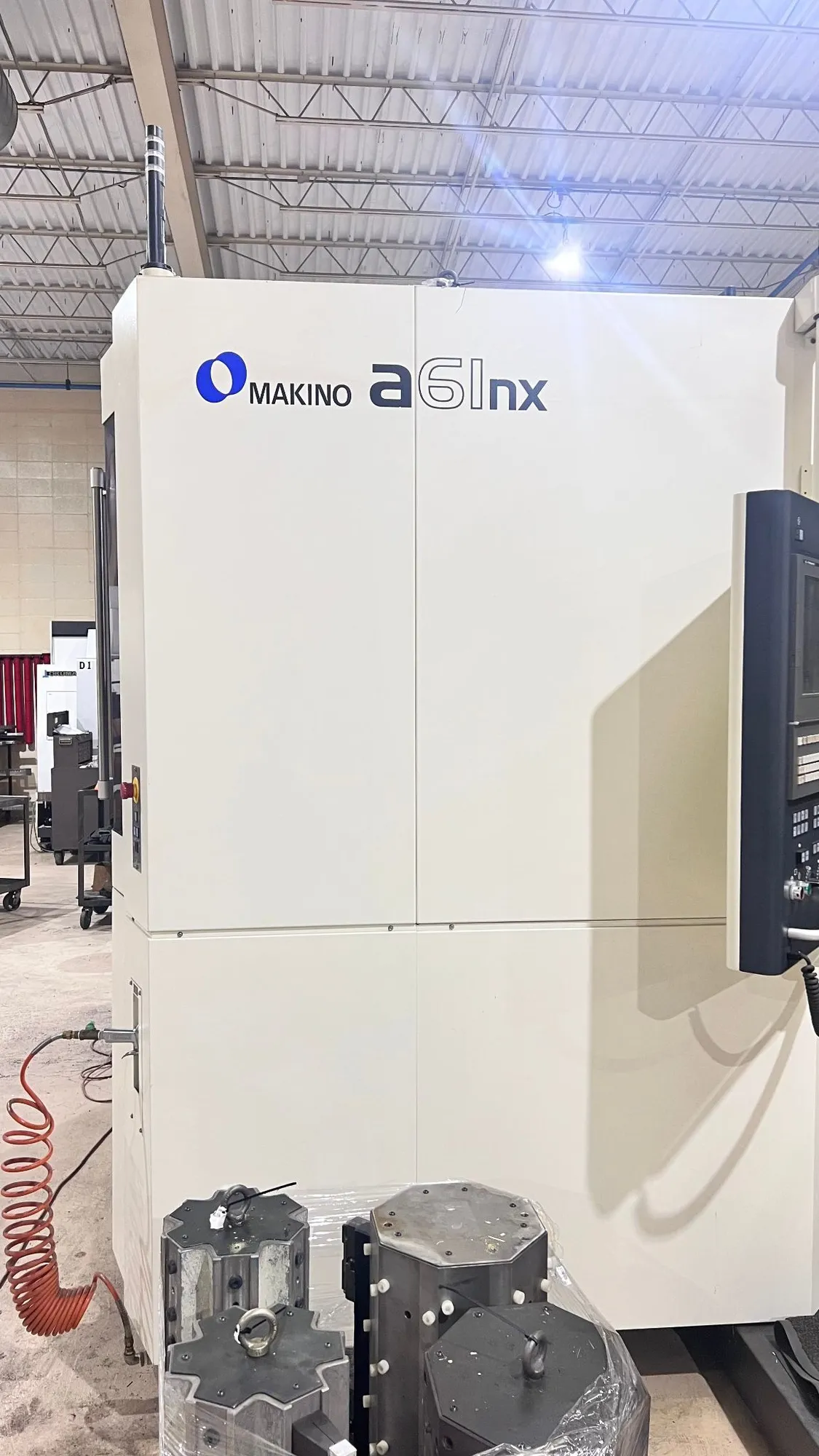

USED 2019 MAKINO A-61-5X

Only 30 Cutting Hours!

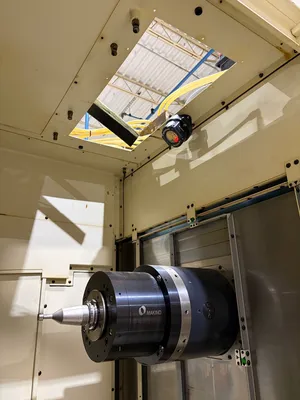

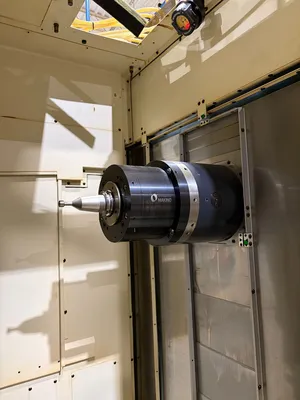

The a61nx is one of Makino’s most capable production HMCs. The 12,000 rpm spindle delivers 223 ft·lb of torque, and the rigid roller-guide structure ensures you can push that power across the full work envelope without compromise. Add 5-axis capability and you’ve got a machine that can handle complex aerospace, automotive, and precision component work in a single setup.

WHAT’S INCLUDED

5-Axis Package Full ax1nx PRO6 5th axis software with Position Switch and Control Axis Detach. SGI.5 contouring parameters for the 5th axis Rotary Work Head — enabling true 5-axis simultaneous contouring.

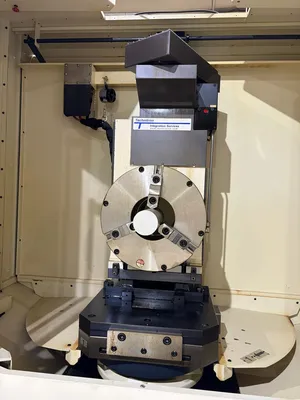

Tsudakoma RTV-304 CA-SB Rotary Table A production-grade rotary table with hydraulic clamping, ±7.5 arc second angular accuracy, 300 lb+ weight capacity, and a 160mm thru bore. Paired with a custom sub plate and riser assembly for optimized center height.

Tilted Working Plane Command Program on a tilted plane using standard X,Y coordinates. Rotary axis motion is automatically controlled — simplifying 5-axis part programming significantly.

Super GI .5 Motion Control Makino’s latest-generation proprietary control algorithm maintains the highest possible feedrates while preserving precise workpiece geometry along the desired cutter path.

Adaptive Control (AC Function) Real-time feedrate optimization based on spindle load. When load exceeds the upper limit, feedrate adjusts automatically — protecting tooling and maintaining consistent cut quality.

Renishaw OMP400 & NC4S Probe System High-accuracy optical strain gauge probe AMS combined with non-contact laser tool measurement. Full in-process measurement capability built in.

GI Motion Control Reduces cycle time and improves part quality through advanced motion optimization functions — standard on every a61nx.

Energy Saving Function Eco Mode standby and Spindle Peak Power Control reduce operating costs over the machine’s full lifecycle.

ALSO INCLUDED

AXISET CHECKUP Software for rotary axis calibration
Workpiece wash gun (stocker & operator side)
2-week applications engineering startup assistance
Eight-digit tool codes
Custom macro variables (#100–#199 and #500–#1599)
High Speed Skip for faster, more accurate probing
Coordinate system rotation (G68/G60)
Program Quick Restart
Rigid Tapping Retract
Machine standard supplies
