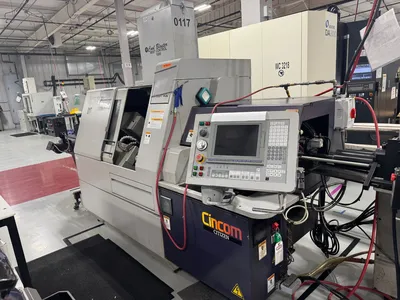

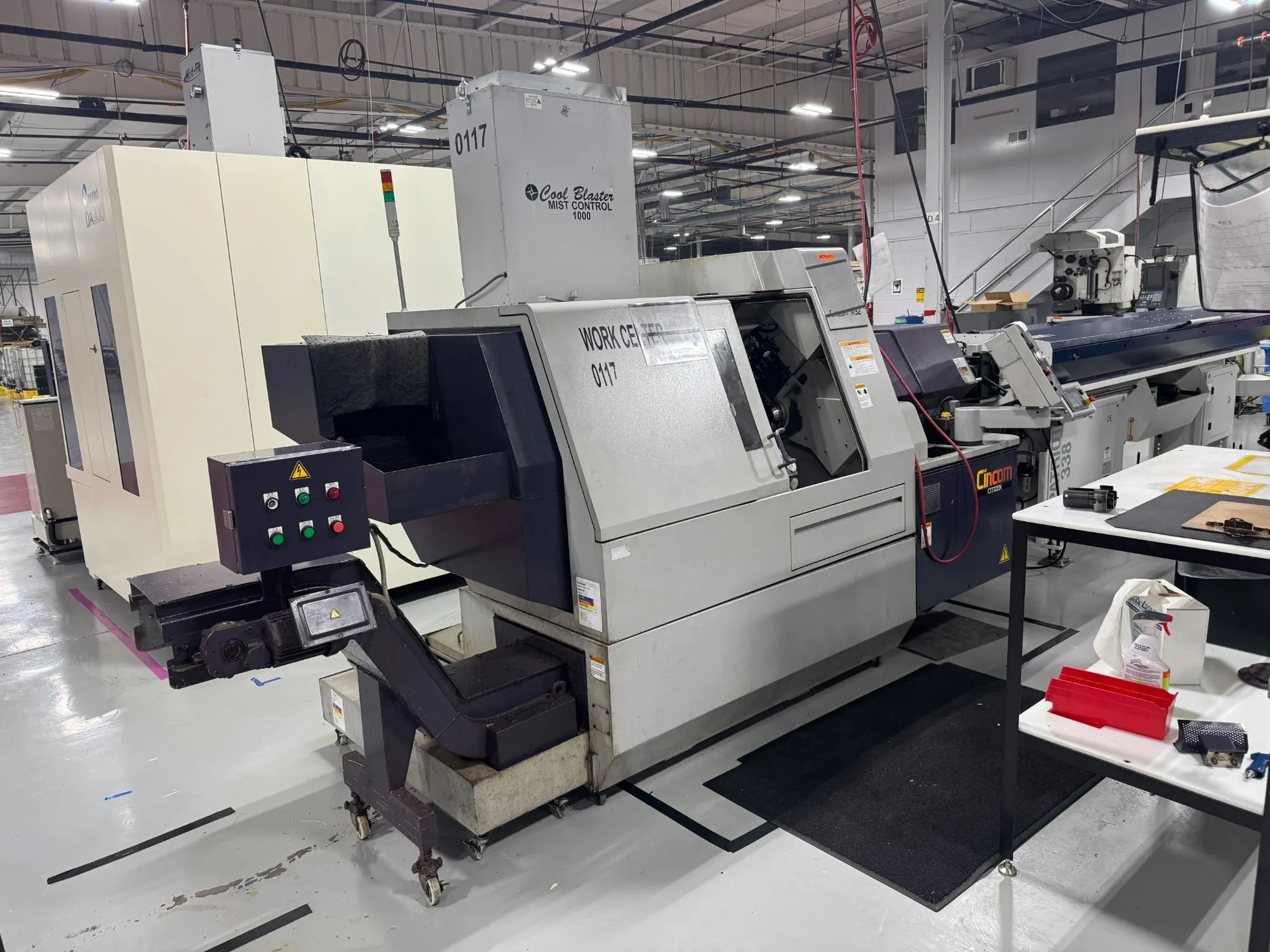

The Citizen Cincom M32 is a high-performance 32mm (optional 38mm) 5-axis Swiss-type CNC lathe designed for complex, high-precision machining with 12 to 15 programmable axes. It features a unique, flexible construction allowing switching between guide bushing and non-guide bushing modes, making it suitable for both long and short parts, typically used in automotive and medical industries
| Max Workpiece Diameter | 1.26" | 32.004 mm |
| Max Workpiece Length | 12.6" | 320.04 mm |
| Max X-Axis Travel | 7.48" | 189.99 mm |
| Max Y-Axis Travel | 4.33" | 109.98 mm |
| Max Z-Axis Travel | 12.6" | 320.04 mm |
| Spindle Hole Dia | 32 mm | 1.2598" |
| RPM | 8,000 RPM | 8,000 RPM |
| Power | 10 hp | 7.5 kW |
| # Axis | 10 | 10 |
| Capacity | 1.26" | 32.004 mm |
| Control | CNC | CNC |
| Dimensions | 130 x 59 x 95 inches | 130 x 59 x 95 inches |
| Weight | 9350 lbs | 9350 lbs |
Specifications:
Maximum Machining Diameter: 32 mm
Maximum Machining Length: 320 mm
Maximum Front Drilling Diameter: 12 mm
Main Spindle Speed: 8,000 RPM
Maximum Length of Back Spindle Workpiece: 145 mm
Rapid Feed Rate:
-X1, Y1, Z1, Z2, & Z3: 32 m/min
-X2: 18 m/min
-Y2: 12 m/min
Front Spindle Drive Motor: 5.5/7.5 kW
Back Spindle Drive Motor: 5.5/7.5 kW
Main Machine Unit Dimensions: 130" x 59" x 95"
Approximate Machine Weight: 9,350#

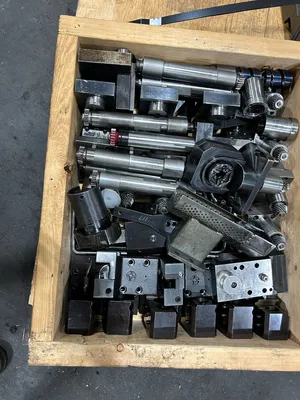

Large Assortment of Tooling and Perishables
Chip Conveyor

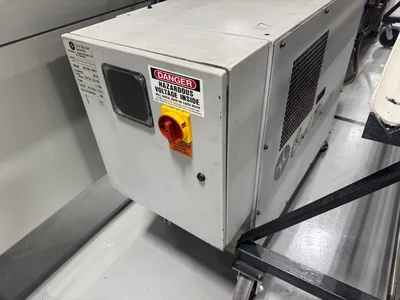

High Pressure Coolant
Mist Collector
