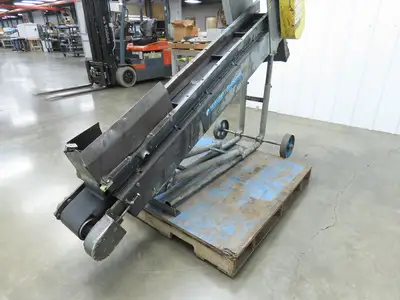

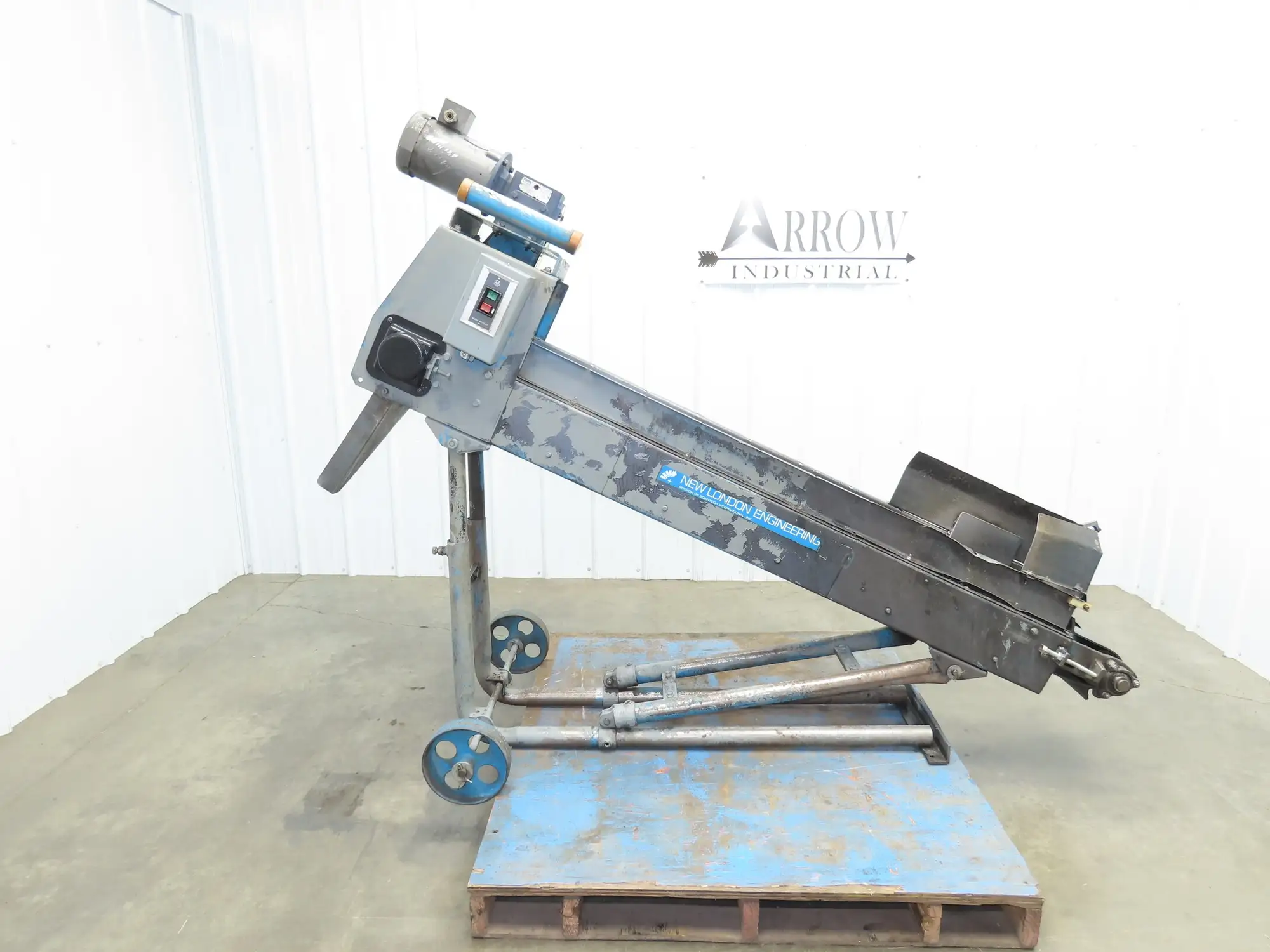

New London Engineering 500-6-6' Incline Parts Conveyor 6" Cleated Belt 3PH 82"L

Condition: In good working condition. Tested.

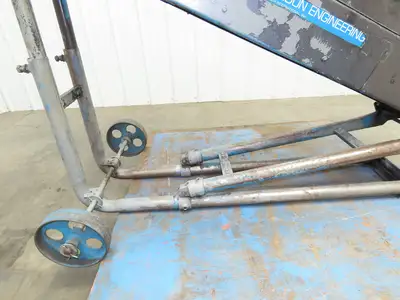

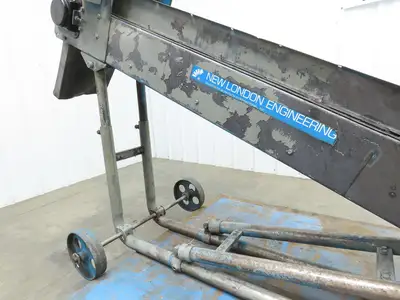

Set-Up: Adjustable incline conveyor on steel tube frame with front wheels. 28" Wheel base width.
Drive Type: Chain drive

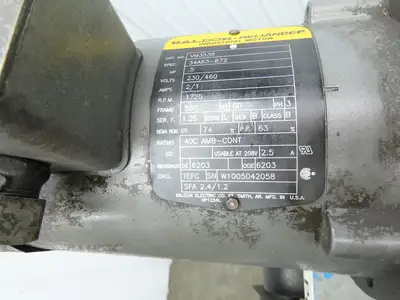

Motor & Gearbox: 1/2Hp 230/460V 3PH Motor 15:1 Gearbox. 9-1/2" of clearance under motor mount frame.
Bed Length: 80" Overall bed length, 72" length of bed with infeed chute.
Frame Width: 11"
Frame Height: 6-1/2" + 3-1/2" sides
Bed Width: 6-1/4" (Max Conveying width)
Belt Width: 6"
Belt Speed: 60 FPM
Bed Height (From Floor): Discharge chute is adjustable 28"-36" as pictured conveyor is set at lowest height. Height is adjustable.

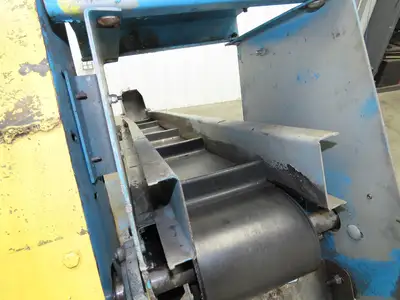

Belt Surface (Type) and Condition: Rubber belt with 1-1/2" cleats spaced 12" apart.
Overall Length: 83"
Voltage tested and wired for:: 460
Skirting, Guard Rail Height: 3-1/2"
