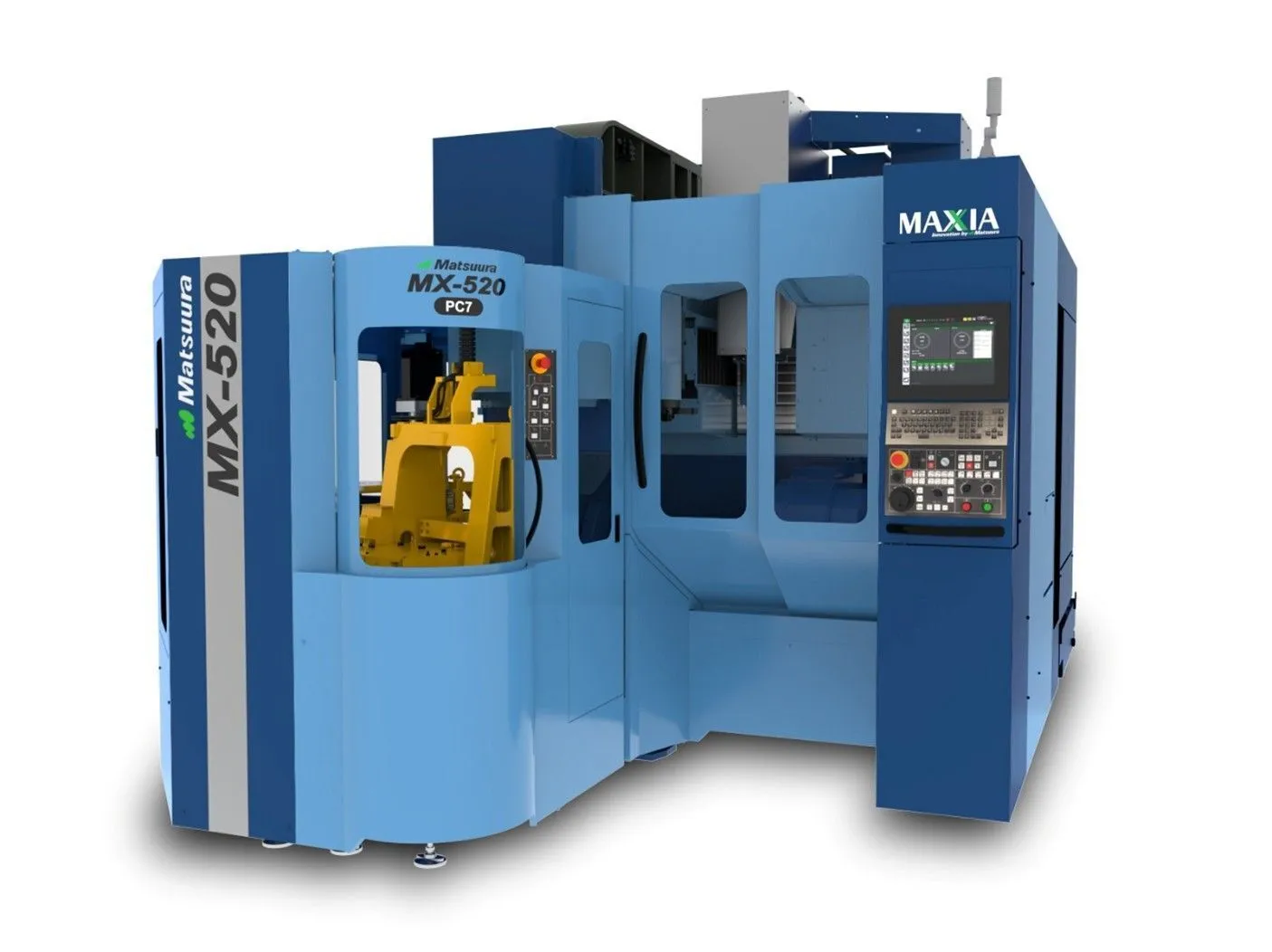

NEW MATSUURA MX-520 PC7

SPINDLE OPTIONS
15,000 RPM CAT#40 GREASE LUBRICATED SPINDLE WITH COVER
INCLUDES 2 YEAR WARRANTY ON ALL SPINDLE COMPONENTS

TOOL OPTIONS
90 TOOL CHAIN

PALLET CHANGER OPTIONS
7 PALLET CHANGER W/ INCH PALLETS
PC7 MANUAL PALLET ROTATION AT WORK STATION\

PROBING OPTIONS
SPINDLE PROBE – RENISHAW OMP-400
LASER TOOL SETTER – RENISHAW NC4 BLUE

MACHINE OPTIONS
8 SETS OF EXTRA M-FUNCTIONS
FOR 3RD PARTY OPTION INTEGRATION – INCLUDES RELAY BOARD

SCALE FEEDBACK FOR (X,Y,Z) AXIS/ HEIDENHAIN SCALE
ROTARY SCALES ARE STANDARD

AIR BLOW FOR CHIP SWARF REMOVAL

ENVIRONMENTAL THERMAL DISPLACEMENT COMPENSATION

3 COLOR PATROL LIGHT
RED, YELLOW, GREEN

AIR DRIVEN ROTARY WIPER ON OPERATOR WINDOW

WEEKLY TIMER
ALLOWS FOR AUTOMATIC SHUT-DOWN & AUTO START-UP WITH SPINDLE WARM UP

COOLANT OPTIONS
PREPARATION FOR 1,000 PSI THROUGH SPINDLE COOLANT WITH VACUUM FUNCTION
NO PUMPS—PREP ONLY

PREPARATION FOR MIST COLLECTOR

SOFTWARE OPTIONS

SPINDLE LOAD MONITORING FUNCTION

ALLOWS AN OPERATOR TO TEACH REFERENCE TORQUE VALUES FOR THE FEED AND SPINDLE AXIS FOR A NEW TOOL. WHEN A TOOL REACHES A WARNING LEVEL THE OPERATOR IS NOTIFIED. IF THE TORQUE VALUES REACH ANOTHER LIMIT THE MACHINE IS HALTED.

TOOL PRE-CHECK FUNCTION
THE CONTROL DETERMINES A LIST OF REQUIRED TOOLS FOR THE NEXT PALLET PROGRAM AND ENSURES THAT THE CORRECT TOOLS ARE AVAILABLE BEFORE BEGINNING TO CUT.

3D MODEL OF WORK ENVELOPE IN STL/IGES/STEP FORMAT

EZ-5 V2 W/ CALIBRATION BALL
SPINDLE PROBE REQUIRED

OPERATION STATUS MONITORING FUNCTION

CONVEYOR OPTIONS
MOSNIC RD-3C CHIP CONVEYOR WITH DRUM FILTER
FILTERS CHIPS DOWN TO 50 MICRONS IN SIZE

FANUC PACKAGES
MMU VALUE PACKAGE
o TOOL OFFSET PAIRS 999-PAIRS
o ADDITION OF WORKPIECE COORDINATE SYSTEM 300-PAIRS
o OPTIONAL BLOCK SKIP 9
o QUICK PROGRAM RESTART
o COORDINATE SYSTEM ROTATION
o TOOL LIFE MANAGEMENT
o PART PROGRAM STORAGE SIZE 8 MEGABYTES
o HIGH-SPEED SKIP
o COMMON VARIABLE EXPANSION (#100-#199/ #500-#999)

HIGH SPEED/ HIGH PRECISION PACKAGE + 5 AXIS PACKAGE
o IZ-2/150NF
o SMOOTH TOLERANCE CONTROL
o HIGH SPEED SMOOTH TCP
o OPTIMAL TORQUE ACCELERATION & DECELERATION
o DATA SERVER PACKAGE WITH ETHERNET CONNECTIVITY AND 4 GIGABYTE OF PROGRAM STORAGE
o LARGE CAPACITY MEMORY (16 GB SSD)
o TILTED WORK PLANE COMMAND
o 3-DIMENSIONAL COORDINATE SYSTEM CONVERSION
o 3-DIMENSIONAL MANUAL FEED
o MANUAL INTERRUPTION OF 3-DIMENSIONALCOORDINATE
o RETRACTION OF 3-DIMENSIONAL RIGID TAPPING
o 3-DIMENSIONAL ROTARY ERROR COMPENSATION
o 3-DIMENSIONAL CUTTER COMPENSATION
o WORK SET-UP ERROR COMPENSATION
o INVERSE TIME FEED
