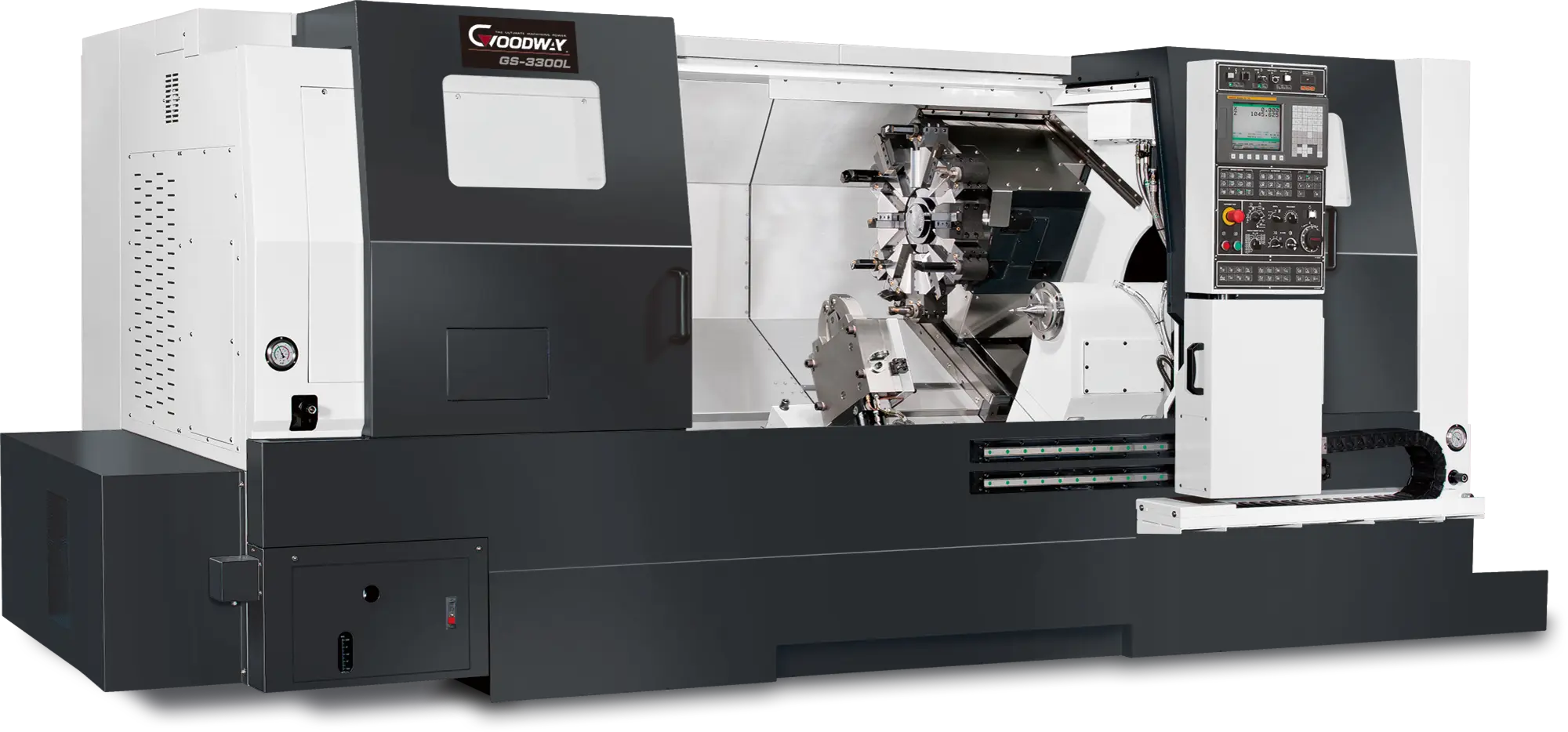

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GS Series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
* 30°low center gravity slant bed ensures high rigidity of GS-3000 series.
* X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
* Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
* X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
* 12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
* High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
| Max Swing Diameter | 700 mm | 27.559" |
| Swing Over Saddle | 800 mm | 31.496" |
| Max Turning Diameter | 440 mm | 17.323" |
| Max Turning Length | 1,475 mm | 58.071" |
| Standard Chuck Size | 12" | 304.8 mm |
| Standard Bar Capacity | 90 mm | 3.5433" |
| Hole through spindle | 101 mm | 3.9764" |
| Spindle Bearing Diameter | 140 mm | 5.5118" |
| Spindle Nose | A2-8 | A2-8 |
| Spindle Drive System | Direct Belt Drive | Direct Belt Drive |
| Spindle Speed | 3,000 RPM | 3,000 RPM |
| Motor Output | 18.5 kW | 24.8 hp |
| Z-Axis Travel | 780mm | 780mm |
| X-Axis Travel | 300mm | 300mm |
| X/Z Axis Rapids | 30 | 30 |
| Live Tooling Station | 12 | 12 |
| O.D Tool Shank Size | 25 mm | 0.9843" |
| I.D Tool Shank Size | 40 mm | 1.5748" |
| Live Tooling RPM | 4,000 RPM | 4,000 RPM |
| CN Control | Mitsubishi M80 | Mitsubishi M80 |
**Please see attached brochure for the complete specification of the machine.
MITSUBISHI M80 CN CONTROL
BOX GUIDWAYS ON ALL AXES
12" 3 JAWS CHUCK WITH ONE SET EA. SOFT & HARD JAWS
CS-AXIS WITH DISK BRAKE ON MAIN SPINDLE
GOODWAY 12 STATION LIVE TOOLIGN TURRET (4.5KW, ER32)
- CLAMPING PIECE (CV-3045/CV-3046, 7PCS OF EACH)
- CUT OFF TOOL HOLDER (CB-4797) X 1 PC
- OD TOOL HOLDER (LF-3195) X 6 PCS
- FACING TOOL HOLDER (LF-3197) X 1 PC
- ID TOOL HOLDER (LF-3191) X 6 PCS
- DRILL SOCKET (CJ-3010/ CJ-3011) MT2/ MT3 X 1EA
- BORING BAR SLEEVE (CJ-3014A/B/C) DIA. 20/25/32 MM X 1 EA
- BORING BAR SLEEVE (CJ-3016C/D/A/B) DIA. 8/10/ 12/ 16 MM X 1EA
2 PCS X 0° LIVE TOOL HOLDER ER-32/EC QUICKFLEX
2 PCS X 90° LIVE TOOL HOLDER ER-32/EC QUICKFLEX
MANUAL STEADY REST HALF MOON TYPE (Ø 30~Ø180MM)
LIVE CENTER FOR TAIL STOCK MT5
RENISHAW TOOL SETTER (FOR MAIN SPINDLE) HPRA
ALLCOOL MB500 COOLANT PUMP (35BAR/500PSI)
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH GRUNDFOS 3/4 HP COOLANT PUMP
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
