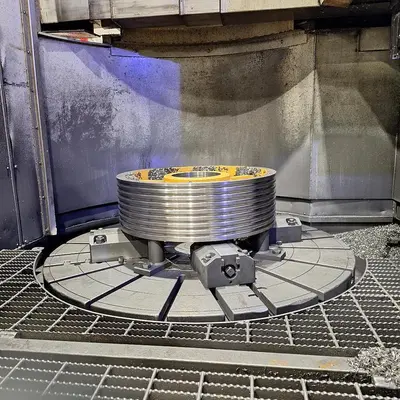

USED 2011 YOU-JI YV1200 ATC REMOTE JOG HANDLE, CHIP CONVEYOR
Overview
49.21" 4 Jaw Chuck
32" 3-Jaw Chuck
Remote Jog Handle
Chip Conveyor
16 Station Tool Changer
RS 232 Port Interface
Miscellaneous Tooling
All Available Manuals
220V 65KVA

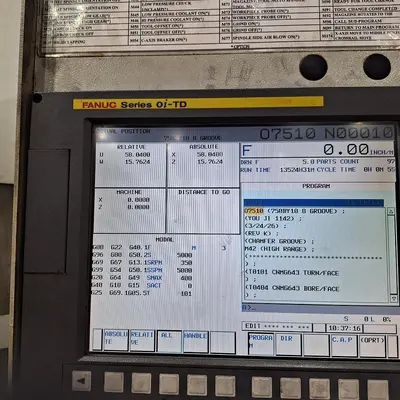

**Run Time Hours 13,524**

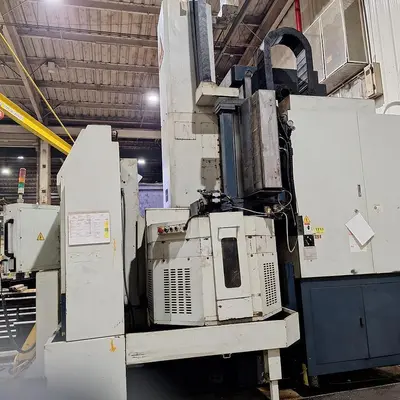

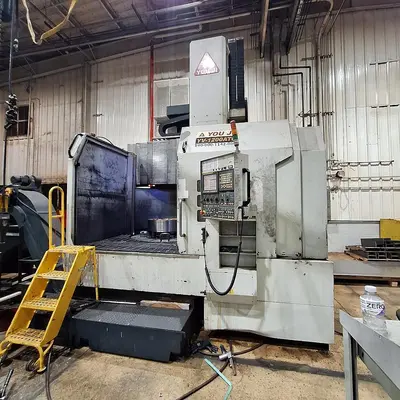

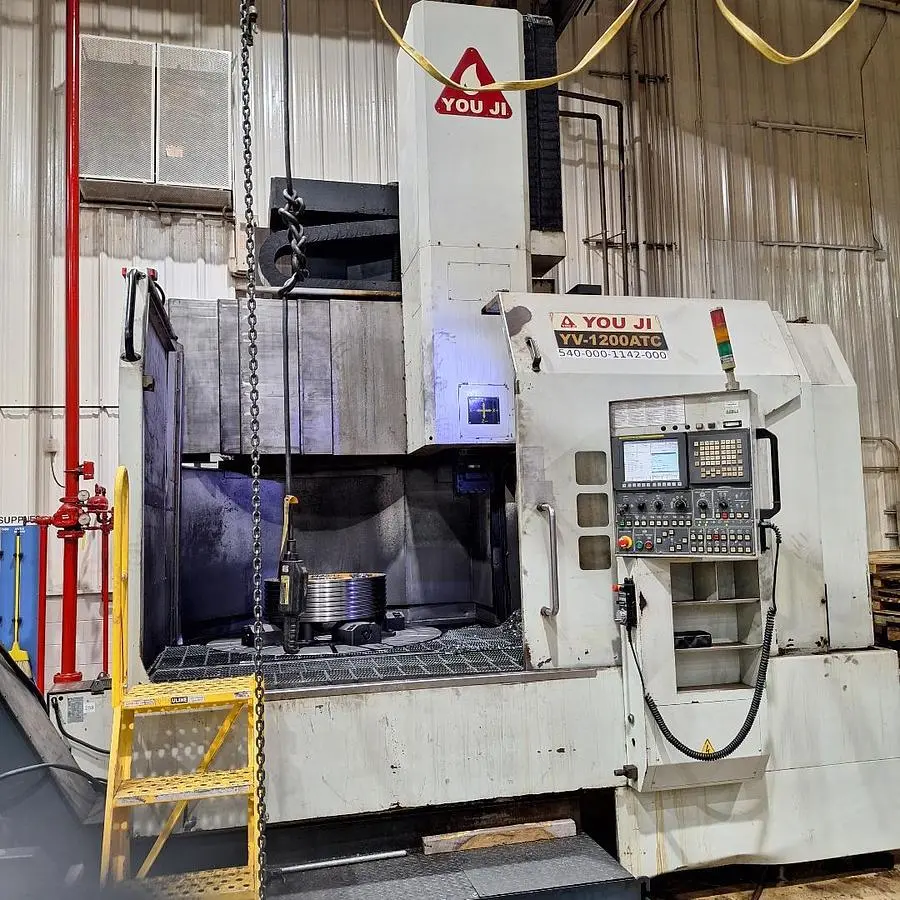

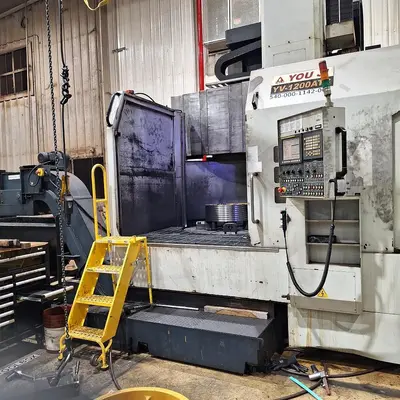

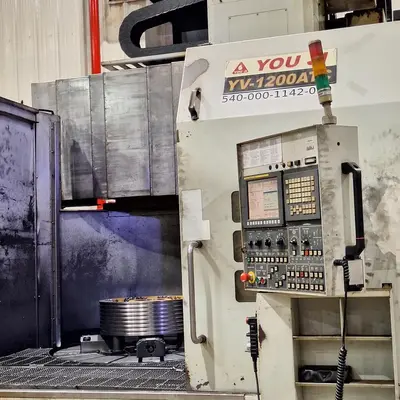

This 2011 You-Ji YV1200 ATC CNC vertical boring mill is equipped with a Fanuc 0i-TD control system, ensuring accurate and efficient operations. It features a 49.21" table diameter capable of handling a maximum load of 11,023 lbs. The maximum swing is 63", with a turning diameter reaching up to 53.15" and a turning height of 47.2", offering substantial capacity for large workpieces.
The machine boasts X-axis travel of 36.81", Z-axis travel of 35.43", and cross rail travel of 29.5", providing flexibility for various machining requirements. It operates at table speeds ranging from 2 to 350 RPM, powered by a 60 HP motor with a two-speed geared transmission for optimal performance. Cutting feed rates range from 0.03 to 78.74 inches, and the rapid traverse rates are 472 IPM for the X-axis and 393 IPM for the Z-axis.
Additionally, this model includes a remote jog handle and a chip conveyor, enhancing operator convenience and machine cleanliness. The overall dimensions of the machine are 157" by 236", weighing in at a substantial 51,000 lbs., indicating its robust build. The You-Ji YV1200 is an excellent choice for industries requiring reliable and precise vertical boring operations.
Specs

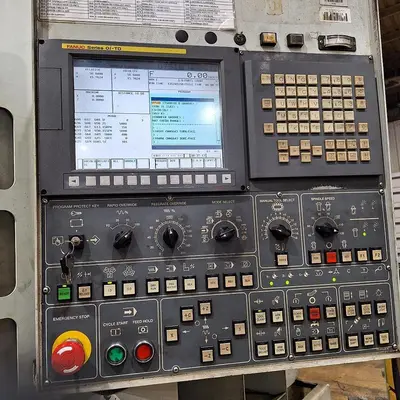

Control: Fanuc 0i-TD
Table Diameter: 49.21"
Maximum Swing: 63"
Maximum Table Load: 11,023 lbs.
Maximum Turning Diameter: 53.15"
Maximum Turning Height: 47.2"
X-Axis Travel: 36.81"
Z-Axis Travel: 35.43"
Cross Rail Travel: 29.5"
Table Speed: 2 - 350 RPM
Table Motor: 60 HP
Transmission: 2 Speed Geared
Cutting Feedrates: .03 - 78.74"
Rapid Traverse Rates X/Z: 472 IPM / 393 IPM
Machine Dimensions: 157" x 236"
Machine Weight: 51,000 lbs.
