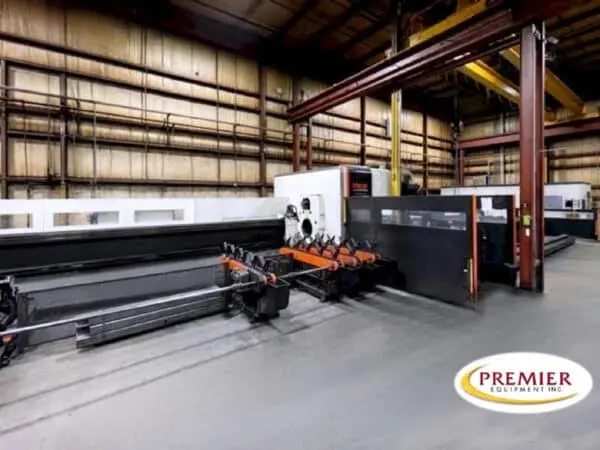

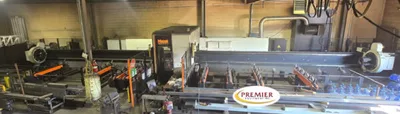

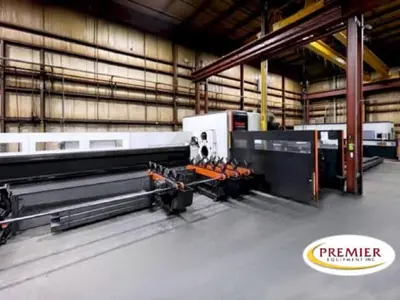

Mazak 3D Fabri-Gear 400 II 4000 Watt C02 Laser – 2016
Overview
Description
Mazak 3D Fabri-Gear 400 II (8m in 8m out) 4000 Watt CNC Laser
Specifications
Workpiece Shape: Round, Square, LHI Beam and Channel
Workpiece Material: Mild Steel / Stainless Steel
Workpiece Diameter
Round Pipe: .79” – 16”
Squre Pipe: .79” x .79” – 10” x 10”
H/I Beam: .79” x .79” – 11.81” x 11.81”
Channel: .79” x .79” – 11.81” x 5.51”
Max Material Length for Loading: 314.96”
Min Material Length for Loading: 135.83”
Max Workpiece Weight: 1764 lbs
Stoke
X Chuck Left / right: 346”
U Chuck Left / right: 366”
V Chuck Left / right: 99”
Y Head back / forth: 50”
Z Head up / down: 14.57”
A Head Rotation: +/- 000000.999 deg
B Head Swing: +/- 135 deg
Rapid Traverse Rates X U V Y Z: 1181, 1181 , 1181, 945, 945 IPM
Machine Weight: 77,160 lbs
Equipped With
Mazak FX CNC Control
3D Fabri-Gear 400 II 8m in 8m out, 4,000 watt C02 laser
Touch Probe
Regulator Start Up Kit
Additional Loading System
Tapping Unit
Automatic Material Measurement Function
Small Diameter Work Support Jaws
Weld Seam Detector (mechanical type)
Machine Operator Training for three individuals total (2 included with machine)
Robovent dust collector
Hopper, short legs & 20 gallon drum
Premium Fire Suppression
Mazak FX Tube
