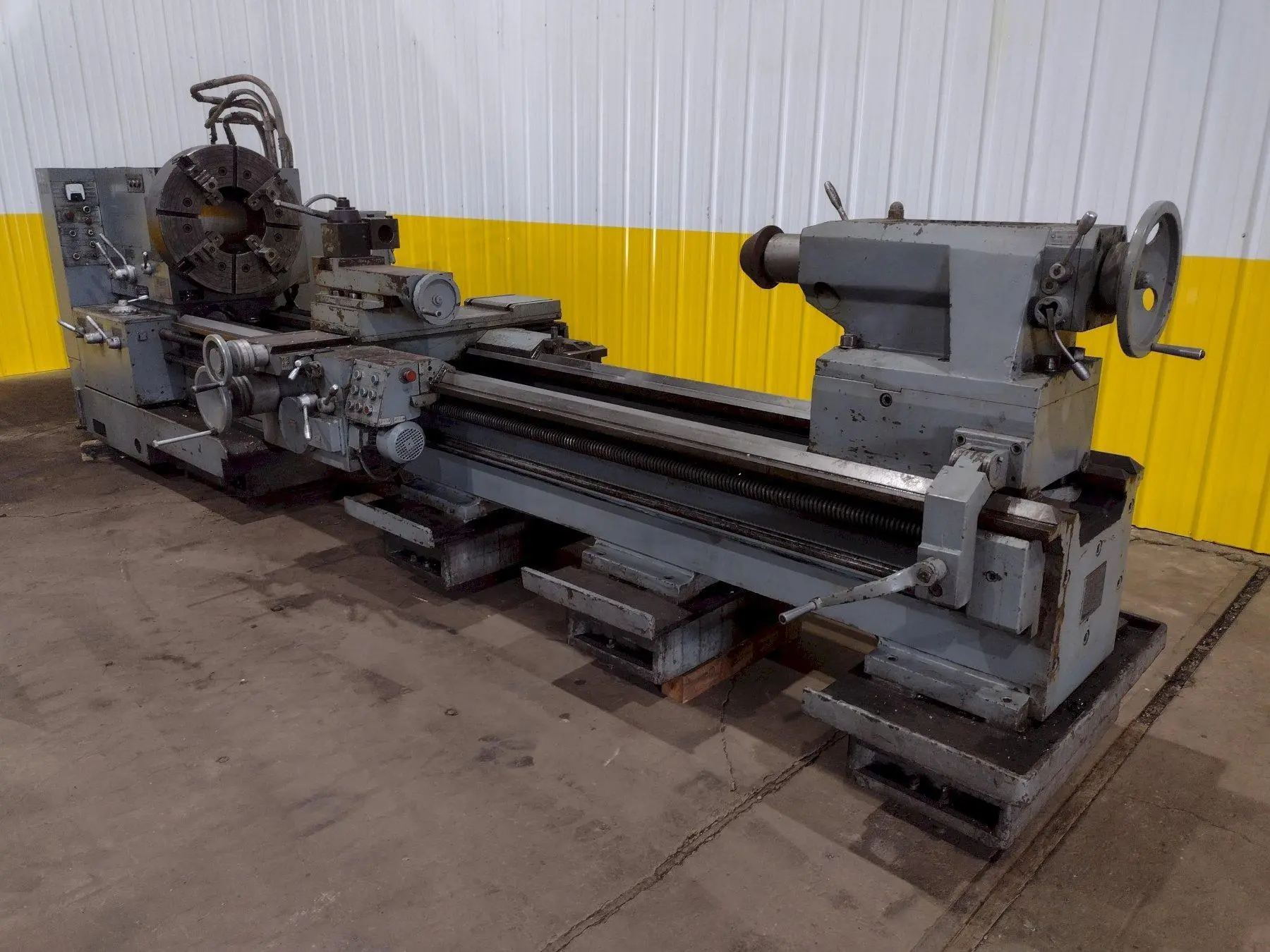

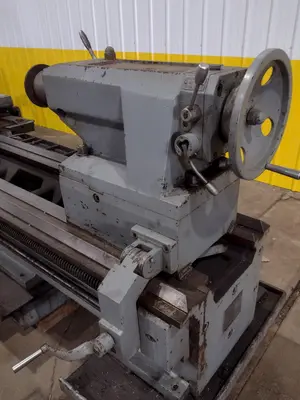

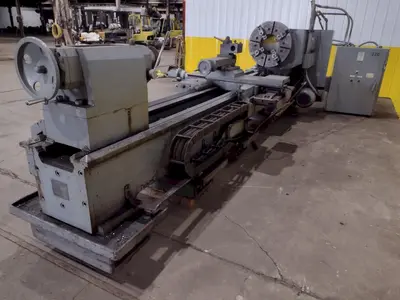

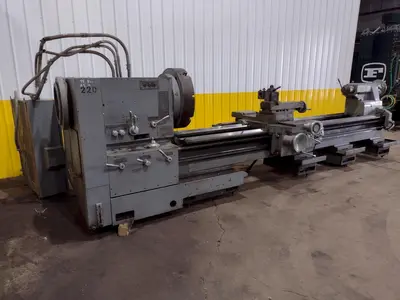

USED POREBA TPK-90/3M

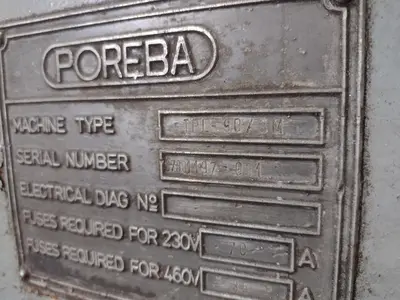

Serial ...................... 0781197-031
Model ....................... TPK-90/3M
Swing Over Bed .............. 38"
Swing Over Carriage ......... 25-1/2"
Distance Between Centers .... 120"
*** Spindle Hole *** ........ 12 1/2"
Spindle Nose ................ A1-20"

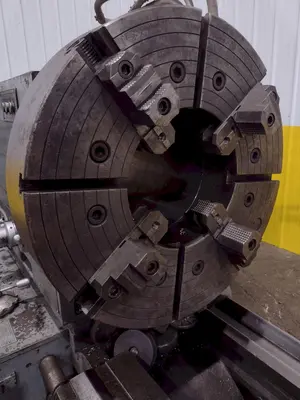

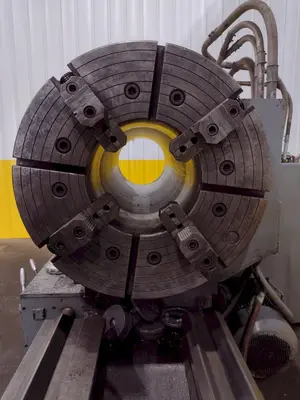

Chucks, Front & Rear ........ 28" - 4-Jaw
Spindle Speeds .............. (18) 5 - 250 RPM

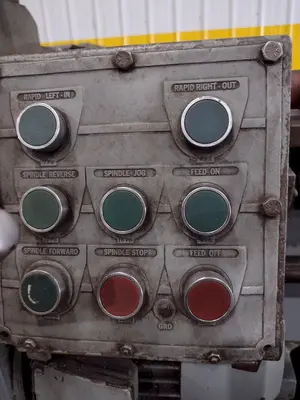

Spindle Jog Button .......... Yes, Forward & Reverse
Longitudinal Feeds, U.S ..... .0043 - .248 IPR
Cross Feeds, U.S. ........... .0021" - .124 IPR

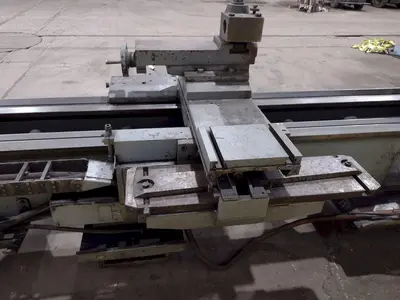

Cross Slide Travel .......... 18-1/2"
Top Slide Travel ............ 11-3/4"
Threads, Inch ............... (54) 1/2 - 16 TPI
Threads, Metric ............. (72) 1 - 60 mm
Threads, D.P. ............... 1 - 60
Threads, Modular ............ .25 - 15 mm
Steady Rest ................. Yes
Taper Attachment ............ Yes
Four Way Rapid Traverse ..... Yes
Coolant ..................... Yes
Hardened and Ground Ways .... Yes
Main Motor .................. 30 HP

Brand
POREBA
Type
Lathes, Engine
Stock No.
18538
