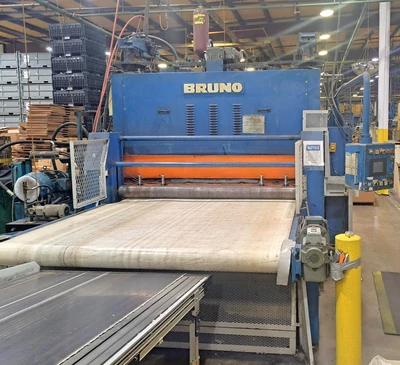

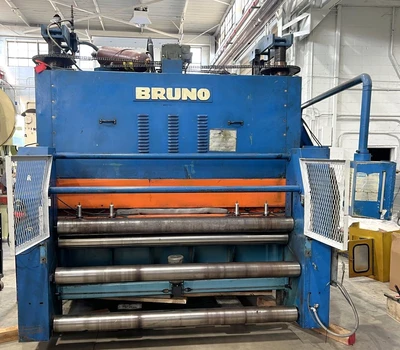

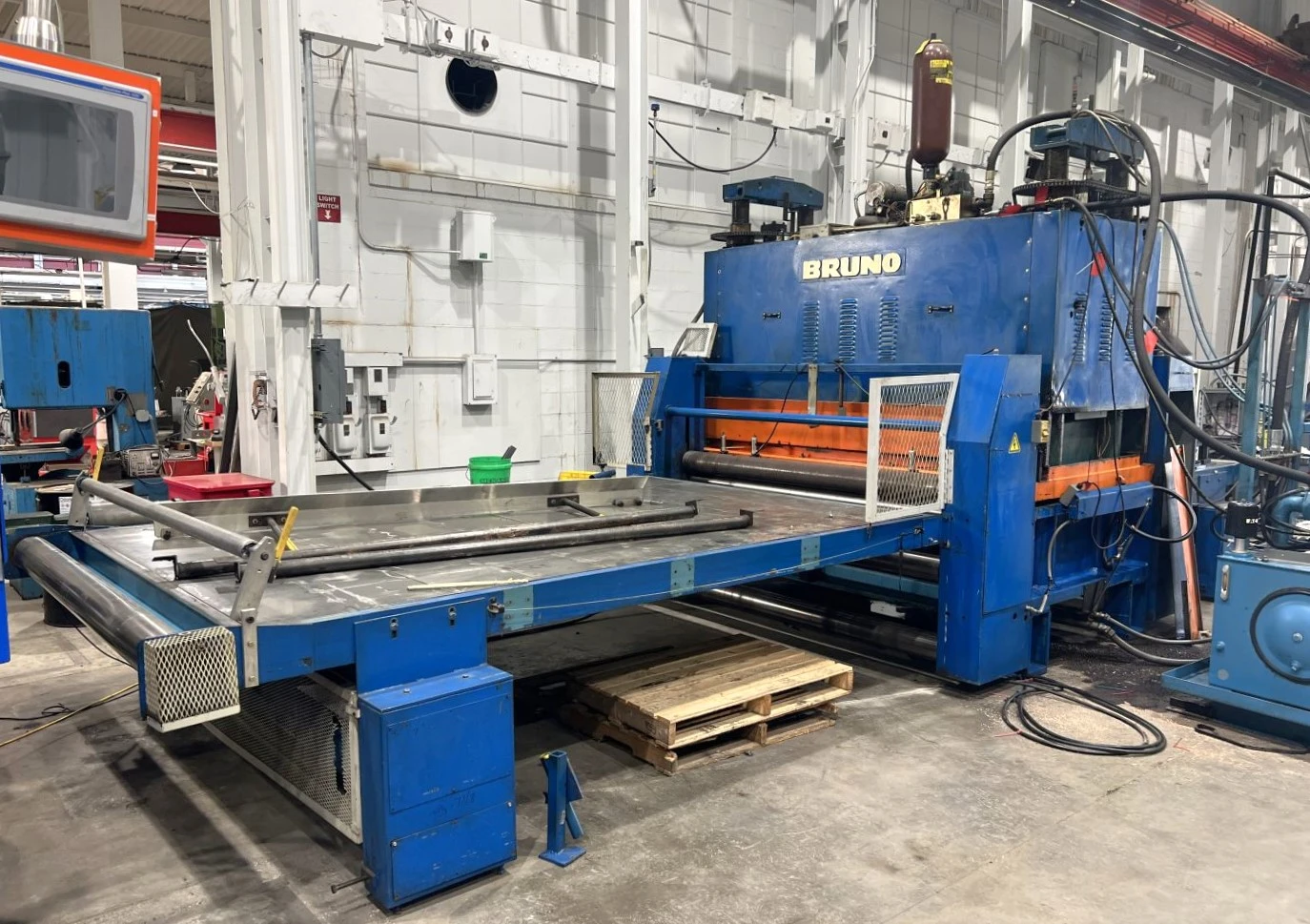

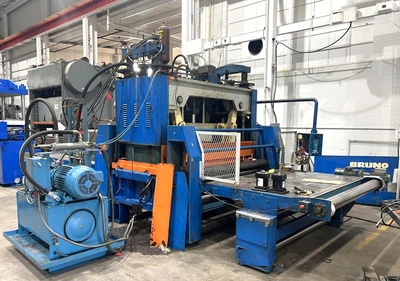

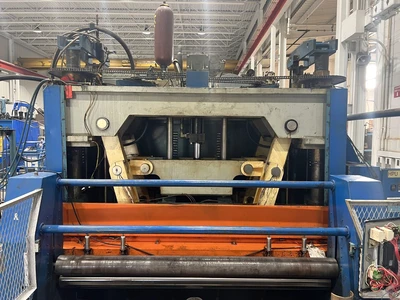

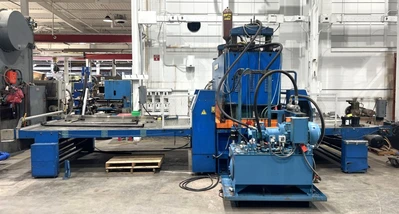

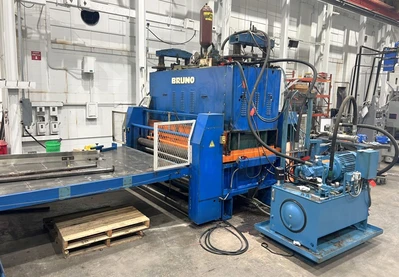

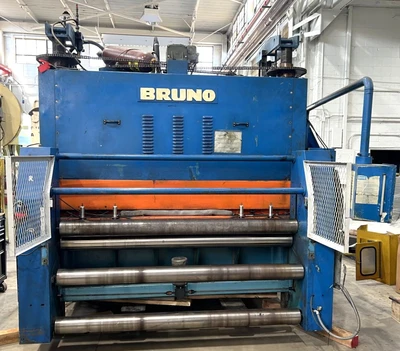

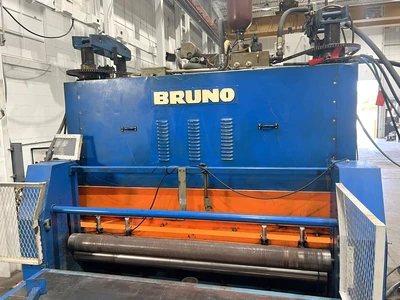

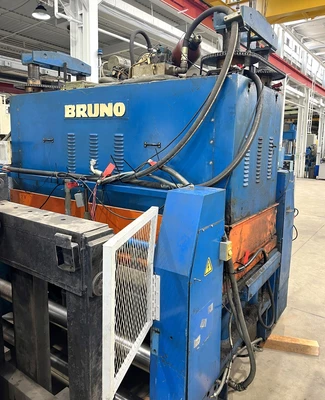

USED 1997 BRUNO BRUNO FH350 PRESS
Overview
Description
6" Stroke, 9" Max. Daylight, 80" x 48" Cutting Area, 15 SPM Speed, Crosshead / Toggle Link Design
Specifications
| Dimensions | 135" X 60" (RL X FB) X 164" HIGH | 135" X 60" (RL X FB) X 164" HIGH |
|---|---|---|
| Weight | 36,000 LBS WITH MATERIAL FEED CONVEYOR | 36,000 LBS WITH MATERIAL FEED CONVEYOR |
CAPACITY: 350 TONS WITH CROSSHEAD LINK / TOGGLE LINK DESIGN
MAX. STROKE: 6"
MAX. DAYLIGHT: 9"
BED & RAM AREA: 80" X 48" (RL X FB)
DESIGNED CUTTING AREA: 80" X 48" (RL X FB)
BELT FEED: 80" WIDE - 173" LONG ON ONE SIDE / 98" LONG ON OTHER SIDE
SPEED: 15 STROKES / MIN FEEDING 48"
SPEED OF POWERHEAD ADJUSTMENT: 1" PER MINUTE
FLOOR TO BED HEIGHT: 37"

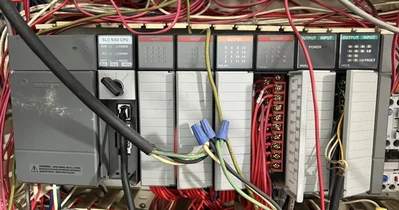

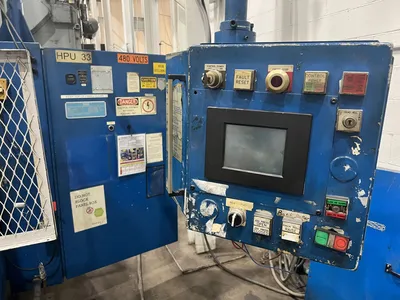

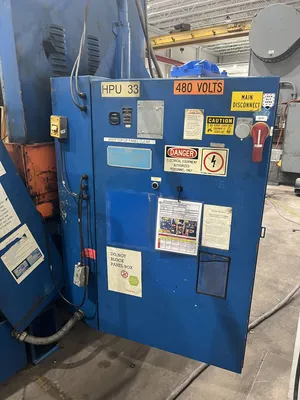

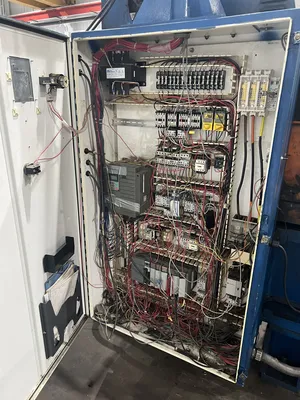

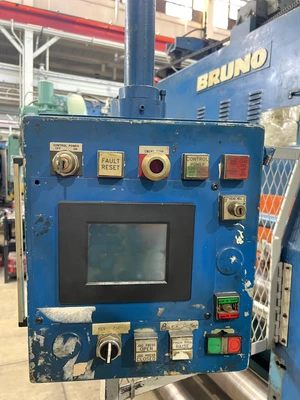

PRESS CONTROLS: ALLEN-BRADLEY SLC 5/03 CONTROLLER

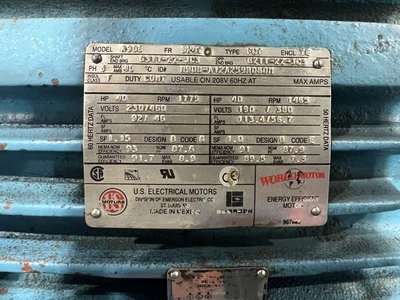

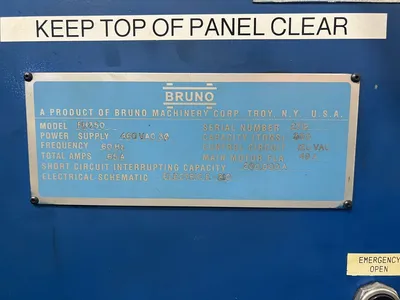

ELECTRIC MOTOR: 40 HP 230/460V-3-60 MOTOR | 92/46 AMPS | (65 TOTAL AMPS AT 460V)

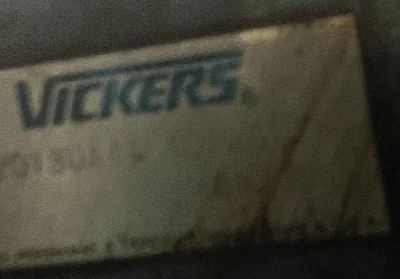

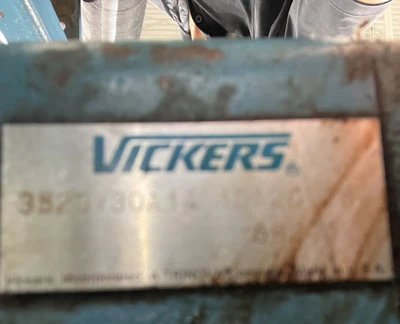

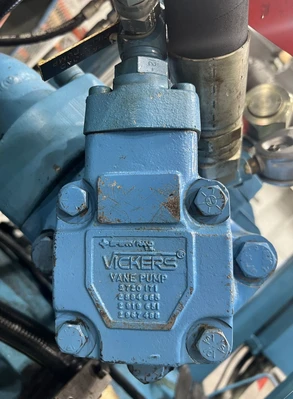

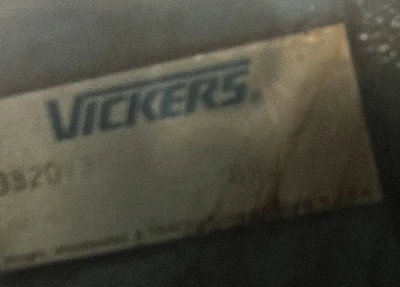

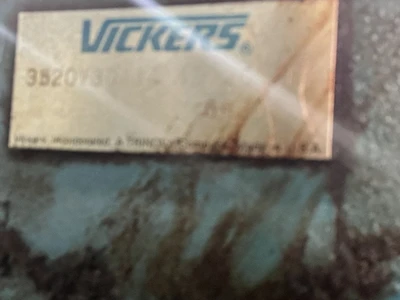

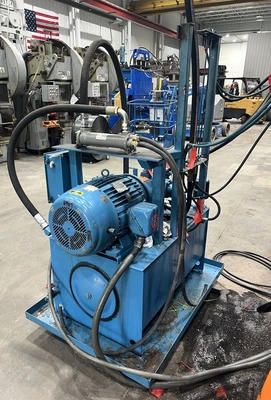

HYDRAULIC UNIT: VICKERS DOUBLE VANE PUMP 3520V30A2-1CC-22R
HYDRAULIC OIL: 80 GALLON HYDRAULIC RESERVOIR - AW-46 TYPE OIL RECOMMENDED
MATERIAL FEED CONVEYOR DIM 1: 116" X 173" (RL X FB) X 70" HIGH
MATERIAL FEED CONVEYOR DIM 2: 116" X 98" (RL X FB) X 70" HIGH
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
Equipped With

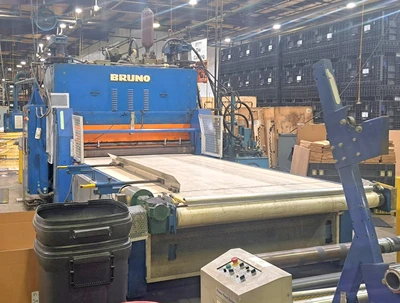

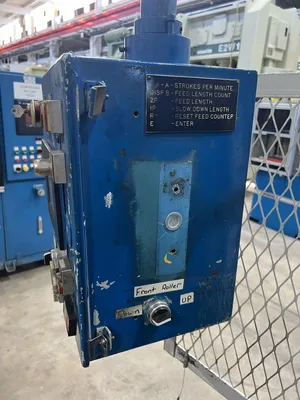

80" WIDE MATERIAL FEED CONVEYOR WITH PHOTO EYE, AIR CUTTING PLATE LIFT MECHANISM FOR CUTTING STEEL ON STEEL, WARNER PHOTO EYE FOR SHEET FEEDING (SOLD AS-IS)
