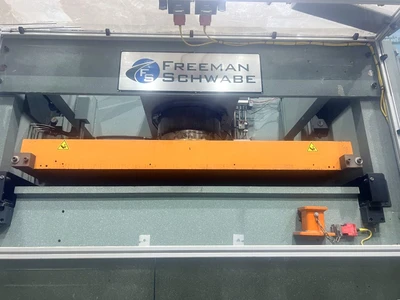

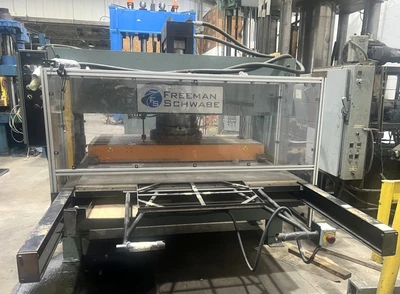

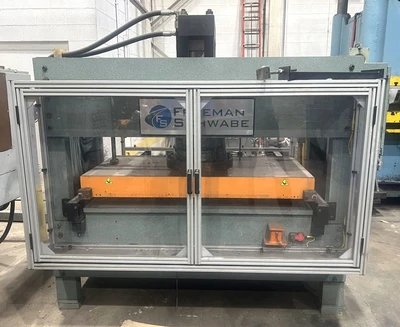

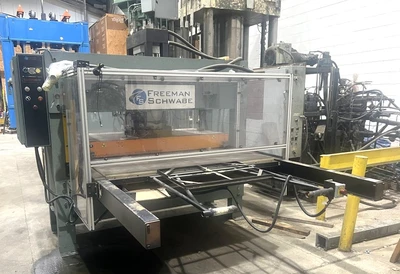

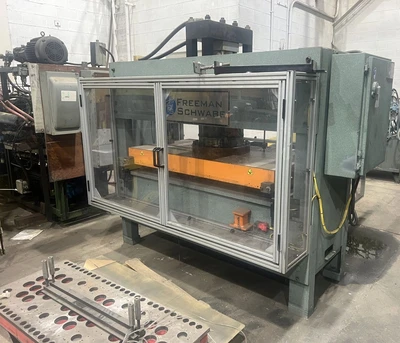

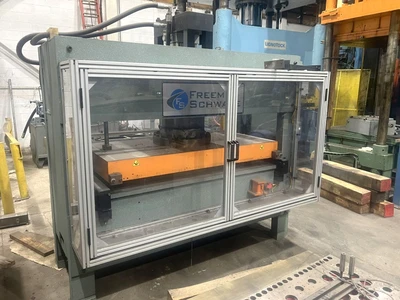

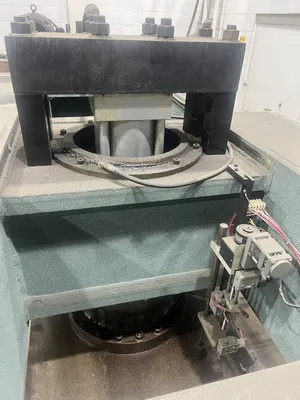

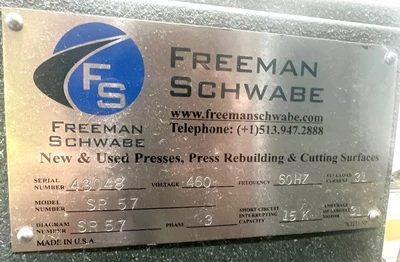

USED FREEMAN SCHWABE FREEMAN SCHWABE SR-57 PRESS
Overview
Description
6" Stroke, 0" to 6" Daylight with Shuttle Table, 2" to 8" Without, Allen-Bradley Controls, Digital Display
Specifications
| Dimensions | 96" X 77" (RL X FB) X 90" HIGH | SHUTTLE TABLE ADDS 39" SO LENGTH IS 116" | 96" X 77" (RL X FB) X 90" HIGH | SHUTTLE TABLE ADDS 39" SO LENGTH IS 116" |
|---|
max. capacity: 57 TONS
max. stroke: 6"

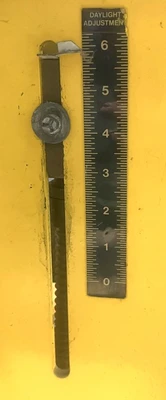

max. daylight: 2" TO 8" TOTAL / 0" TO 6" TO CUTTING BOARD
BED AREA: 62" X 32" (RL X FB)
DISTANCE BETWEEN UPRIGHTS: __
max. die cutting area: 62" X 32" (RL X FB)

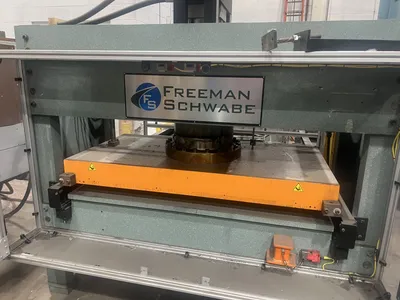

RAM / SLIDE AREA: 62" X 32" (RL X FB)
FLOOR TO CUTTING LEVEL HEIGHT: 32" TO BED / 33.25" TO TOP OF SHUTTLE TABLE

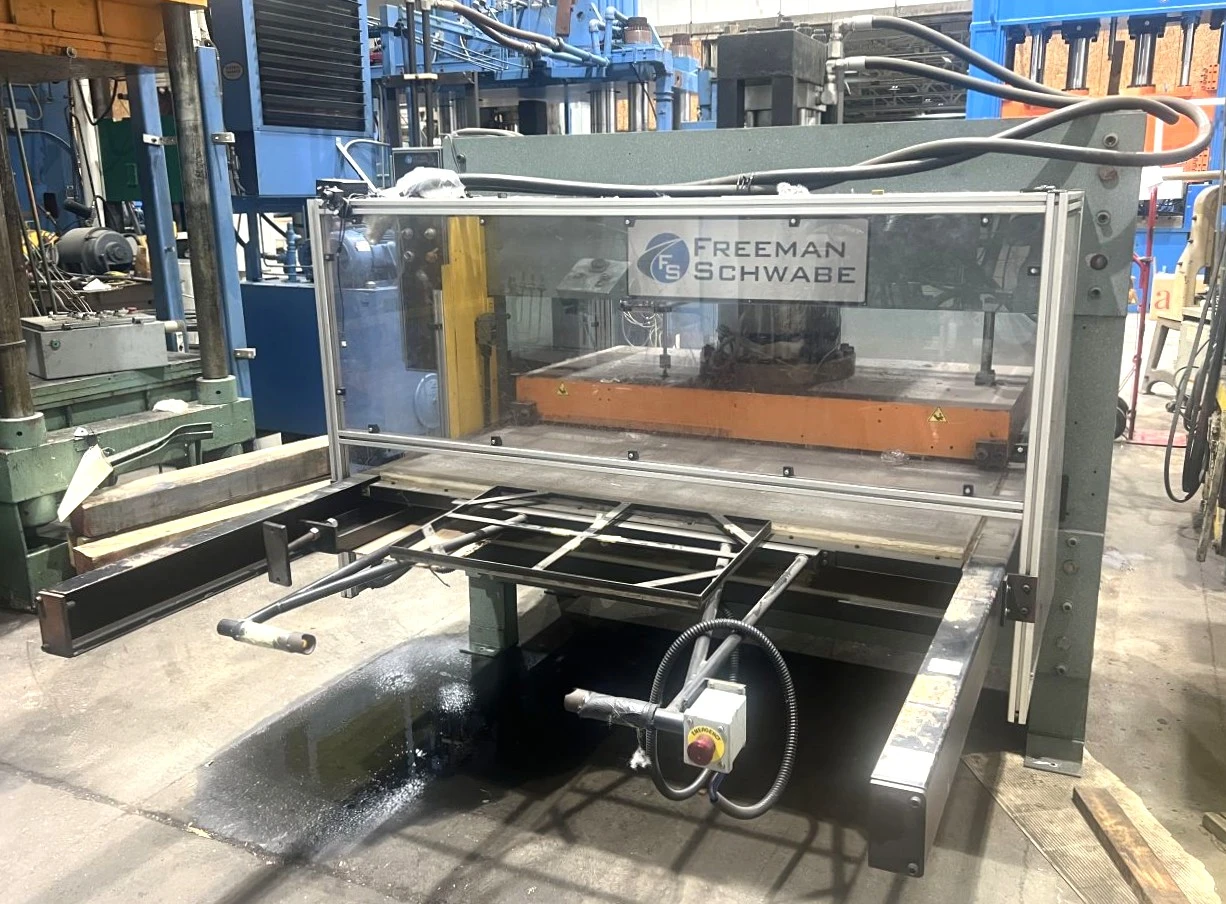

SHUTTLE TABLE LENGTH: 66" OF TRAVEL

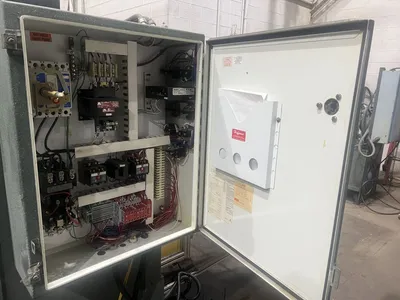

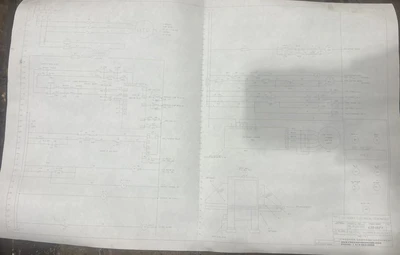

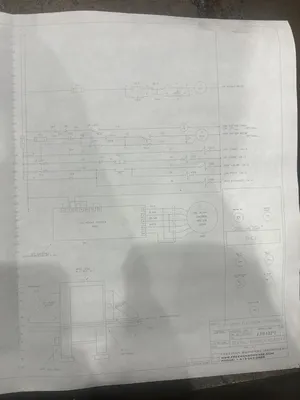

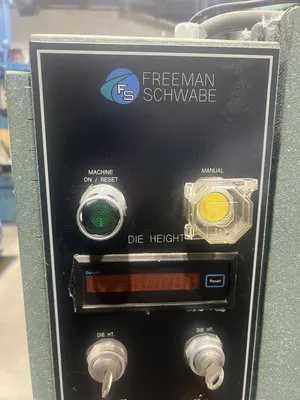

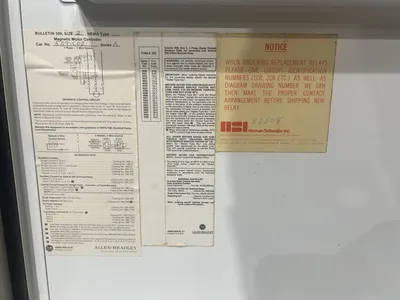

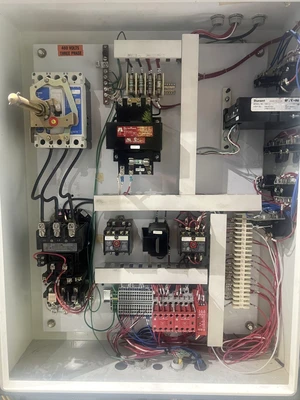

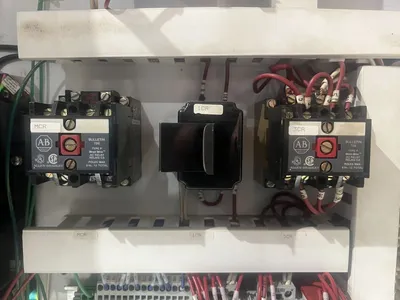

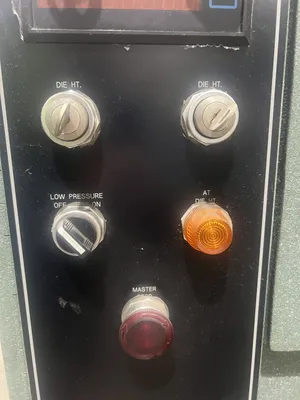

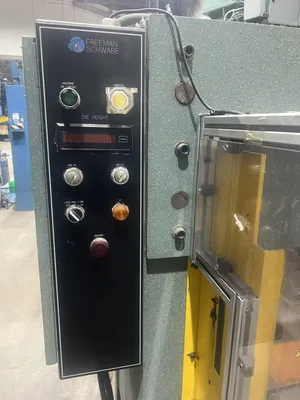

PRESS CONTROLS: ALLEN-BRADLEY BULLETIN 700 RELAY LOGIC CONTROLLER WITH DURANT DISPLAY SCREEN

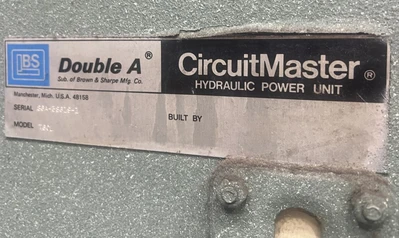

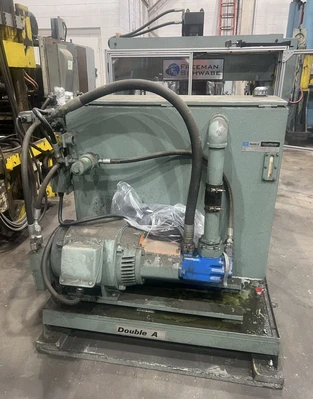

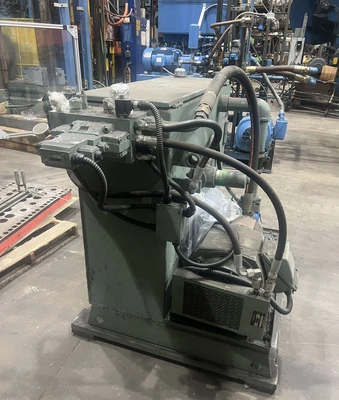

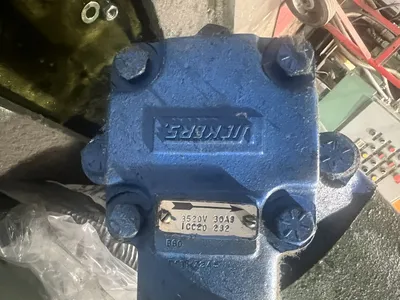

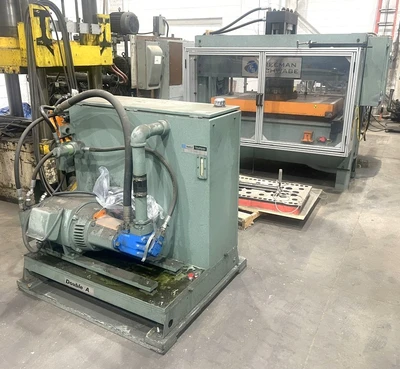

hydraulic UNIT: VICKERS 3520V 30A8 ICC20 282 PUMP | DOUBLE A CIRCUITMASTER MODEL T6CL TANK

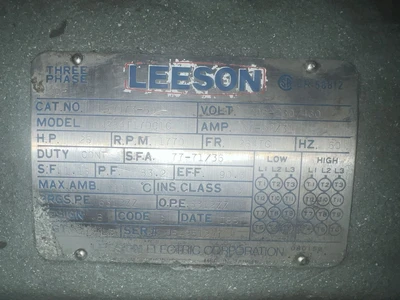

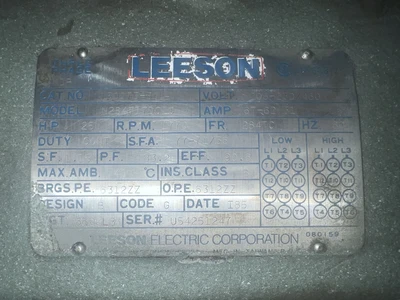

ELECTRIC MOTOR: 25 HP 208-230/460V LEESON MOTOR | 67-62/31 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building
Equipped With

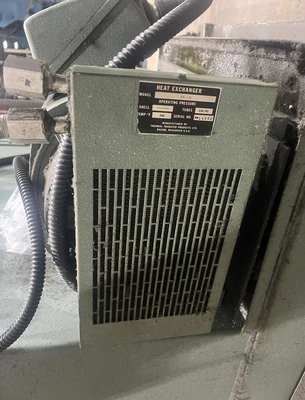

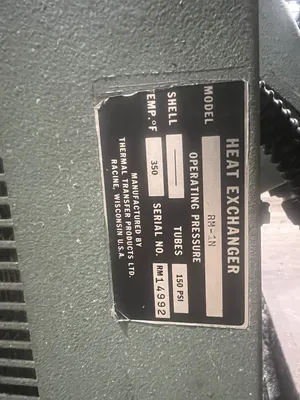

RM-1N FAN COOLED THERMAL TRANSFER PRODUCTS HEAT EXCHANGER (350 DEG F)
