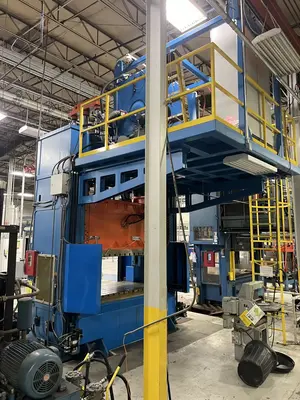

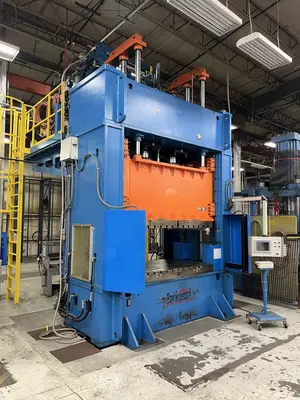

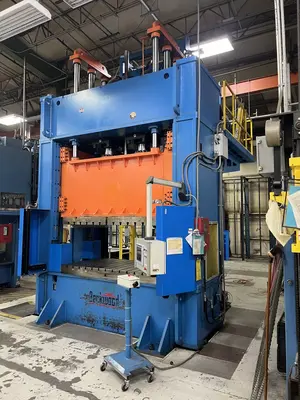

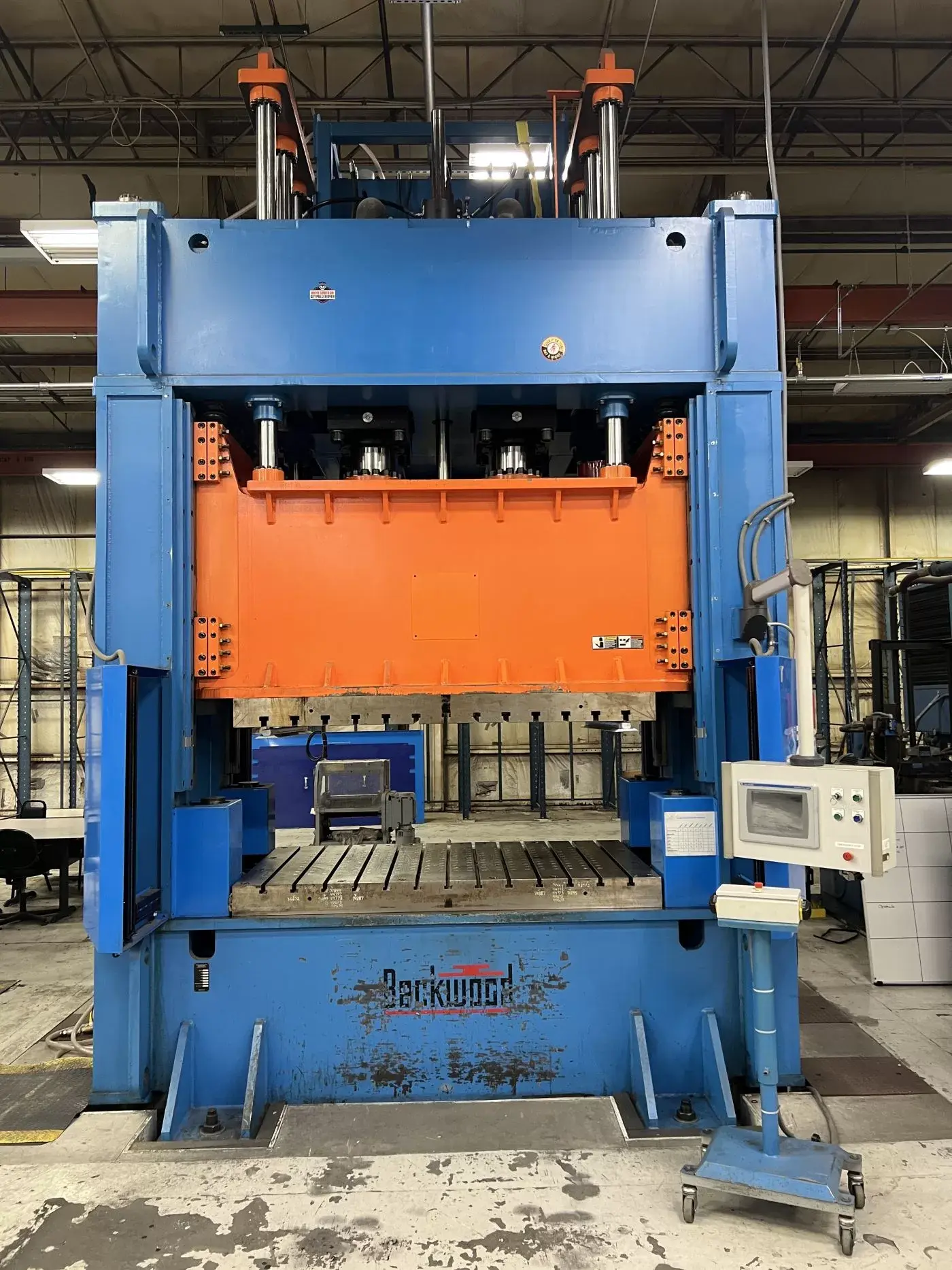

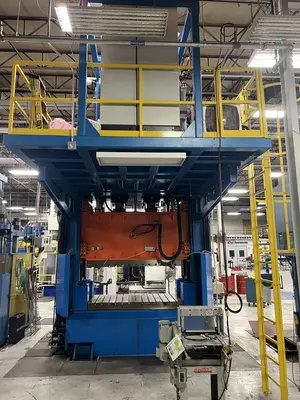

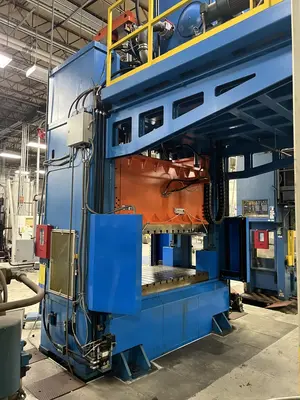

USED 2012 BECKWOOD BECKWOOD GG500F250P4884 PRESS
Overview
Description
19" Stroke, 42" Daylight, 84" x 48" Usable Bed, AB Compact Logix PLC, Cushion in Bed (2012), Floor Standing (No Pit Required)
Specifications
| Dimensions | APPROX. 150" X 232" (RL X FB) X 240" HIGH | APPROX. 150" X 232" (RL X FB) X 240" HIGH |
|---|---|---|
| Weight | 115,000 LBS. WEIGHT PER TRUCKING COMPANY | 115,000 LBS. WEIGHT PER TRUCKING COMPANY |
capacity: 40 TO 500 tonS @ 2800 psi - 250 TON PUNCHING, 15 TON STRIPPING
max. stroke: 20"
daylight: 8" TO 32"
overall bed & ram area: 106" X 52" (RL X FB)
usable bed and ram area: 84" x 48" (RL X FB)

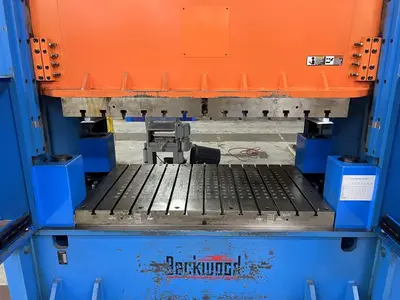

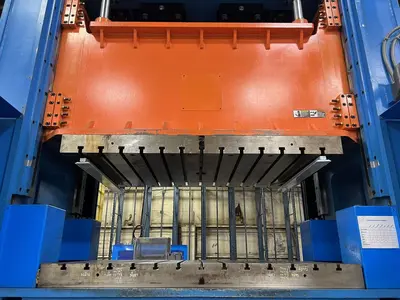

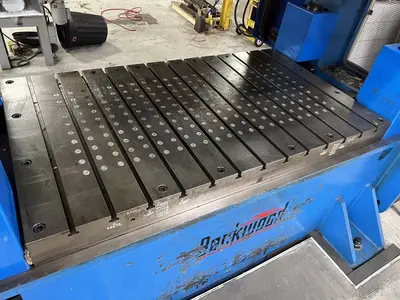

bed & ram bolster sizeS: 84" x 48" (RL X FB) X 5.75" THICK T-SLOTTED PLATES, 6" OFF CENTERS - 1.625" HOLES
DISTANCE BETWEEN STOPS / UPRIGHTS: 85" / 106"

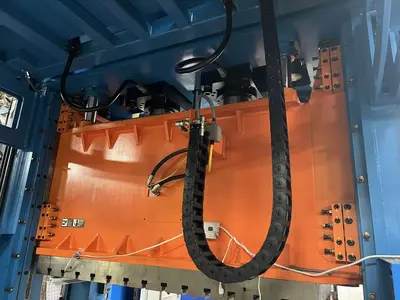

GIBBING STYLE: 8-point gibbing on ram
SPEEDS (INCHES PER MINUTE): FAST APPROACH 882 / PRESSING 0-52 / OPEN 919
SIDE WINDOWS: 24" WIDE X 36" HIGH
RAM ROD SIZES: __
CYLINDER SIZES: __
FLOOR TO BED HEIGHT: 43.25"

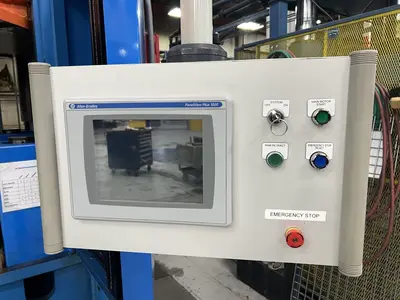

PRESS CONTROLS: ALLEN-BRADLEY PLC-Compact Logix Processor Ethernet CONTROLLER

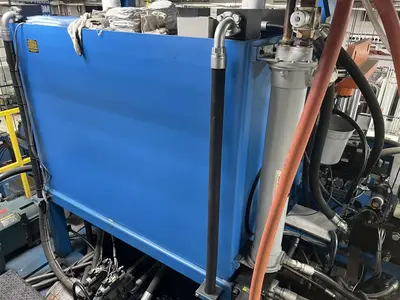

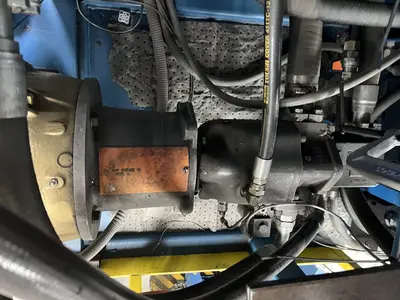

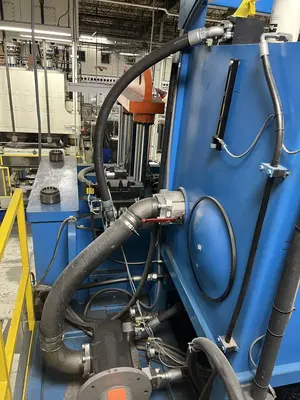

hydraulics: PARKER PUMP MODEL T7EES-052-052-1R00-A1-00 | 450 GALLONG RESERVOIR
AMPERAGE: 235 FLA / MAX.. KW 155

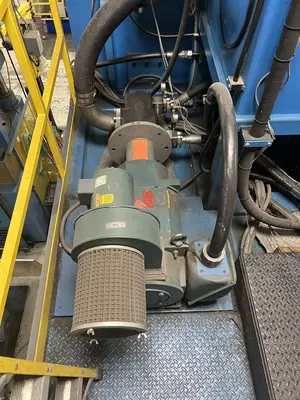

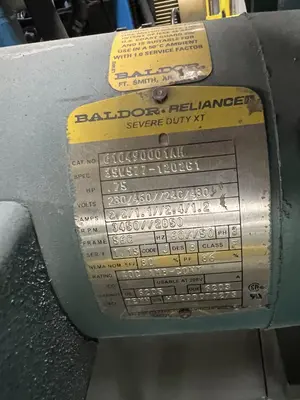

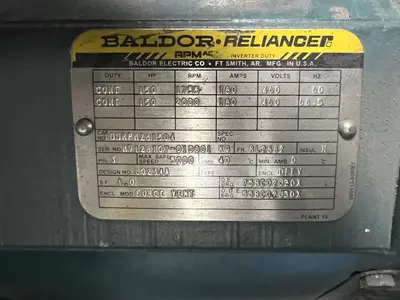

ELECTRIC MOTOR #1: 150 HP 460v-3-60 baldor reliance motor | 180 amps

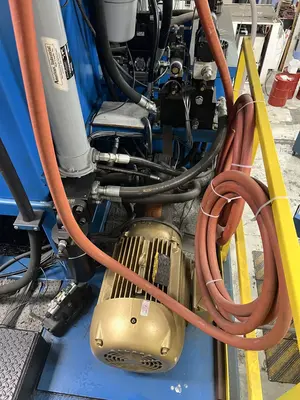

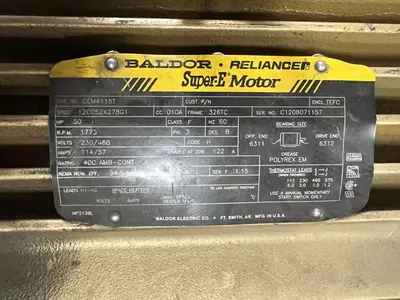

ELECTRIC MOTOR #2: 50 HP 230/460v-3-60 baldor super-e motor | 114/57 amps
Note: PARKER 14JJ3HKTS255X23.000 ISO GRADE 32 ANTI-WEAR (FILTERED 10 MICRON) HYDRAULIC OIL
Location: This Used Press is Located in Our Jackson, MI Falahee Building
Equipped With
cushion in bED, floor standing DESIGN, tie rod steel frame construction
