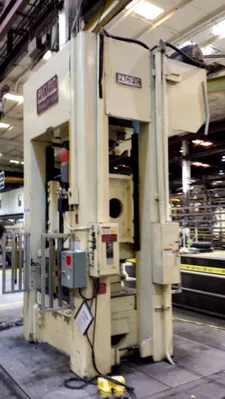

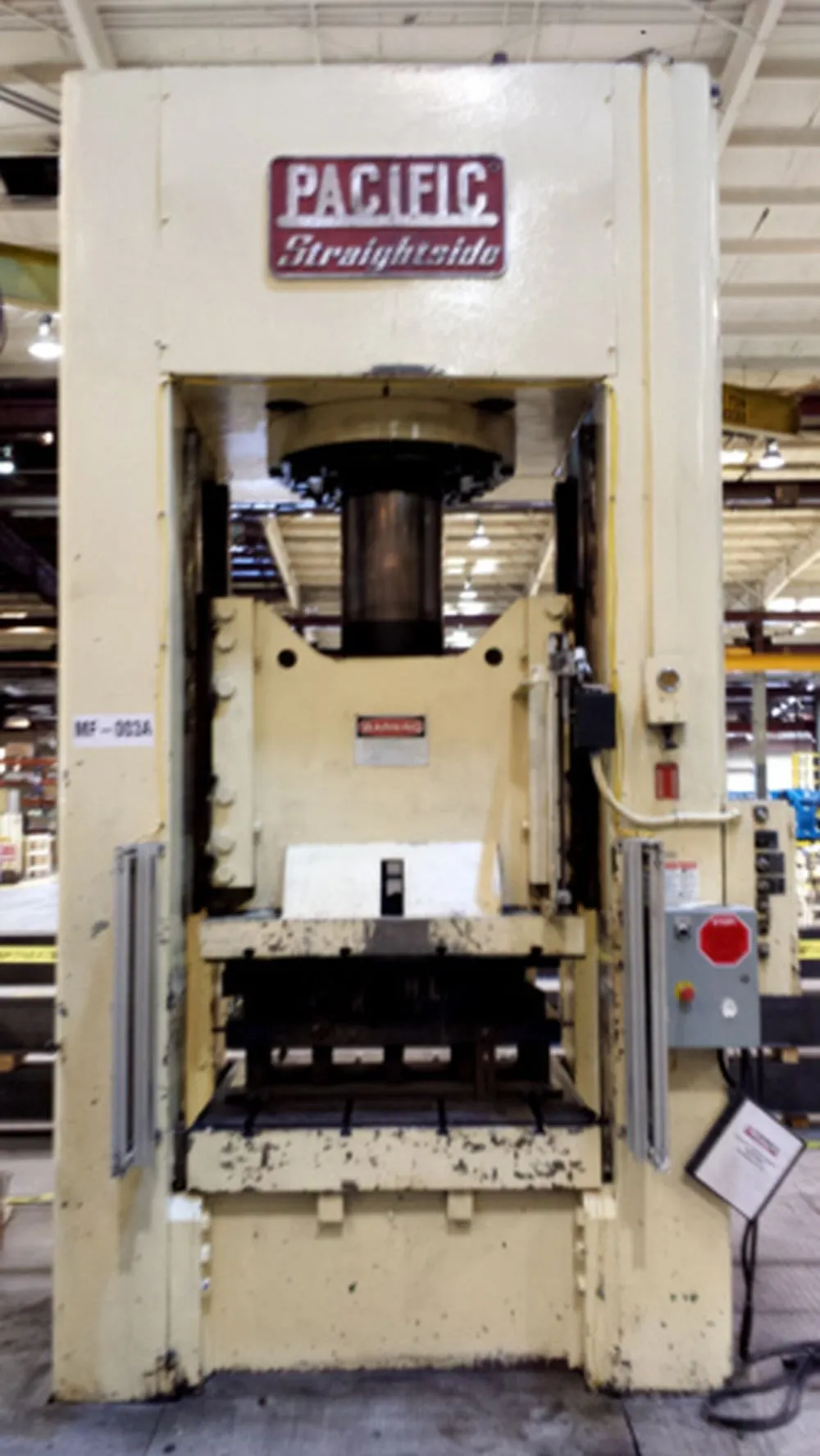

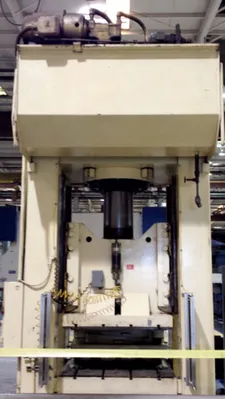

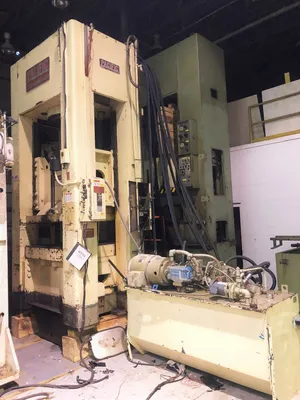

USED PACIFIC HYDRAULIC PRESSES PACIFIC 500M48 PRESS
Overview
Description
24" Str, 42" DL, 48" X 48" Bed, 22" WW, 50 HP Motor, VIEW VIDEO UNDER POWER
Specifications

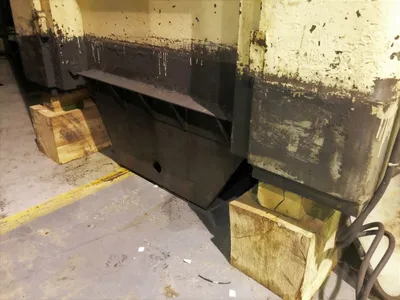

| Dimensions | 96" X 96" (RL X FB) X 17'5" HIGH 15" risers or isolators req | 96" X 96" (RL X FB) X 17'5" HIGH 15" risers or isolators req |
|---|---|---|
| Weight | 65,000 LBS | 65,000 LBS |
CAPACITY: 500 TONS @ 2370 PSI
MAXIMUM STROKE: 24"
MAX. DAYLIGHT TO BED: 42" (16" shut ht. over bolster)
distance between uprights: 54-1/2" rl
BED AREA: 48" X 48" (RL X FB)
RAM AREA: 48" X 48" (RL X FB)
RAM SPEEDS: RAPID ADVANCE (APPROACH) - 181 IPM | FAST PRESS @ 150 TONS - 70 IPM
--: NORMAL PRESS @ 500 TONS - 24 IPM | FAST RETURN - 116 IPM
--: SLOW RETURN - 43 IPM
BOLSTER PLATE: 48" X 48" (RL X FB) X 8.25" HIGH T-SLOTTED
WINDOW SIZE: 22.5" FB X 27" H
FLOOR TO BED: 54.5" (SUBJECT TO CORRECTION)

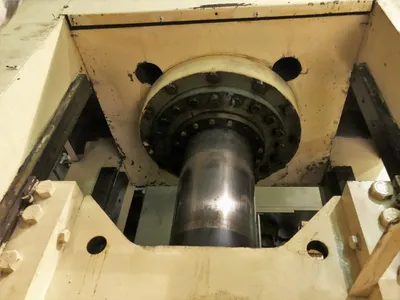

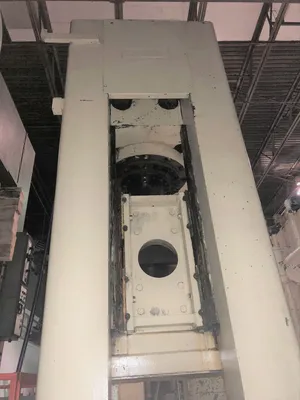

CYLINDER SIZE: 14" (SUBJECT TO CORRECTION)

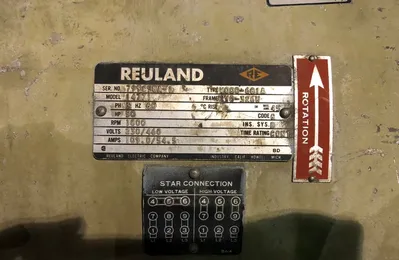

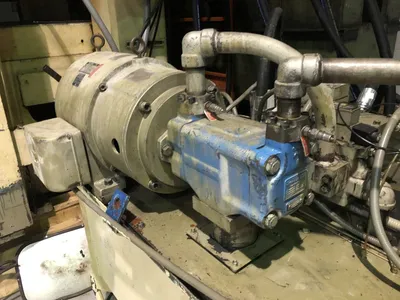

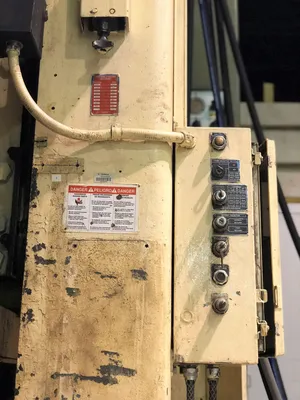

ELECTRICS: 50 HP, 1800 RPM, 460V-3-60 MOTOR & CONTROLS 2-vickers vane pumps

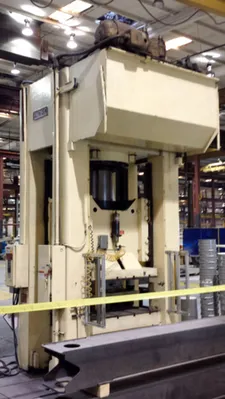

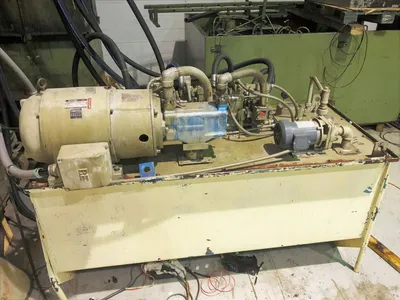

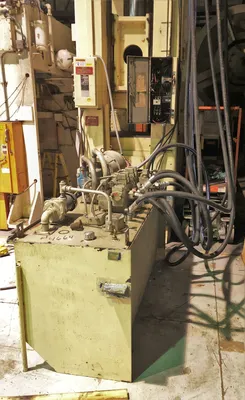

HYDRAULICS: CROWN MOUNTED HYDRAULIC UNIT (currently floor mounted)
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building
Equipped With

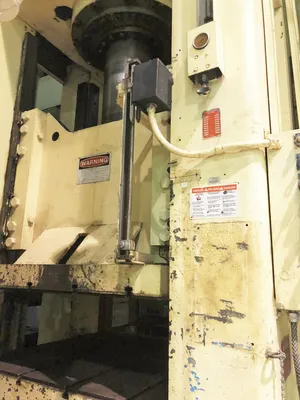

steel FRAME CONSTRUCTION gibb guided ram lincoln centromatic grease pump w/timer
