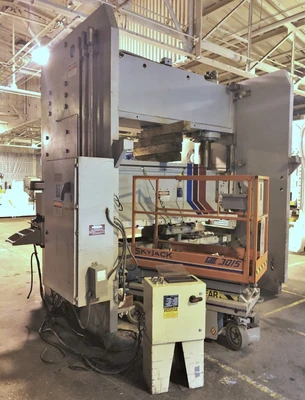

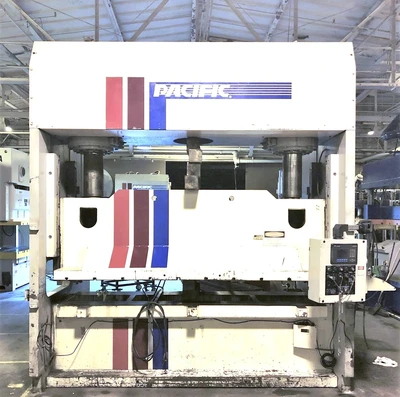

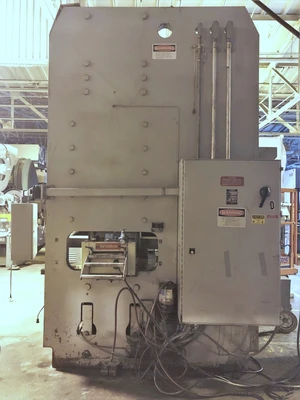

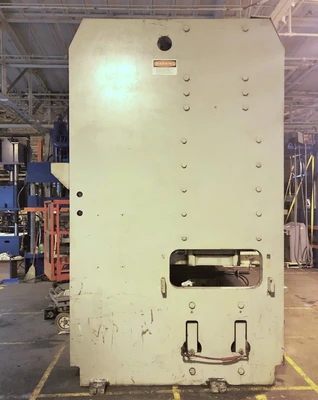

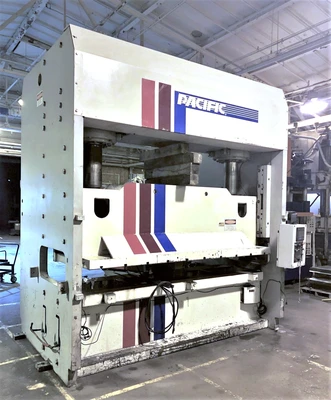

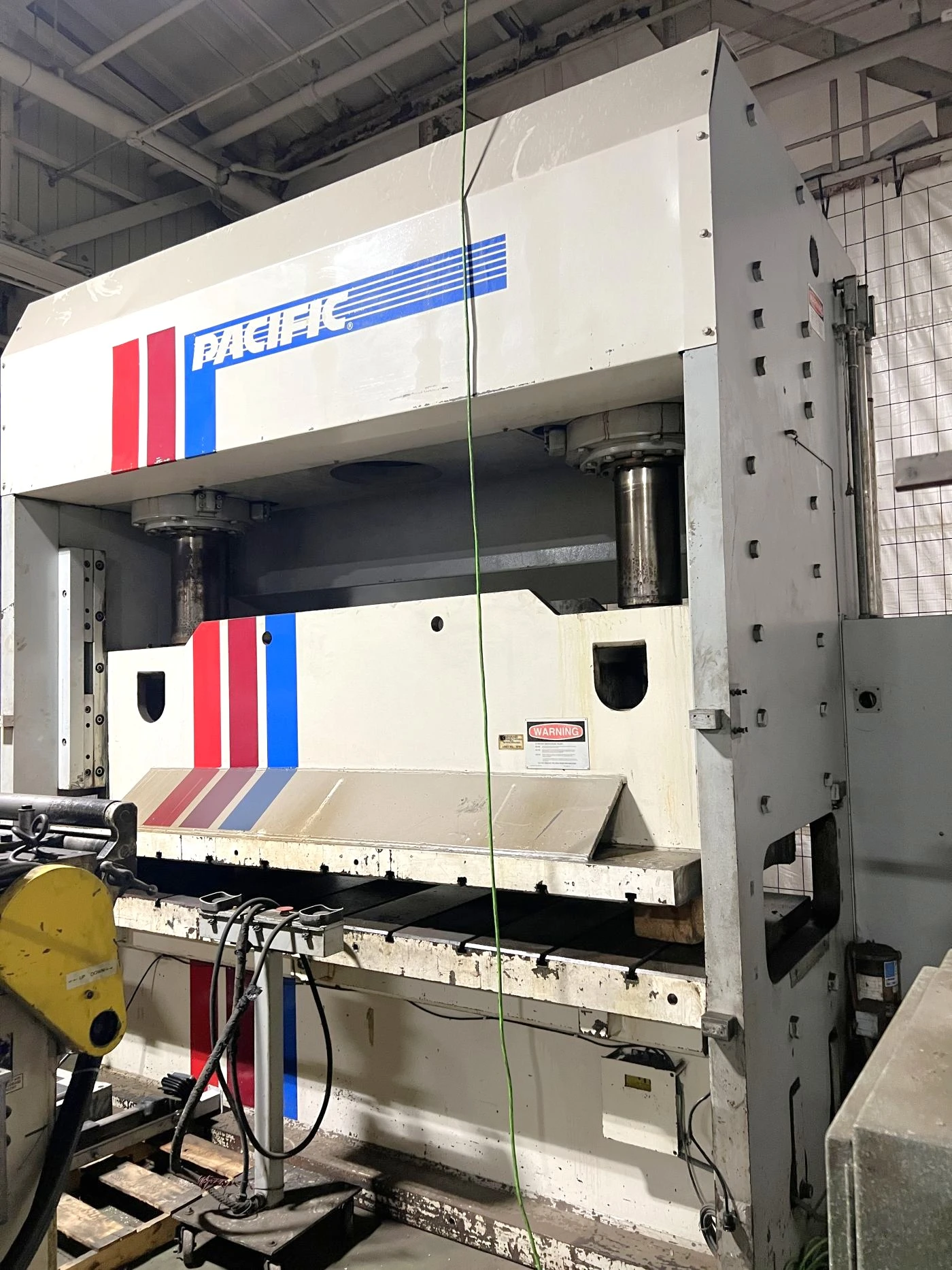

USED 1998 PACIFIC HYDRAULIC PRESSES PACIFIC 400 OBL 10/48 PRESS

USED 1998 PACIFIC HYDRAULIC PRESSES PACIFIC 400 OBL 10/48 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
PACIFIC HYDRAULIC PRESSES
Model:
PACIFIC 400 OBL 10/48 PRESS
Year:
1998
Stock #:
5548
Description

18" Stroke, 26" Daylight, 126" x 48" Bed, AB SLC Controls, Upgraded Hydraulic Unit, Floor Standing (No Pit Required)

Specifications
Dimensions160" X 121" (RL X FB) X 156" HIGH160" X 121" (RL X FB) X 156" HIGH
Weight79,000 LBS.79,000 LBS.

CAPACITY: 400 TONS
MAX. STROKE: 18"
MAX. DAYLIGHT TO BOLSTER: APPROX. 26"
BED AREA: 126" x 48" (RL X FB)
BOLSTER PLATE: 126" X 48" (RL X Fb) X 5.5" THICK T-SLOTTED BOLSTER PLATE
RAM AREA: 120" x 48" (RL X FB) - t-slotted
SPEEDS: 480/175/48/280 ipm
WINDOW SIZE: 38" wide
FLOOR TO BED HEIGHT: 36.5"

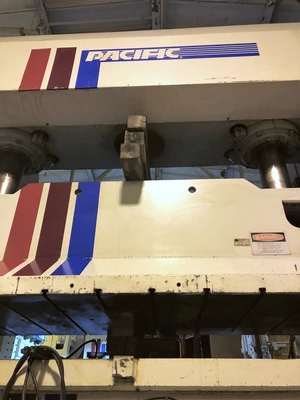

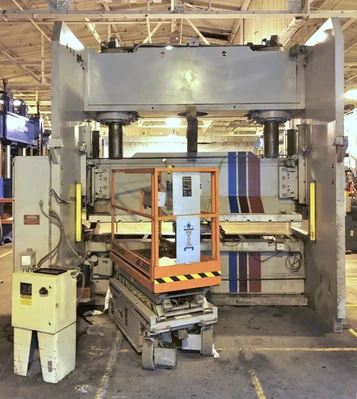

CYLINDER SIZES: 8.5" (TWO CYLINDERS)

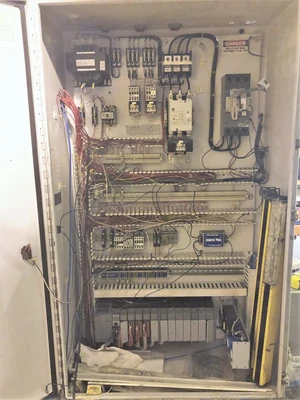

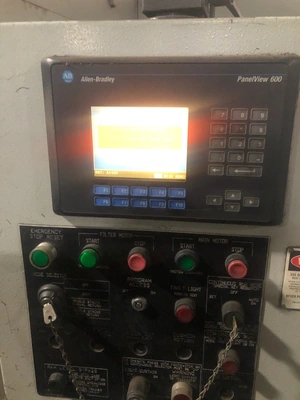

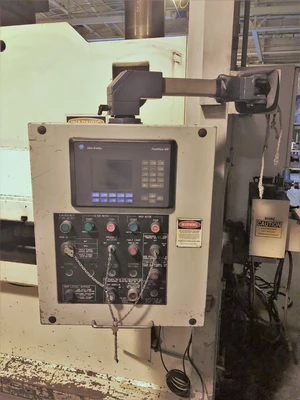

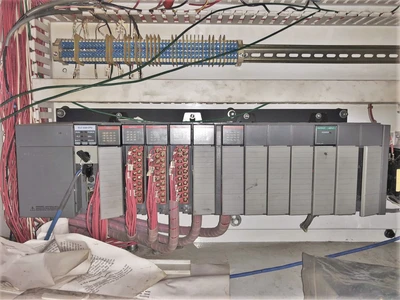

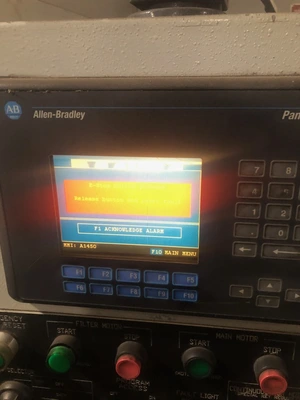

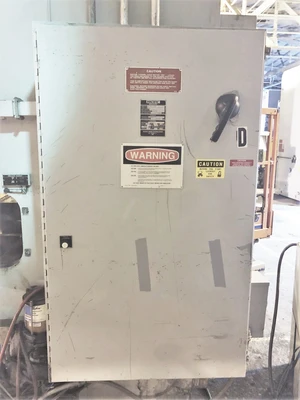

PRESS CONTROLS: ALLEN-BRADLEY SLC 5/04 CPU CONTROLLER PANELVIEW 600 TOUCHSCREEN

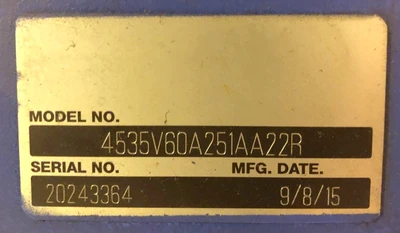

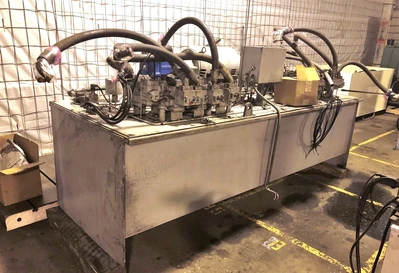

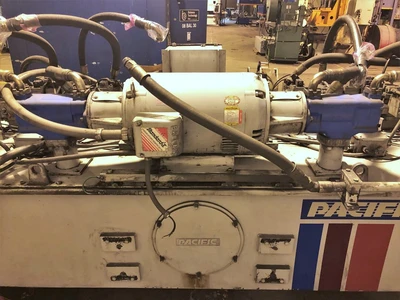

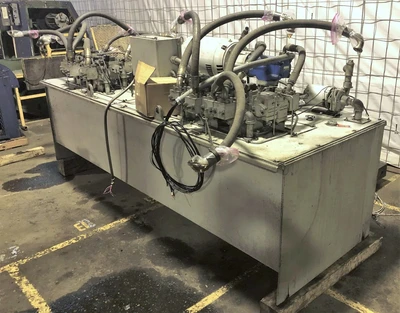

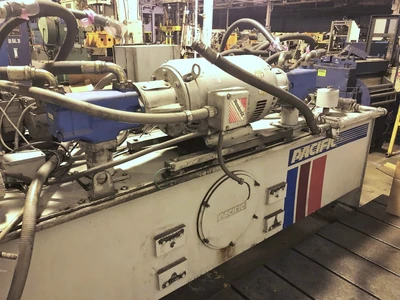

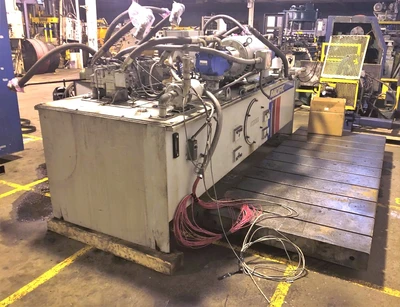

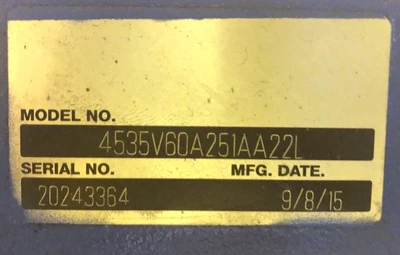

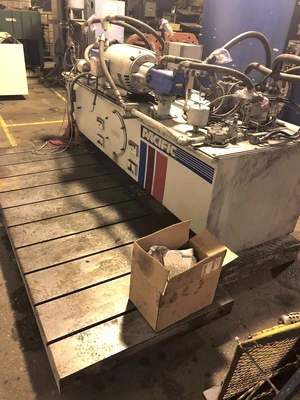

HYDRAULIC UNIT: PANAGON SYSTEMS VANE PUMPS, 4535V60A251AA22R | 4535V60A251AA22L

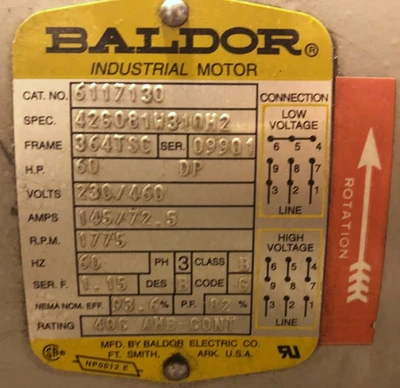

ELECTRIC MOTOR: 60 HP 3-60-230/460V BALDOR INDUSTRIAL MOTOR | 145/72.5 AMPS
Note: HYDRAULIC UNIT WAS UPGRADED IN 2015
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

FLOOR STANDING DESIGN, low stress, interlocked frame design, robust 6-pt gibbing, anti-tiedown controls, heat exchanger, & automatic lubrication system
