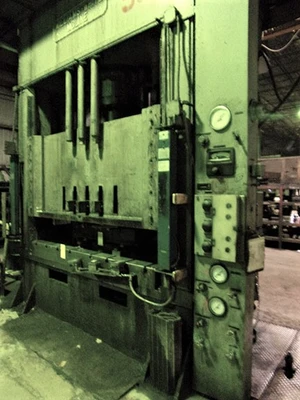

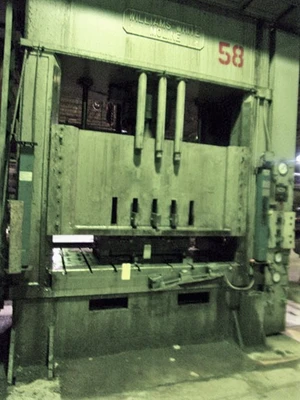

USED WILLIAMS WHITE & COMPANY WILLIAMS WHITE & COMPANY CUSTOM PRESS
Overview
Description
30" Str, 43" DL, 84" x 48" Bed, 7.75" Bolster, with Cushions in Bed
Specifications
| Dimensions | 135" X 90" (RL X FB) X 234" HIGH (19'6") | 135" X 90" (RL X FB) X 234" HIGH (19'6") |
|---|---|---|
| Weight | -- | -- |
capacity: 400 Ton @ 2322 psi
max. stroke: 30"
max. daylight to bed: 43.5" (35.75" to Bolster)
BED & RAM AREA (OVERALL): 84" x 48" (RL X FB)
BOLSTER PLATE: 7.75" THICK T-SLOTTED BOLSTER PLATE
RAM SPEEDS: 1250/90/1140 ipm
SIZE OF SIDE WINDOWS: 20.5" WIDE X 25" HIGH
CYLINDER SIZE: 19" DIA. BORE
FLOOR TO BED: 54"

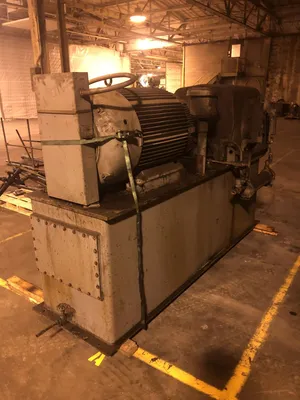

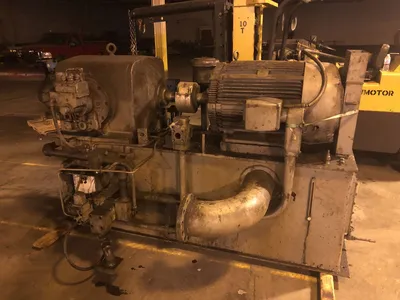

HYDRAULICS: OILGEAR HYDRAULIC PUMP MODEL DM-15025 - 860 RPM - RATED PRESS. 2500 crown mounted hydraulics

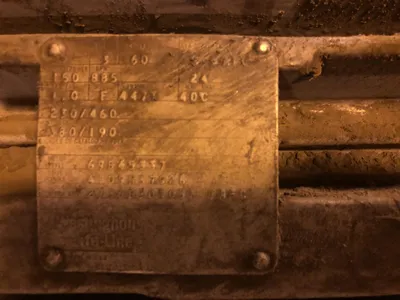

MOTOR: 150 HP 230/460V-3-60 WESTINGHOUSE MOTOR 380/190 AMPS | 885 RPM

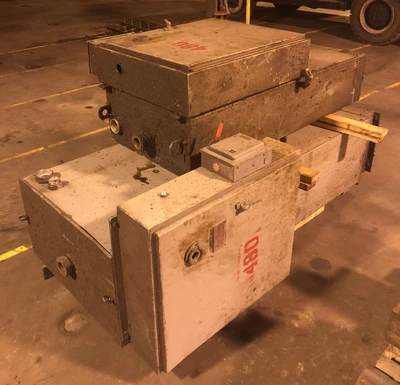

CONTROLS: RELAY LOGIC CONTROLS
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building
Equipped With

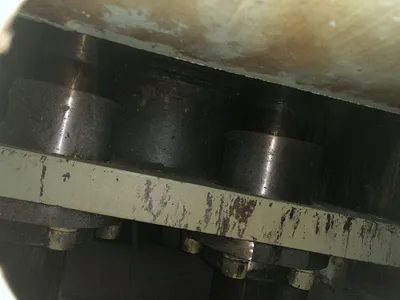

**2 cushions in the bed - 130 ton total capacity 2 - 34" x 30" pressure pads (65 ton each) 10" stroke, 10 ton lifting capacity - gib guided ram, tie rod cast iron frame
