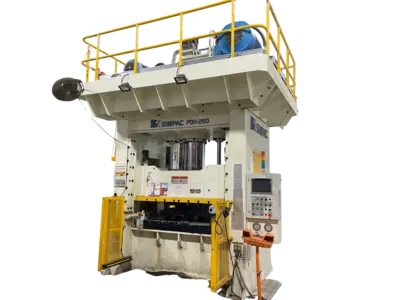

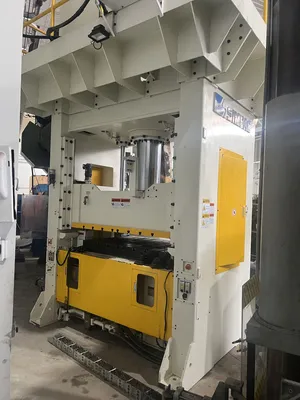

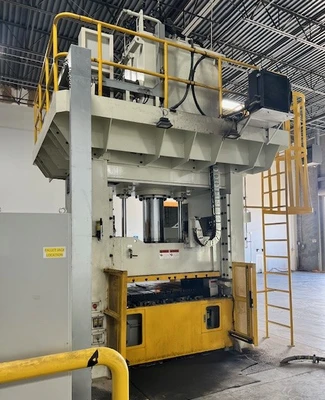

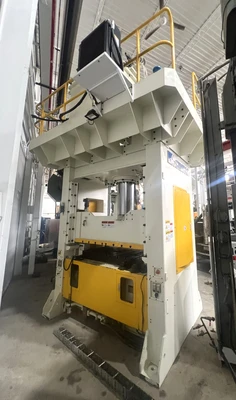

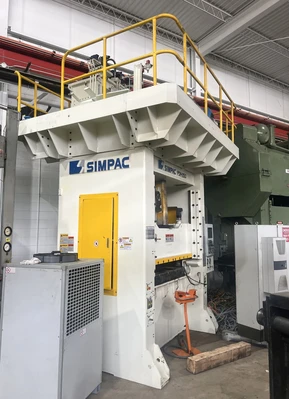

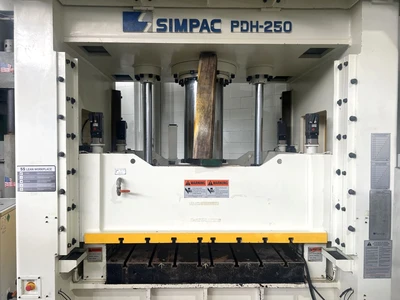

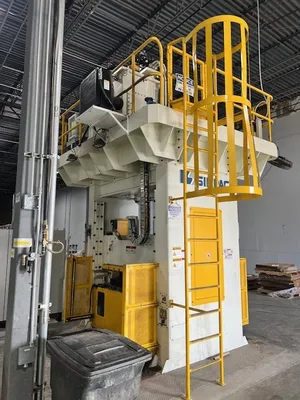

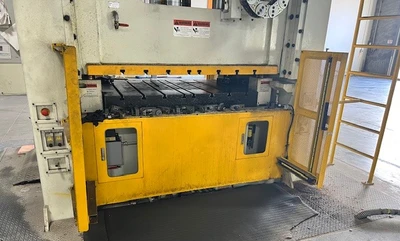

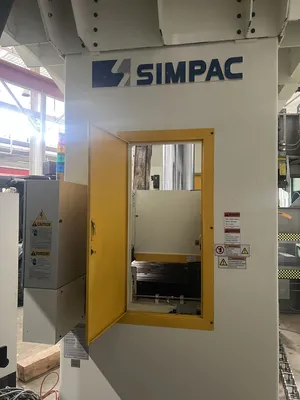

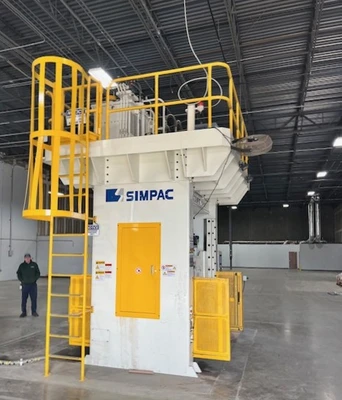

USED 2017 SIMPAC SIMPAC PDH-250 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Straight Side Presses
Manufacturer:
SIMPAC
Model:
SIMPAC PDH-250 PRESS
Year:
2017
Stock #:
8355
Description

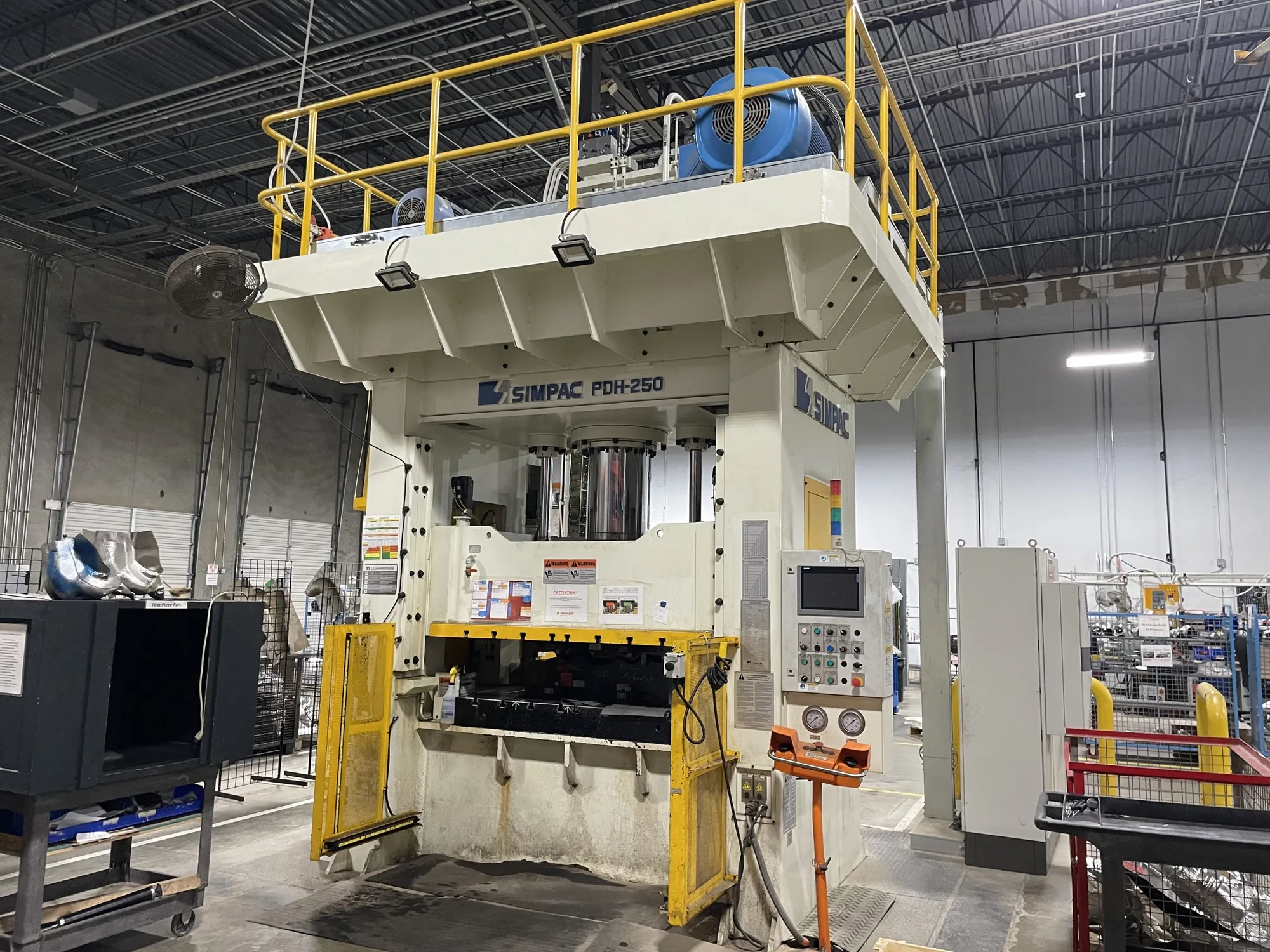

27.55" Stroke, 35.43" Daylight, 62.99" x 45.27" Bolster Plate, Variable Speed, Servo Motor Dampening System, 100 Ton Cushion in Base

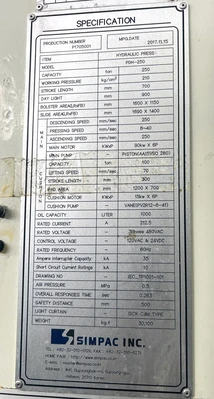

Specifications
Dimensions132" X 95" (RL X FB) X 160" HIGH132" X 95" (RL X FB) X 160" HIGH
Weight66,359 lbs.66,359 lbs.

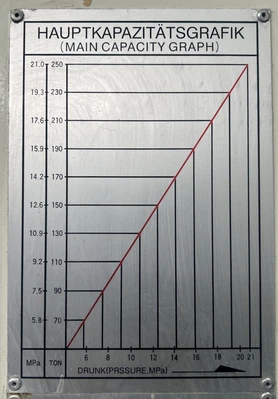

MAX. CAPACITY: 250 US TONS AT 2,986.9 PSI
max. stroke: 27.55"
MAX. DAYLIGHT: 35.43
BED AREA: 85" X 45.27"
RAM AREA: 66.53" X 55.11"
BOLSTER PLATE: 62.99" x 45.27"
DISTANCE BETWEEN COLUMNS: 85"
RAM SPEEDS: 590 RAPID ADVANCE / 18.9- / 590 RETURN TO TOP
FLOOR TO BED HEIGHT: 50.7"
CYLINDER SIZE: APPROX. 14.6" DIA. BORE
RAM ROD SIZE: APPROX. 12" DIA.

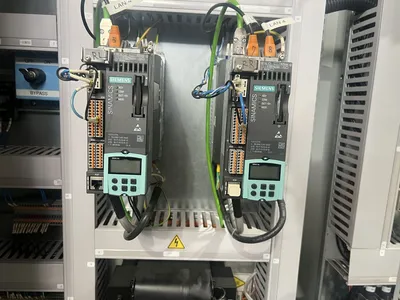

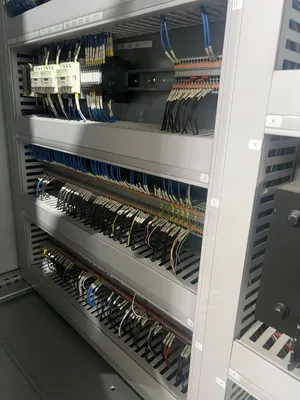

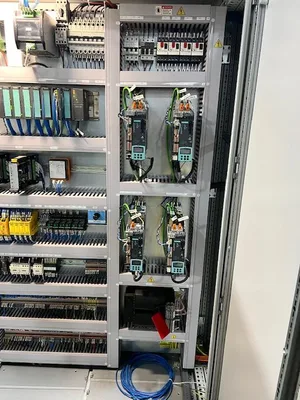

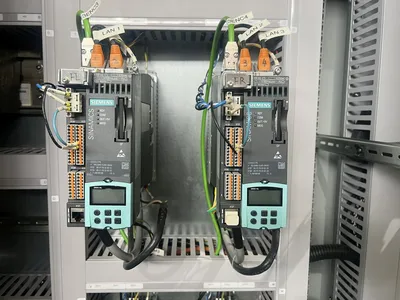

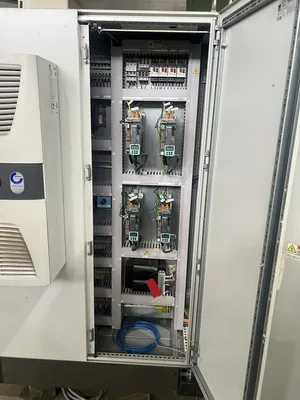

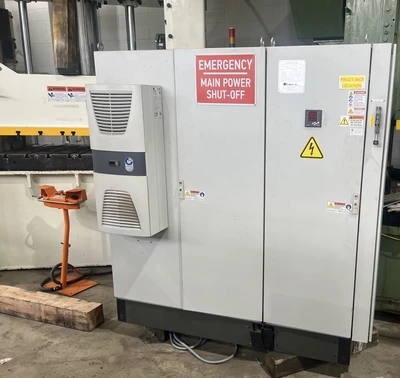

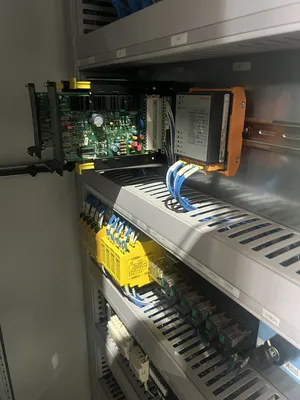

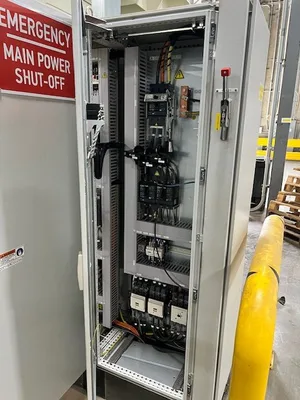

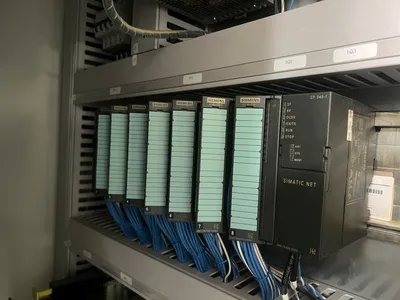

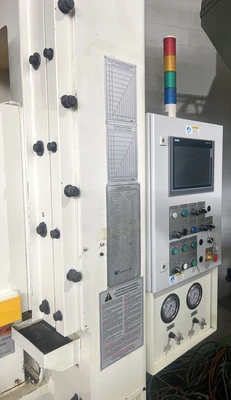

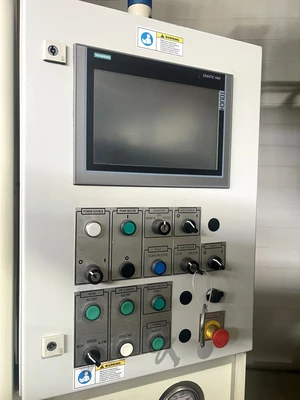

PRESS CONTROLS: SIEMENS CP 343-1 SIMATIC NET CONTROLLER | SIEMENS SIMATIC HMI TOUCHSCREEN

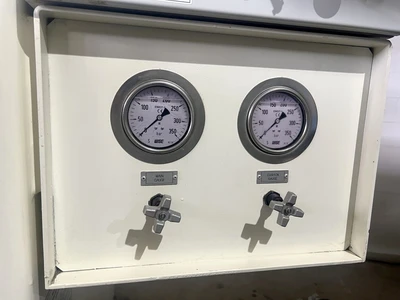

HYDRAULIC SYSTEM: REXROTH A15VSO PISTON MAIN PUMP & VANE CUSHION PUMP - 264 GALLON RESERVOIR

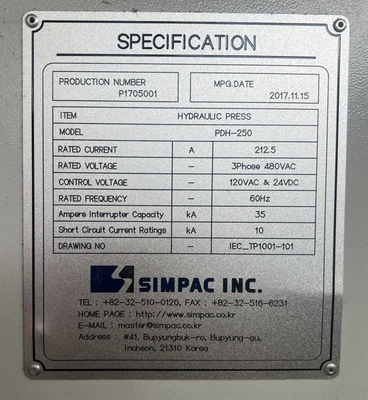

ELECTRIC MOTOR: 120 HP 480V-3-60 MOTOR
Note: __

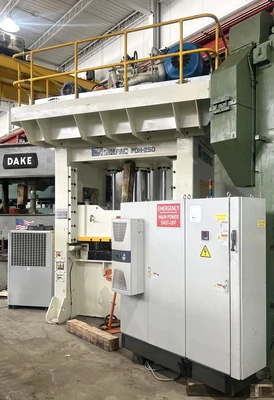

Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

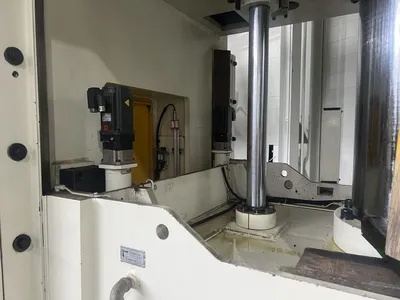

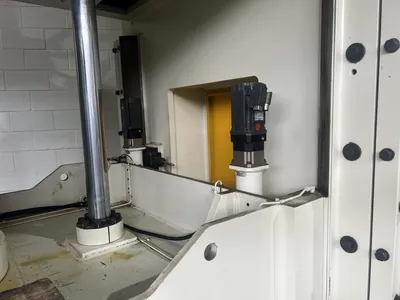

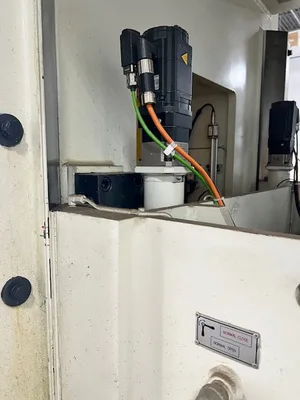

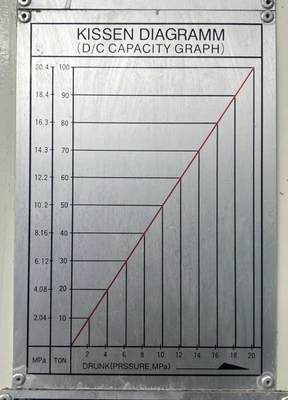

100 TON CUSHION WITH 11.81" STROKE IN BASE (47.24" X 27.55") - CUSHION PUMP (PV2R12 VANE PUMP), PRECISION SERVO-DRIVEN SLIDE BALANCING SYSTEM, DAMPER CYLINDERS TO ABSORB REVERSE TONNAGE
