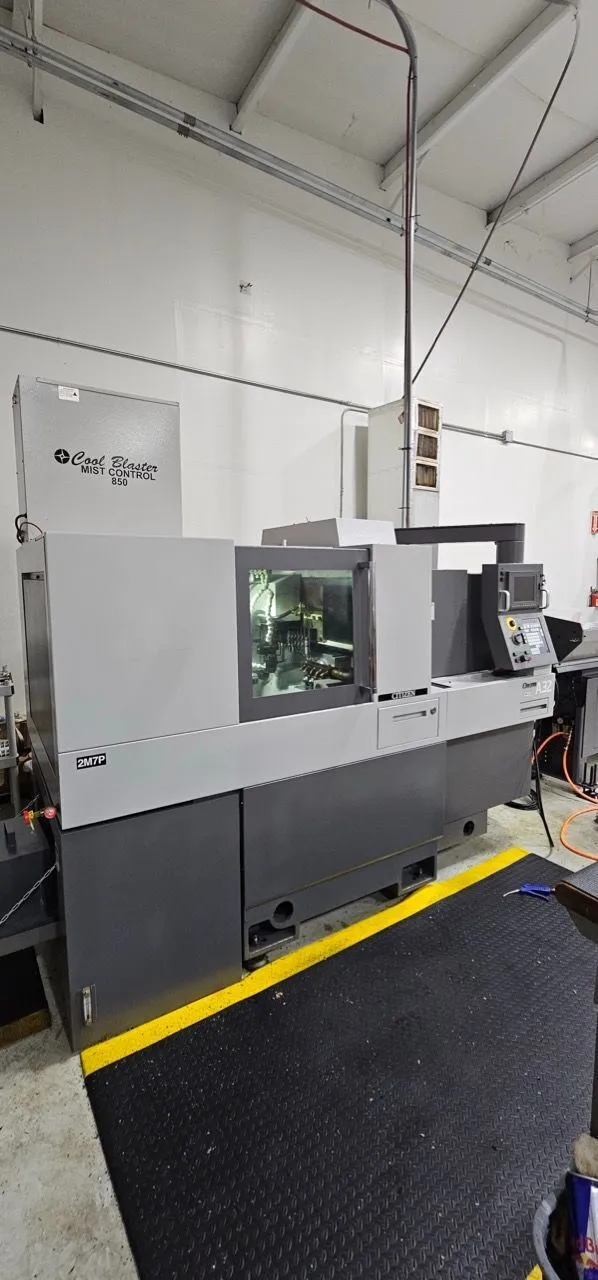

Citizen A32VII CNC Swiss Lathe, New in 2015
| Capacity | 1.25" | 31.75 mm |
| Power | 5 kW | 6.7 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Live Back Working Tools | Yes | Yes |
| Control | CNC (Cincom Mits) | CNC (Cincom Mits) |
| Dimensions | 104" x 53" x 91" | 104" x 53" x 91" |
| Weight | 7,716 lbs | 7,716 lbs |
General Machine Specifications:
Machining Diameter: 32mm
Machining Length: 320mm
Main Spindle Speeds: 8000 Max RPM
Main Spindle Indexing: C-Axis
Back Spindle Speeds: 8000 Max RPM
Sub-Spindle Indexing: C-Axis
Rotary Tool Speeds: 5000 Max RPM
Back Spindle Max Chucking Diameter: 32mm
Turning Tools: 10 Turning Tool Stations
(6 Static, 4 Live)
Rotary (Live) Tools: 4 Live Tool Stations
Front Endworking Tools: 4 Stations
Back Endworking Tools: 9 Total Stations (4 + 5)
Cutting Tool Shank/Sleeve Size: 24.5mm
Rapid Traverse (X/Y/Z): (45m/min X2,Y1,Z1,Z2)(32m/min X1)
Main Spindle Drive: 7.5 KW
Back Spindle Drive: 3.7 KW
Rotary Tool Drive: 1 KW
Electrics: 220 Volt 3 Phase
Machine Dimensions: 104" x 53" x 91"
Machine Weight: 7,716 lbs
Citizen Cincom (Mits Meldas) CNC Control
Edge C-332 Magazine Barfeed
Cool Blaster 850 Mist Collector
Cool Blaster High Pressure Coolant System
