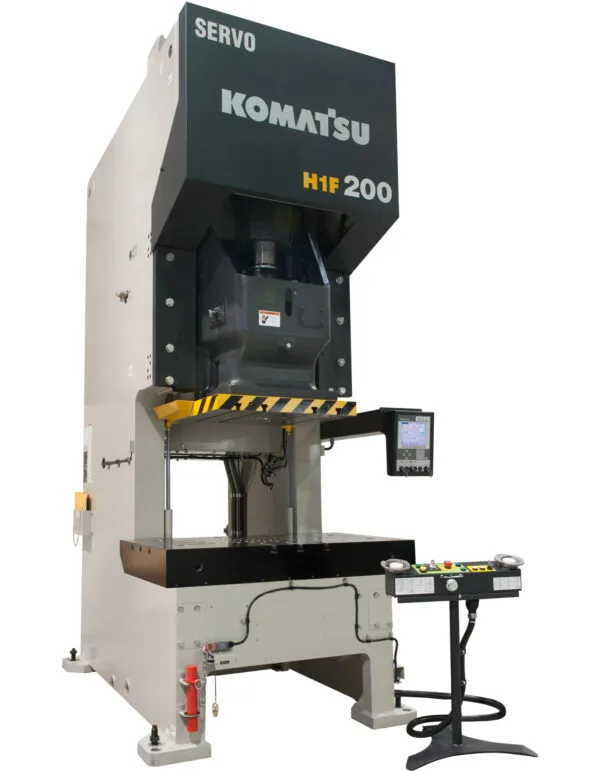

NEW 2026 KOMATSU PRESSES KOMATSU H1F200-2 LONG PRESS
Overview
Description
Adjustable 11.8" Stroke & 18.9" Shut Height with Servo Motor, Variable Speed on Demand, 2 Year Unconditional Warranty
Specifications
| Dimensions | 61.42" X 108.74" (RL X FB) X 154.17" HIGH | 61.42" X 108.74" (RL X FB) X 154.17" HIGH |
|---|---|---|
| Weight | 54,000 LBS. | 54,000 LBS. |
MAX. CAPACITY: 220 US TONS
MAX. STROKE: 11.8" ROTATION | 1.18" TO 9.84" PENDULUM
MAX. DIE HEIGHT: 18.9"
RAM / SLIDE ADJUSTMENT: 4.72"
BED AREA: 57.09" x 33.07" (RL X FB)
BOLSTER PLATE: 57.09" x 33.07" (RL X FB) X 7.09" THICK T-SLOTTED PLATE
SPEED: 0-124 SPM
RAM / SLIDE AREA: 33.46" X 25.59" (RL X FB)
DISTANCE BETWEEN UPRIGHTS: 30.7"
FLOOR TO BOLSTER HEIGHT: 38.19"
THROAT DEPTH: 16.93"
PRESS CONTROLS: KOMATSU SIT IV Control System (PRECISE DIGITAL DATA)
ELECTRIC SERVO MOTOR: 80 HP SERVO MOTOR
Note: __
Location: This New Press is Located in Our Press Sales Catalog Either In Transit or Made to Order
Equipped With
Auto Die Height Adjustment, Quick-responding dependable hydraulic overload protector, Precision Oil-Lubricated 6-Point Gibbing, Air Counterbalance System, & floor standing
