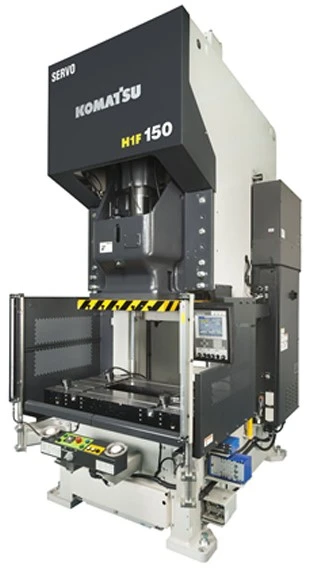

NEW 2026 KOMATSU PRESSES KOMATSU H1F150-2 LONG PRESS
Overview
Description
Adjustable 9.84" Stroke & 17.72" Shut Height with Servo Motor, Variable Speed on Demand, 2 Year Unconditional Warranty
Specifications
| Dimensions | 60.75" X 94.92" (RL X FB) X 132.99" HIGH" | 60.75" X 94.92" (RL X FB) X 132.99" HIGH" |
|---|---|---|
| Weight | APPROX. 30,360 | APPROX. 30,360 |
MAX. CAPACITY: 165 US TONS
MAX. STROKE: 9.84"
MAX. DIE HEIGHT: 17.72"
RAM / SLIDE ADJUSTMENT: 3.94"
BED AREA: 49.21" X 29.92" (RL X FB)
BOLSTER PLATE: 49.21" X 29.92" (RL X FB) X 6.5" THICK T-SLOTTED
SPEED: 0-128 SPM
RAM / SLIDE AREA: 27.56" X 21.65" (RL X FB)
DISTANCE BETWEEN UPRIGHTS: 24.34"
FLOOR TO BOLSTER HEIGHT: 34.25"
THROAT DEPTH: 15.35"
PRESS CONTROLS: KOMATSU SIT IV Control System (PRECISE DIGITAL DATA)
ELECTRIC SERVO MOTOR: 70 HP SERVO MOTOR
Note: __
Location: This New Press is Located in Our Warehouse on Location
Equipped With
Auto Die Height Adjustment, Quick-responding dependable hydraulic overload protector, Precision Oil-Lubricated 6-Point Gibbing, Air Counterbalance System, & floor standing
