NEW 2026 KOMATSU PRESSES KOMATSU H1F110-2O LONG PRESS
Overview
Description
Adjustable 7.87" Stroke & 14.96" Shut Height with Servo Motor, Variable Speed on Demand, 2 Year Unconditional Warranty
Specifications

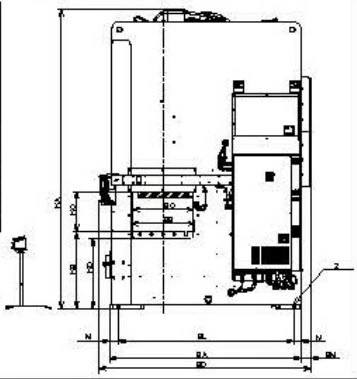

| Dimensions | 58.11" X 89.04" (RL X FB) X 126.58" HIGH | 58.11" X 89.04" (RL X FB) X 126.58" HIGH |
|---|
MAX. CAPACITY: 121 US TONS
MAX. STROKE: 7.87"
MAX. DIE HEIGHT: 14.96" sdau over bolster
SLIDE ADJUSTMENT: 3.94"
BED AREA: 35.43" X 26.77" (RL X FB)
BOLSTER PLATE: 35.43" X 26.77" (RL X FB) X 5.91" THICK T-SLOTTED
SPEED: 0 - 138 SPM
RAM / SLIDE AREA: 27.56" X 20.87" (RL X FB)
DISTANCE BETWEEN UPRIGHTS: 21.74"
FLOOR TO BOLSTER HEIGHT: 34.25"
WINDOW SIZE: 24.8" WIDE X 16.34" HIGH
THROAT DEPTH: 14.17"
PRESS CONTROLS: KOMATSU SIT IV Control System (PRECISE DIGITAL DATA)
ELECTRIC SERVO MOTOR: 40 HP SERVO MOTOR
Note: __
Location: This New Press is Located in Our Warehouse on Location
Equipped With
Auto Die Height Adjustment, Quick-responding dependable hydraulic overload protector, Precision Oil-Lubricated 6-Point Gibbing, Air Counterbalance System, & floor standing
