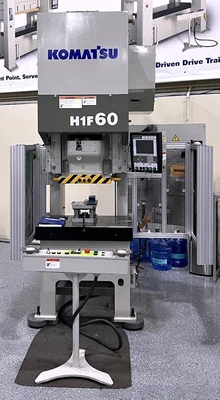

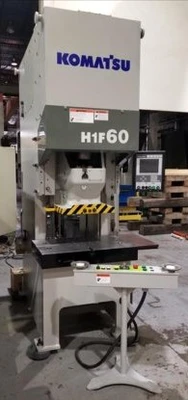

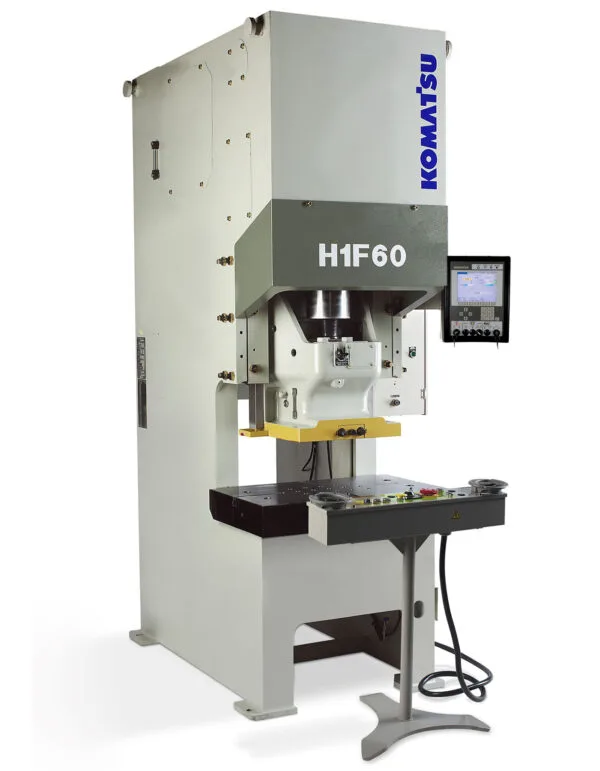

NEW 2026 KOMATSU PRESSES KOMATSU H1F60-CS PRESS
Overview
Description
Adjustable Stroke & Shut Height with Servo Motor & Toggle Linkage Drive, Variable Speed on Demand, 2 Year Unconditional Warranty
Specifications
| Dimensions | 46.7" X 59.6" (RL X FB) X 116.1" HIGH | 46.7" X 59.6" (RL X FB) X 116.1" HIGH |
|---|---|---|
| Weight | APPROX. 11,000 LBS | APPROX. 11,000 LBS |
MAX. CAPACITY: 66 us ton at .24" off bottom
MAX. STROKE: 4.72"
MAX. DIE HEIGHT: 11.81" OVER 5.1" BOLSTER
BED AREA: 35.4" X 21.7" (RL X FB)
SPEED: 0 - 85 SPM
SLIDE ADJUSTMENT: 2.56" motorized
SLIDE AREA: 19.7" X 15.75" (RL X FB) (t-slotted)
BOLSTER PLATE: 35.4" X 21.7" x 5.1" (RL X FB x h) (t-slotted)
DISTANCE BETWEEN UPRIGHTS: 22.7"
FLOOR TO BOLSTER HEIGHT: 35.4"
THROAT DEPTH: 15.2"
shank hole diameter: 2"
PRESS CONTROLS: KOMATSU SIT IV Control System (PRECISE DIGITAL DATA)
ELECTRIC SERVO MOTOR: 7 KW SERVO MOTOR WITH TOGGLE-LINKAGE DESIGN
Note: THIS PRESS IS DESIGNED WITH A Linear Scale
Location: This New Press is Located in Our Warehouse on Location
Equipped With
eccentric shaft, Plunger Guide System, Auto Die Height Adjustment, Quick-responding dependable hydraulic overload protector, Precision Oil-Lubricated 6-Point Gibbing, Air Counterbalance System, & floor standing
