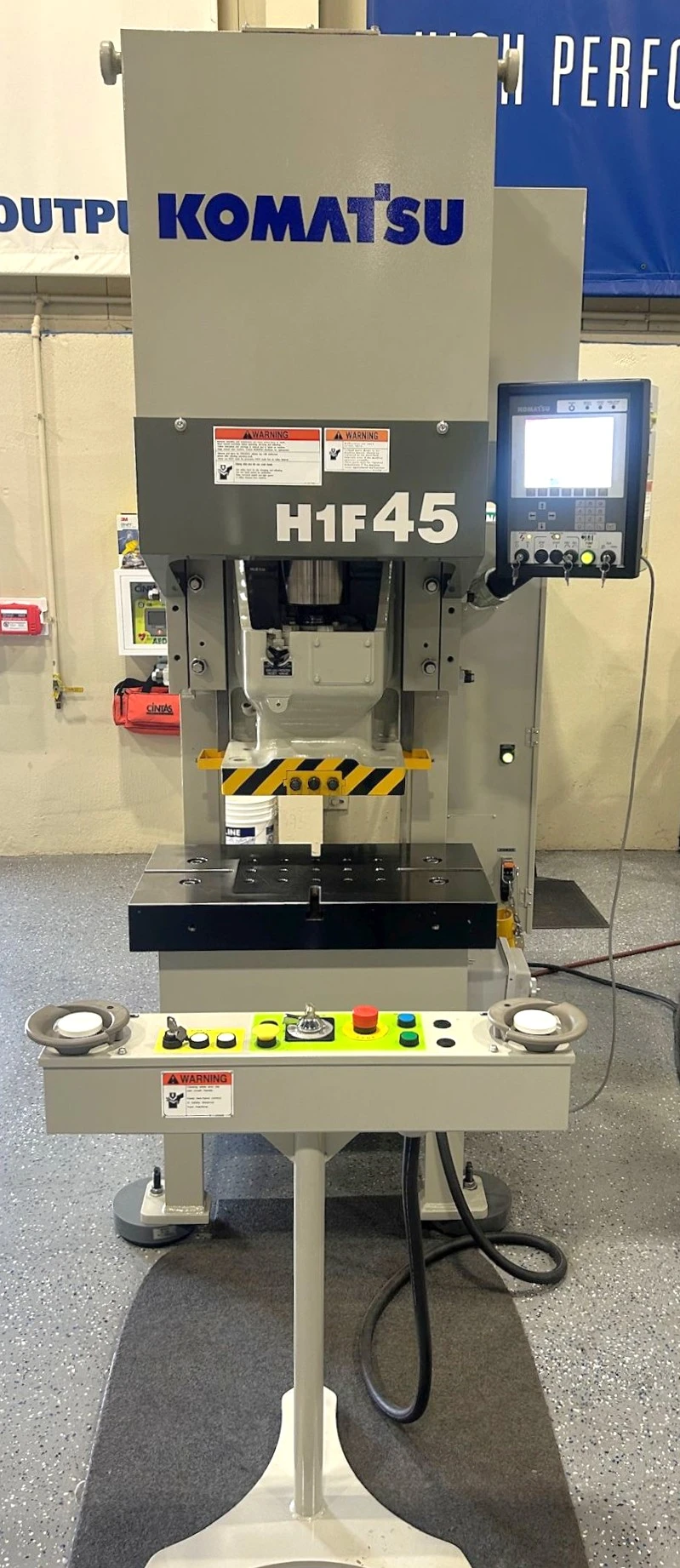

NEW 2026 KOMATSU PRESSES KOMATSU H1F45-CS PRESS
Overview
Description
Adjustable 3.94" Stroke & 9.84" Shut Height with Servo Motor, Variable Speed on Demand, 2 Year Unconditional Warranty
Specifications
| Dimensions | 39.4" X 49.9" (RL X FB) X 100.8" HIGH | 39.4" X 49.9" (RL X FB) X 100.8" HIGH |
|---|---|---|
| Weight | 7,720 lbs. | 7,720 lbs. |
MAX. CAPACITY: 49.5 US TONS
MAX. STROKE: 3.94"
MAX. DIE HEIGHT: 9.84"
BED AREA: 31.5" X 17.7" (RL X FB)
SPEED: 0 - 100 SPM
SLIDE ADJUSTMENT: 2.36" motorized
SLIDE AREA: 15.75" X 13.8" (RL X FB)
BOLSTER PLATE: 31.5" X 17.7" (RL X FB) X 4.33" THICK T-SLOTTED
DISTANCE BETWEEN UPRIGHTS: 18.3"
FLOOR TO BOLSTER HEIGHT: 31.5"
THROAT DEPTH: 9.4"
PRESS CONTROLS: KOMATSU CONTROL SYSTEM
ELECTRIC SERVO MOTOR: 7 KW
Note: __
Location: This New Press is Located in Our Warehouse on Location
Equipped With
eccentric shaft, Plunger Guide System, Auto Die Height Adjustment, Quick-responding dependable hydraulic overload protector, Precision Oil-Lubricated 6-Point Gibbing, Air Counterbalance System, & floor standing
