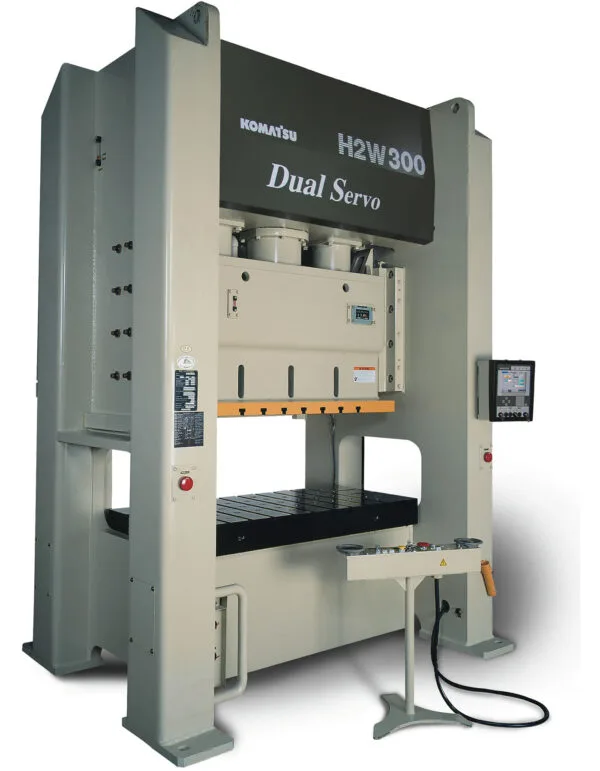

NEW 2026 KOMATSU PRESSES KOMATSU H2W300-S PRESS
Overview
Description
Adjustable 11.8" Stroke & 23.6" Shut Height with Servo Motor, Variable Speed on Demand, 2 Year Unconditional Warranty
Specifications
| Dimensions | 125.6" X 123.7" (RL X FB) X 181.7" HIGH | 125.6" X 123.7" (RL X FB) X 181.7" HIGH |
|---|
MAX. CAPACITY: 330 US TONS
MAX. STROKE: 0 - 11.8" ADJUSTABLE STROKE
MAX. SHUT HEIGHT TO BOLSTER: 23.6
BED AREA: 94.5" X 47.2" (RL X FB)
BOLSTER PLATE: 94.5" X 47.2" (RL X FB) X 7.9" THICK T-SLOTTED PLATE
RAM / SLIDE AREA: 82.7" X 47.2" (RL X FB)
RAM / SLIDE ADJUSTMENT: 7.9"
SPEEDS: 0-40 SPM ROATATION | 0-49 SPM PENDULUM
WINDOW SIZE: 47.2" WIDE X 20.9" HIGH
FLOOR TO BOLSTER HEIGHT: 45.3"
PRESS CONTROLS: KOMATSU SIT IV Control System (PRECISE DIGITAL DATA)
ELECTRIC SERVO MOTOR: TWO 60 KW SERVO MOTORS
Note: THIS PRESS IS DESIGNED WITH A Linear GLASS Scale
Location: This New Press is Located in Our Warehouse on Location
Equipped With
SYMMETRICAL UNITIZED FRAME, ACCURACY WITHIN MICRONS, TWO INDEPENDENT SERVO DRIVE SYSTEM WITH TILT CORRECTION, Plunger Guide System, EFFICIENT DRIVE SYSTEM & CONTROL, dependable hydraulic overload PROTECTION, Auto Die Height Adjustment, Air Counterbalance System
