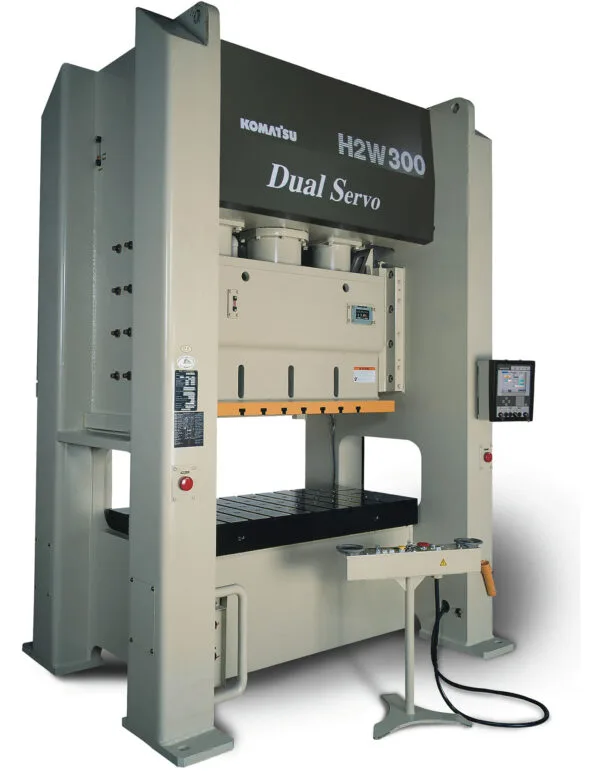

NEW 2026 KOMATSU PRESSES KOMATSU H2W300-H PRESS
Overview
Description
6.7" Adjustable Stroke, 23.6" Shut Height to Bolster, 0-65 Adjustable Speed (Full Tonnage at All Speeds)
Specifications
| Dimensions | 125.6" X 123.7" (RL X FB) X 181.7" HIGH | 125.6" X 123.7" (RL X FB) X 181.7" HIGH |
|---|
MAX. CAPACITY: 330 US TONS
MAX. STROKE: 0 - 6.7" ADJUSTABLE STROKE
MAX. SHUT HEIGHT TO BOLSTER: 23.6
BED AREA: 94.5" X 47.2" (RL X FB)
BOLSTER PLATE: 94.5" X 47.2" (RL X FB) X 7.9" THICK T-SLOTTED PLATE
RAM / SLIDE AREA: 82.7" X 47.2" (RL X FB)
RAM / SLIDE ADJUSTMENT: 7.9"
SPEEDS: 0-65 SPM ROTATION
WINDOW SIZE: 47.2" WIDE X 20.9" HIGH
FLOOR TO BOLSTER HEIGHT: 45.3"
PRESS CONTROLS: __
ELECTRIC SERVO MOTOR: TWO 60 KW SERVO MOTORS
Note: THIS PRESS IS DESIGNED WITH A Linear GLASS ScalE TO ENSURE WORLD CLASS HIGH POSITIONING ACCURACY
Location: This New Press is Located in Our Press Sales Catalog Either In Transit or Made to Order
Equipped With
SYMMETRICAL UNITIZED FRAME, ACCURACY WITHIN MICRONS, TWO INDEPENDENT SERVO DRIVE SYSTEM WITH TILT CORRECTION, Plunger Guide System, EFFICIENT DRIVE SYSTEM & CONTROL, dependable hydraulic overload PROTECTION, Auto Die Height Adjustment, Air Counterbalance System
