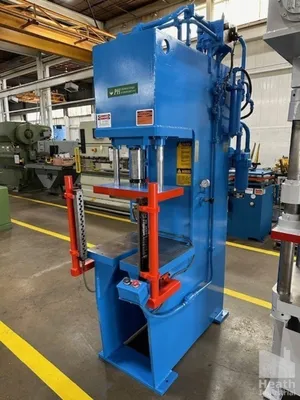

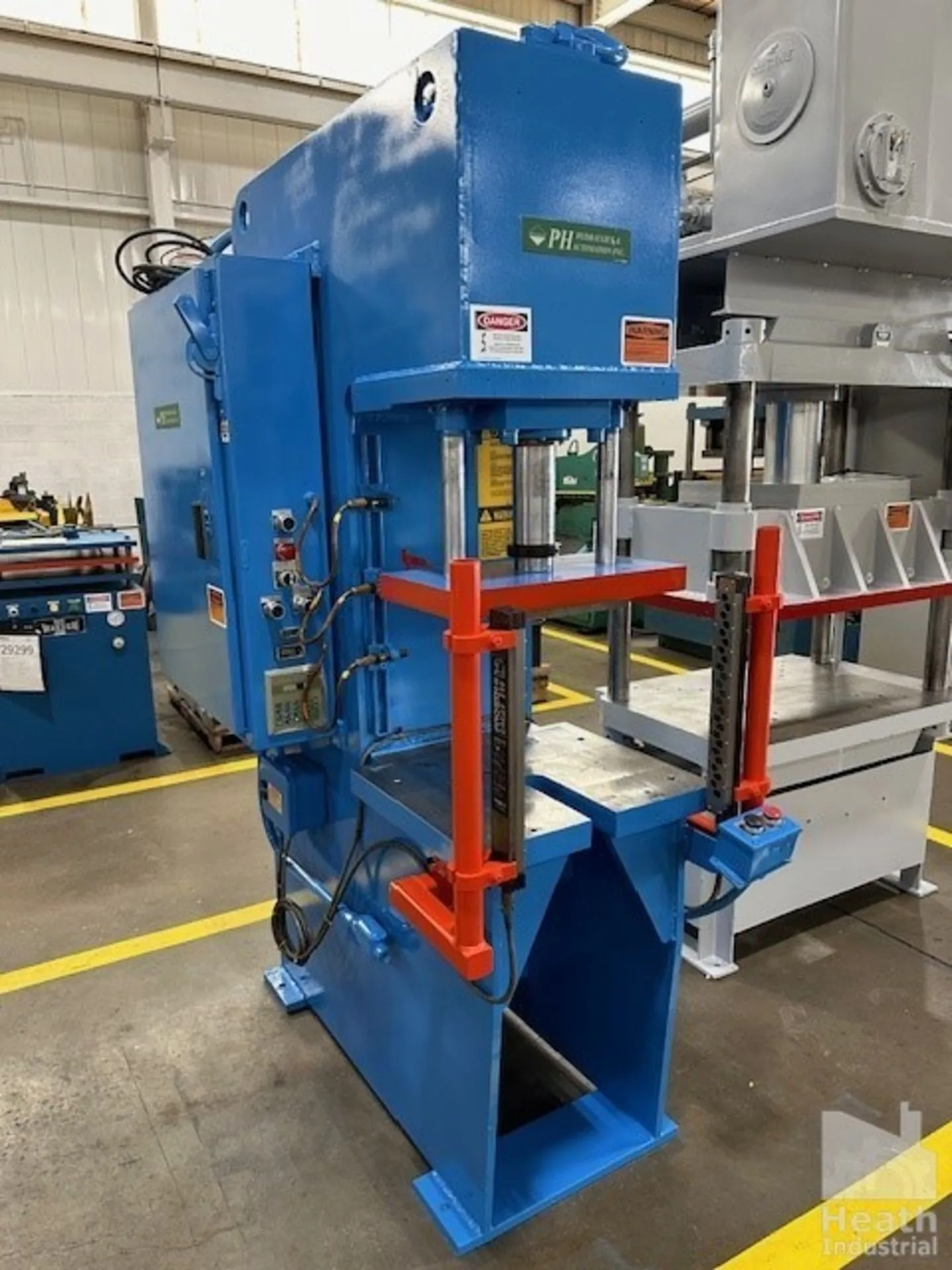

USED PH PH OGF-20 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
C-Frame Presses
Manufacturer:
PH
Model:
PH OGF-20 PRESS
Stock #:
8255
Description

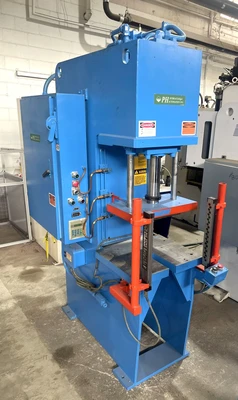

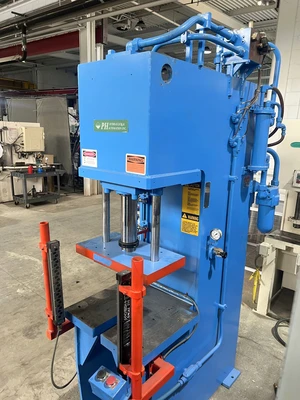

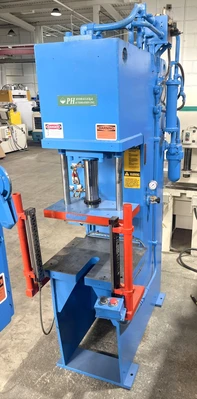

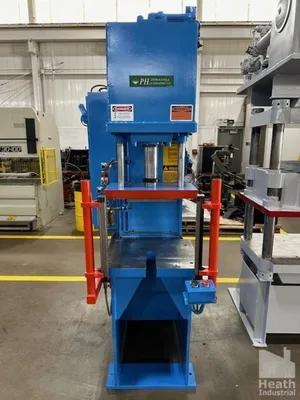

18" Stroke, 20" Daylight, 24" x 20.25" Bed Area, Guide Post Ram, Adjustable Speed through Vickers Flow Control Valve

Specifications
Dimensions44" X 72" (RL X FB) X 107" HIGH44" X 72" (RL X FB) X 107" HIGH
Weight4,200 LBS.4,200 LBS.

MAX. CAPACITY: 20 TONS
MAX. STROKE: 18"
MAX. DAYLIGHT: 20"
BED AREA: 24" X 20.25" (RL X FB)

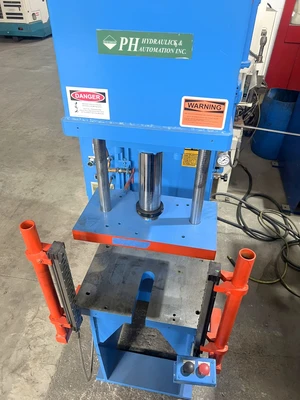

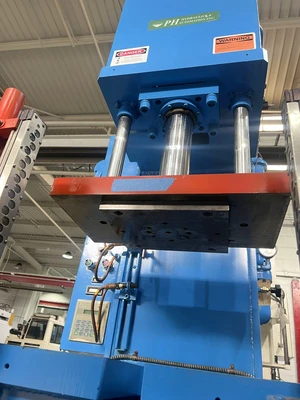

RAM / SLIDE AREA: 22" x 12" (rl x fb) WITH 1.75" DIA. GUIDE POSTS

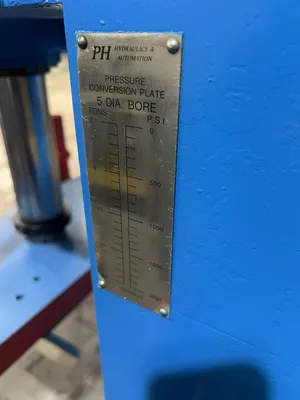

CYLINDER SIZE: 5" DIA. BORE
RAM ROD SIZE: 3.25" DIA.
THROAT DEPTH: 14" TO SIDE FRAME / 14.26" TO BACK
FLOOR TO BED HEIGHT: 36"
SPEEDS: VARIABLE SPEED - APPROX. 266 IPM CLOSING / 130 IPM PRESSING / 254 IPM RETURN

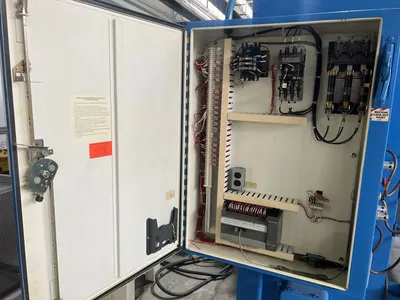

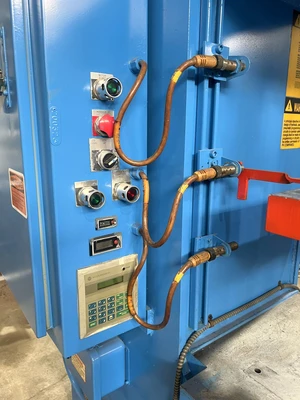

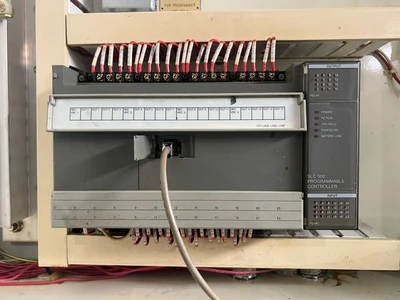

PRESS CONTROLS: ALLEN-BRADLEY SLC 500 PROGRAMMABLE CONTROLLER

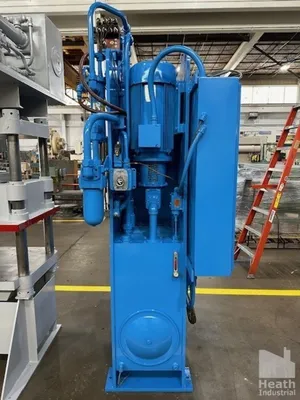

HYDRAULIC SYSTEM: SELF-CONTAINED HYDRAULIC PUMP | 60 GALLON RESERVOIR

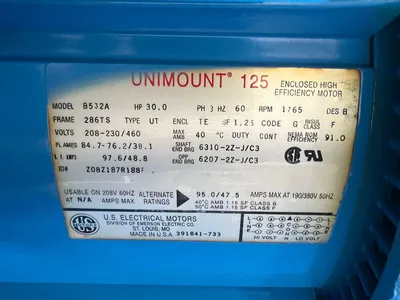

ELECTRIC MOTOR: 30 HP 208-230/460V-3-60 US MOTORS MOTOR | 84.7-76.2 / 38.1 AMPS

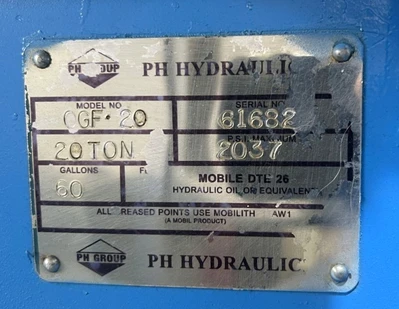

Note: MOBILE DTE 26 OR ISO VG 68 ANTI-WEAR HYDRAULIC OIL RECOMMENDED
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

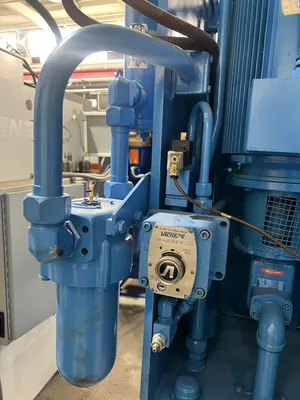

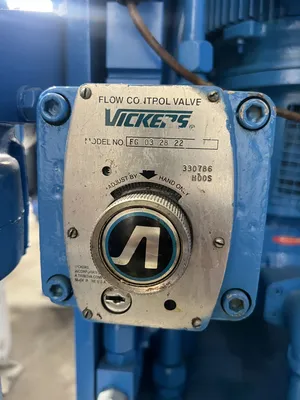

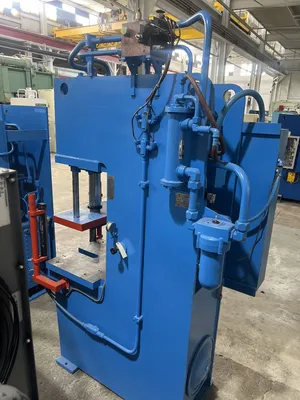

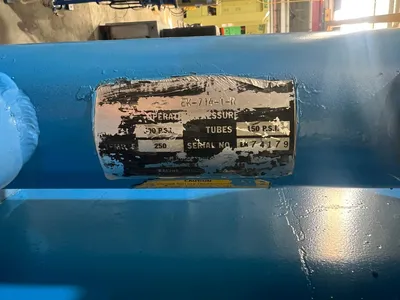

SHELL-AND-TUBE HEAT TRANSFER PRODUCTS HEAT EXCHANGER MODEL EK-714-T-R, ADJUSTABLE SPEED THROUGH VICKERS FLOW CONTROL VALVE MODEL FG 03 28 22 MOUNTED TO BACK OF THE PRESS
