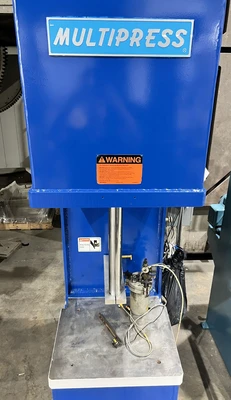

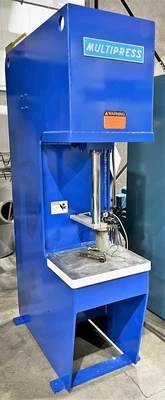

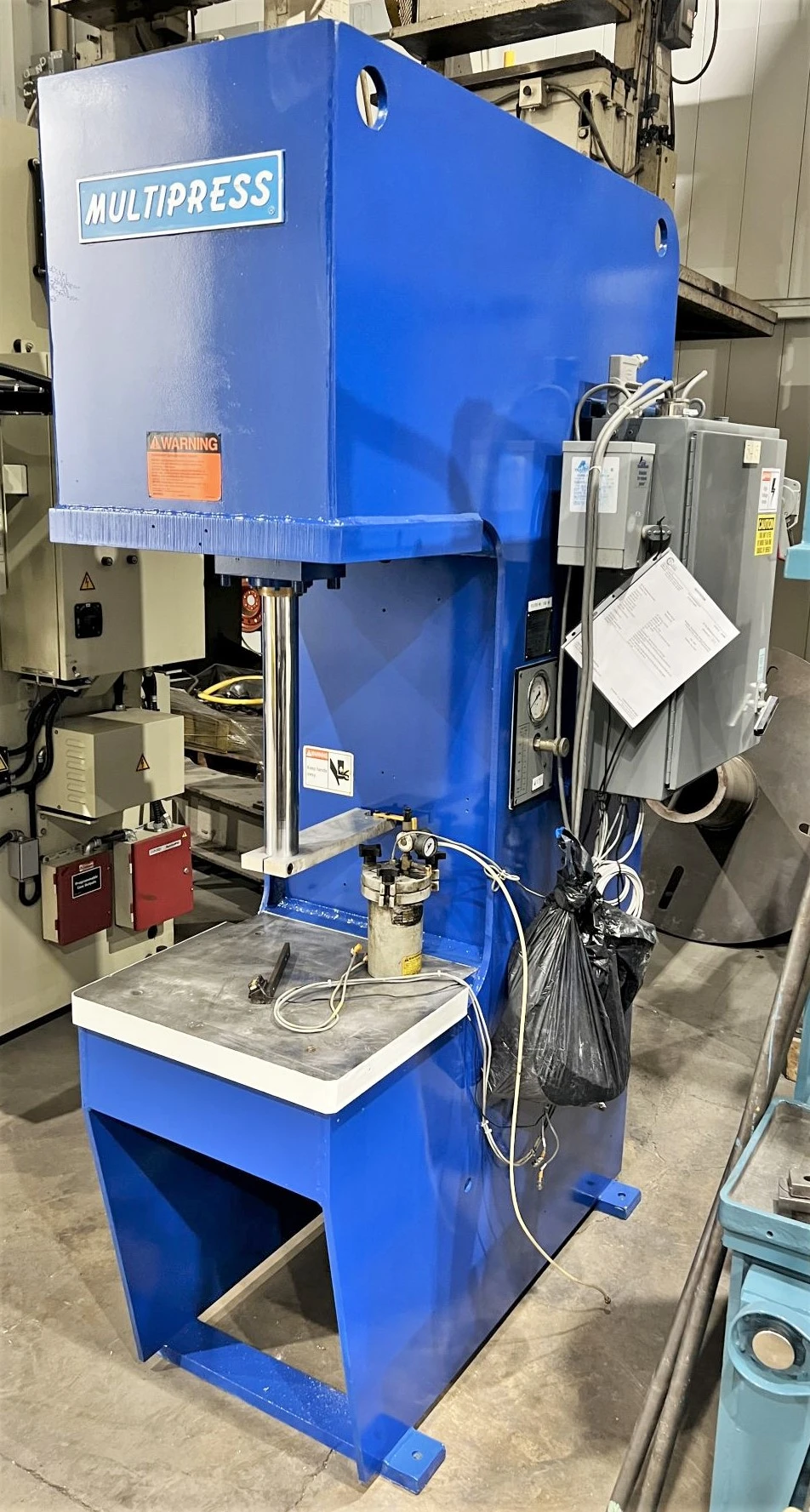

Overview
Type:
C-Frame Presses
Manufacturer:
MULTIPRESS
Model:
MULTIPRESS FMS-20 PRESS
Year:
2006
Stock #:
6215
Description

Approx. 18" Stroke, Approx. 26" Daylight, 24" x 21" Bed Area, 740 IPM Rapid Advance Speed

Specifications
Dimensions36" X 62" (RL X FB) X 98" HIGH36" X 62" (RL X FB) X 98" HIGH
Weight3,800 LBS.3,800 LBS.

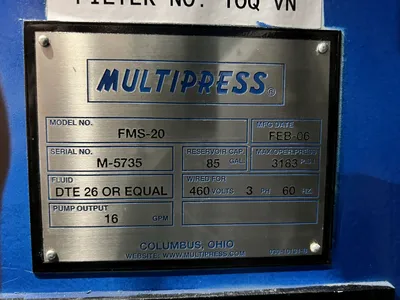

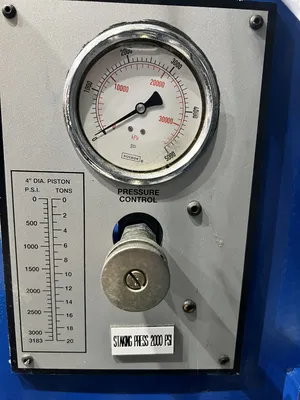

max. capacity: 20 TONS @ 3,183 PSI
MAX. STROKE: APPROX. 18"
MAX. DAYLIGHT: APPROX. 26"
BED AREA: 24" X 21" (RL X FB)
RAM ROD SIZE: 2.5" DIA. (WITH 4" X 15" SUPPORT RAM)
CYLINDER SIZE: 4" DIA. BORE
THROAT DEPTH: 13.25"
FLOOR TO BED HEIGHT: 36"
SPEEDS: 740 ADVANCE / 290 PRESSING / 475 RETURN

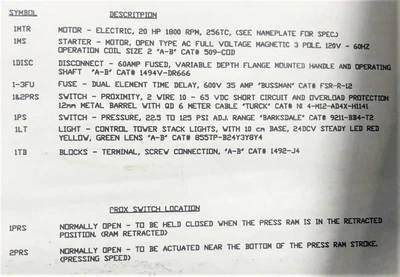

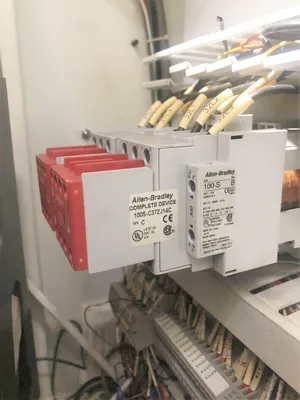

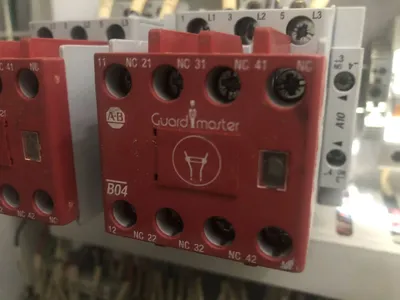

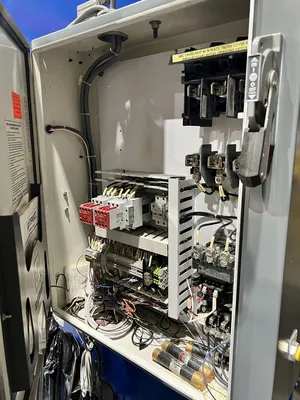

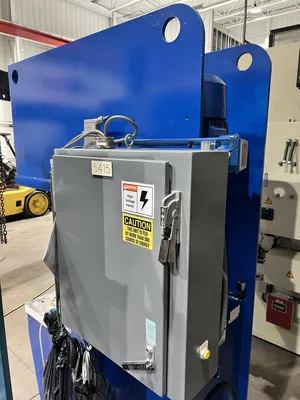

PRESS CONTROLS: ORIGINAL MULTIPRESS CONTROLS WITH ALLEN-BRADLEY COMPONENTS

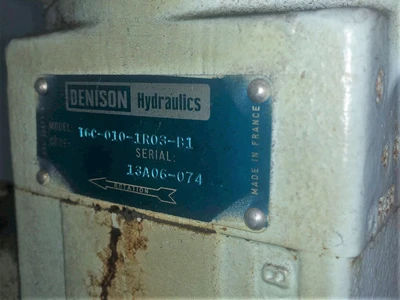

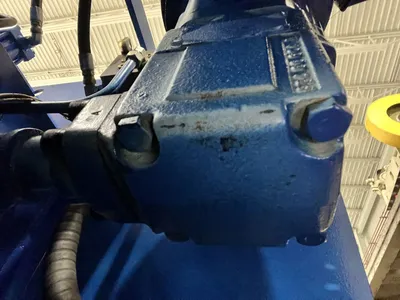

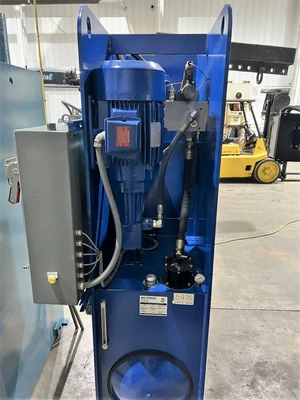

HYDRAULICS: DENISON HYDRAULICS T6C-010-1R03-B1 HYDRAULIC PUMP, 85 GAL. RESERVOIR

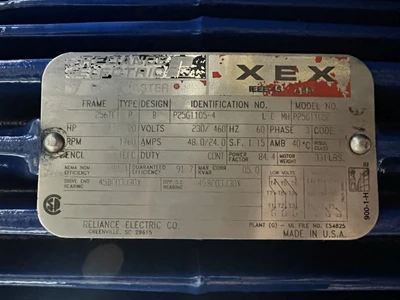

ELECTRICAL: 20 HP 230/460V-3-60 RELIANCE ELECTRIC MOTOR | 48/24 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building
