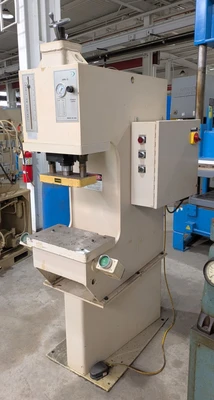

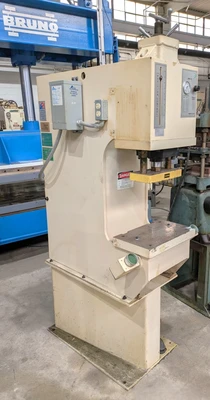

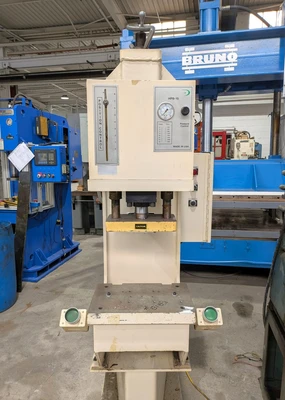

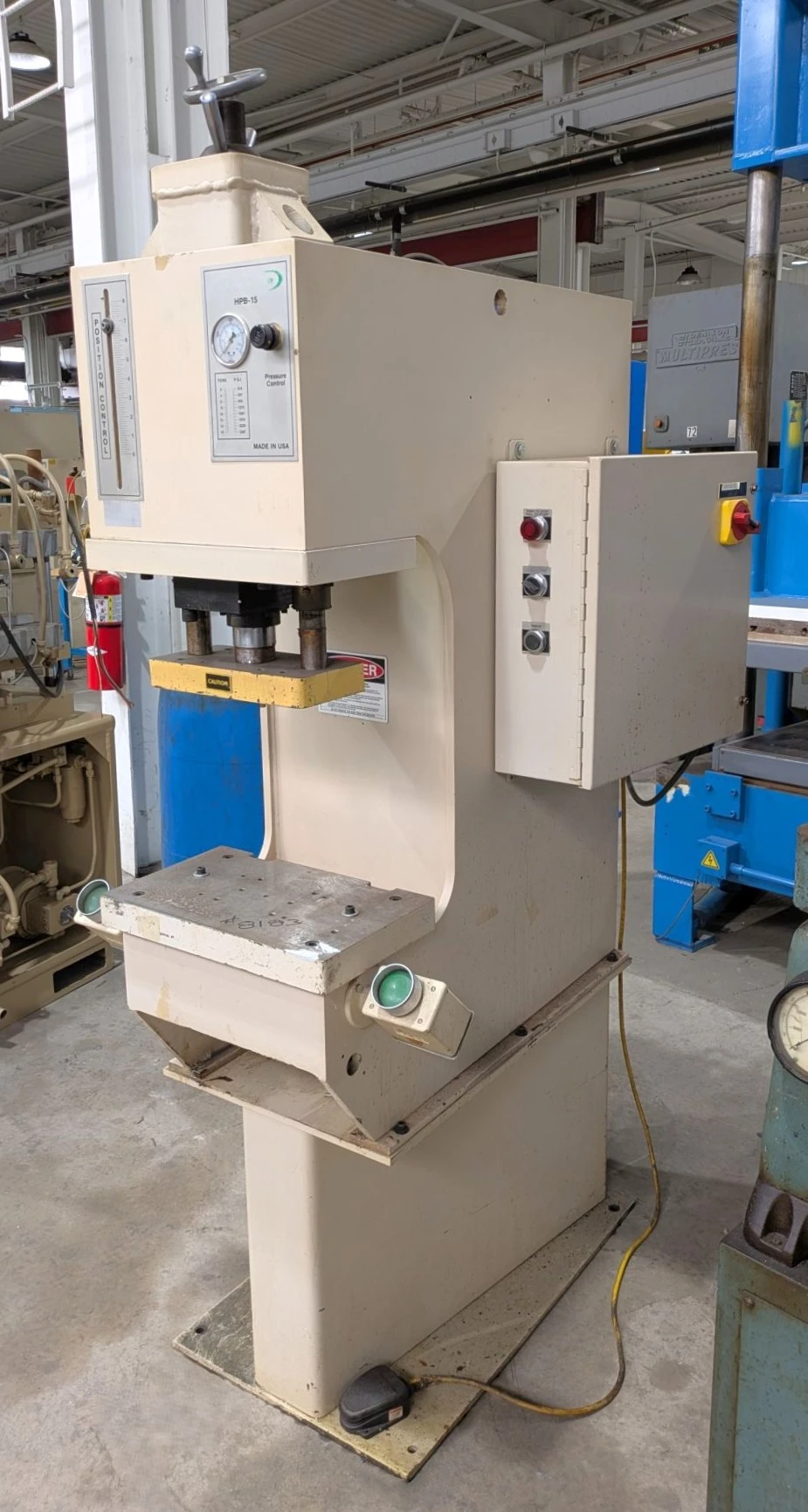

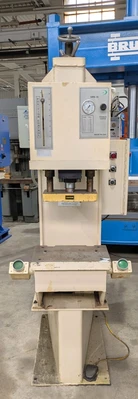

8" Stroke, 14" Daylight, 18" x 11" Bed Area, New in 1998
| Dimensions | 30" x 48" (RL x FB) x 80" High | 30" x 48" (RL x FB) x 80" High |
| Weight | APPROX. 2,000 LBS. | APPROX. 2,000 LBS. |
MAX. CAPACITY: 15 TONS
MAX. STROKE: 8"
MAX. DAYLIGHT: 14"

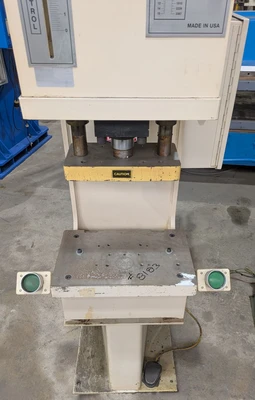

BED AREA: 18" X 11" (RL X FB)
RAM AREA: 12" X 6" (RL X FB)
throat: 9"
Floor to Bed Height: 37"

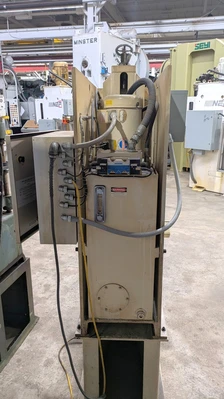

Cylinder: 4.0 Dia. Bore
Ram Rod: 2.5" Dia.

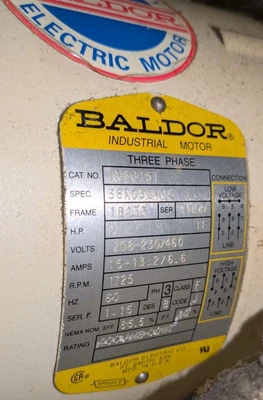

Electric Motor: Baldur 5HP 1725 RPM 230/460V 13.2/6.8A CURRENTLY Wired 230

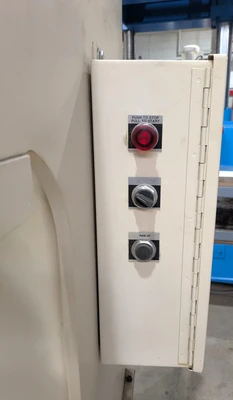

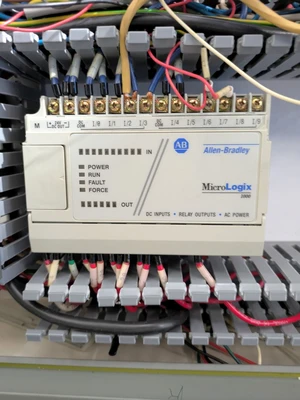

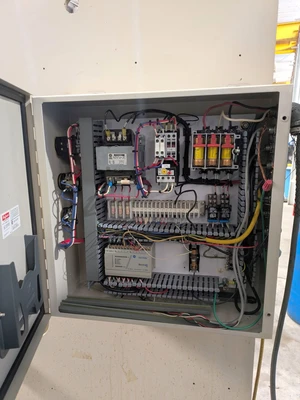

Controls: Allen Bradley Micrologix 1000 PLC
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

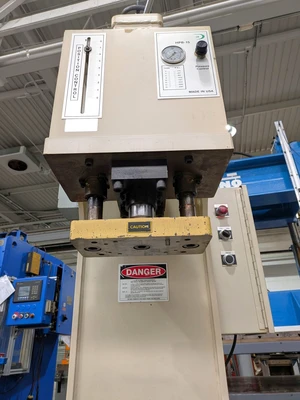

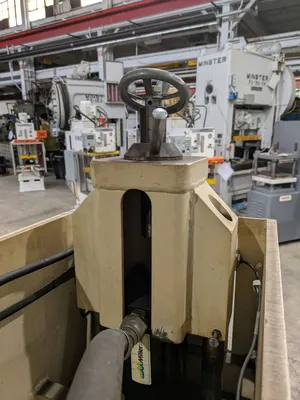

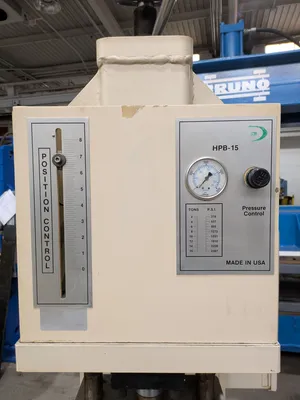

Pressure control and gauge, Adjustable stroke, Positive stop Stroke Control, Allen Bradley PLC
