Overview
Type:
C-Frame Presses
Manufacturer:
MULTIPRESS
Model:
MULTIPRESS W6A-3 PRESS
Year:
2003
Stock #:
8247
Description

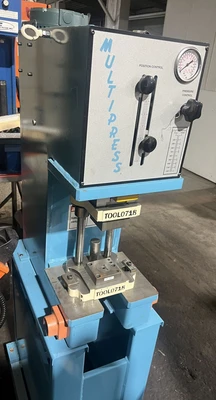

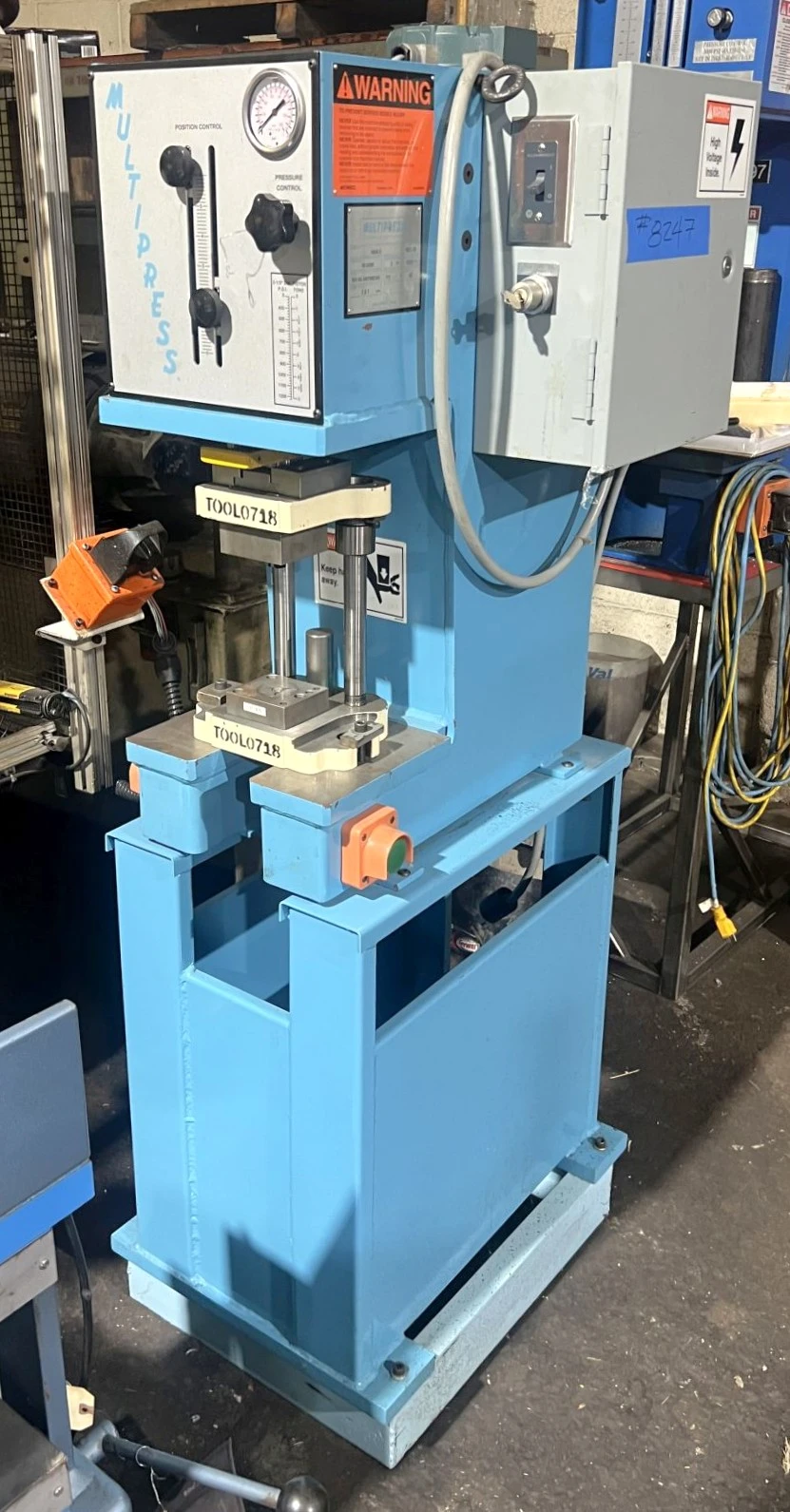

7" Stroke, 11" Daylight, 16.25" x 9.75" Bed Area, Allen-Bradley MicroLogix 1000 PLC Controls, 115V Single Phase Press

Specifications
Dimensions23" X 30" (RL X FB) X 35" HIGH23" X 30" (RL X FB) X 35" HIGH
Weight500 lbs.500 lbs.

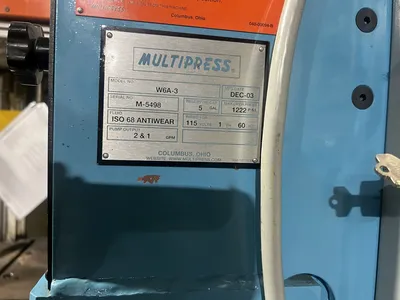

MAX. CAPACITY: 3 TONS AT 1,222 PSI
MAX. STROKE: 7"
MAX. DAYLIGHT TO BED: 11"

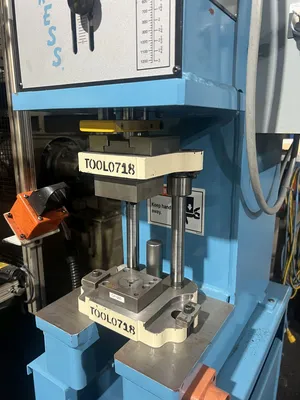

BED AREA: 16.25" X 9.75" (RL X FB)

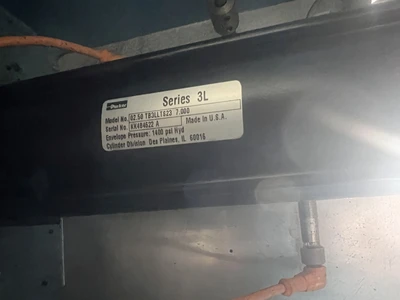

CYLINDER SIZE: 2.5" DIA. BORE - PARKER SERIES 3L TB3LLTS23 (1,400 MAX. PSI)
RAM ROD: 1.75" DIA.
RAM PLATE SIZE: 4.75" X 3.25" (RL X FB)
THROAT DEPTH: 5"
FLOOR TO BED HEIGHT: 5" - ON 25.25" TABLE -> 30.25" TOTAL WORKING HEIGHT
SPEEDS: rapid advance - 275 ipm pressing - 40 ipm return - 260 ipm

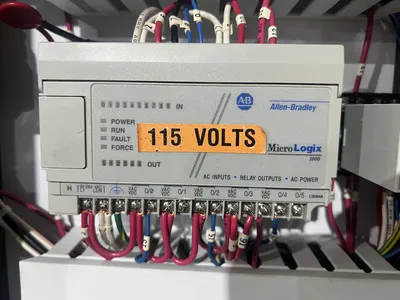

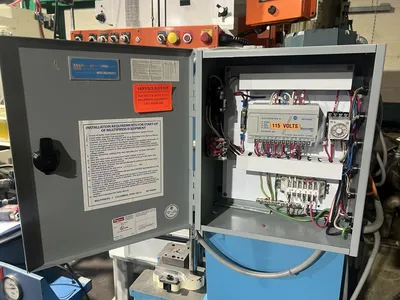

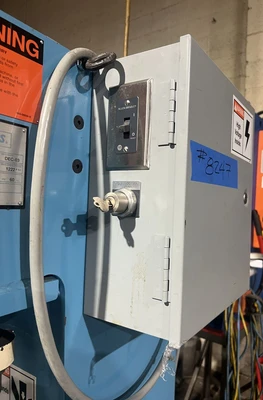

PRESS CONTROLS: ALLEN-BRADLEY MICROLOGIX 1000 CONTROLLER
HYDRAULIC SYSTEM: 5 GALLON RESERVOIR - 2 & 1 GPM PUMP OUTPUT

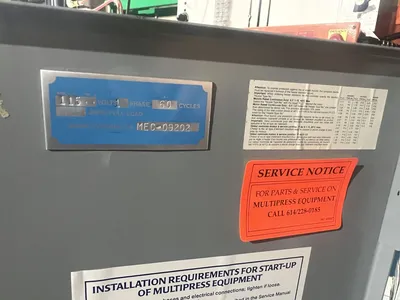

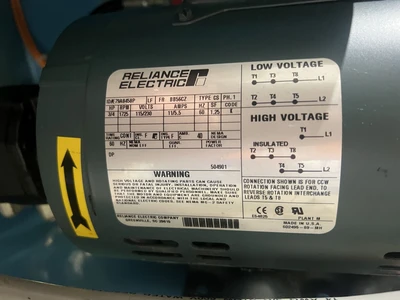

ELECTRIC MOTOR: .75 HP 115/230V-1-60 RELIANCE ELECTRIC MOTOR | 11/5.5 AMPS
Note: CYLINDER IS RATED FOR 7" STROKE BUT THE CURRENT POSITION ADJUSTMENT LIMITS THE PRESS TO 6"
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

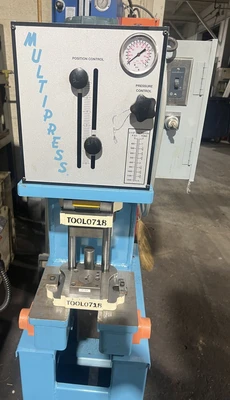

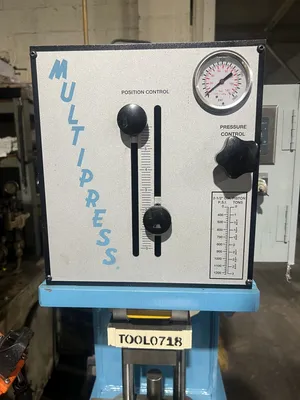

MANUAL POSITION & PRESSURE CONTROL VALVES ON FRONT OF PRESS
