Overview
Uncoilers

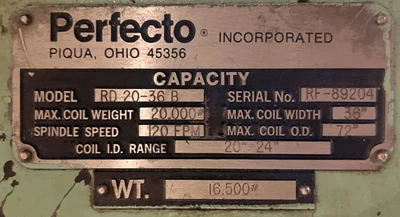

PERFECTORD 20-36 B / 28-36-71990

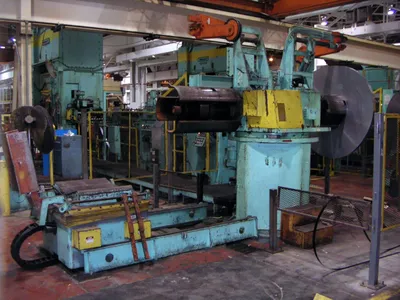

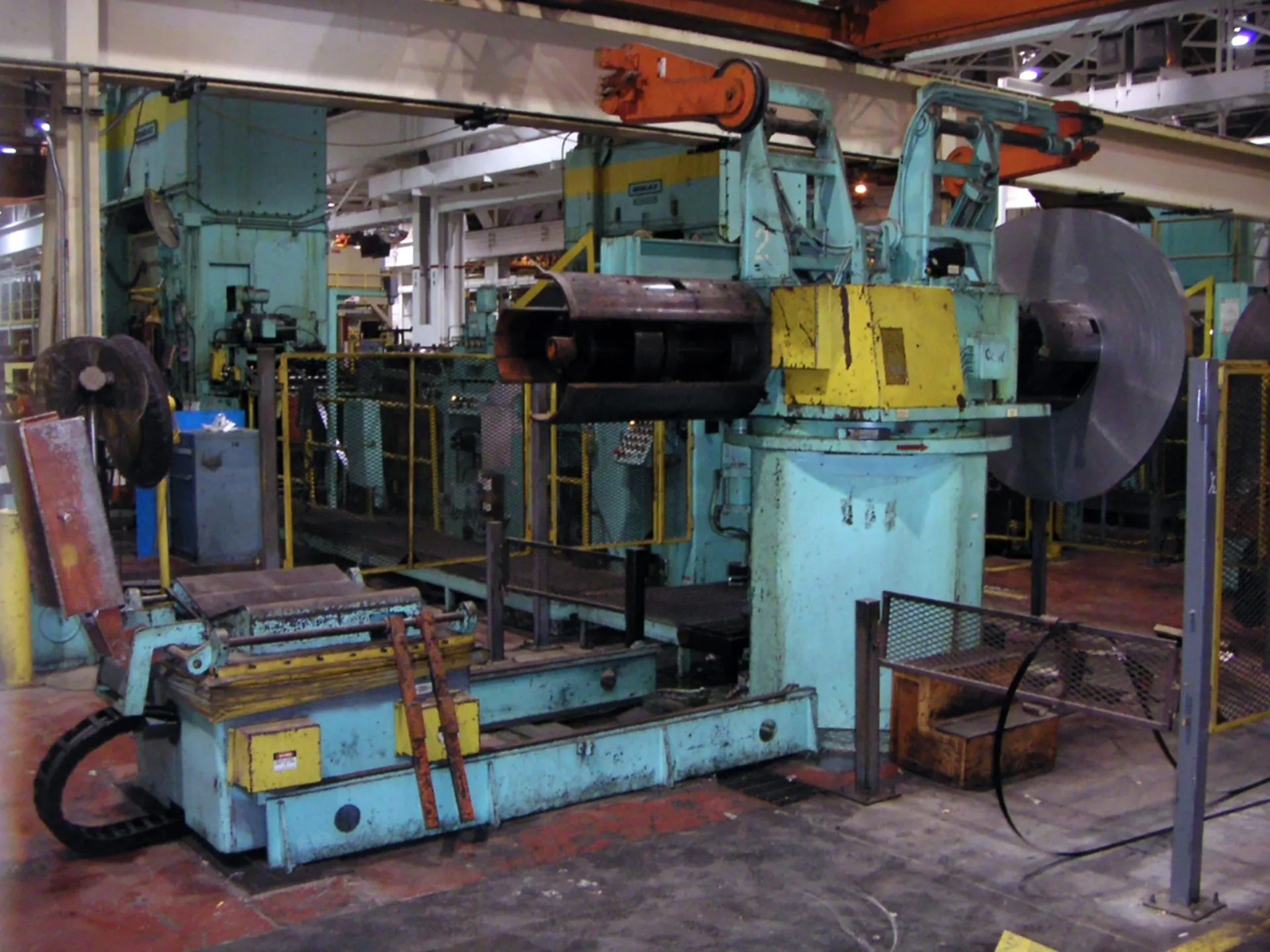

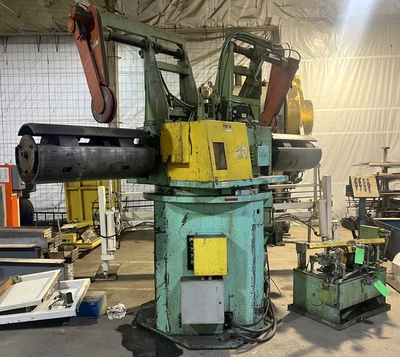

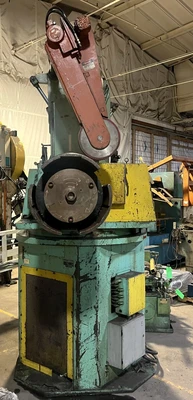

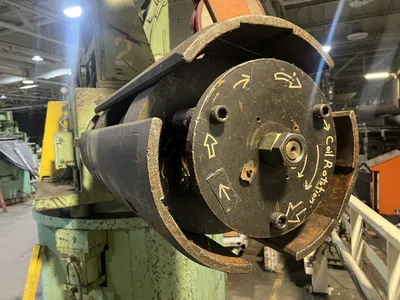

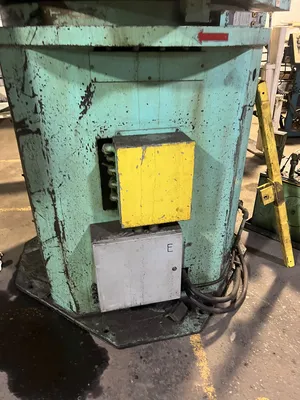

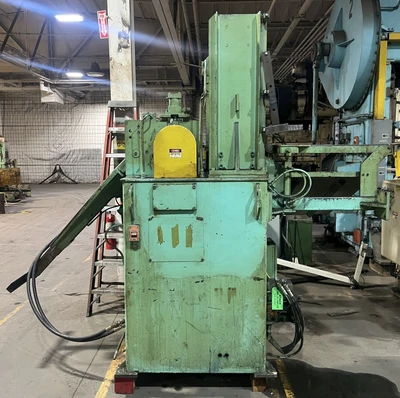

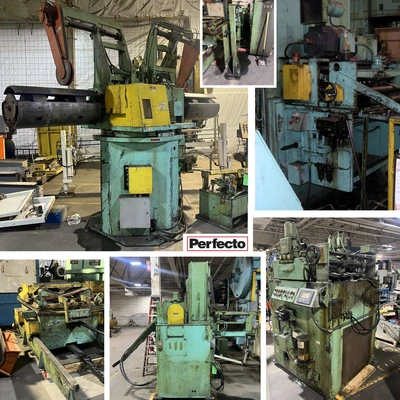

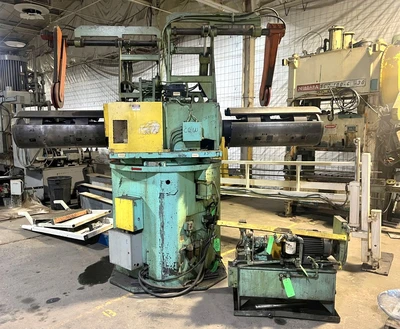

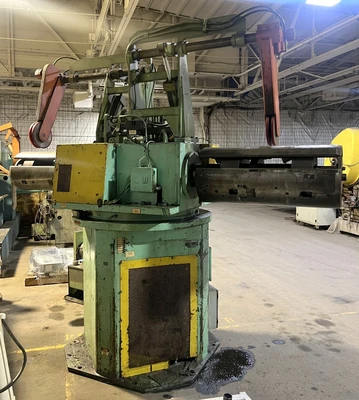

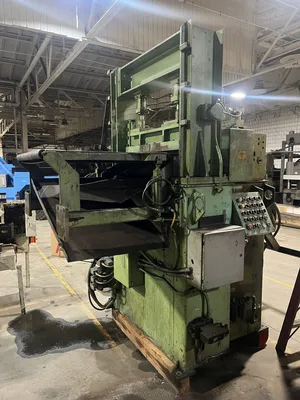

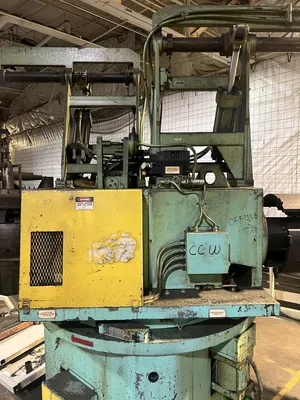

25,000 lbs. Double End Motorized Reel with Dual Hold Down Arms, Heavy Duty Peeler, Shear, Straightener & Servo Feed Complete Line

Specs
Dimensions
69" X 153" (RL X FB) X 127" HIGH
Weight
10,500 LBS.

MAX. CAPACITY: 25,000 LBS.
MATERIAL / STOCK WIDTH: 36"
MAX. COIL O.D.: 72"
MIN COIL O.D.: 30"
COIL I.D. RANGE: 20" - 24"
FLOOR TO CENTER HEIGHT: 72"

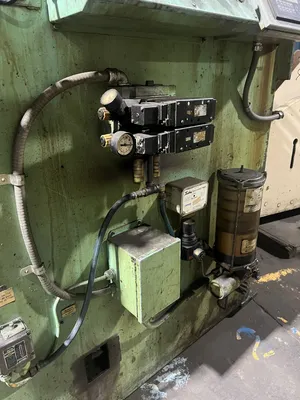

BRAKE: AIR BRAKE SYSTEM
TRAVERSE SPEED: 5 - 20 FT/MINUTE VARIABLE SPEED

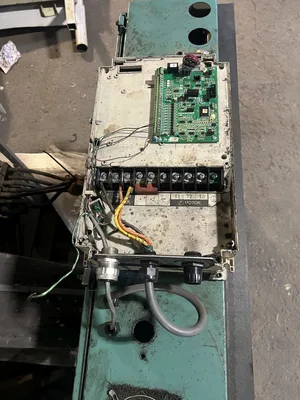

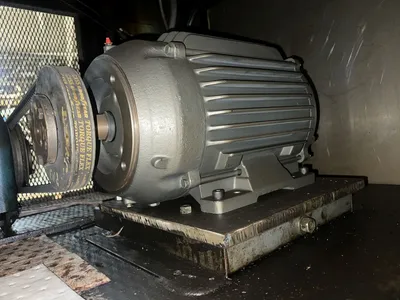

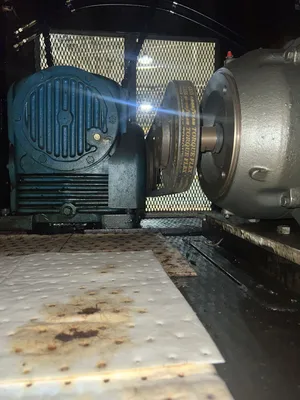

ELECTRIC MOTOR: 5 HP MOTOR EDDY CURRENT DRIVE WITH MODULATING LOOP CONTROL

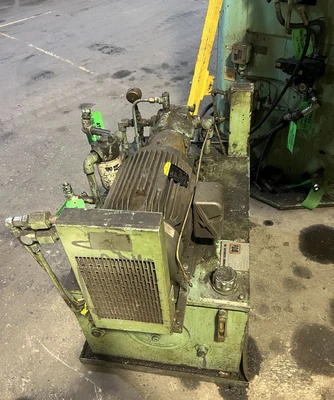

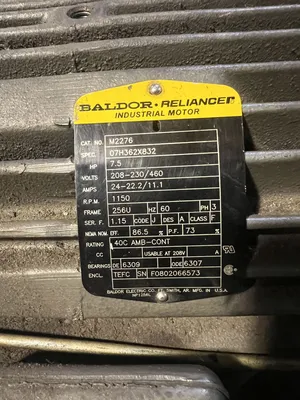

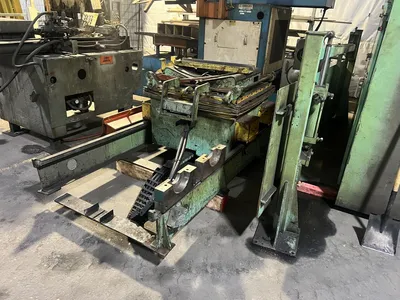

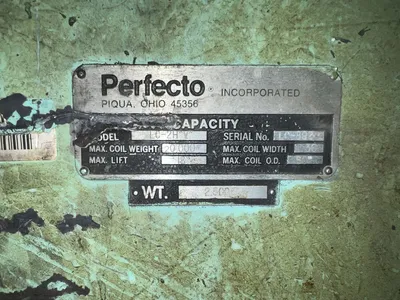

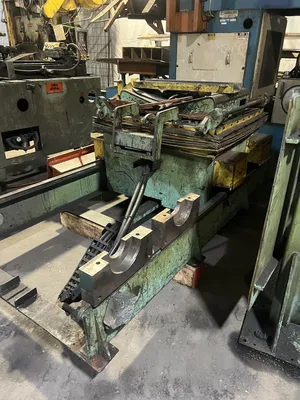

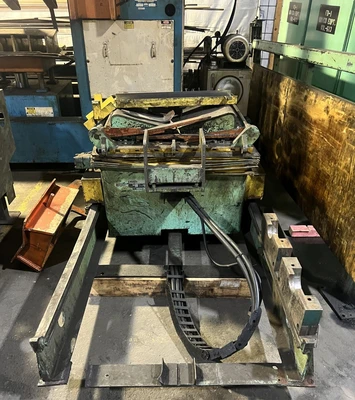

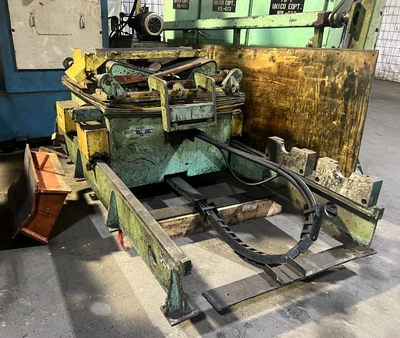

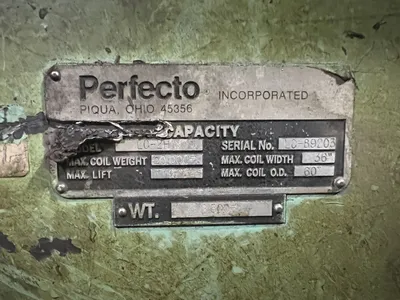

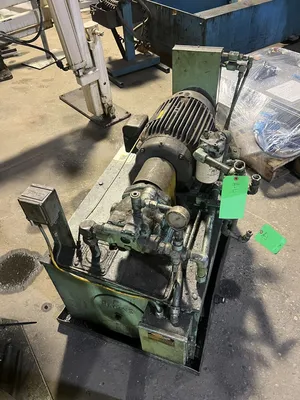

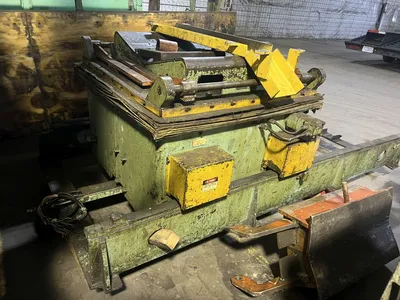

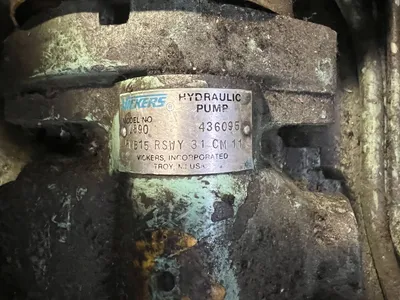

LC-2H "v" COIL CAR SIZE: 25,000 LBS., 18" LIFT (HYDRAULIC), 7.5 HP MOTOR, 180 DEGREE ROTATION

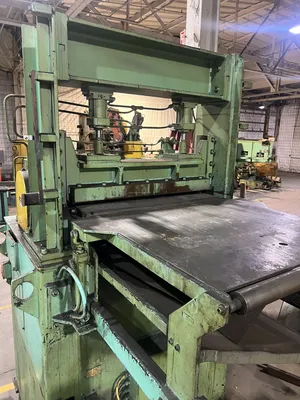

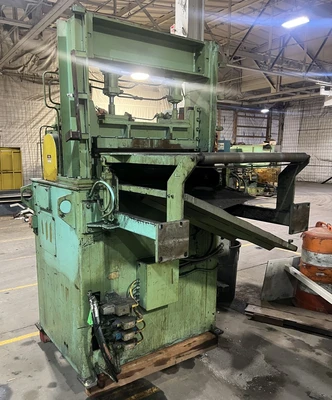

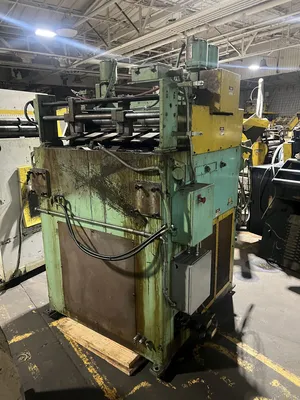

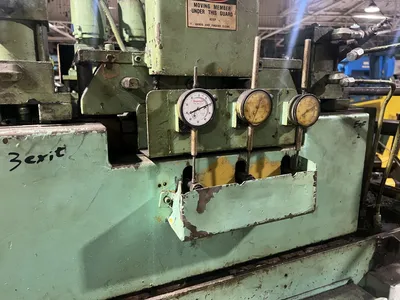

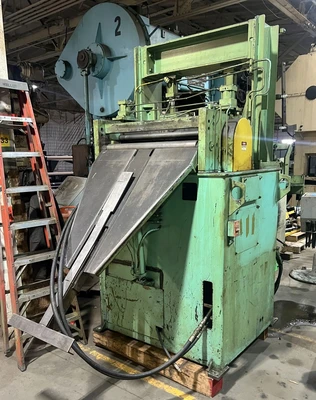

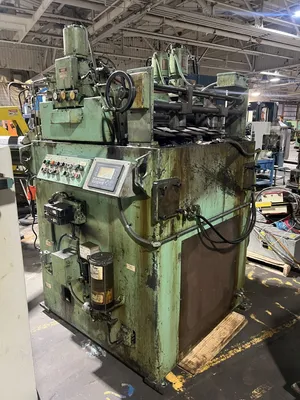

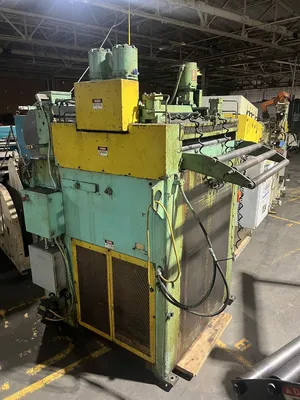

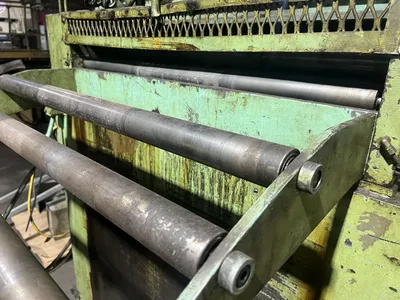

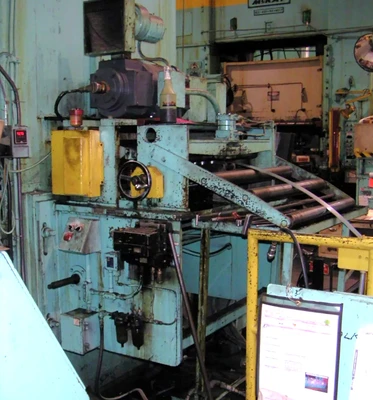

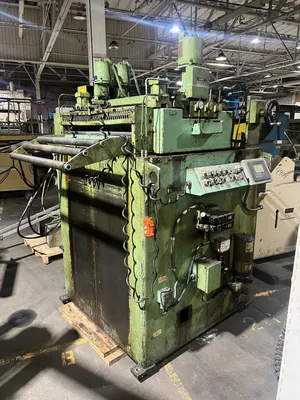

PERFECTO STRAIGHTENER MODEL 28-36-7: .030" at 36" width | 100" AT 18" WIDTH
STRAIGHTENING ROLL SIZE: 2.8" DIA. WITH BACK UPS
POWER PINCH ROLL SIZE: APPROX. 2.25", 2.5" OR 2.75" DIA.
LINE SPEED: 20-120 FEET PER MINUTE
PASS LINE HEIGHT: APPROX. 64" TO 70"
ELECTRIC MOTOR: 5 HP MOTOR

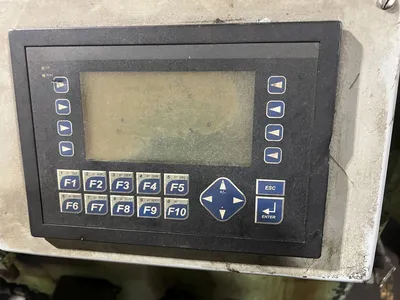

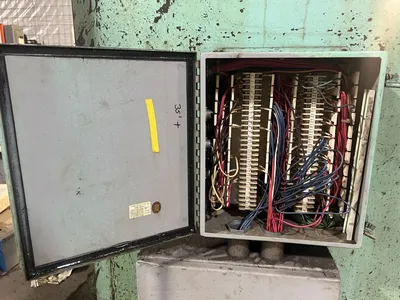

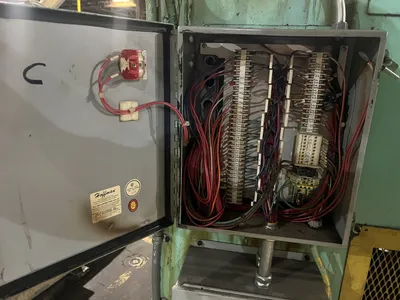

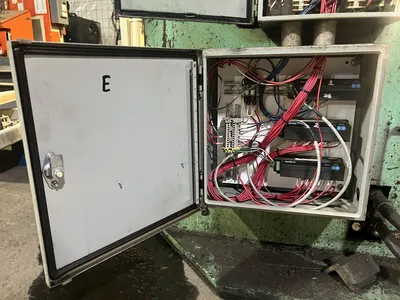

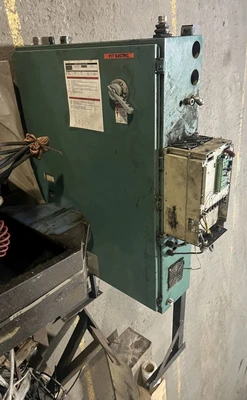

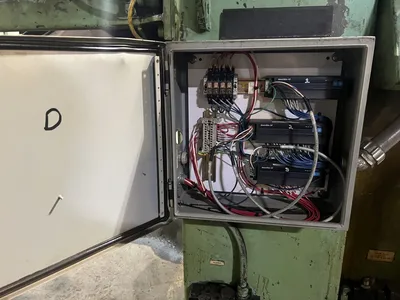

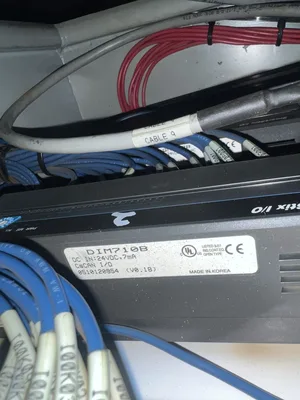

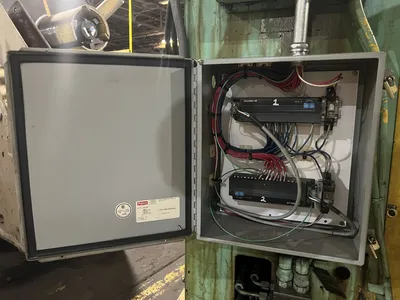

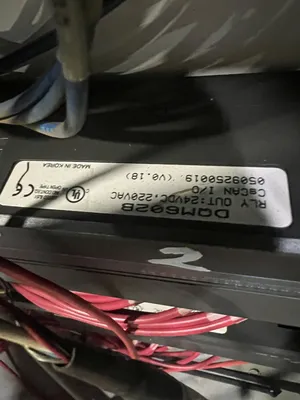

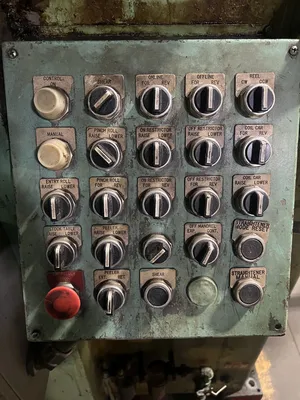

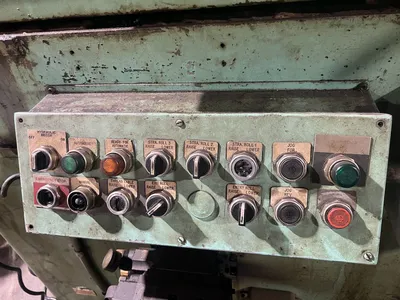

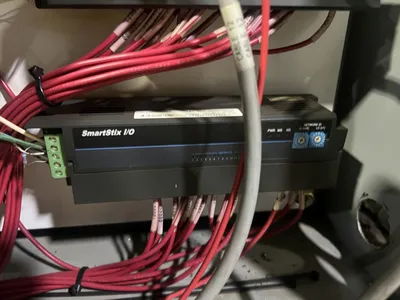

CONTROLS: HORNER HMI/PLC CONTROL SYSTEM WITH SMARTSTIX I/O, MANUAL PUSH BUTTON STATION
Note: COIL CAR "V" CAN BE ROTATED 180 DEGREES, SERVO FEEDER SUBJECT TO CHANGE
Location: This Used Perfecto RD 20-36 B / 28-36-7 Double End Reel & Coil Cart is located in our Jackson, MI Falahee Building

Equipped With

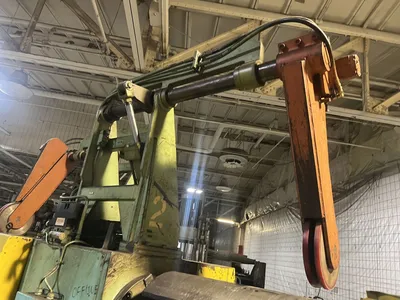

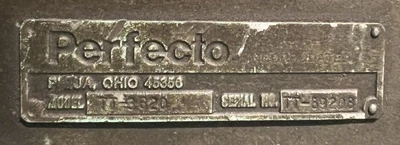

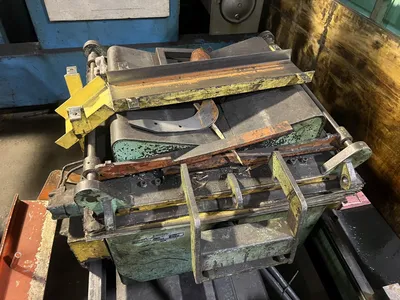

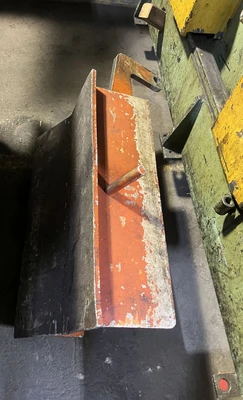

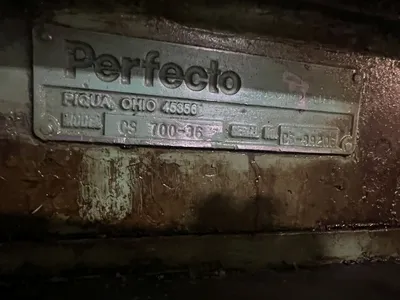

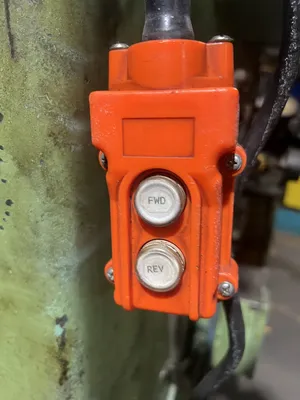

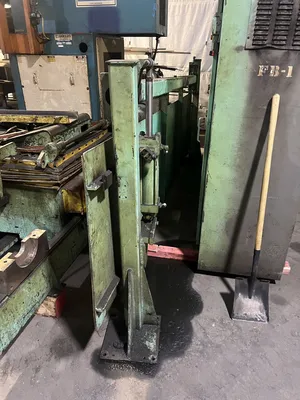

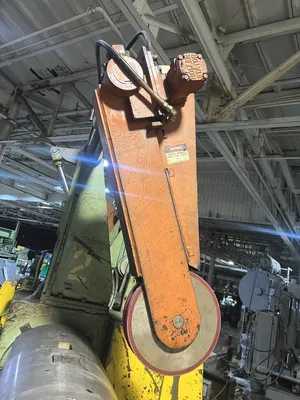

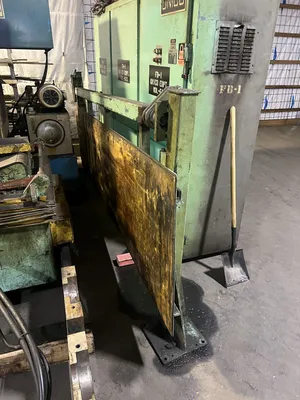

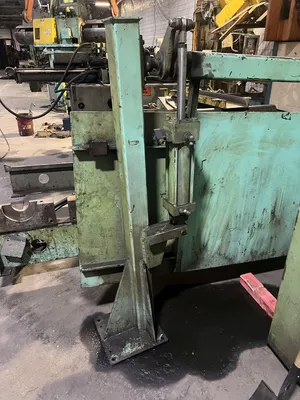

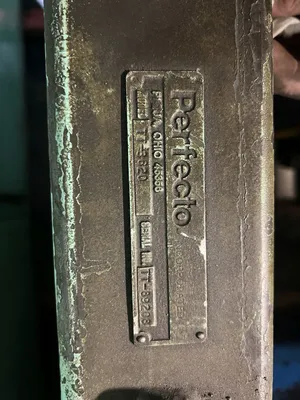

hold down overarm on each side, coil car model lc-2h "V" (25,000 LBS. CAPACITY, 18" LIFT (HYDRAULIC), 7.5 HP MOTOR - SERIAL L0-89203), THREADING TABLE MODEL TT-3820 (SERIAL: TT-89208), SHEAR MODEL CS 700-36 (SERIAL: CS-99206), FWD/REV JOG PENDANT
