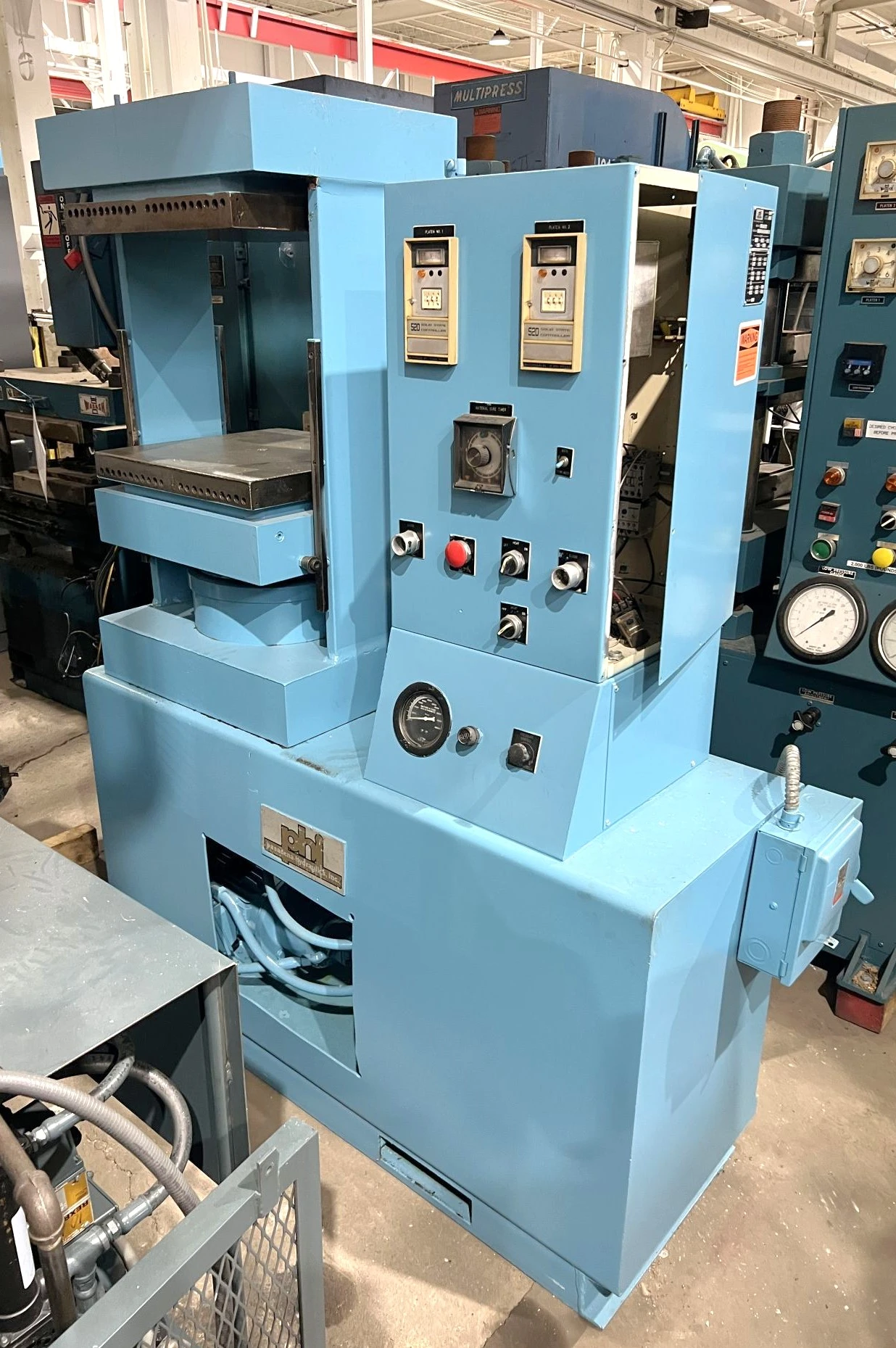

USED 1984 PHI PHI 100U1818S-2HH0-D-YS1-G PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Molding Presses
Manufacturer:
PHI
Model:
PHI 100U1818S-2HH0-D-YS1-G PRESS
Year:
1984
Stock #:
8264
Description

10" Stroke, 21" Daylight, 18.625" x 18.75" Heated Platens, Low Profile, Easy Pick and Place

Specifications
Dimensions63" X 32" (RL X FB) X 77" HIGH63" X 32" (RL X FB) X 77" HIGH
Weight3,600 LBS.3,600 LBS.

MAX. CAPACITY: 100 TONS AT 3,175 PSI
MAX. STROKE: 10"
MAX. DAYLIGHT: 21" TOTAL - 15.125" BETWEEN PLATENS
OVERALL BED & RAM AREA: 19.5" X 18.5" (RL X FB)
DISTANCE BETWEEN SLAB SIDES: 20.5" RIGHT TO LEFT

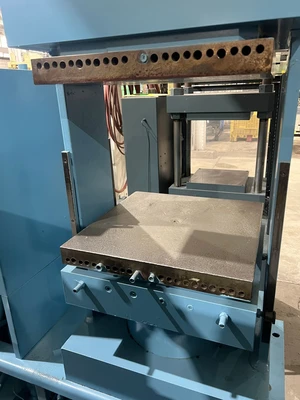

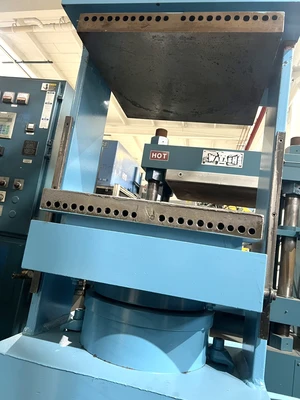

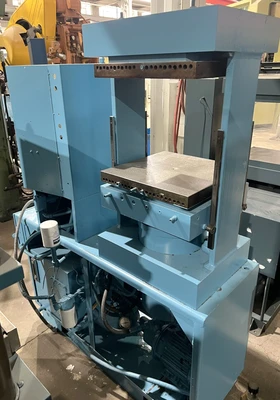

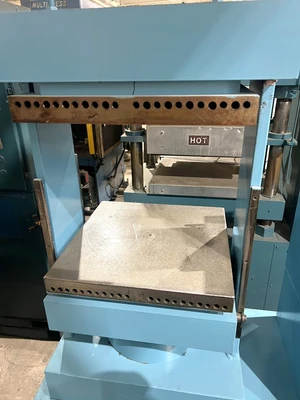

ELECTRIC HEATED PLATENS: 18.625" X 18.75" (RL X FB) - 13,975 WATTS
FLOOR TO BED HEIGHT: 48.75"
SPEEDS: APPROX. 42 IPM CLOSING / 4 IPM PRESSING / GRAVITY RETURN
RAM ROD SIZE: 7.5" DIA.
CYLINDER SIZE: 9" DIA. BORE

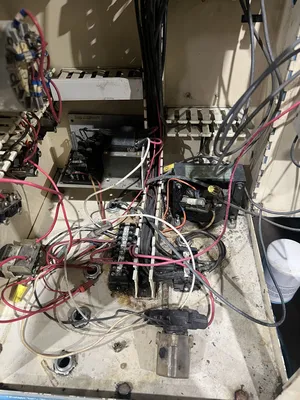

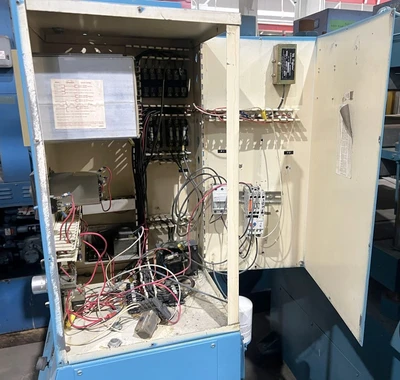

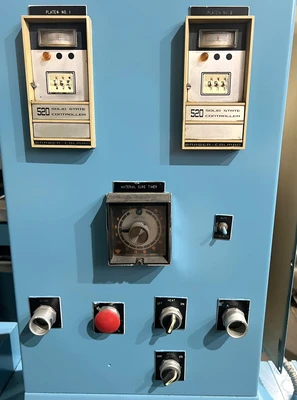

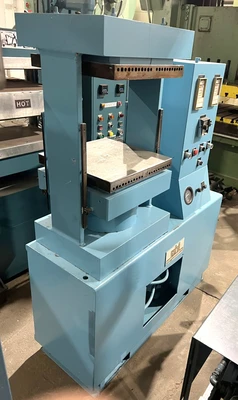

PRESS CONTROLS: RELAY LOGIC CONTROLLER
HYDRAULIC SYSTEM: __

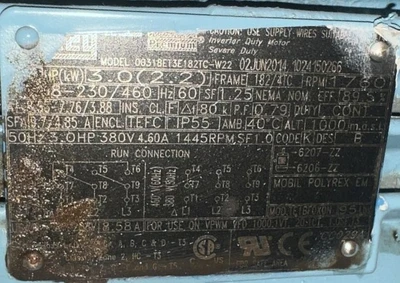

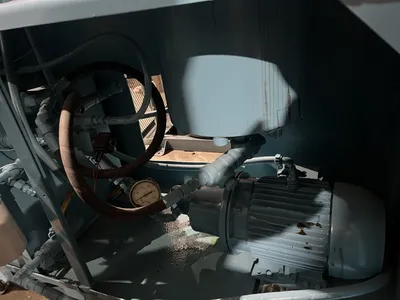

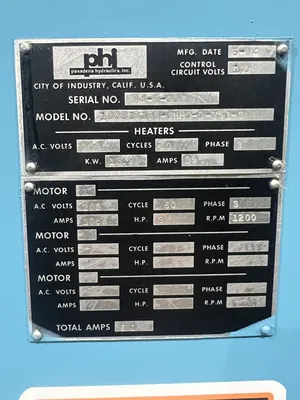

ELECTRIC MOTOR: 3 HP 208-230/460V-3-60 MOTOR | 8.55 - 7.76 / 3.88 AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

POTENTIALLY AIR COOLED PLATENS (UNCONFIRMED)
