Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:
WABASH 1000-1524-X PRESS
Year:
2004
Stock #:
8087
Description

18" Stroke, Approx. 26" Daylight, Approx. 45" x 44" Usable Bed, New in 2004

Specifications
Dimensions111" X 82" (RL X FB) X 116" HIGH111" X 82" (RL X FB) X 116" HIGH
WeightAPPROX. 65,000 LBS.APPROX. 65,000 LBS.

MAX. CAPACITY: 1,000 TONS AT 2,830 PSI

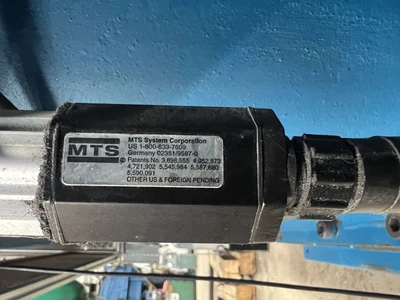

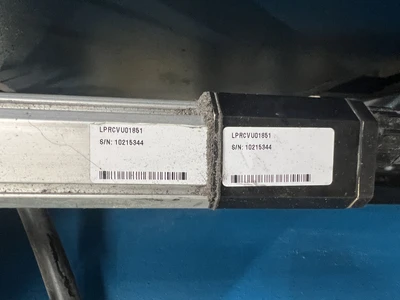

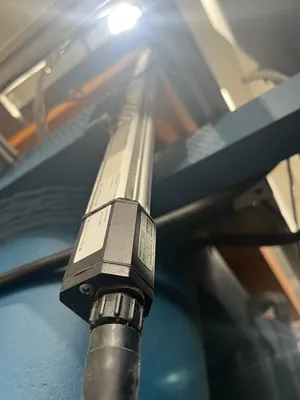

MAX. STROKE: 18" - APPROX. 16" TRANSDUCER
MAX. DAYLIGHT: APPROX. 26" - ONLY 24" WITH TRANSDUCER
OVERALL BED & RAM AREA: 66" X 42" (RL X FB)
DISTANCE BETWEEN POSTS: 42" X 22" (RL X FB)
USABLE BED AREA: 36" X 42" (RL X FB)
BOLSTER PLATE: 32" X 36" (RL X FB) X 1" THICK
RAM ROD SIZE: APPROX. 28" DIA.
CYLINDER SIZE: 30" DIA. BORE
4 COLUMN / POSTS SIZE: 7" DIA.
FLOOR TO BED HEIGHT: APPROX. 62" WITH PADS (61" WITHOUT)

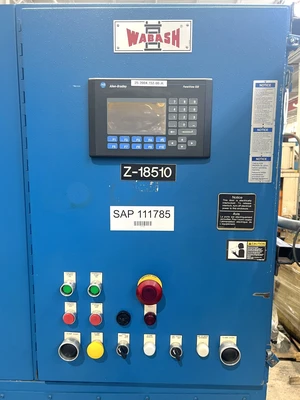

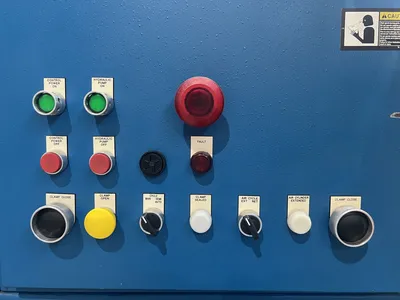

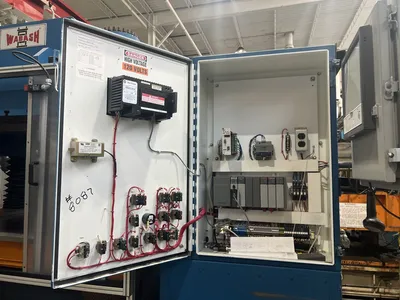

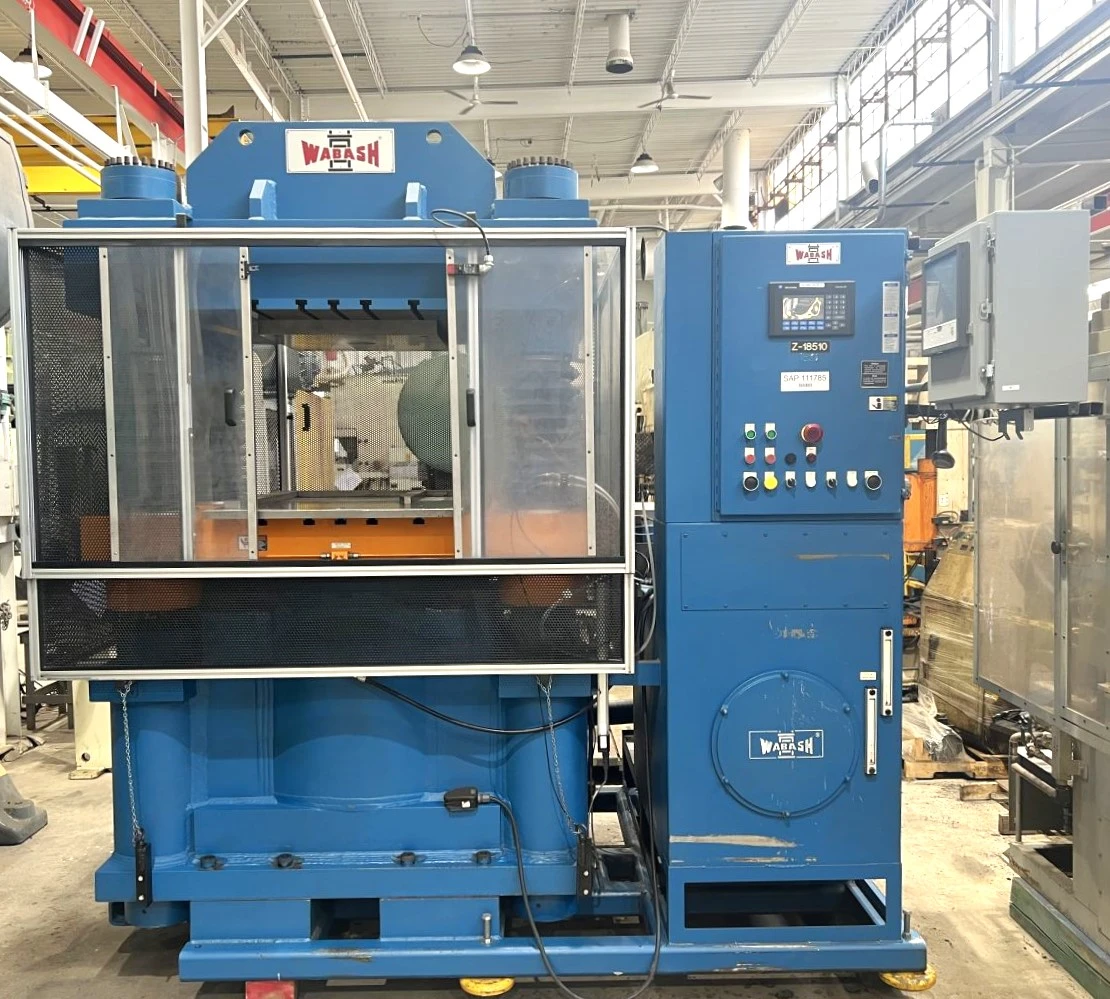

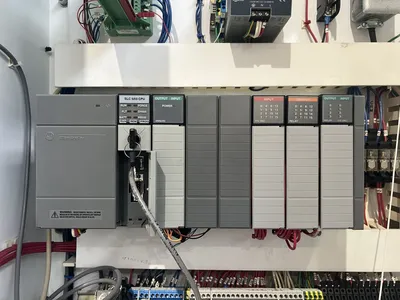

PRESS CONTROLS: Allen Bradley SLC 5/03 with PanelView 550 Touchscreen

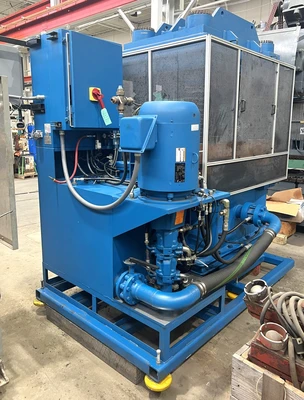

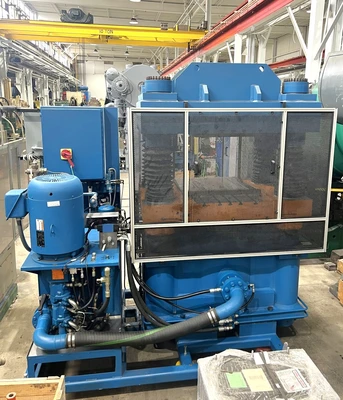

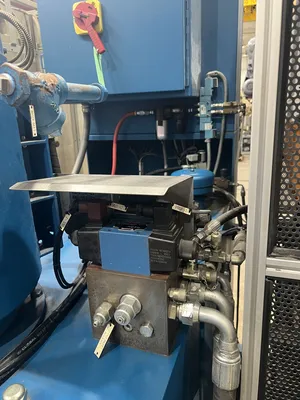

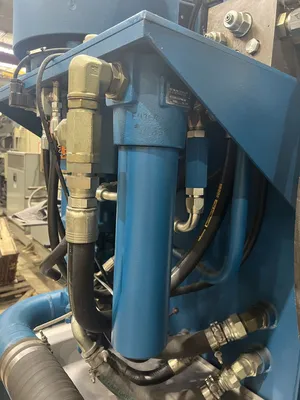

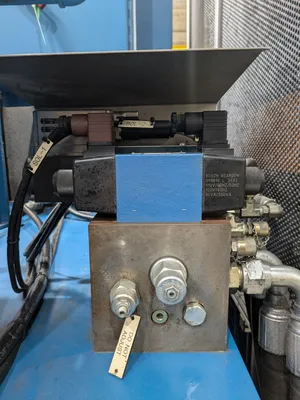

HYDRAULICS: TBD

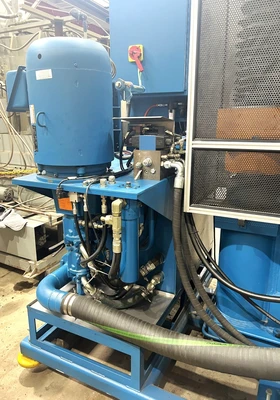

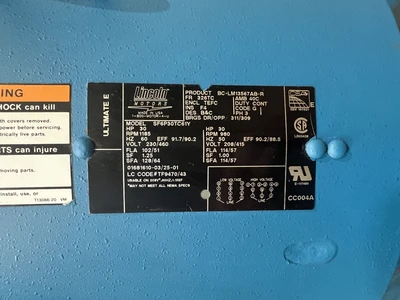

ELECTRIC INDUSTRIAL MOTOR: Lincoln SF6P30TC61Y 30 HP MOTOR 230/460V | 102/51 FULL LOAD AMPS
Note: 4 PICKING HOLES WITH 2" DIA. HOLES .75" BLACK PIPE
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

APPROX. 6", 4", 4" 6" T-SLOTS ON CENTERS
