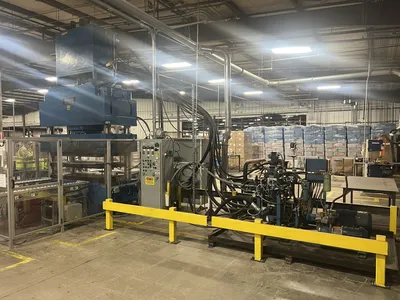

USED 2015 ACCUDYNE ACCUDYNE 07022-650T PRESS

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.

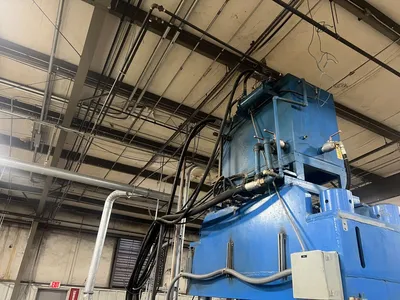

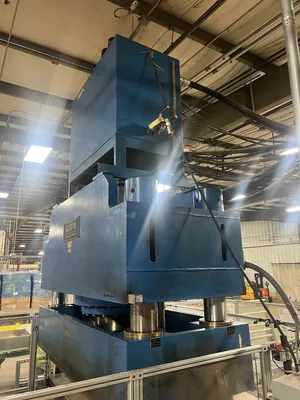

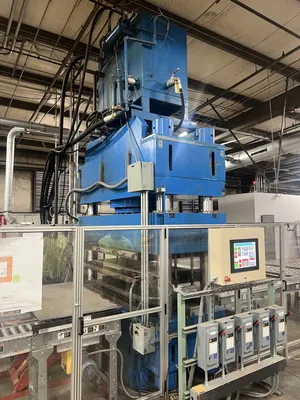

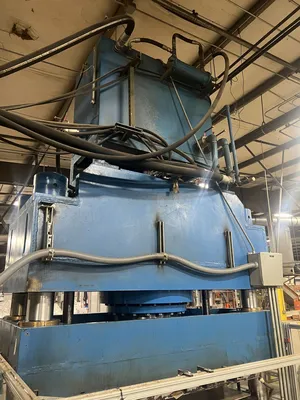

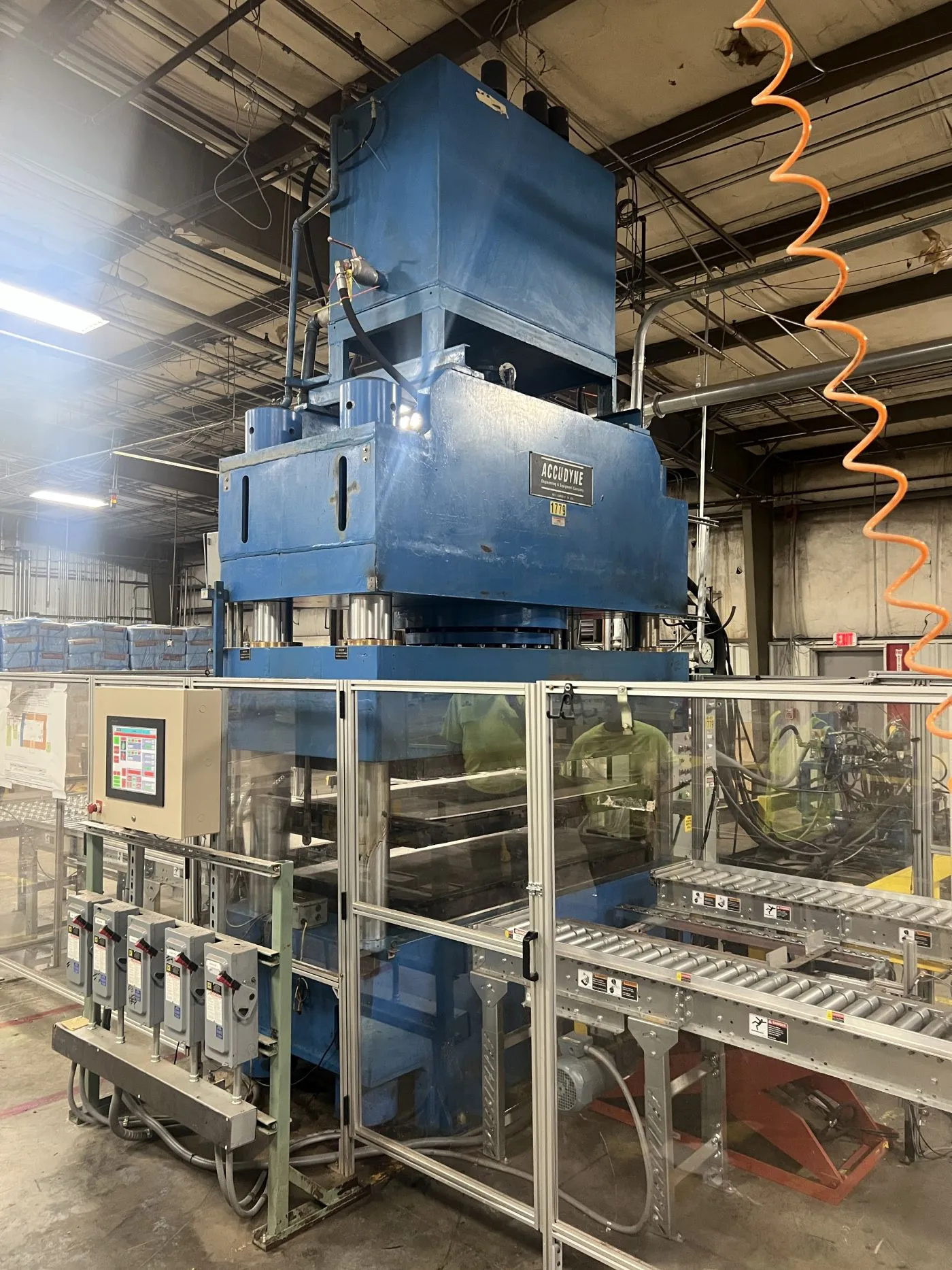

USED 2015 ACCUDYNE ACCUDYNE 07022-650T PRESS

USED 2015 ACCUDYNE ACCUDYNE 07022-650T PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
ACCUDYNE
Model:
ACCUDYNE 07022-650T PRESS
Year:
2015
Stock #:
8294
Description

16" Stroke, 27" DL (Maybe 28"), Dual-Opening 72" x 36" Heated Platens 600 Deg F, Updated CompactLogix 5380 Controls in 2024

Specifications
Dimensions106" X 54" (RL X FB) X 133" HIGH - TOTAL HEIGHT APPROX. 213" WITH TANK ON TOP106" X 54" (RL X FB) X 133" HIGH - TOTAL HEIGHT APPROX. 213" WITH TANK ON TOP
Weight71,000 LBS71,000 LBS

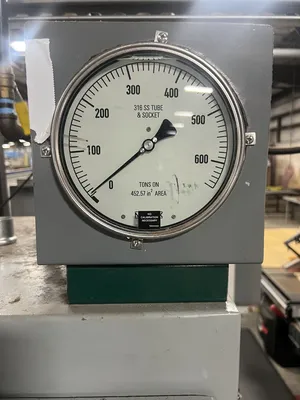

MAX. CAPACITY: 650 TONS AT 3,000 PSI
MAX. STROKE: 16"
DAYLIGHT RANGE: APPROX. 27" MAYBE 28"
OVERALL BED AREA: 96.25" X 41.75" (RL X FB)
DISTANCE BETWEEN POSTS: 77" X 19" (RL X FB)
USABLE BED AREA: 77" X 41.75" (RL X FB)

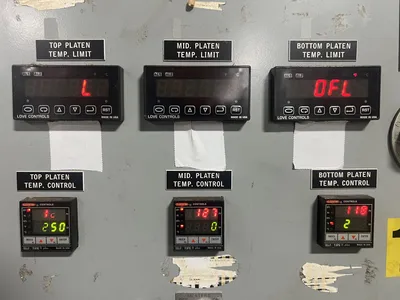

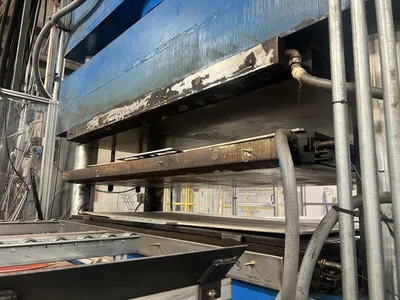

ELECTRIC HEATED PLATENS: (2 SETS) OF 70.25" X 36" (RL X FB)
SPEEDS: 280 IPM RAPID ADVANCE / 12 IPM PRESSING / 105 IPM RETURN
FLOOR TO BED HEIGHT: APPROX. 31"

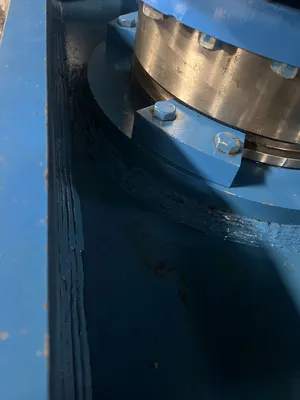

RAM ROD SIZE: 24" DIA.
CYLINDER SIZE: 24" DIA. BORE
PULLBACK CYLINDER SIZES: (2) 6" DIA. (3" DIA. RODS)
POST / 4 COLUMN SIZE: 7" DIA.

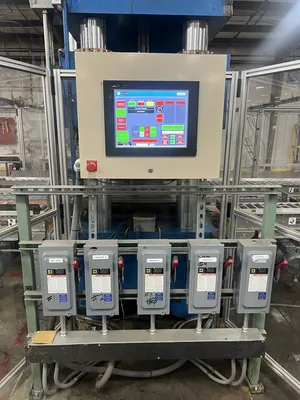

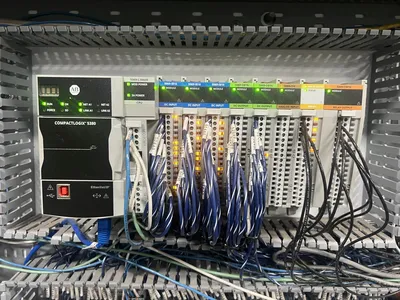

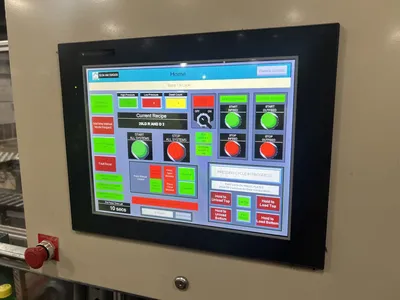

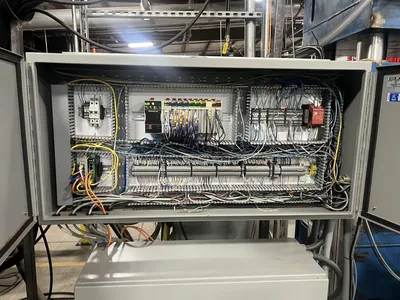

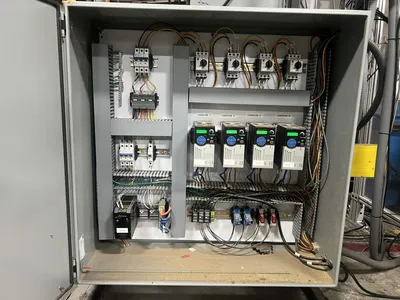

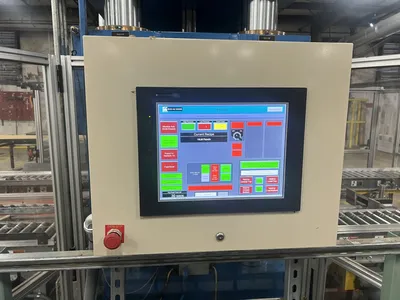

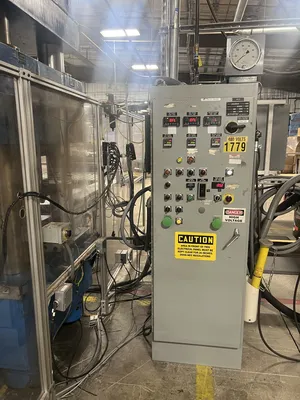

PRESS CONTROLS: UPDATED COMPACTLOGIX 5380 CONTROLLER (2024)

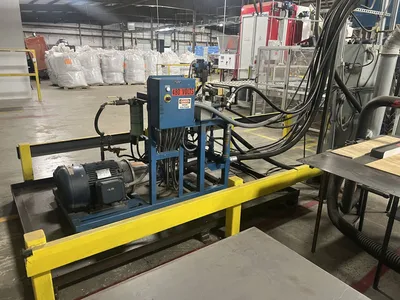

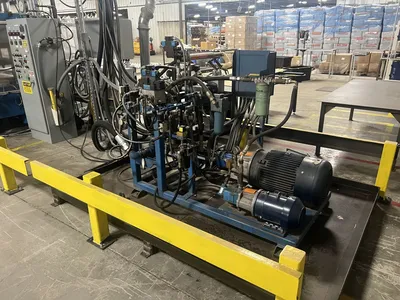

HYDRAULIC SYSTEM: __

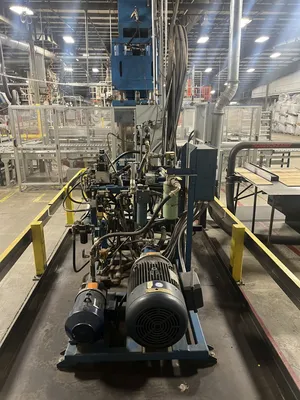

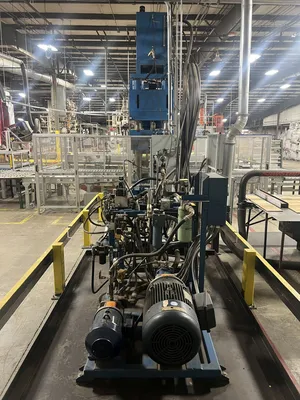

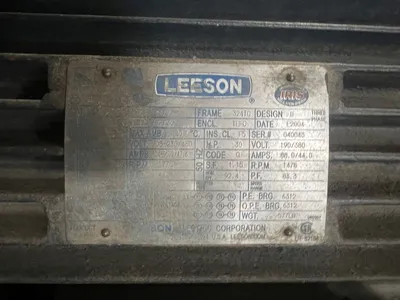

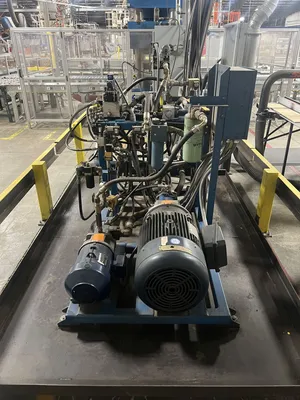

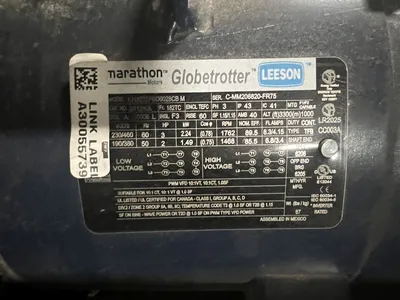

ELECTRIC MOTOR: 40HP 460V-3-60 MOTOR | 71,622 WATT HEATERS | 200 TOTAL AMPS
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

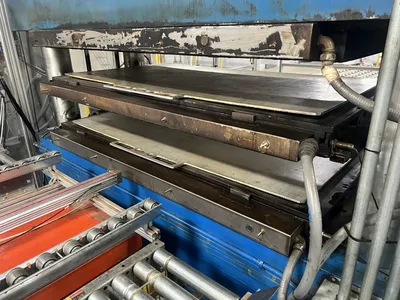

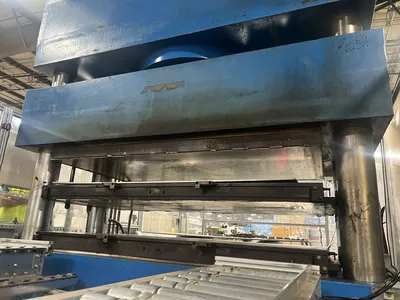

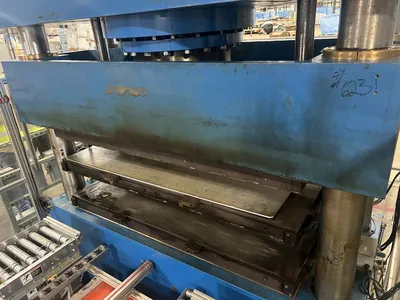

(3) 72" X 36" ELECTRICALLY HEATED PLATENS (2-OPENINGS), FLOOR STANDING DESIGN
