Overview
Type:
Hydraulic Presses
Manufacturer:
ACCUDYNE
Model:
ACCUDYNE CUSTOM PRESS
Year:
1998
Stock #:
5463
Description

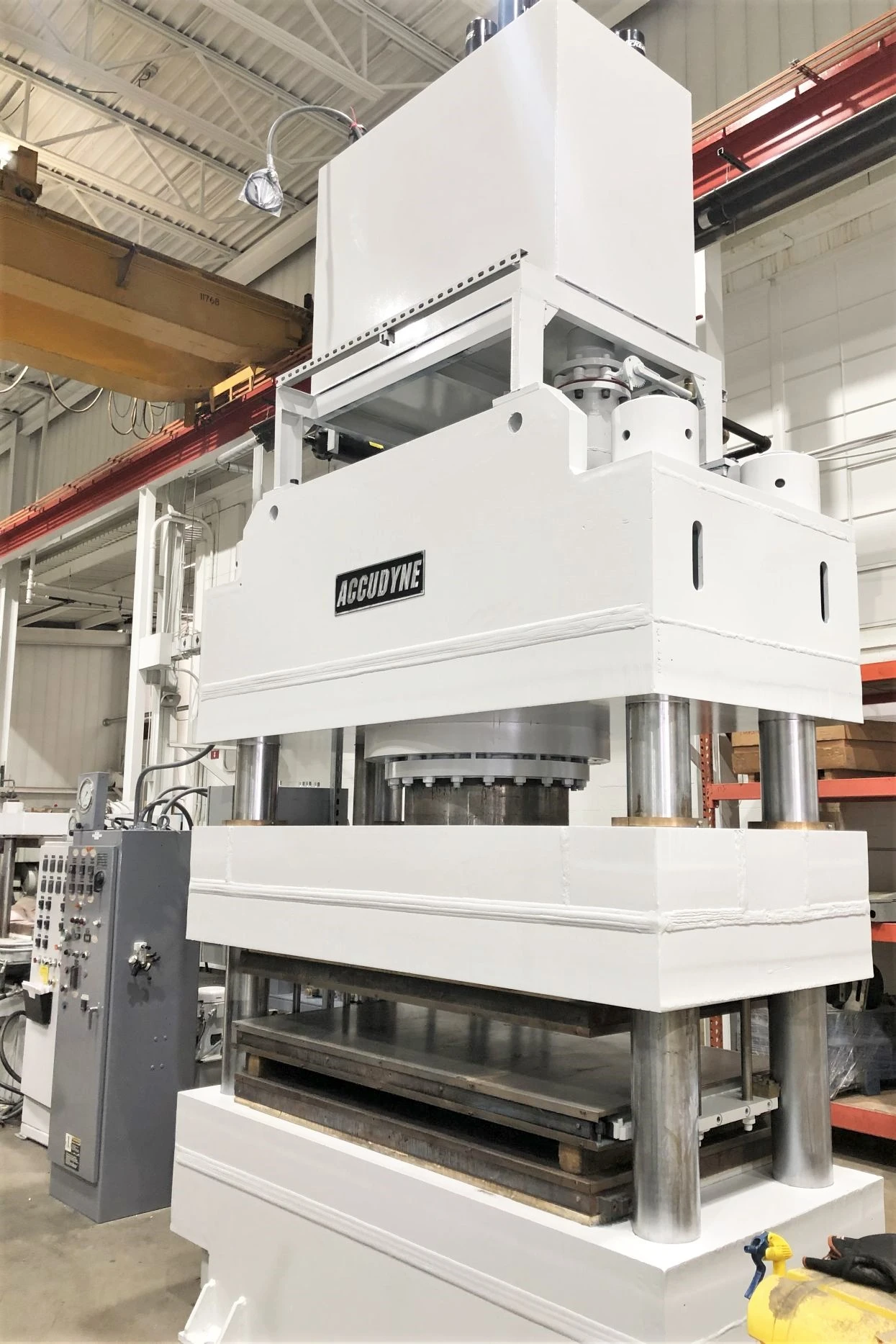

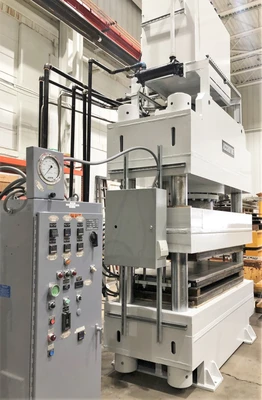

16" Stroke, 30" Daylight, 72" x 42" Usable Bed, AB CompactLogix Controls, (3) 72" x 36" Heated Platens 600 Deg. F, New Cylinder Installed (2 hours of runtime)

Specifications
Dimensions8'3" X 5'6" (RL X FB) X 16'2" HIGH8'3" X 5'6" (RL X FB) X 16'2" HIGH
Weight71,000 LBS71,000 LBS

CAPACITY: 650 TONS AT 3,000 PSI
STROKE: 16"
DAYLIGHT: 30" (8" DAYLIGHT BETWEEN PLATENS)
OVERALL BED AREA: 96" X 42" (RL X FB)
USABLE BED & RAM AREA: 77" X 42" (RL X FB)
DISTANCE BETWEEN POSTS: 77" X 19" (RL X FB)

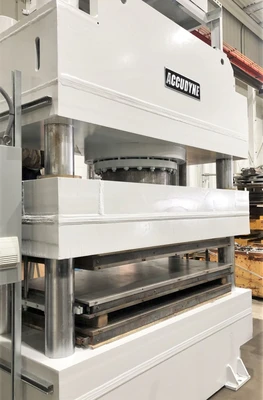

ELECTRIC HEATED PLATENS: (3) 72" X 36" (2 OPENINGS) (38.5" MIGHT BE ACTUAL) UP TO 600 DEG F
SPEEDS: 500 DOWN / 5-60 PRESSING / 100 RETURN IPM
FLOOR TO BED: 31" TO BED (36" TO TOP OF BOTTOM HEATED PLATEN)
CYLINDERS: 24" DIA. BORE MAIN CYLINDER (NEW IN 2022), 2-8" BORE PULL BACK
POST SIZE: 11" DIA (CHROMED)

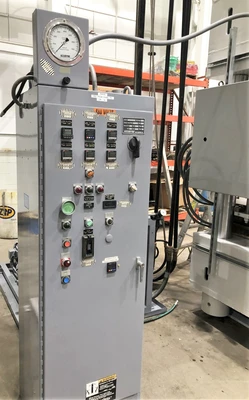

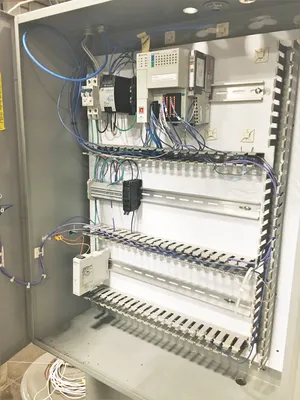

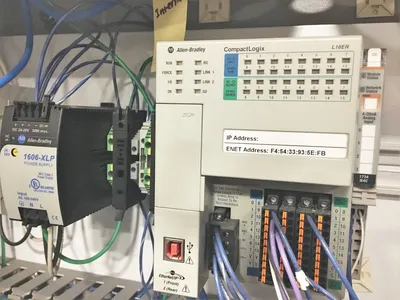

PRESS CONTROLS: UPDATED ALLEN BRADLEY COMPACTLOGIX L16ER ETHERnET CONTROLLER

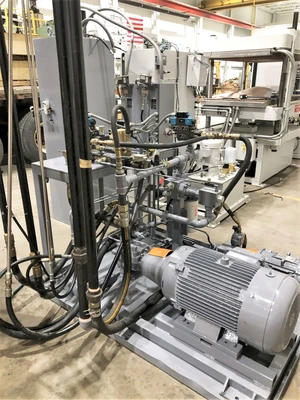

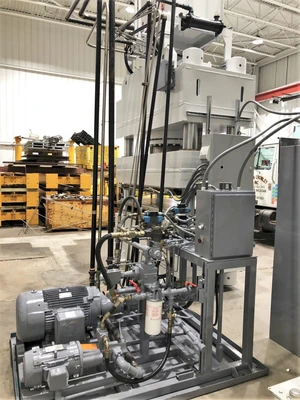

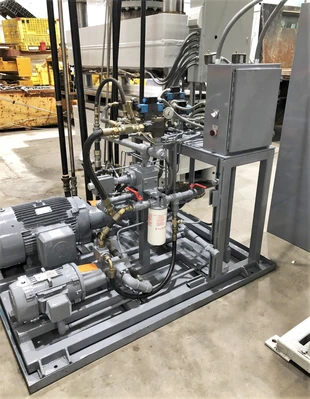

HYDRAULICS: VICKERS PISTON PUMP #PVH5701C-RSF-1S 10 IC25-31, 20 GPM, 200 GAL. TANK

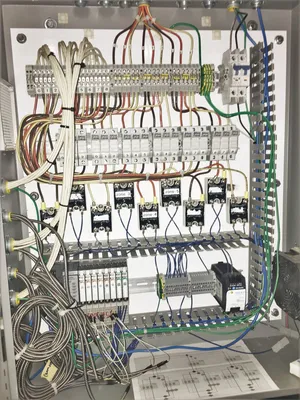

ELECTRICAL: HEATERS TOTAL 71,000 WATTS 200 AMPS | 40 HP 230/460-3-60 MAIN MOTOR
Note: NEW CYLINDER ADDED IN 2022
Location: This Used Press is Located in Our Jackson, MI Falahee Building

Equipped With

(3) 72" X 36" ELECTRICALLY HEATED PLATENS (2-OPENINGS), FLOOR STANDING BASe
