Overview
Type:
Hydraulic Presses
Manufacturer:
TRINKS HYDRAULIC PRESSES / LAWTON PRESS COMPANY
Model:
TRINKS CUSTOM PRESS
Stock #:
4350
Description

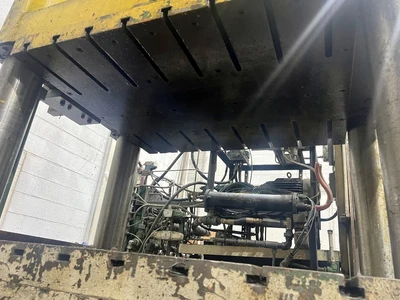

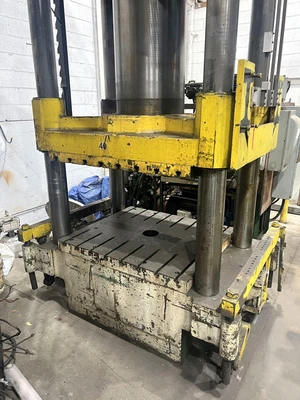

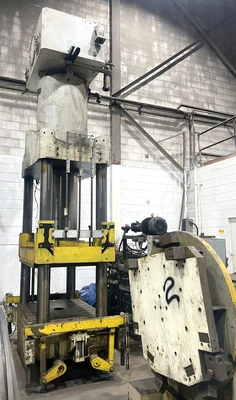

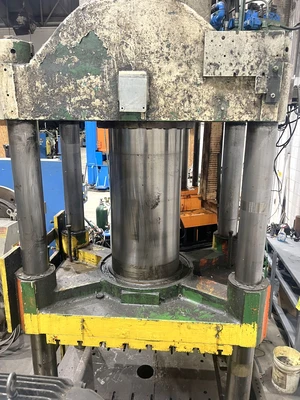

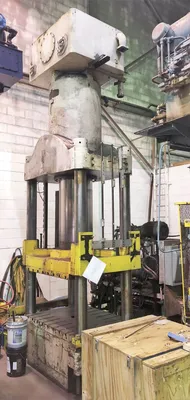

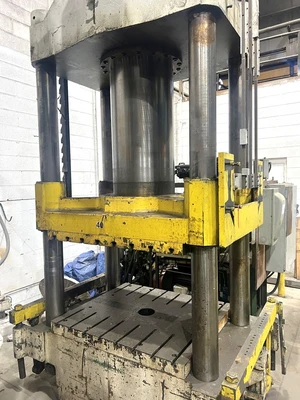

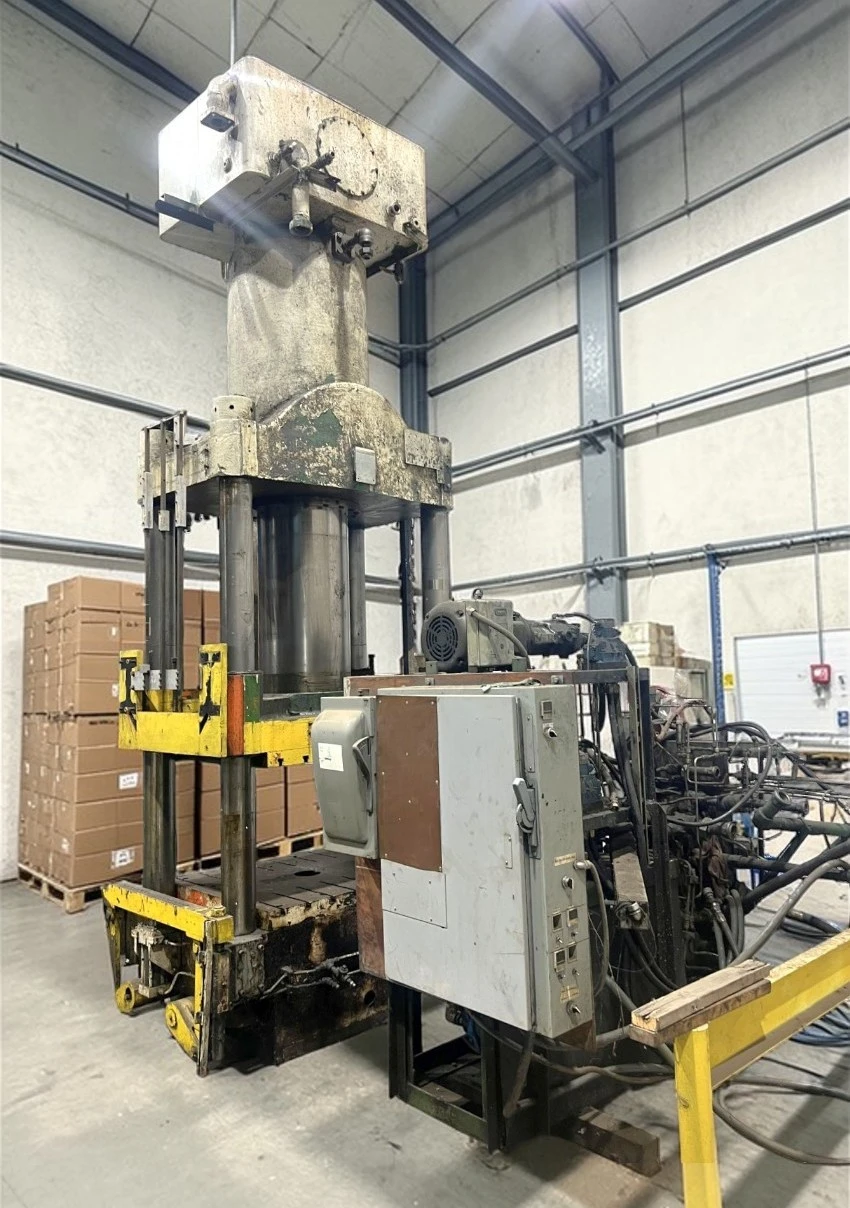

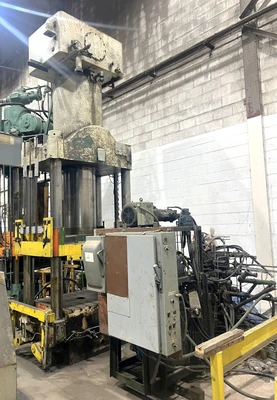

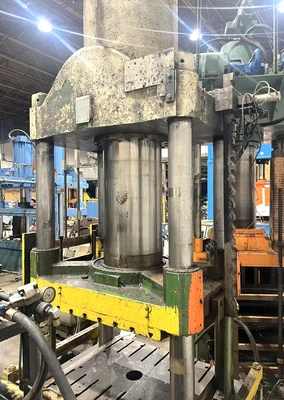

36" Stroke, 71" DL, 48" x 42" Usable Bed & Ram, Floor Standing

Specifications
Dimensions96" X 60" (RL X FB) X 208" HIGH96" X 60" (RL X FB) X 208" HIGH
Weight60,000 LBS.60,000 LBS.

CAPACITY: 600 TON @ 3,175 PSI
MAX. STROKE: 36"
MAX. DAYLIGHT TO BED: 71"
DISTANCE BETWEEN POSTS: 48.5" X 22" (RL X FB) *APPROX.

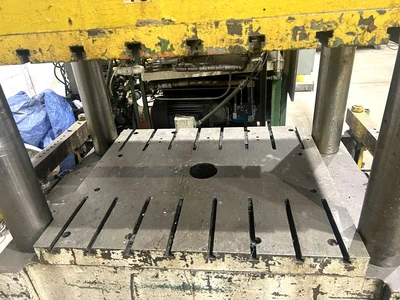

USABLE BED & RAM AREA: 48" X 42" (RL X FB) t-sLOTTED RAM & BED

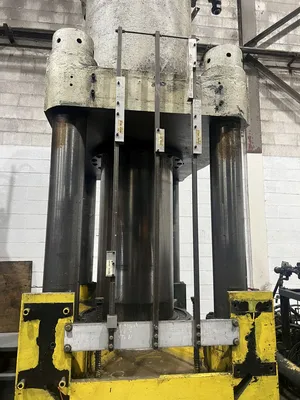

POST SIZE: 6-1/2" DIA.
DISTANCE FLOOR TO BED: 24"
ROD SIZE: 21" DIA.

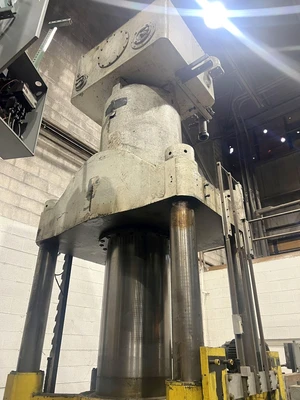

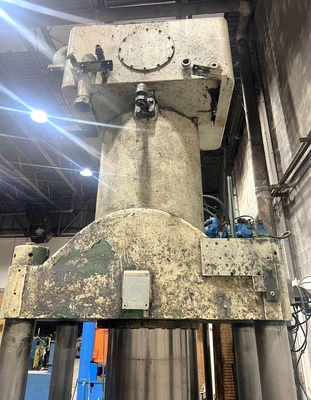

MAIN CYLINDER SIZE: 22" DIA. BORE

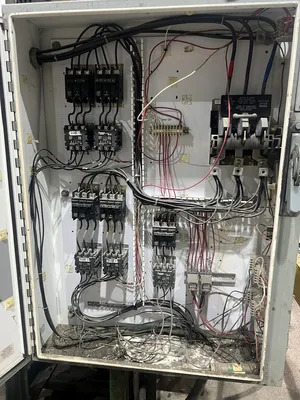

PRESS CONTROLS: RELAY LOGIC CONTROLS, NEW UPGRADED CONTROLS AVAILABLE FOR MINIMAL COST

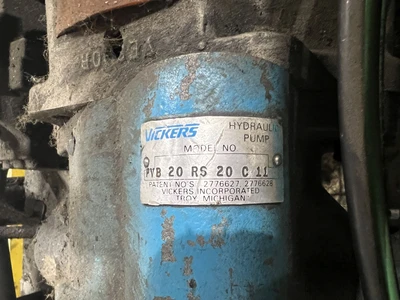

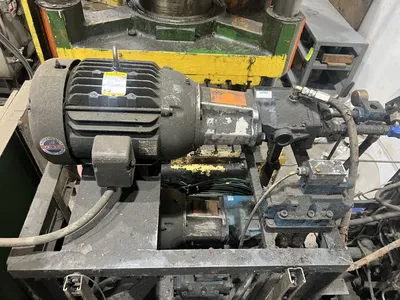

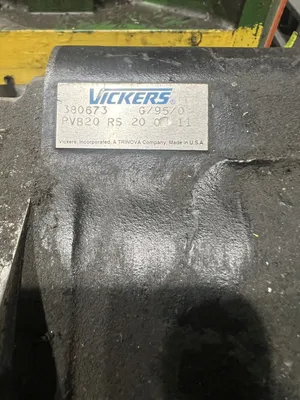

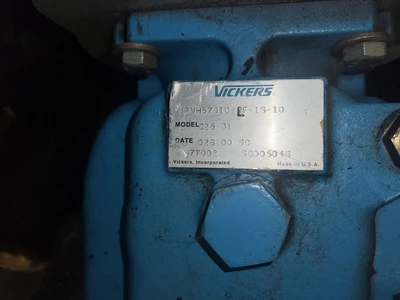

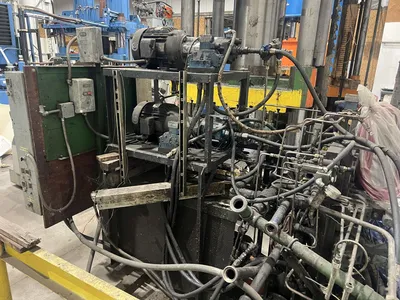

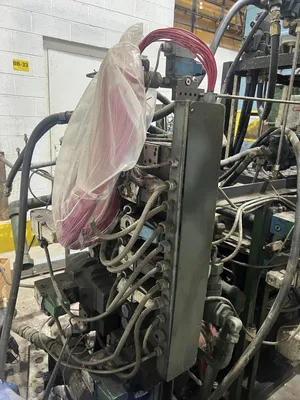

HYDRAULIC SYSTEM: VICKERS PUMP PVH57QIC-LF-1S-10 MODEL C25-31 | PVB 20 RS 20 C 11 | PVB20 RS 20 0M 11

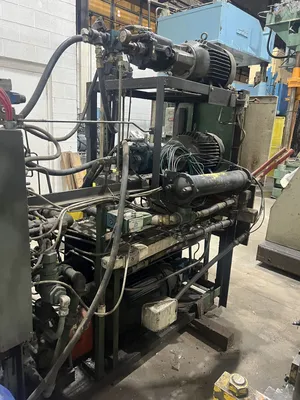

HYDRAULIC SYSTEM (CONT): 60 GPM RACINE & 24 GPM DELAVAN PISTON PUMPS

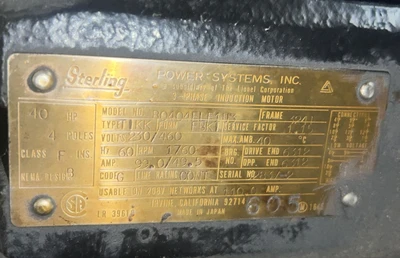

ELECTRIC MOTOR 1: 40 HP 230/460V-3-60 STERLING MOTOR | 99 / 49.5 AMPS

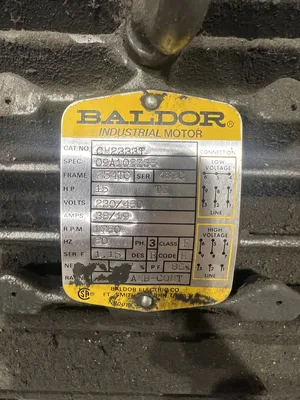

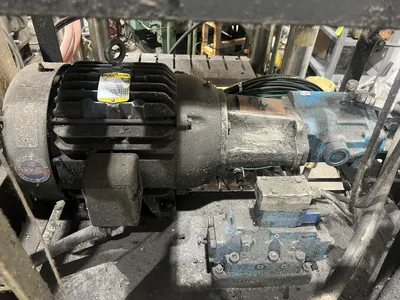

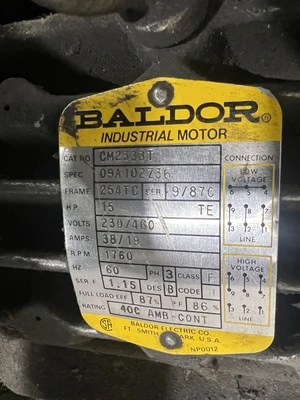

ELECTRIC MOTOR 2: 15 HP 230/460V-3-60 BALDOR INDUSTRIAL MOTOR | 38 / 19 AMPS
ELECTRIC MOTOR 3: 15 HP 230/460V-3-60 BALDOR INDUSTRIAL MOTOR | 38 / 19 AMPS
Note: POTENTIALLY ADDITIONAL COST IF CYLINDER REQUIRES MAJOR REPAIRS (DEPOSIT REFUNDABLE)
Location: This Used Press is Located in Our Jackson, MI Falahee Building

Equipped With

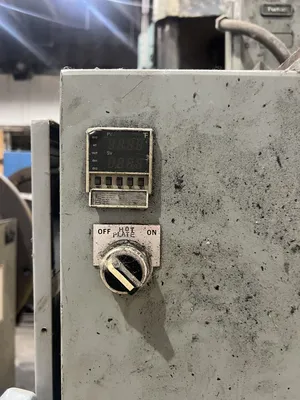

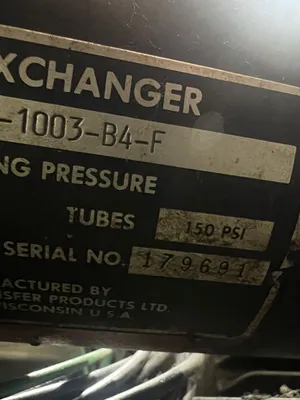

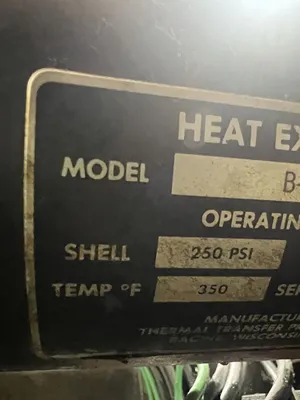

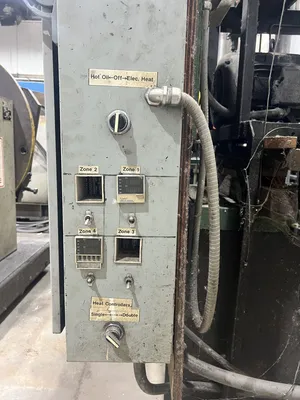

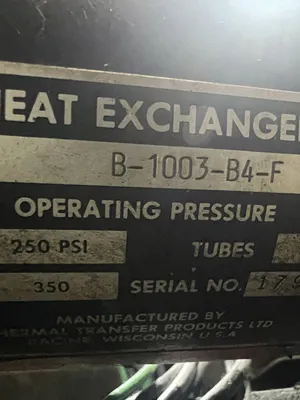

LOWER SIDE KNOCKOUT CYLINDERS 6" STROKE, FLOOR STANDING DESIGN, HEATER CONTROLLER (AS-IS), THERMAL TRANSFER PRODUCTS HEAT EXCHANGER MODEL B-1003-B4-F (250 PSI, 350 DEG F)
