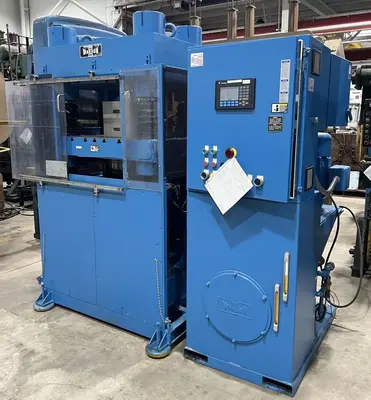

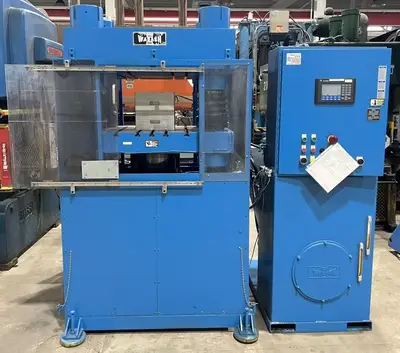

USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS
  • USED 2006 WABASH WABASH 500-2430-X PRESS

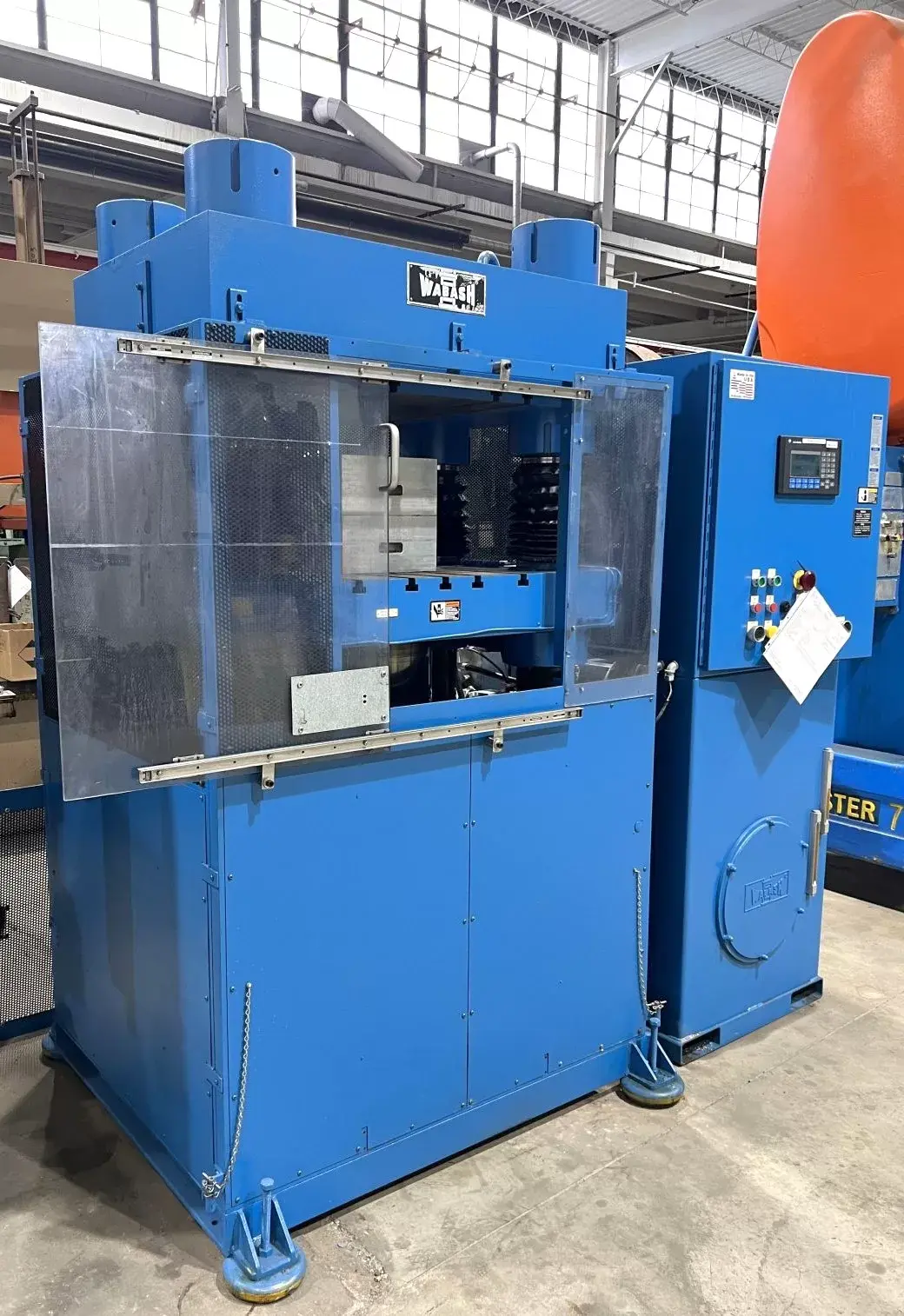

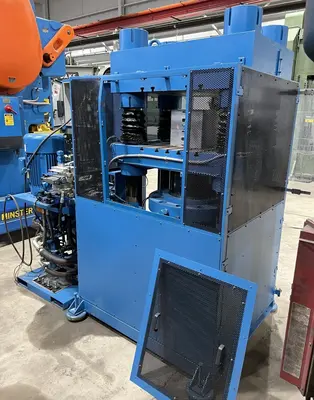

USED 2006 WABASH WABASH 500-2430-X PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:

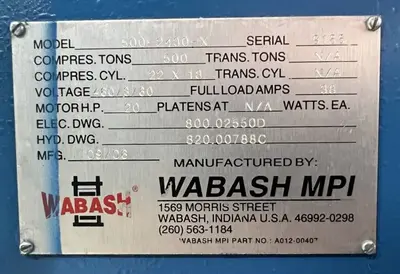

WABASH 500-2430-X PRESS
Year:
2006
Stock #:
6350
Description

18" Stroke, 30" x 30" Usable Bed, AB SLC 5/03 Controls

Specifications
DimensionsAPPROX. 58" X 57" (RL X FB) X 96" HIGH / HYD UNITAPPROX. 58" X 57" (RL X FB) X 96" HIGH / HYD UNIT
WeightPRESS 18,250 LBS / POWER UNIT 1,800 LBS.PRESS 18,250 LBS / POWER UNIT 1,800 LBS.

CAPACITY: 500 TONS
STROKE: 18"
MAX. DAYLIGHT: 26"
OVERALL BED & RAM AREA: 47" X 30" (RL X FB)
DISTANCE BETWEEN POSTS: 30" X 13" (RL X FB)

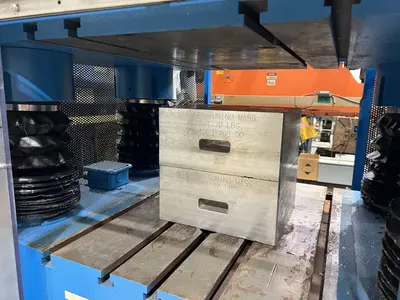

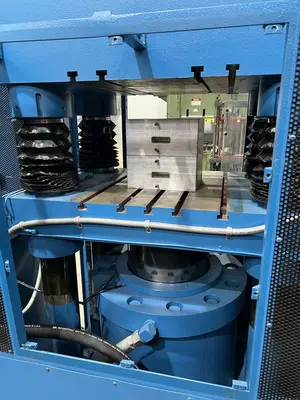

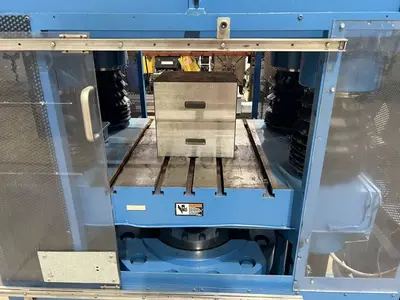

USABLE BED AREA: 30" X 30" (RL X FB)
BOLSTER PLATE: 25" X 30" (RL X FB) X 2" THICK
RAM ROD SIZE: 16" DIA.

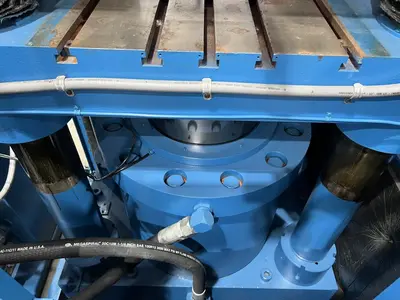

CYLINDER SIZE: 22" DIA. BORE
4 COLUMN / POSTS SIZE: 6" DIA.
FLOOR TO BED HEIGHT: 52.5"

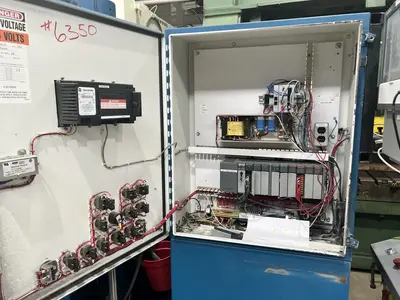

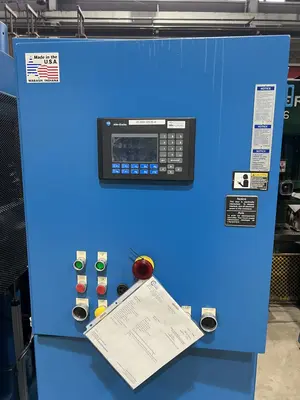

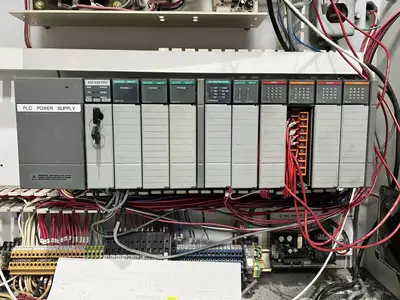

PRESS CONTROLS: ALLEN-BRADLEY PROGRAMMABLE SLC 5/03 CONTROLLER

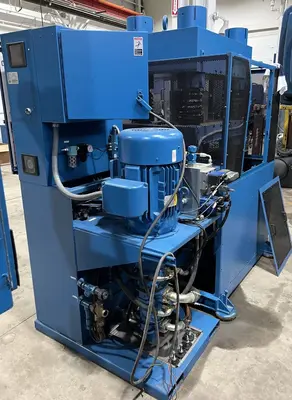

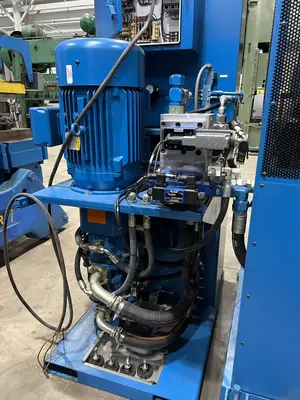

HYDRAULICS: REXROTH AA10VS071DRG AND AA10VS045DRG PUMPS 85 GALLON RESERVOIR

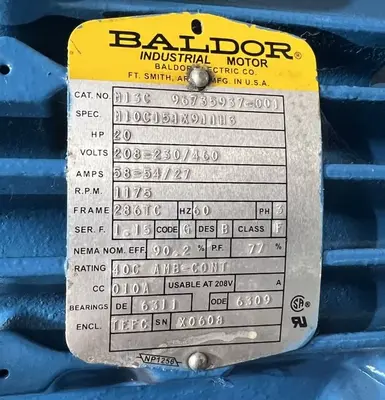

ELECTRIC INDUSTRIAL MOTOR: 20 HP 208-230/460V-3-60 BALDOR INDUSTRIAL MOTOR | 58-54/27 AMPS
Note: SPEEDS: 28.8 IPM / 7.2 IPM PRESSING
Location: This Used Press is Located in Our Jackson, MI Cooper Building
