Overview
Type:
Hydraulic Presses
Manufacturer:
USED DAKE PRESSES
Model:
DAKE 27-844 PRESS
Year:
1988
Stock #:
4000
Description

20" Stroke, 48" DL, 72" x 36" Bed Area, Updated PLC Touch Screen Controls

Specifications
Dimensions96" X 60" (RL X FB) X 160" HIGH - PRESS 72" X 48" (RL X FB) X 96" HIGH - HYDRAULICS96" X 60" (RL X FB) X 160" HIGH - PRESS 72" X 48" (RL X FB) X 96" HIGH - HYDRAULICS
Weight55,098 LBS.55,098 LBS.

Capacity: 400 TON @1800 PSI
STROKE: 20" - DOWNACTING
DAYLIGHT TO BED: APPROX. 48"

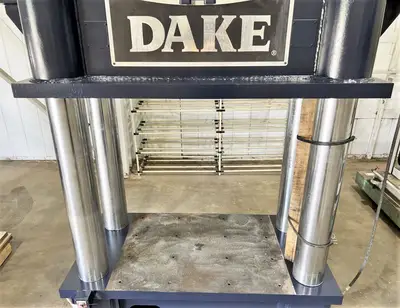

OVERALL BED AND RAM AREA: 72.5" X 36" (RL X FB)
DISTANCE BETWEEN POSTS: 50.5" X 14.5" (RL X FB)
USABLE BED AREA: 48" X 36" (RL X FB)
HEATED PLATENS OPTION: NEW HEATED PLATENS CAN BE ADDED FOR AN ADDITIONAL cost
SPEEDS: 30 IPM ADVANCE / 3-33 PRESSING / 80 RETURN
POST SIZE: 8" DIA.
CYLINDER SIZE: 18.5" DIA. BORE
FLOOR TO BED: 25"

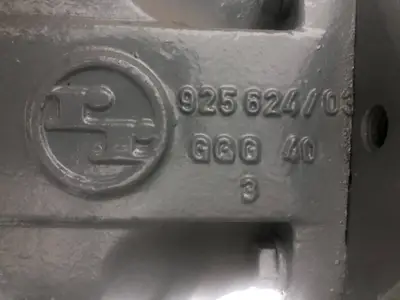

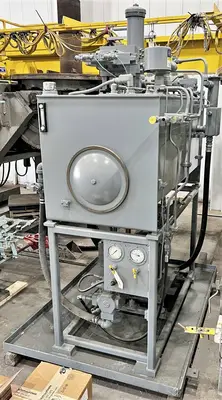

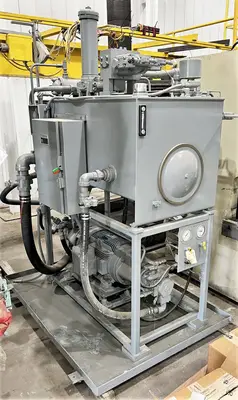

HYDRAULICS (FLOOR MOUNTED): REXROTH PISTON & VICKERS VANE PUMPS
ELECTRICS: 40 HP 230/460V-3-60 DOUBLE END GENERAL ELECTRIC MOTOR 324TC Frame (TEFC) 103.8 / 51.9 AMPS

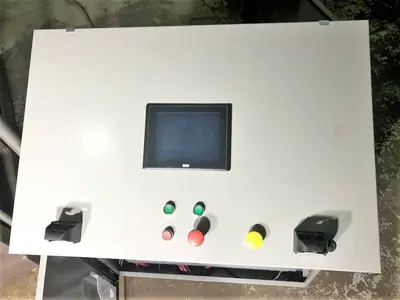

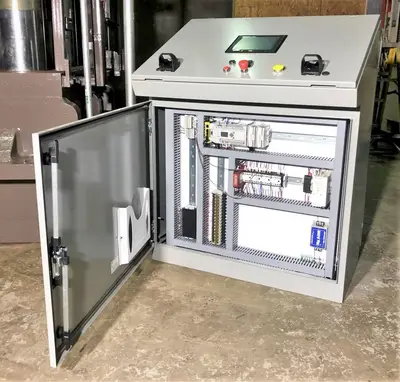

CONTROLS: UPDATED TOUCH SCREEN PLC CONTROLS TO BE ADDED (INCLUDED WITH PRICE)

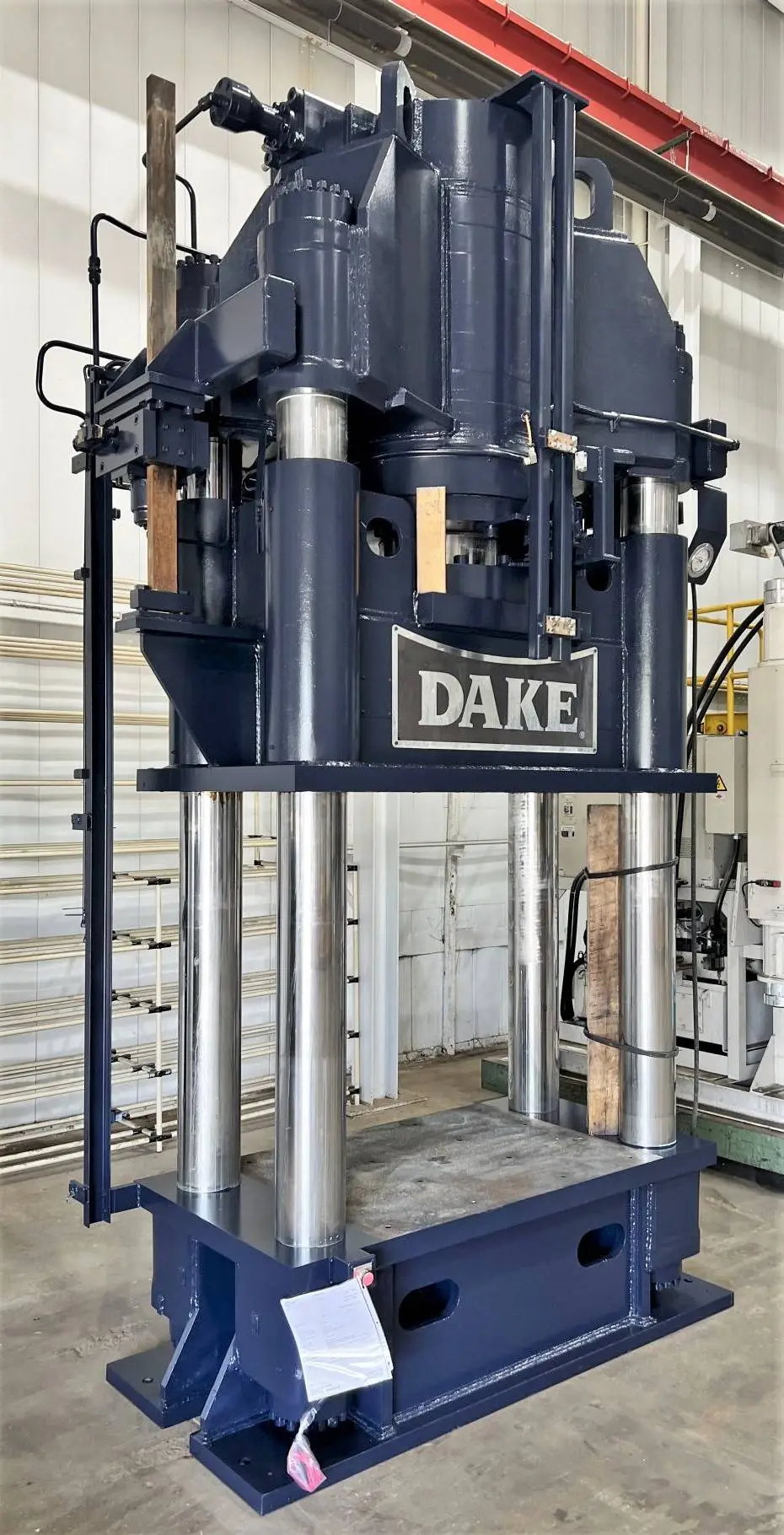

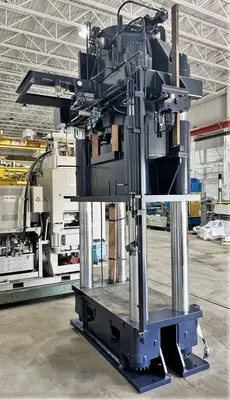

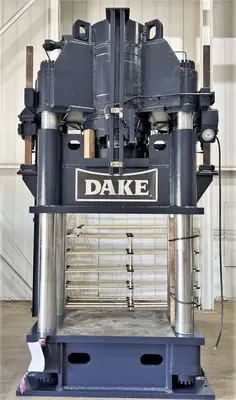

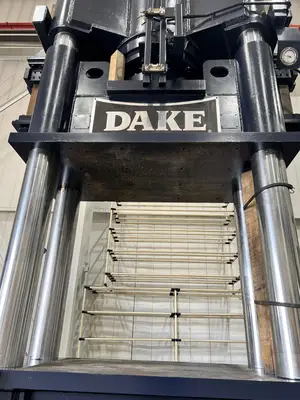

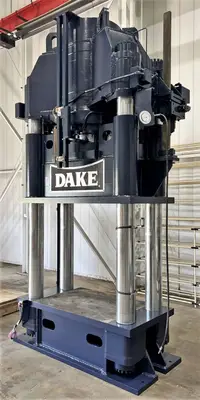

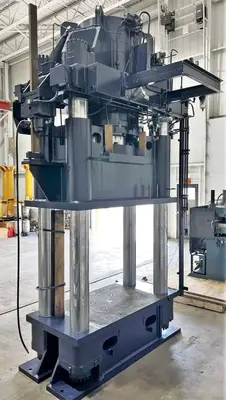

Note: PHOTOS AND VIDEO SHOWN ARE OF A SISTER PRESS THAT WE RECONDITIONED IN 2022
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

FLOOR STANDING BASE, LATCHES ON RAM
