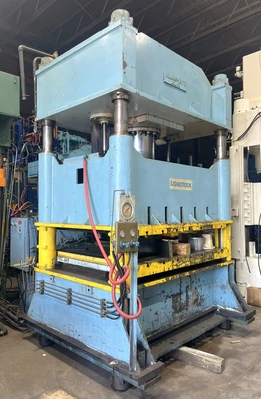

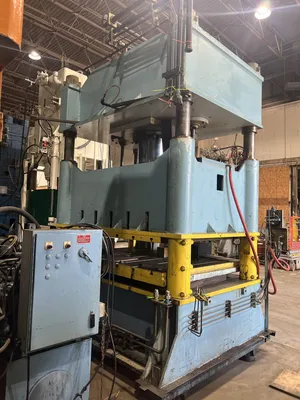

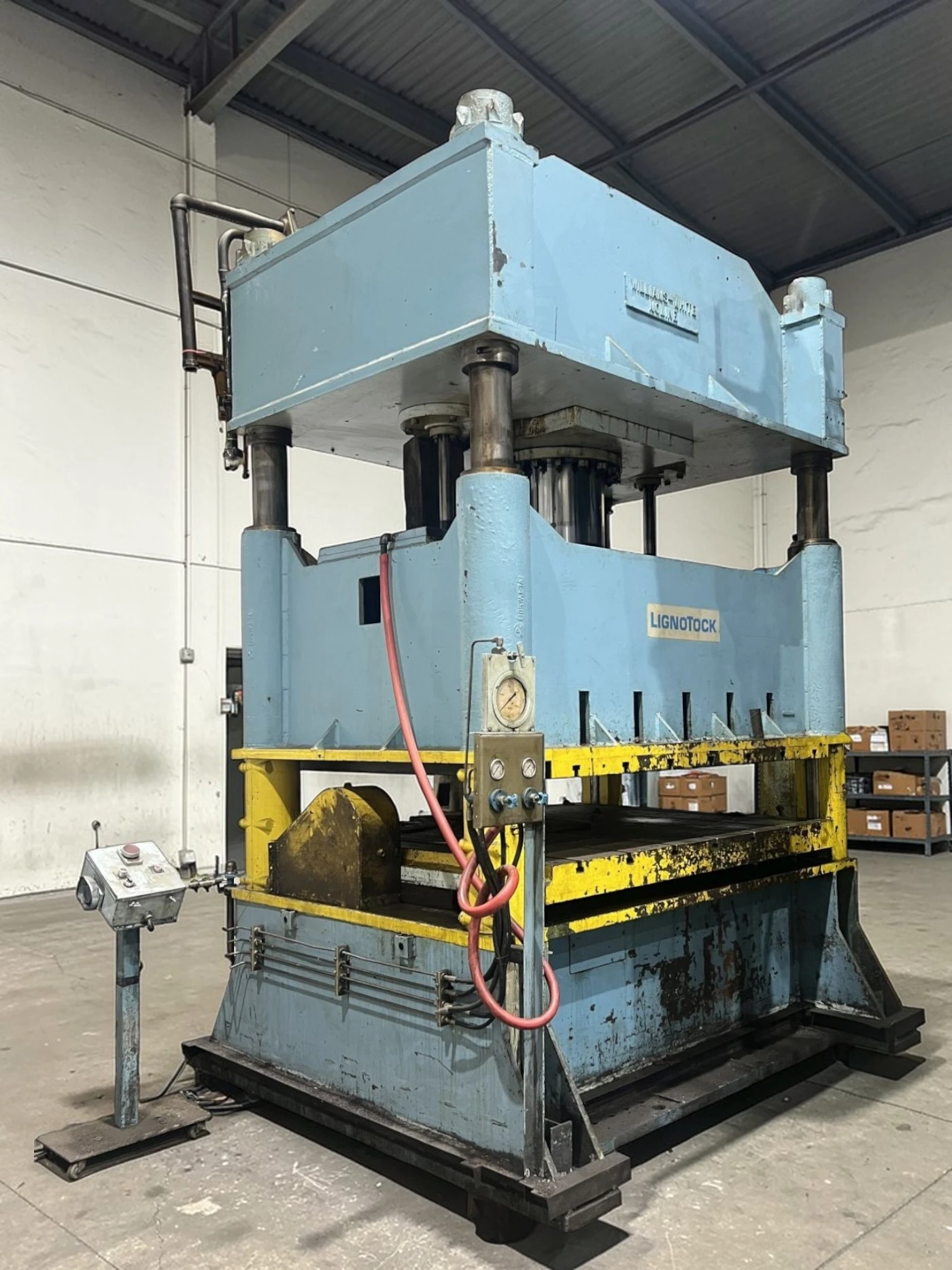

Overview
Type:
Hydraulic Presses
Manufacturer:
WILLIAMS WHITE & COMPANY
Model:
WILLIAMS WHITE & COMPANY CUSTOM PRESS
Stock #:
4697
Description

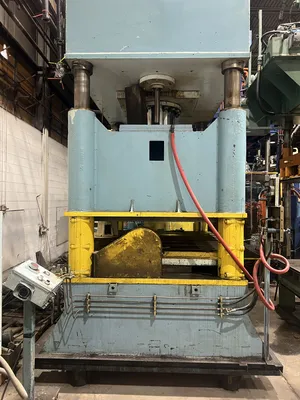

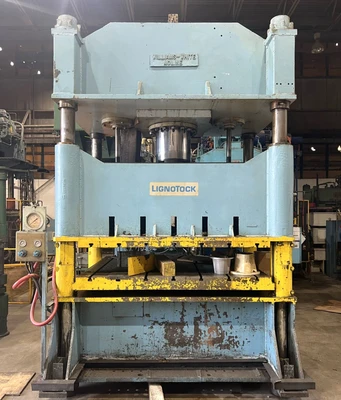

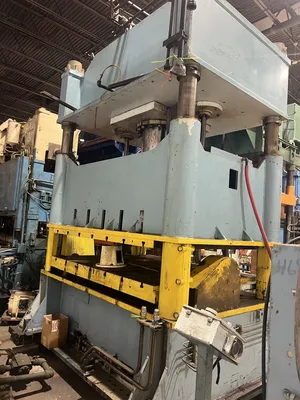

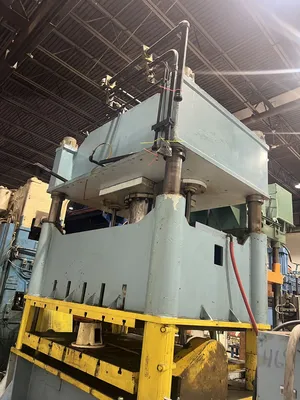

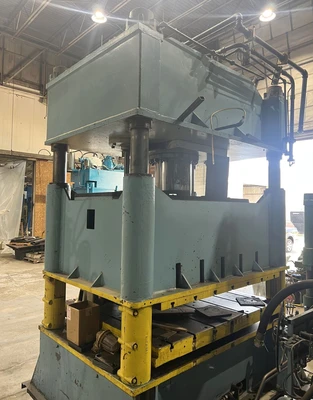

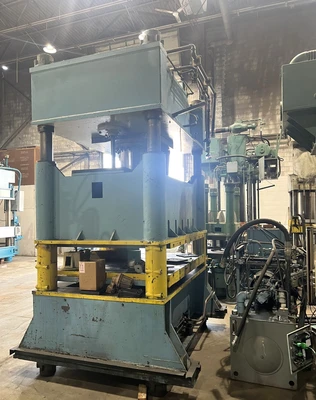

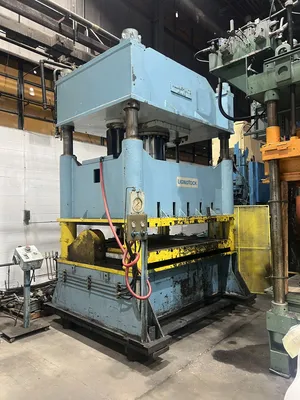

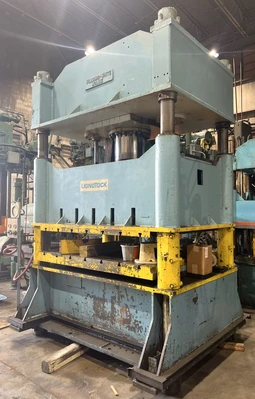

15" Stroke, 40" Daylight, 89" x 72" or 106" x 54" Usable Bed, Cushions in Bed, Floor Standing (No Pit Required)

Specifications
Dimensions120" X 72" (RL X FB) X 192" HIGH120" X 72" (RL X FB) X 192" HIGH
Weight75,000 pounds - frame only75,000 pounds - frame only

capacity: 400 ton @ 2600 psi (POTENTIALLY ONLY 365 TON, CONFLICTING SPECS IN PRINTS)
Max. stroke: approx. 15"
daylight to bed: 25" TO 40"
overall bed & ram area: 106" x 72" (RL X FB) (44" floor to bed)
distance between posts: 89" x 54" (RL X FB)
usable bed area: 106" X 54" (RL X Fb) OR 89" x 72" (RL X FB)

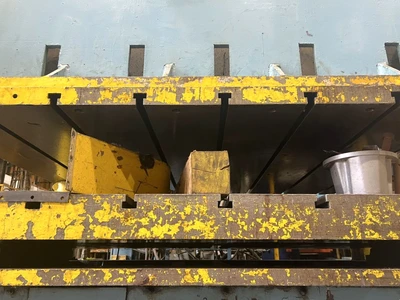

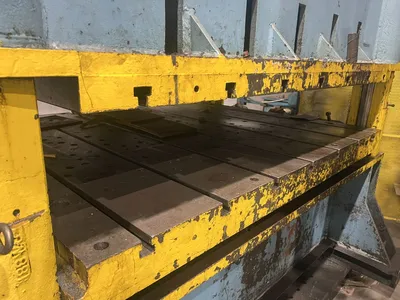

BED BOLSTER PLATE: 84" X 72" (RL X FB) X 5.5" THICK T-SLOTTED
RAM BOLSTER PLATE: 84" X 72" (RL X FB) 3" THICK T-SLOTTED PLATE
USABLE BED AREA: 89" X 72" (RL X FB) OR 106" X 54" (RL X FB)
RAM ROD SIZE: __

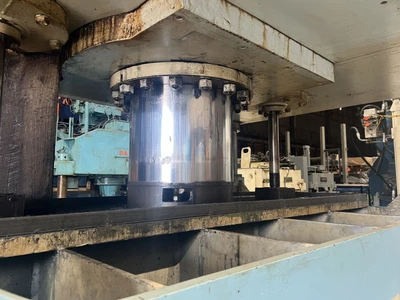

main cylinder size: 20" dia BORE.- (equipped with 2 pull back cylinders)
post size: 5.5" dia. posts

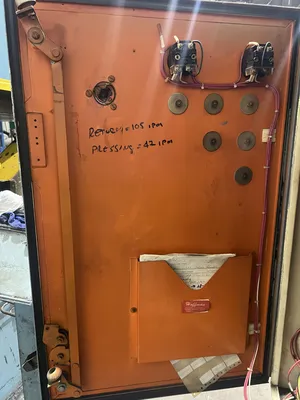

ram speeds: APPROX. 42 IPM PRESSING / 105 IPM RETURN

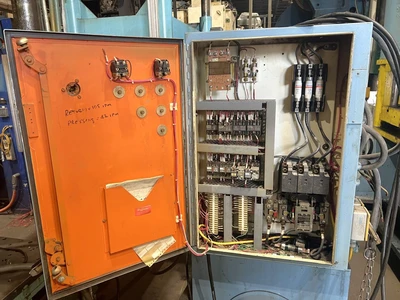

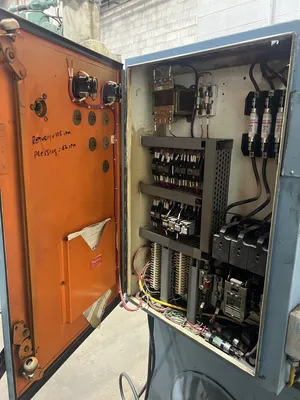

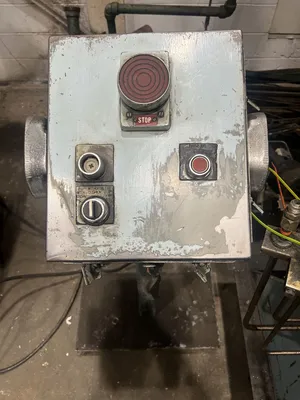

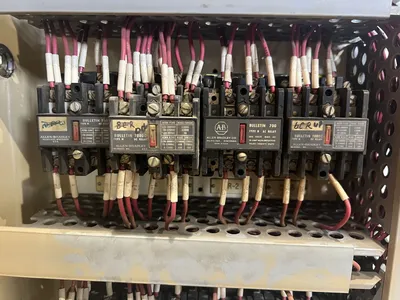

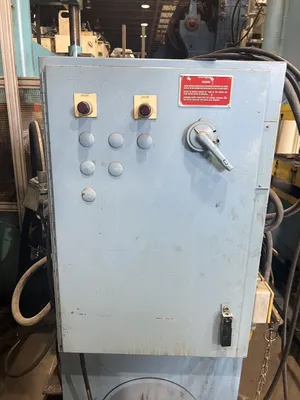

PRESS CONTROLS: ALLEN-BRADLEY RELAY LOGIC CONTROLLER

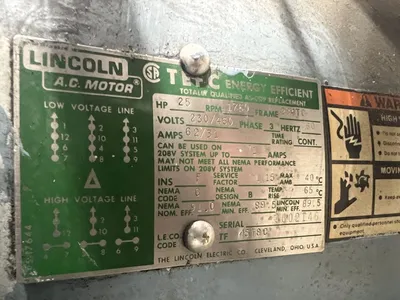

ELECTRIC MOTOR: 25 hp 230/460-3-60 LINCOLN motor | 62 / 31 AMPS

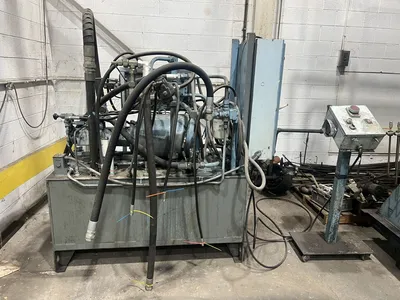

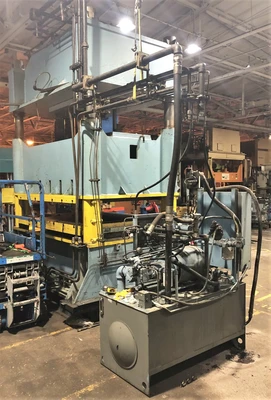

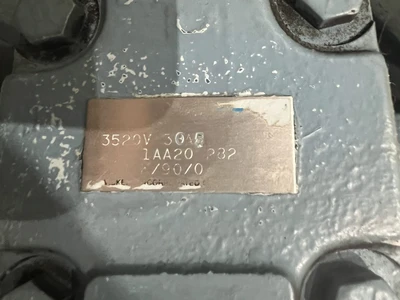

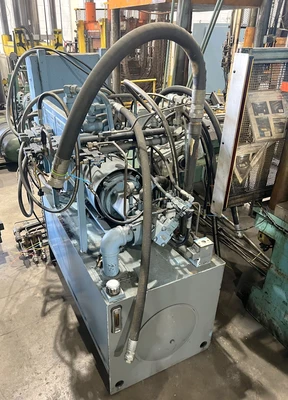

HYDRAULICS: vickers vane pump no. 3520v 30a5
Note: __
Location: This Used Press is Located in Our Jackson, MI Falahee Building

Equipped With

(2) hydraulic cushions in bed - approx. 60 ton capacity, 12" STROKE, 15.5" x 45" pressure pads, floor standing base
