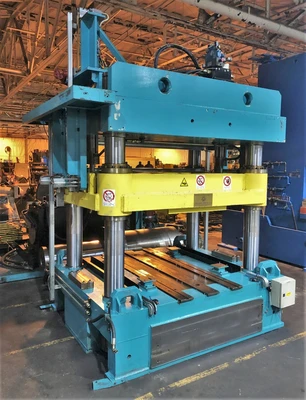

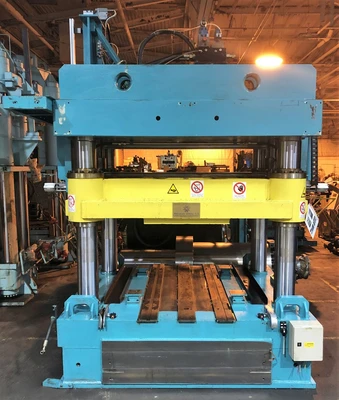

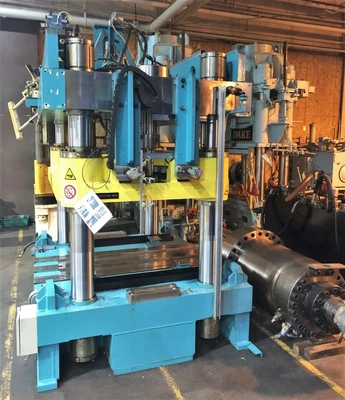

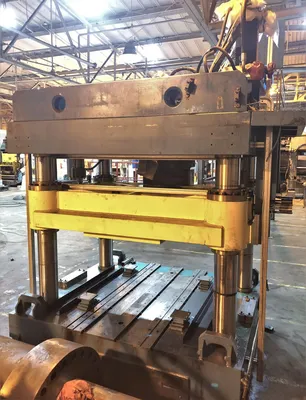

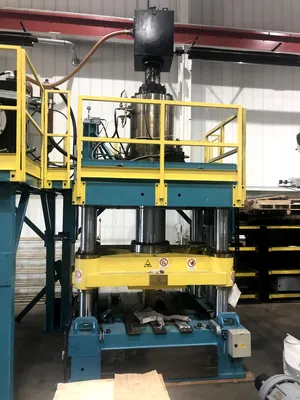

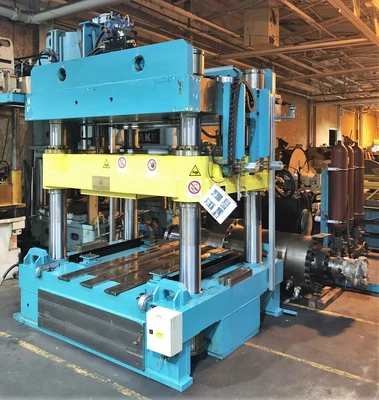

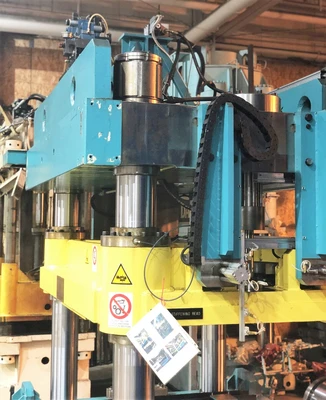

USED 2003 MECCANICA BERETTA MECCANICA BERETTA 4-POST TYPE PRESS

USED 2003 MECCANICA BERETTA MECCANICA BERETTA 4-POST TYPE PRESS

USD $149,500.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
MECCANICA BERETTA
Model:
MECCANICA BERETTA 4-POST TYPE PRESS
Year:
2003
Stock #:
4418
Description

13.8" Stroke, 34" Daylight, 67" x 77" Usable Bed, Floor Standing (No Pit Required)

Specifications
Dimensions120" X 84" (RL X FB) X 216" HIGH120" X 84" (RL X FB) X 216" HIGH
Weight70,000 LBS. - PRESS ONLY70,000 LBS. - PRESS ONLY

MAX. CAPACITY: APPROX. 400 TON
MAX. STROKE: APPROX. 13.77"
MAX. DAYLIGHT TO BED: 34.5"

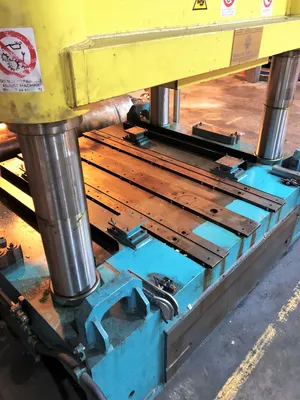

OVERALL BED AREA: 90" X 77" (RL X FB)

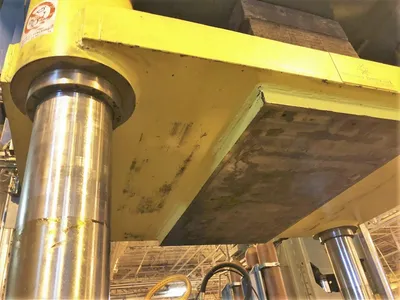

OVERALL RAM AREA: 90" X 63" (RL X FB)
DISTANCE BETWEEN POSTS: 67" X 39" (RL X FB)
USABLE BED AREA: 67" X 77" (RL X FB) or 90" x 39" (RL X FB)
FLOOR TO BED: 25"
POST SIZE: 8" DIA.
RAM ROD: __

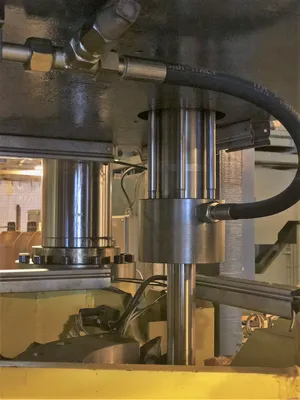

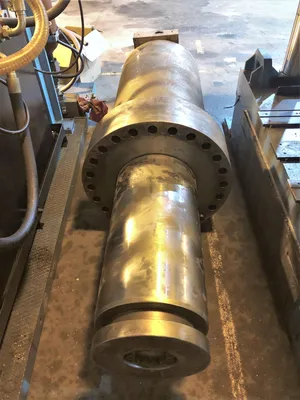

CYLINDER SIZE: APPROX. 19" BORE - 2 RETURN CLYINDER
PRESS CONTROLS: TO BE INSTALLED WITH RECONDITIONING PROCESS

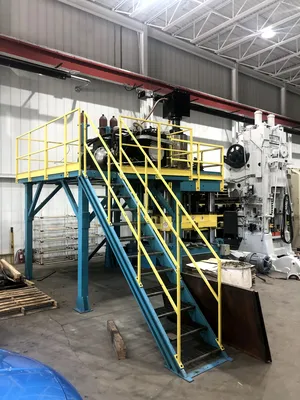

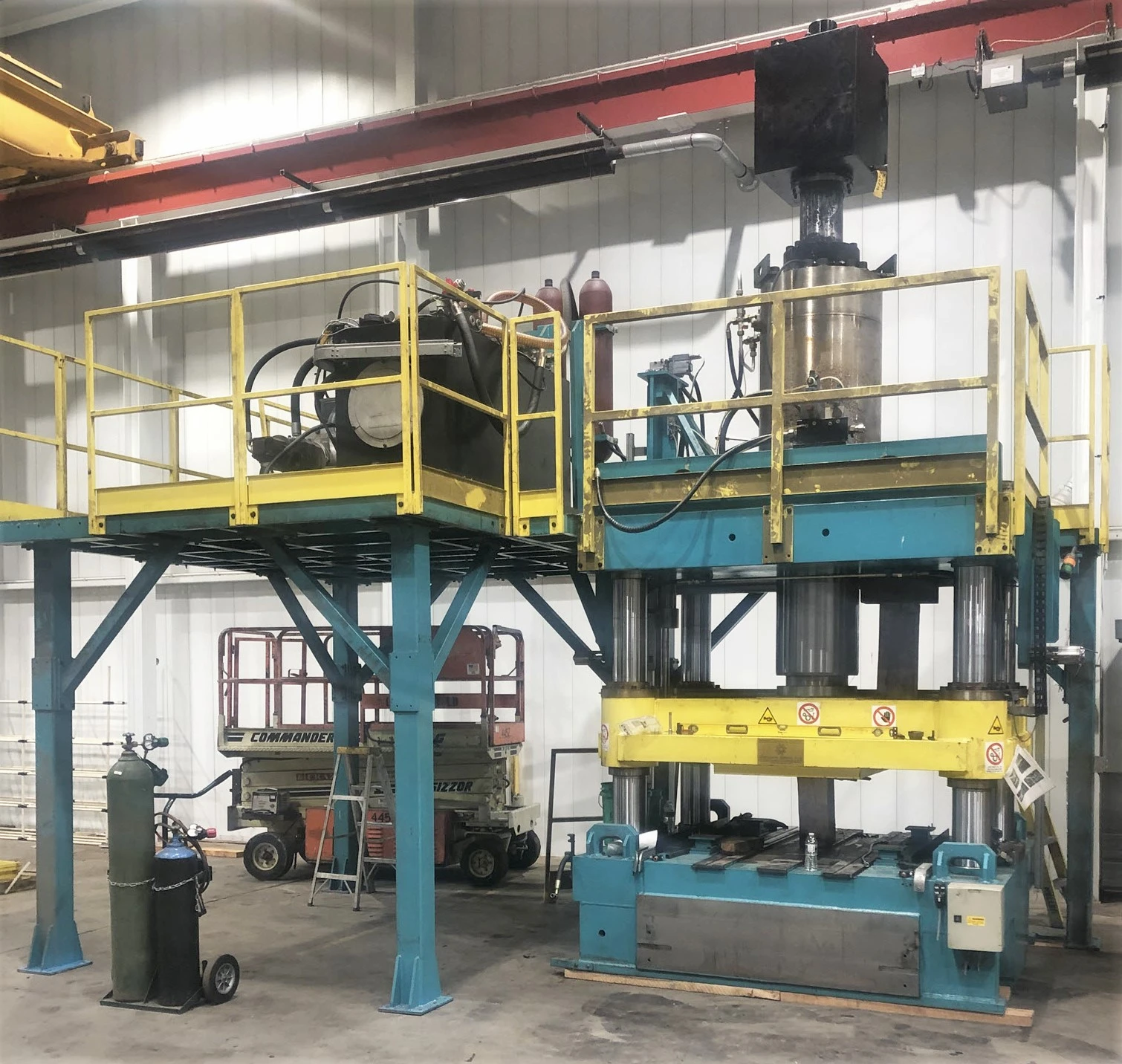

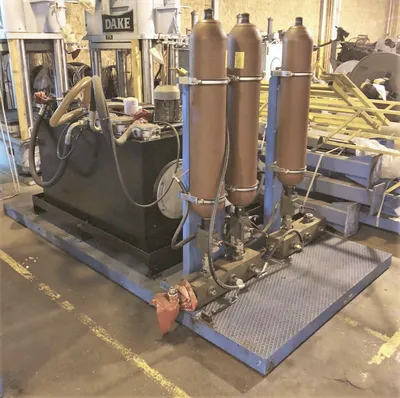

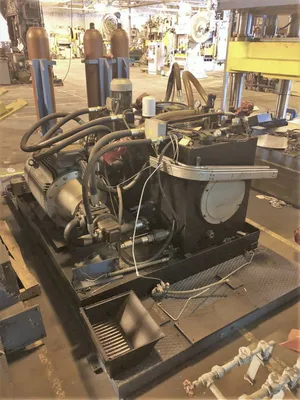

HYDRAULICS (CROWN MOUNTED): 2-REXROTH PISTON PUMPS AND TANK
ELECTRICAL: __
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

FLOOR STANDING design
