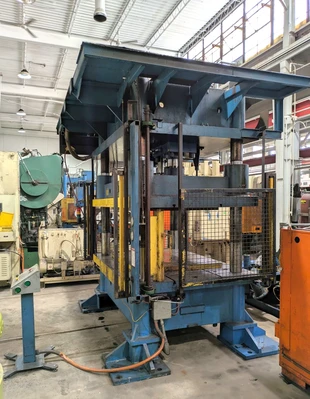

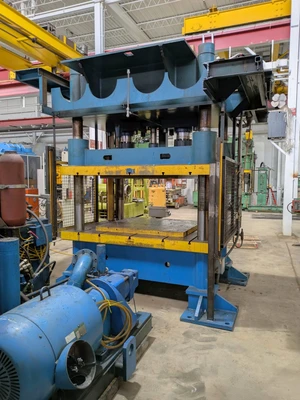

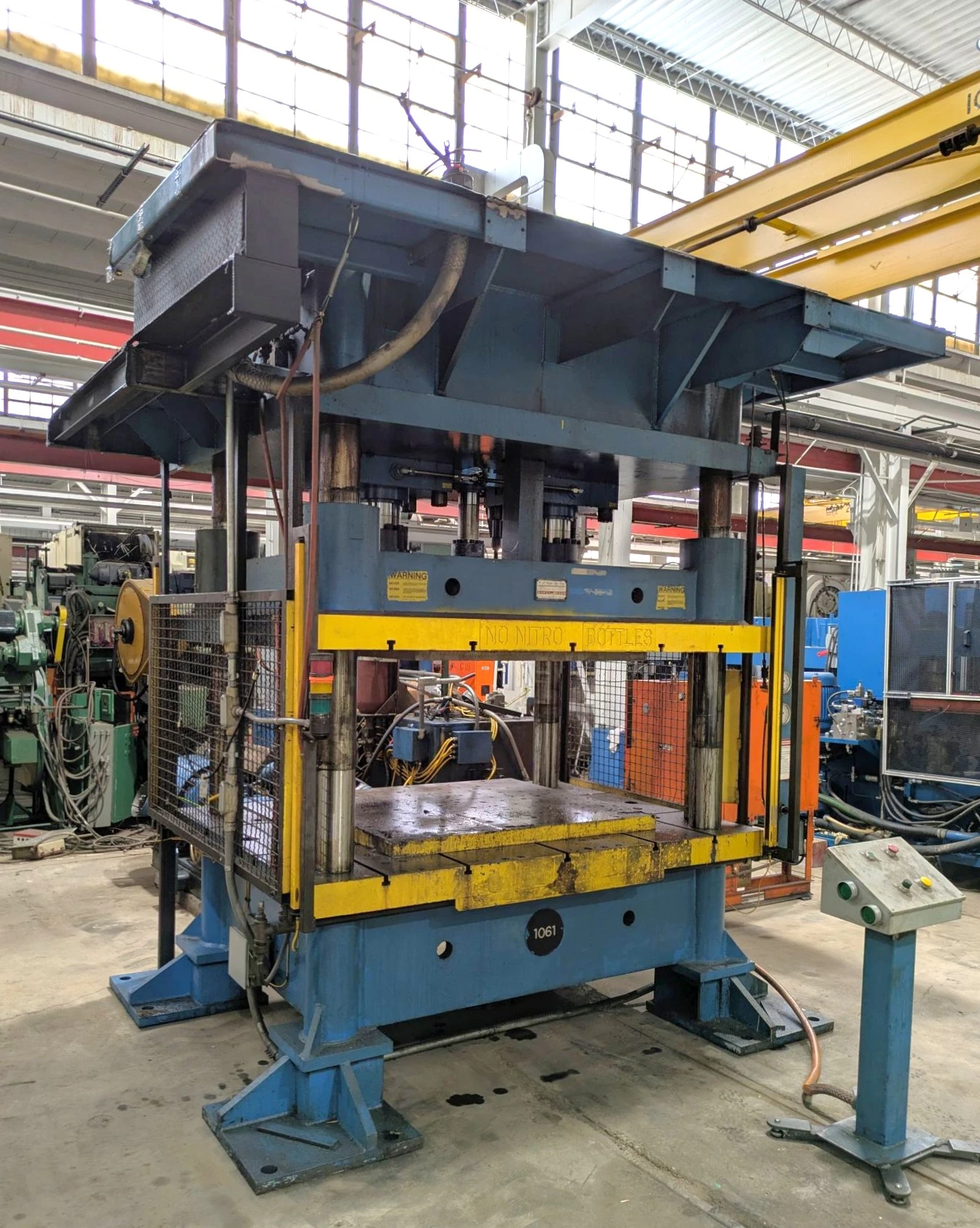

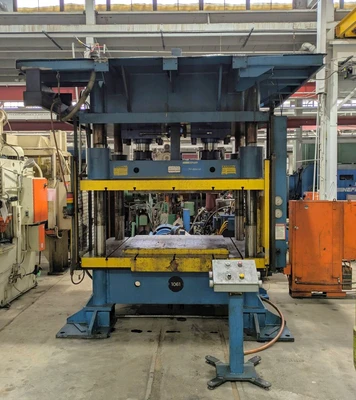

Overview
Type:
Hydraulic Presses
Manufacturer:
DOYLE

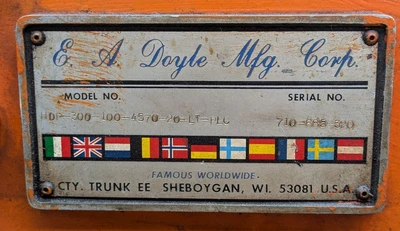

Model:

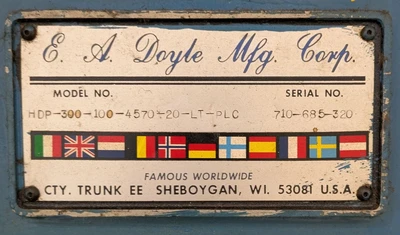

DOYLE HDP-300-100-4570-20-LT-PLC PRESS
Stock #:
8272
Description

20" Stroke, 35" Daylight, 70" x 45 Usable Bed Area, 120/300/30 IPM

Specifications
Dimensions15' HIGH15' HIGH

capacity: 300 ton
max. stroke: 20"
max. daylight to bed: 35"
overall bed and ram: 90" x 66" (RL X FB)
DISTANCE BETWEEN POSTS: 70" x 45" (RL X FB)
usable bed area: 70" x 66" (RL X FB)
BOTTOM BOLSTER PLATE: 55" X 48" (RL X FB) X 3" THICK
TOP BOLSTER PLATE: 48" X 48" (RL X FB0 X 2" THICK
FLOOR TO BED HEIGHT: 36.5"
APPROX. RAM SPEEDS (IPM - INCHES/MINUTE): 120 DOWN / 0-30 PRESSING / 300 UP
cylinder size: Two 12" Dia. Bore Cylinders
post size: 6" DIA.

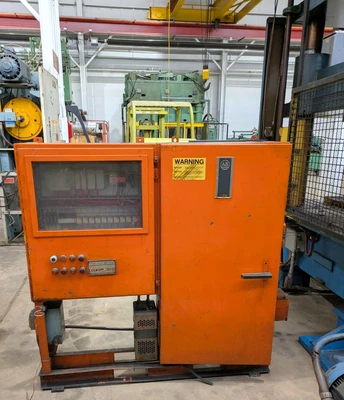

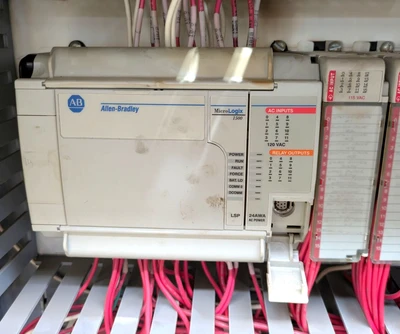

press controls: Allen Bradley micrologix 1500 CONTROLLER

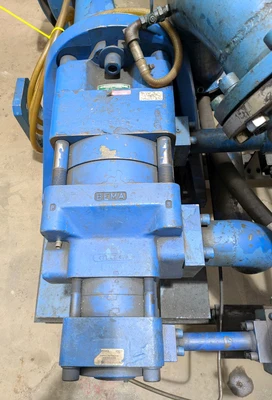

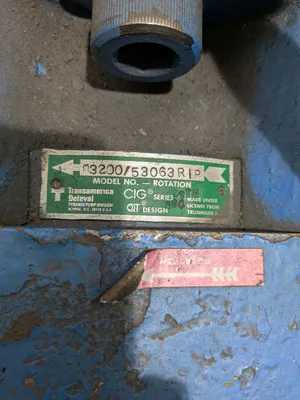

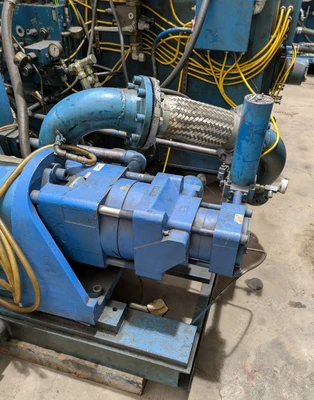

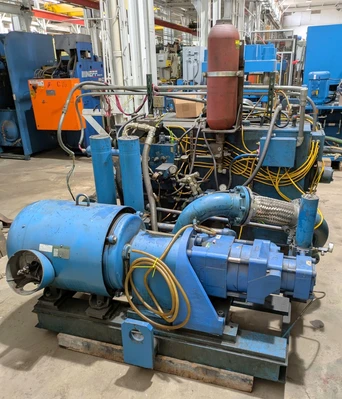

HYDRAULICS: Transamerica delaval CIG DSth pump MODEL 83200/53063RIP

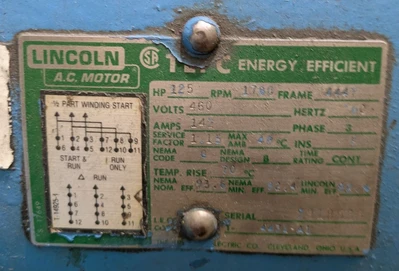

ELECTRIC MOTOR: 125 HP 460V-3-60 LINCOLN A.C. MOTOR | 144 AMPS
Note: EXPECTED Internal Gear pump
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

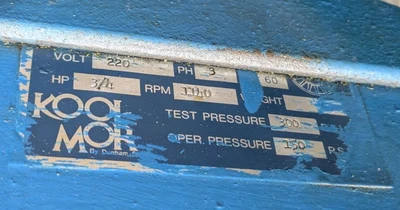

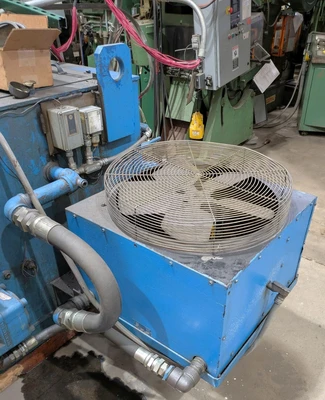

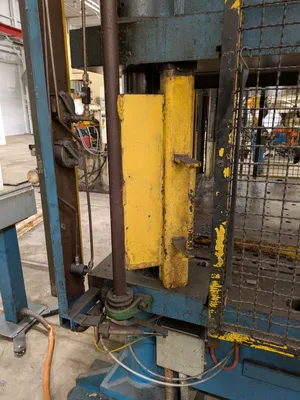

floor standing DESIGN, SAFETY LATCH ON RAM, kool Mor Fan cooled heat exchanger
