Overview
Type:
Hydraulic Presses
Manufacturer:
PH
Model:
PH 300 4C PRESS
Stock #:
6910
Description

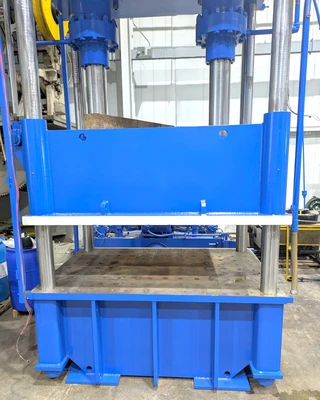

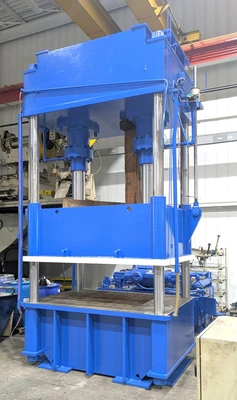

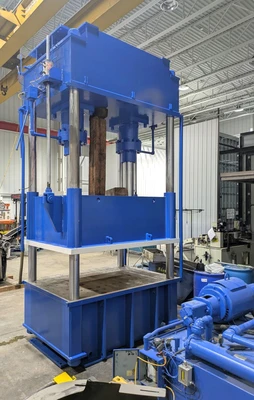

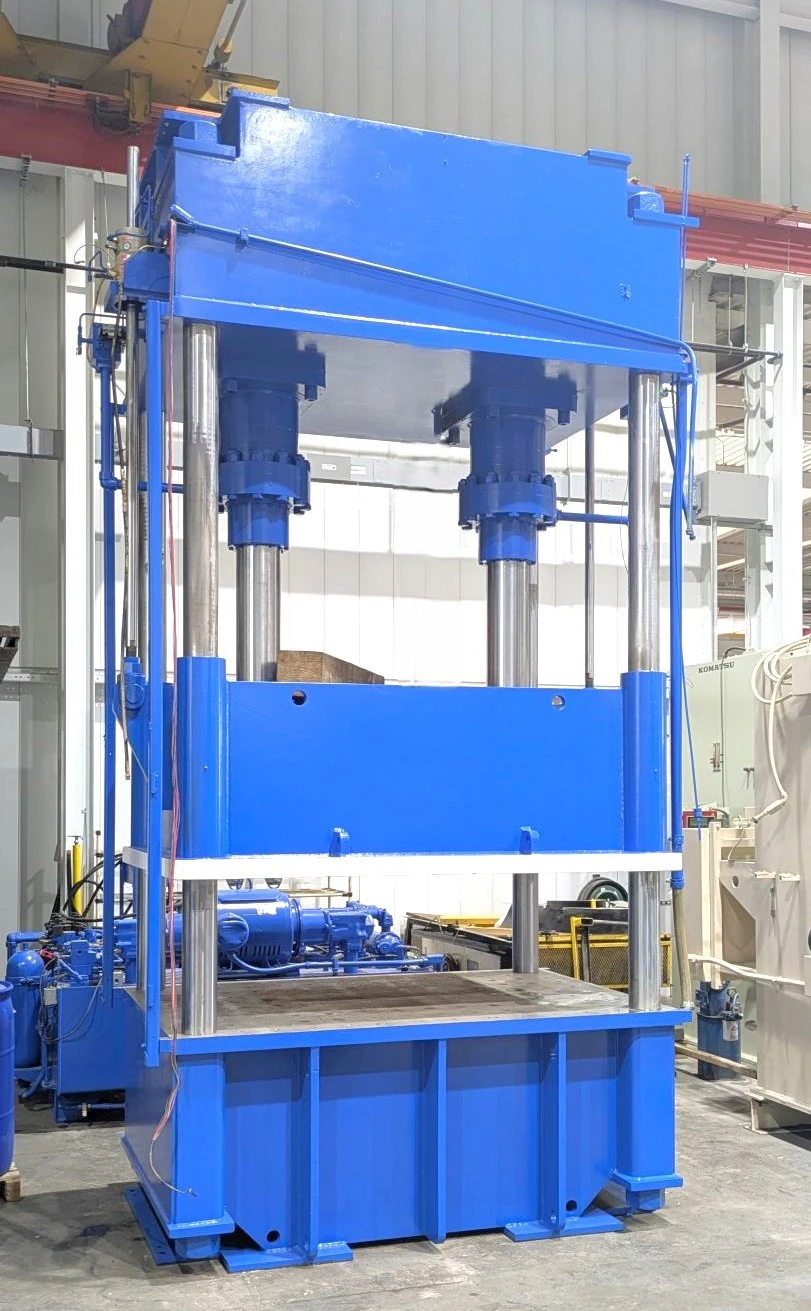

42" Stroke, 57.5" Daylight, 72" x 60" Usable Bed Area, Allen-Bradley Controls, Floor Standing (No Pit Required)

Specifications
Dimensions124" X 86" (RL X FB) X 244" HIGH124" X 86" (RL X FB) X 244" HIGH
Weight50,000 LBS.50,000 LBS.

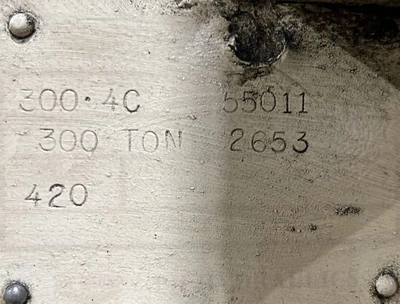

MAX. CAPACITY: 300 TONS AT 2,653 PSI
MAX. STROKE: 42"
MAX. DAYLIGHT TO BED: 15.5" TO 57.5"
OVERALL BED & RAM AREA: 88" X 60" (RL X FB)
DISTANCE BETWEEN POSTS: 72" X 45" (RL X FB)

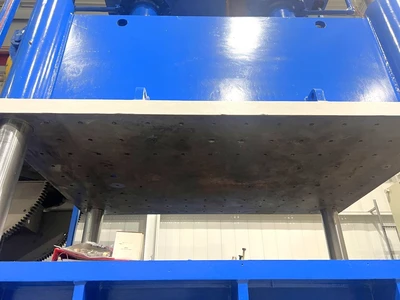

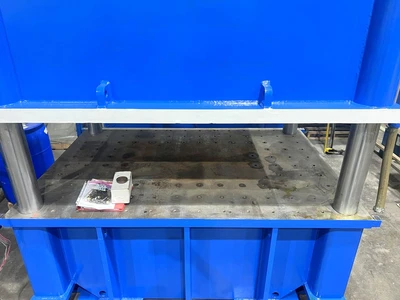

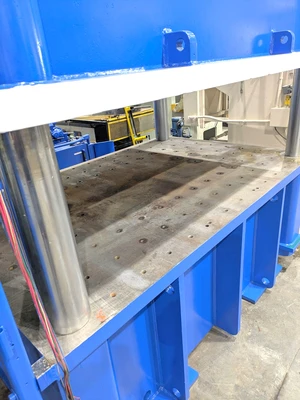

USABLE BED AREA: 72" X 60" (RL X FB)
RAM SPEEDS: __
CYLINDER SIZES: APPROX. 12" DIA. BORE (TWO CYLINDERS)
ROD SIZES: 7.5" DIA.
FLOOR TO BED HEIGHT: 37.25"
POST / 4 COLUMN SIZE: 5.25" DIA.

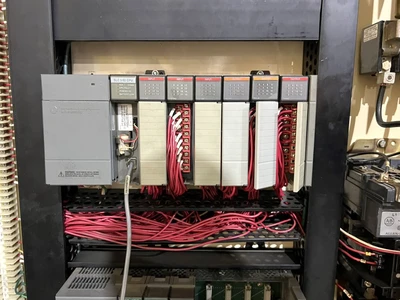

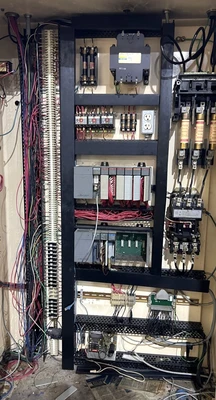

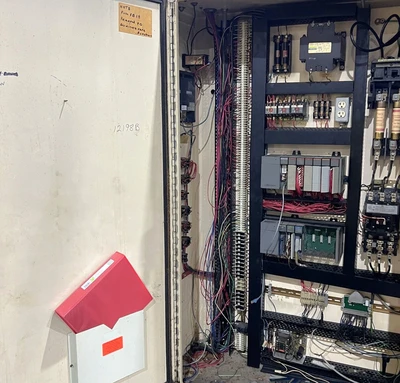

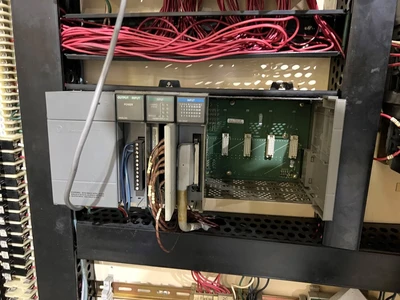

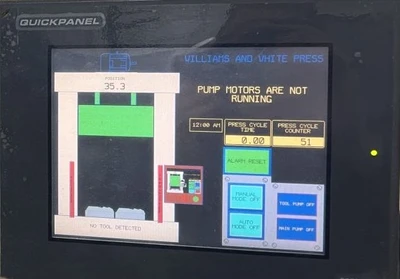

PRESS CONTROLS: ALLEN-BRADLEY SLC 5/03 CONTROLLER

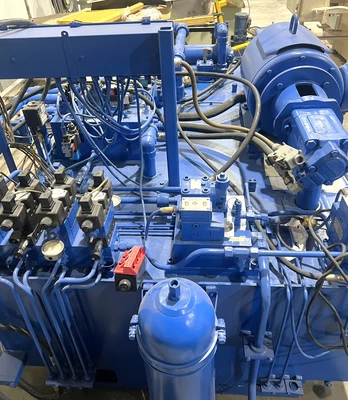

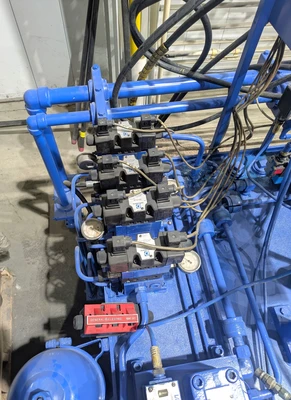

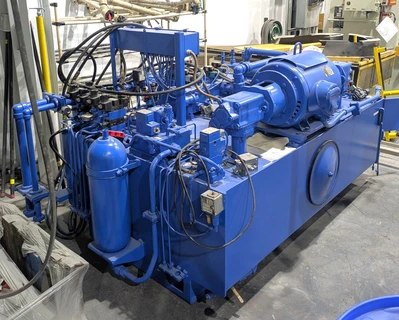

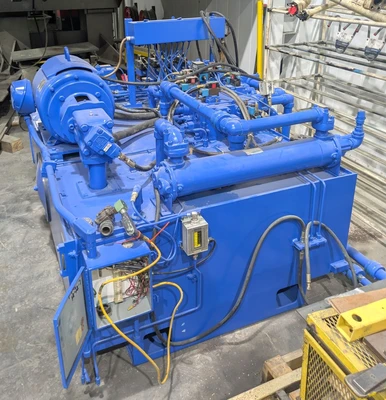

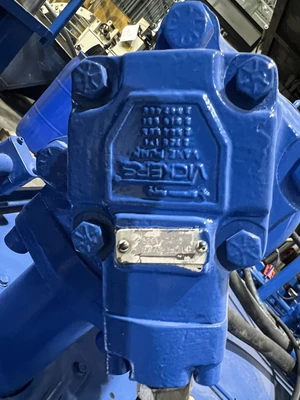

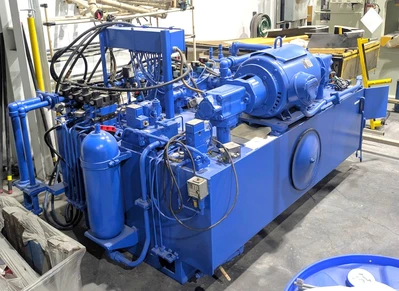

HYDRAULIC SYSTEM: VICKERS PUMP - 420 GALLON HYDRAULIC TANK

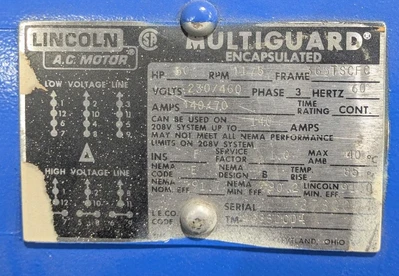

ELECTRIC INDUSTRIAL MOTOR: 50 HP 230/460V-3-60 LINCOLN MULTIGUARD A.C. MOTOR | 140/70 AMPS
Note: MOBILE DTE 26 HYDRAULIC OIL OR EQUIVALENT RECOMMENDED, ALL GREASED POINTS USE MOBILITH AW1
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

FLOOR STANDING DESIGN
