Overview
Type:
Hydraulic Presses
Manufacturer:
SCHULER
Model:
SCHULER 4 CP 300 PRESS
Stock #:
5513
Description

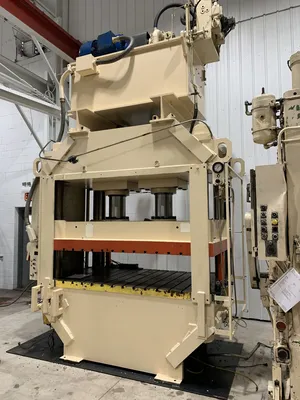

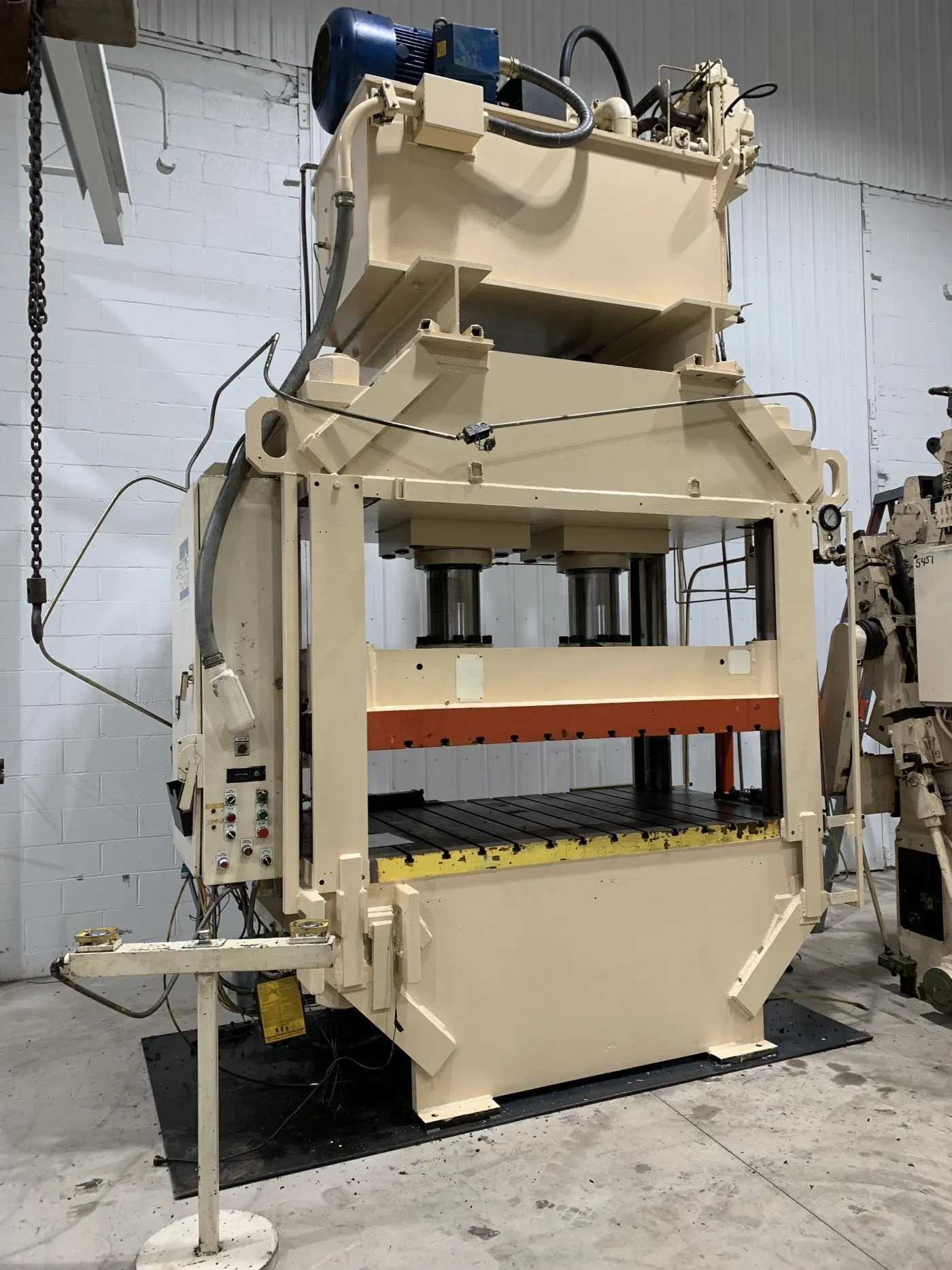

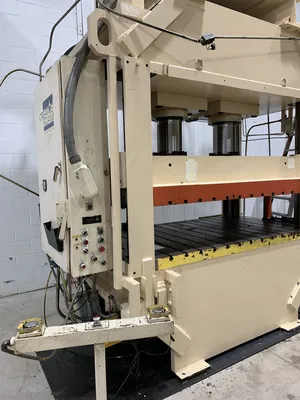

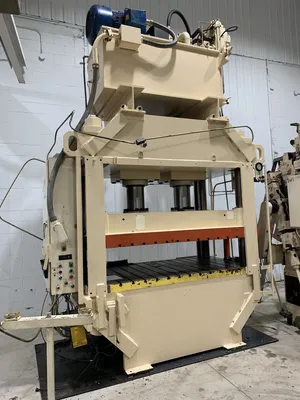

6" Stroke, 17.25" Daylight, 74" x 52" Usable Bed, Allen-Bradley Controls, Floor Standing Design

Specifications
Dimensions128" X 65" (RL X FB) X 202" HIGH128" X 65" (RL X FB) X 202" HIGH
WeightAPPROX. 55,000 LBS.APPROX. 55,000 LBS.

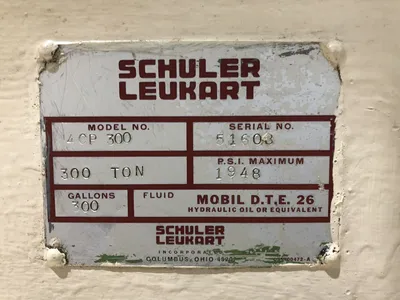

CAPACITY: 300 TONS @ 1948 PSI
MAX. STROKE: 6"
MAX. DAYLIGHT TO BED: 17.25" (11.25 max shut height)
BED & RAM AREA: 98" X 52" (RL X FB)
DISTANCE BETWEEN POSTS: 74" X 34" (RL X FB)

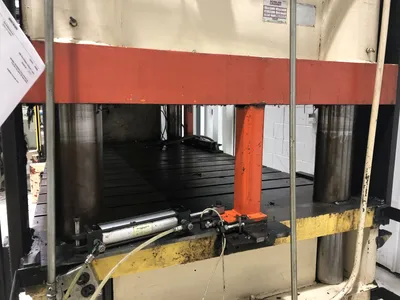

USABLE BED & RAM AREA: 74" X 52" (RL X FB)
SPEED: --
POST SIZE: 5.5" DIA.
CYLINDER SIZE: 14" dia. bore - (TWO CYLINDERS)
HYDRAULIC: 300 GAL. HYDRAULIC TANK (MOBIL D.T.E. 26)
ELECTRICS: 75 HP 230/460V-3-60 ELEKTRIM MOTOR 182/91 AMPS | 1191 RPM

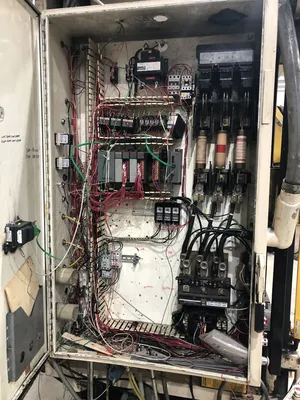

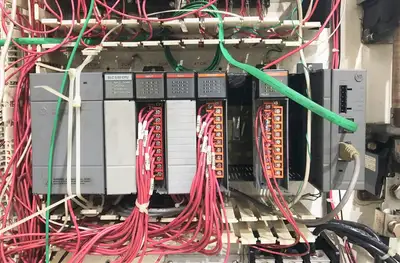

CONTROLS: ALLEN-BRADLEY SLC 5/02 CONTROLLER
FLOOR TO BED: 40"
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

FLOOR STANDING DESIGN
