Overview
Type:
Hydraulic Presses
Manufacturer:
ACCUDYNE
Model:
ACCUDYNE CUSTOM PRESS
Year:
2015
Stock #:
8267
Description

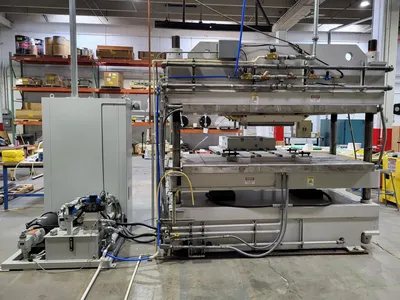

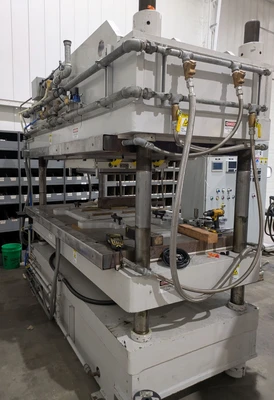

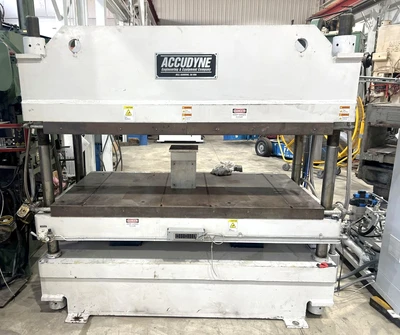

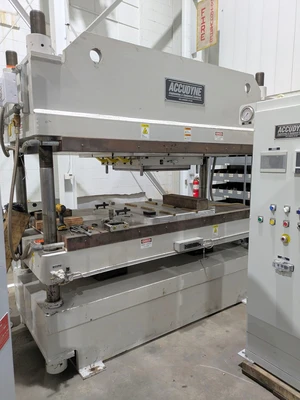

12" Stroke, 32" Daylight between Platens, 96" x 48" Heated Platens (6 Zones), Approx. 350-400 Deg F, Data Logger with Upgraded Controls

Specifications
Dimensions123" X 59" (RL X FB) X 112" PRESS - 46" X 67" (RL X FB) X 88" HIGH HYDRAULIC UNIT123" X 59" (RL X FB) X 112" PRESS - 46" X 67" (RL X FB) X 88" HIGH HYDRAULIC UNIT
Weight54,000 LBS.54,000 LBS.

MAX. CAPACITY: 200 TONS @ 2,546 PSI
MAX. STROKE: 12"
MAX. DAYLIGHT: 32" BETWEEN HEATED PLATENS / 40.5" WITHOUT PLATENS
OVERALL BED & RAM AREA: 110" X 52" (RL X FB)
DISTANCE BETWEEN POSTS: 98" X 32" (RL X FB)
USABLE BED AREA: 98" X 52" (RL X FB)

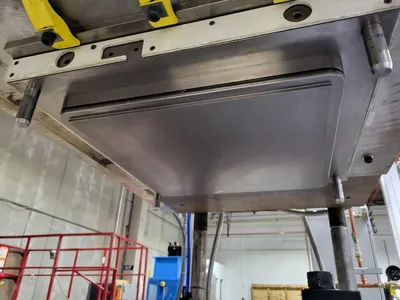

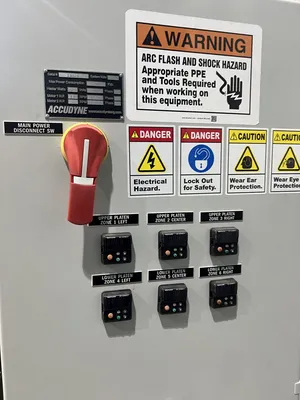

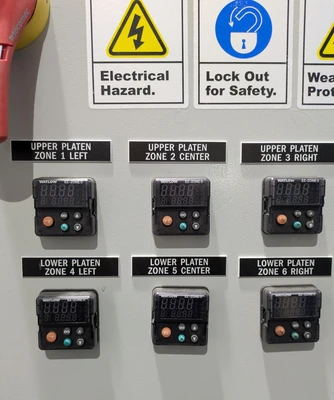

HEATED PLATENS, WATER COOLED: 96" X 48" (RL X FB) X 4.25" THICK (6 zones - 189kw) MAX. 200 DEG C
CYLINDER SIZE: (2) 10" bore cylinders
RAM ROD SIZE: (2) 6.5" DIA. EACH
4 COLUMN / POSTS SIZE: 4" DIA.
FLOOR TO BED HEIGHT: 46" : 41.75" PLUS 4.25" PLATEN
SPEEDS: 30 IPM CLOSING / 5 IPM PRESSING / 30 IPM OPENING

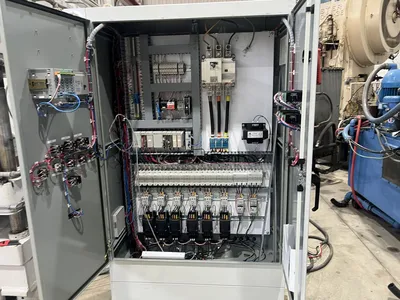

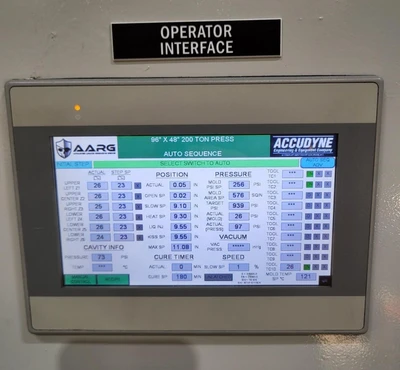

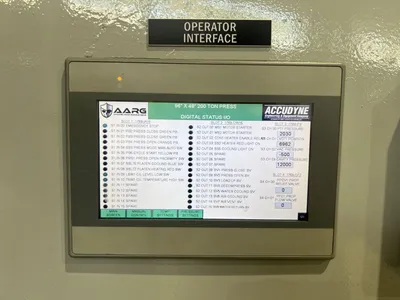

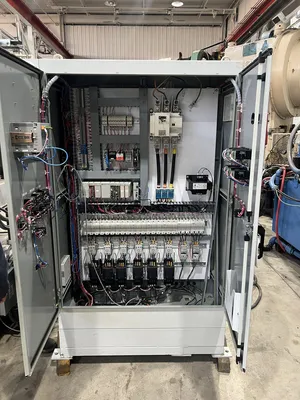

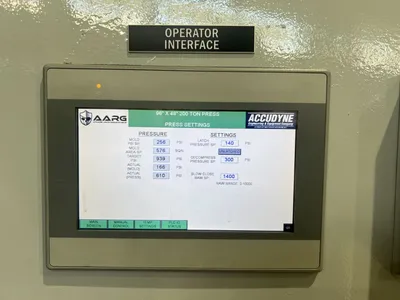

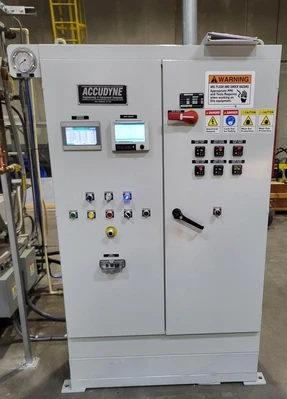

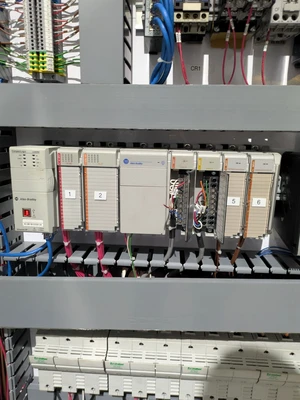

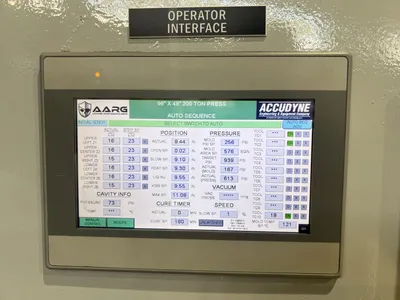

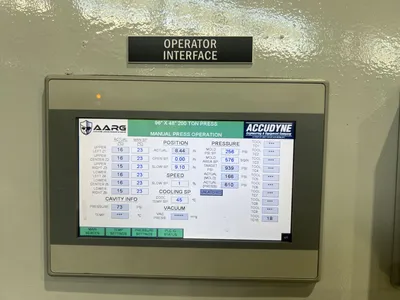

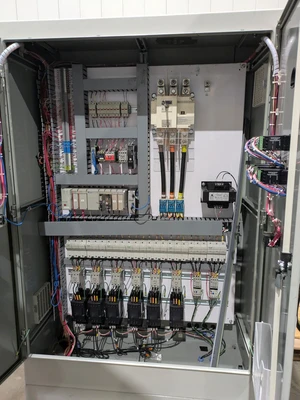

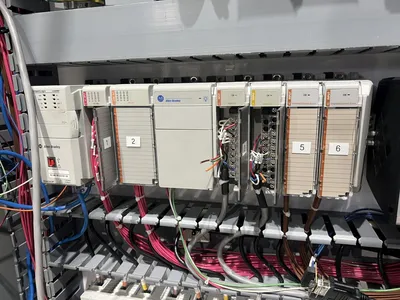

PRESS CONTROLS: UPGRADED ALLEN-BRADLEY CompactLogix L30ERM CONTROLLER

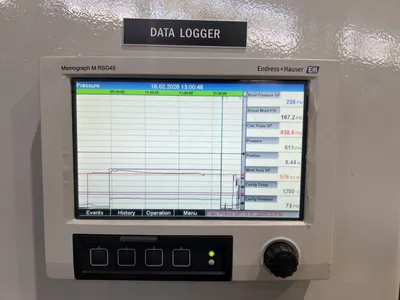

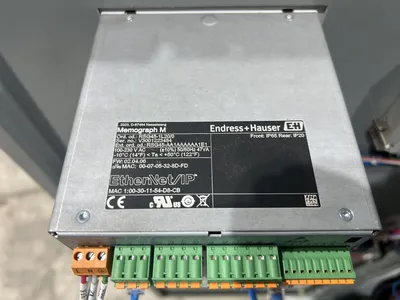

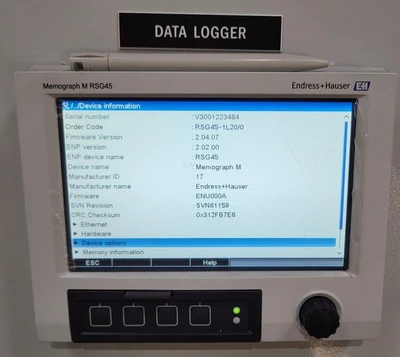

DATA MANAGER / DATA LOGGER: ENDRESS+HAUSER MEMOGRAPH M RSG45 DATA MANAGER

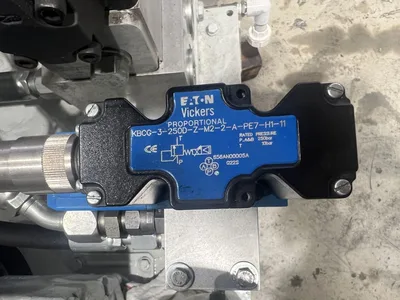

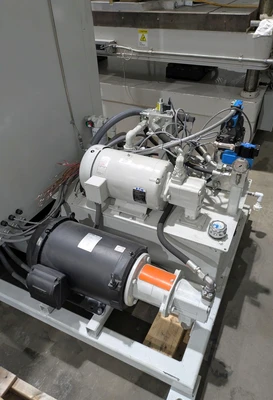

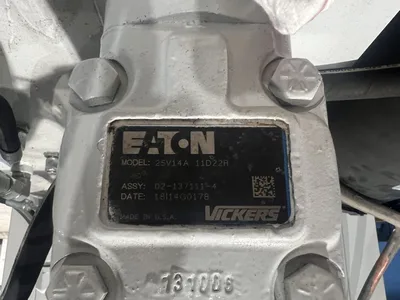

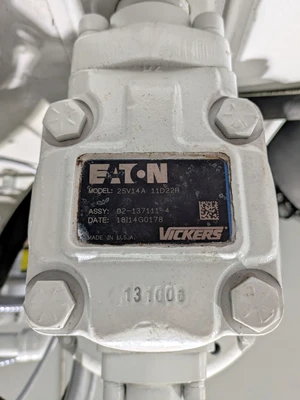

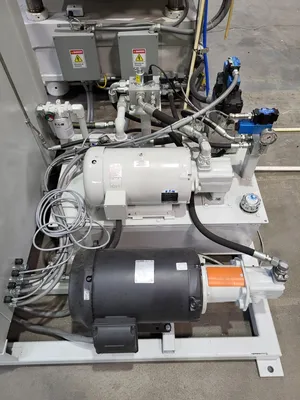

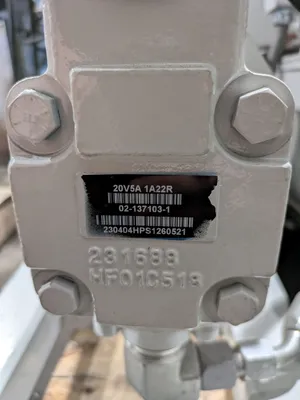

HYDRAULICS: 20 GPM PUMP, FLOOR STANDING

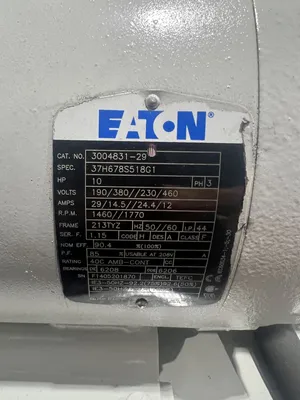

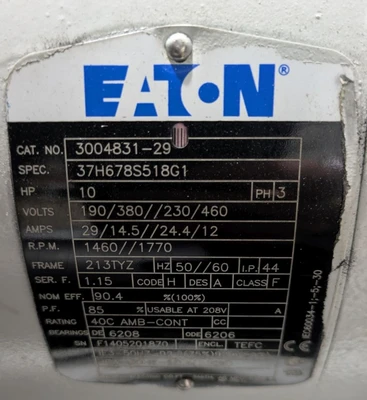

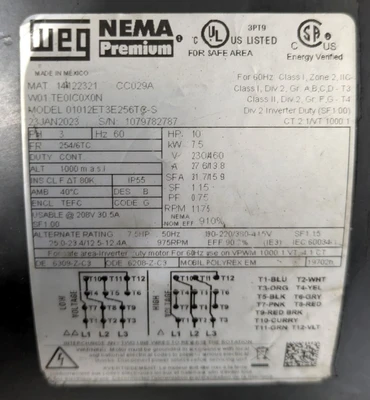

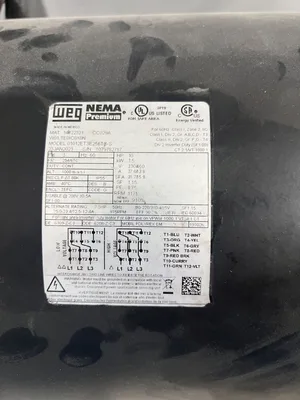

ELECTRIC MOTOR: 10 HP 190/230/380/460V-3-60 EATON MOTOR | 29 / 24.4 / 14.5 / 12 AMPS - 1460 / 1770 RPM
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

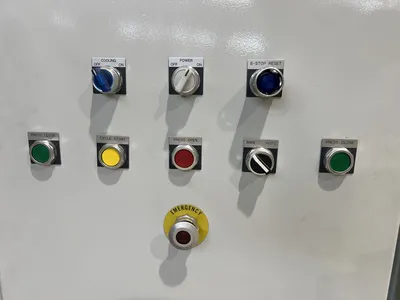

ELECTRIC HEATED AND WATER / AIR COOLED PLATENS, DATA LOGGER (INTERNAL MEMORY, SD CARD, USB FLASH DRIVE), DIGITAL TONNAGE CONTROL, CURE TIMER, SPEED CONTROL, TEMPERATURE CONTROL ALL IN ONE SYSTEM, HEAT EXCHANGER
