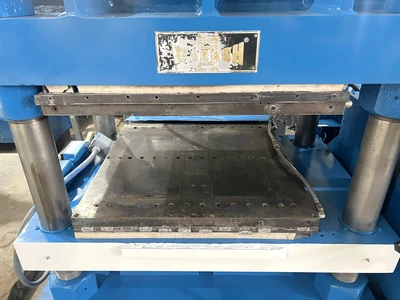

USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS
  • USED 1980 WABASH WABASH 200-3030-2TMACX PRESS

USED 1980 WABASH WABASH 200-3030-2TMACX PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

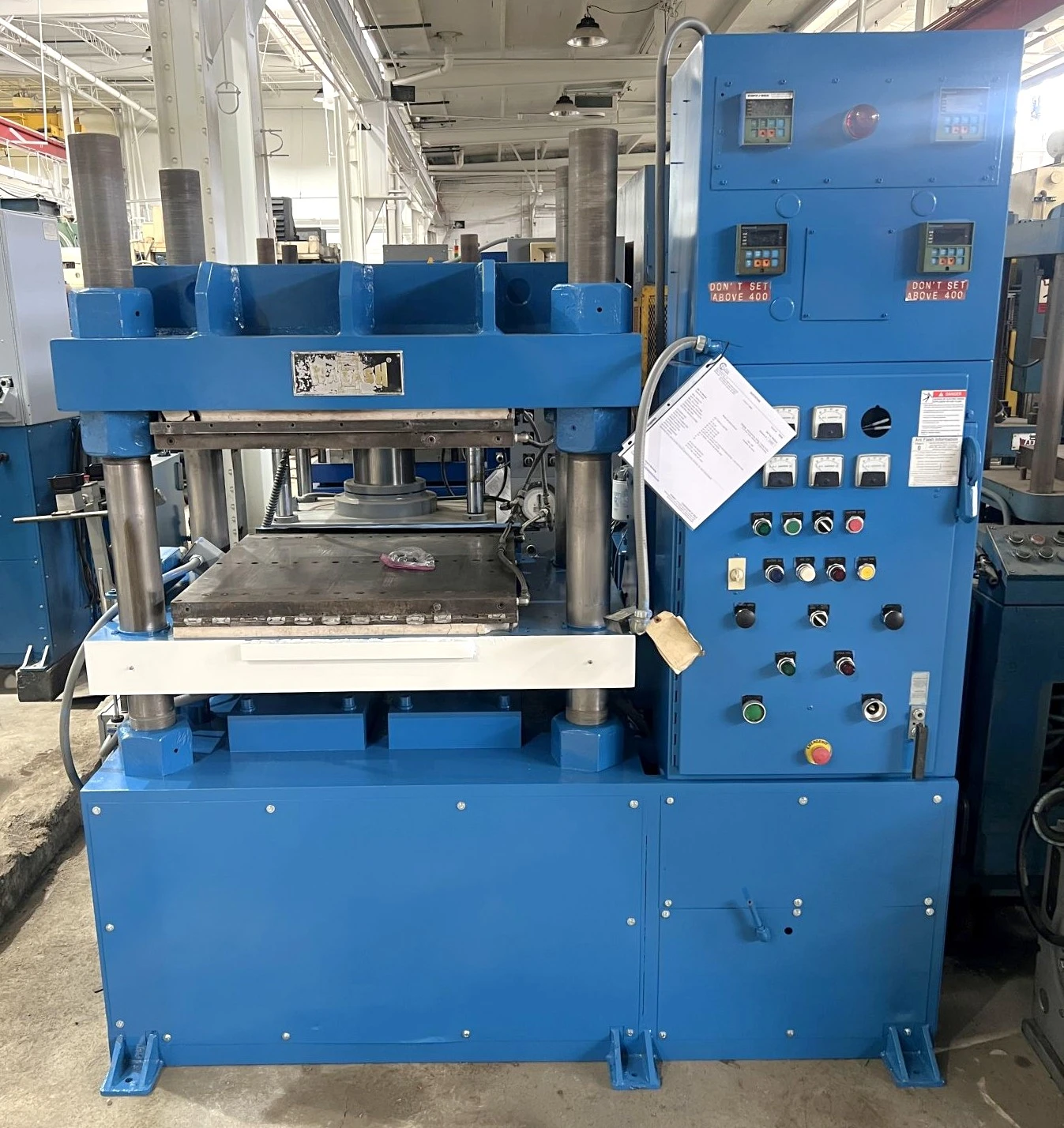

Overview
Type:
Hydraulic Presses
Manufacturer:
WABASH
Model:
WABASH 200-3030-2TMACX PRESS
Year:
1980
Stock #:
8309
Description

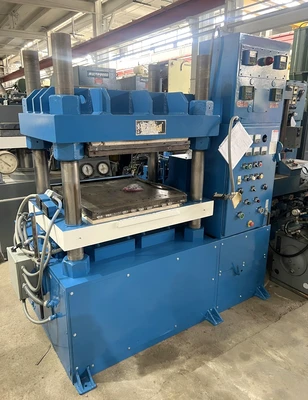

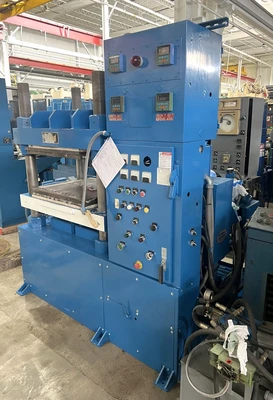

12" Stroke, 24" Max. Daylight, 30" x 30" Heated Platens (Air & Water Cooled)

Specifications
Dimensions97" X 77" (RL X FB) X 96" HIGH97" X 77" (RL X FB) X 96" HIGH

MAX. CAPACITY: 200 TONS AT 2,550 PSI
MAX. STROKE: 12"
MAX. DAYLIGHT TO BED: 12" TO 24"
OVERALL BED / RAM AREA: 48" X 32" (rL X FB)
DISTANCE BETWEEN POSTS: 36" X 20" (RL X FB)
USABLE BED AREA: 36" X 32" (RL X FB)

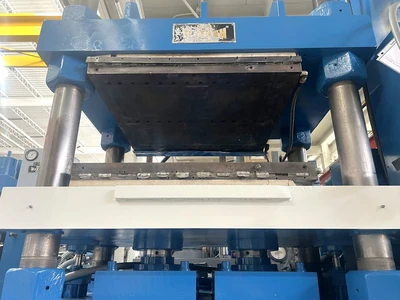

ELECTRIC HEATED PLATENS: 30" X 30" (RL X FB) X 3.25" THICK WITH INSULATION - 1,500 WATTS PER PLATEN (Air & Water Cooled)
CYLINDER SIZE: (2) 10" BORE - HYDRO-LINE MODEL N2G
RAM ROD SIZE: 4.5"
POSTS / 4 COLUMNS SIZE: 4"
FLOOR TO BED HEIGHT: 43"

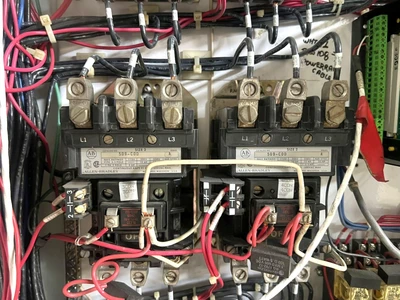

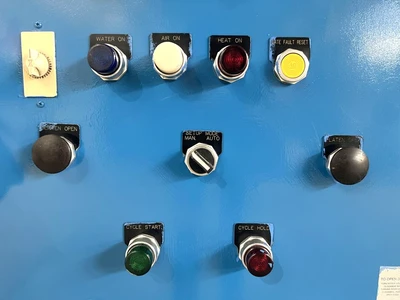

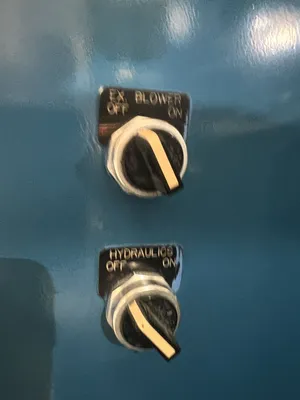

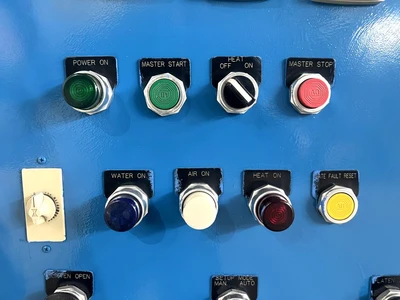

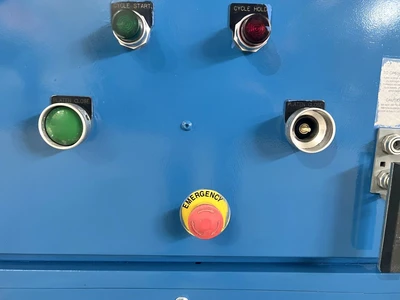

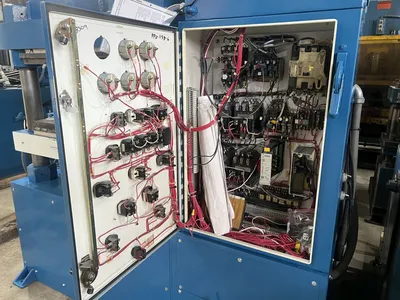

PRESS CONTROLS: RELAY LOGIC CONTROLLER

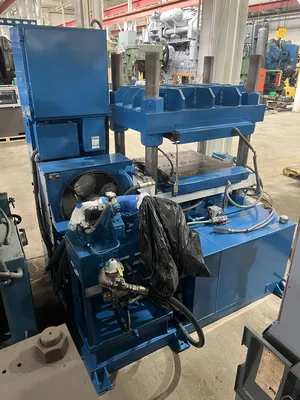

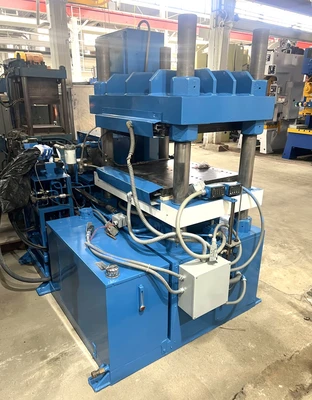

HYDRAULIC SYSTEM: 66 GALLON RESERVOIR

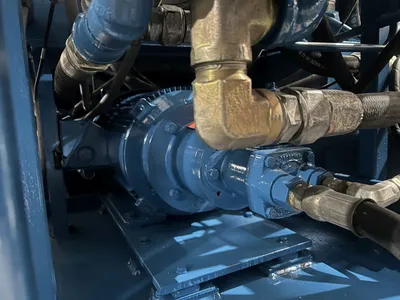

ELECTRIC MOTOR: APPROX. 10 HP MOTOR
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

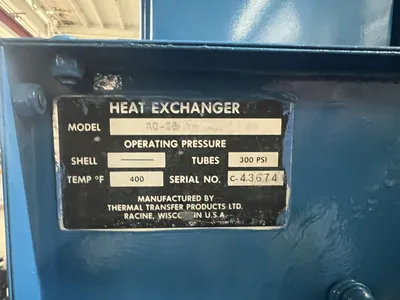

AIR & WATER COOLED HEATED PLATEN SYSTEM, THERMAL TRANSFER PRODUCTS MODEL AO-25 HEAT EXCHANGER
