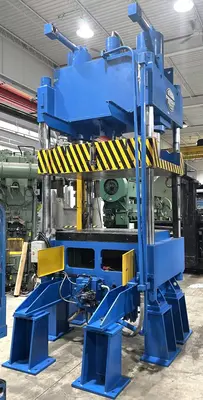

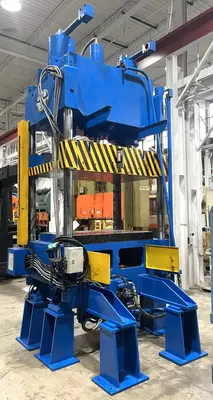

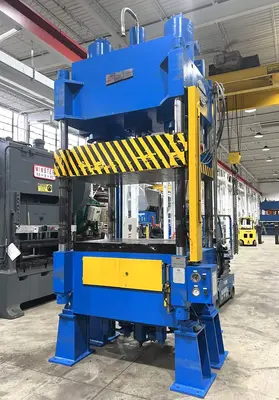

USED 2001 DEES DEES HP-200 PRESS

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Hydraulic Presses
Manufacturer:
DEES
Model:
DEES HP-200 PRESS
Year:
2001
Stock #:
6844

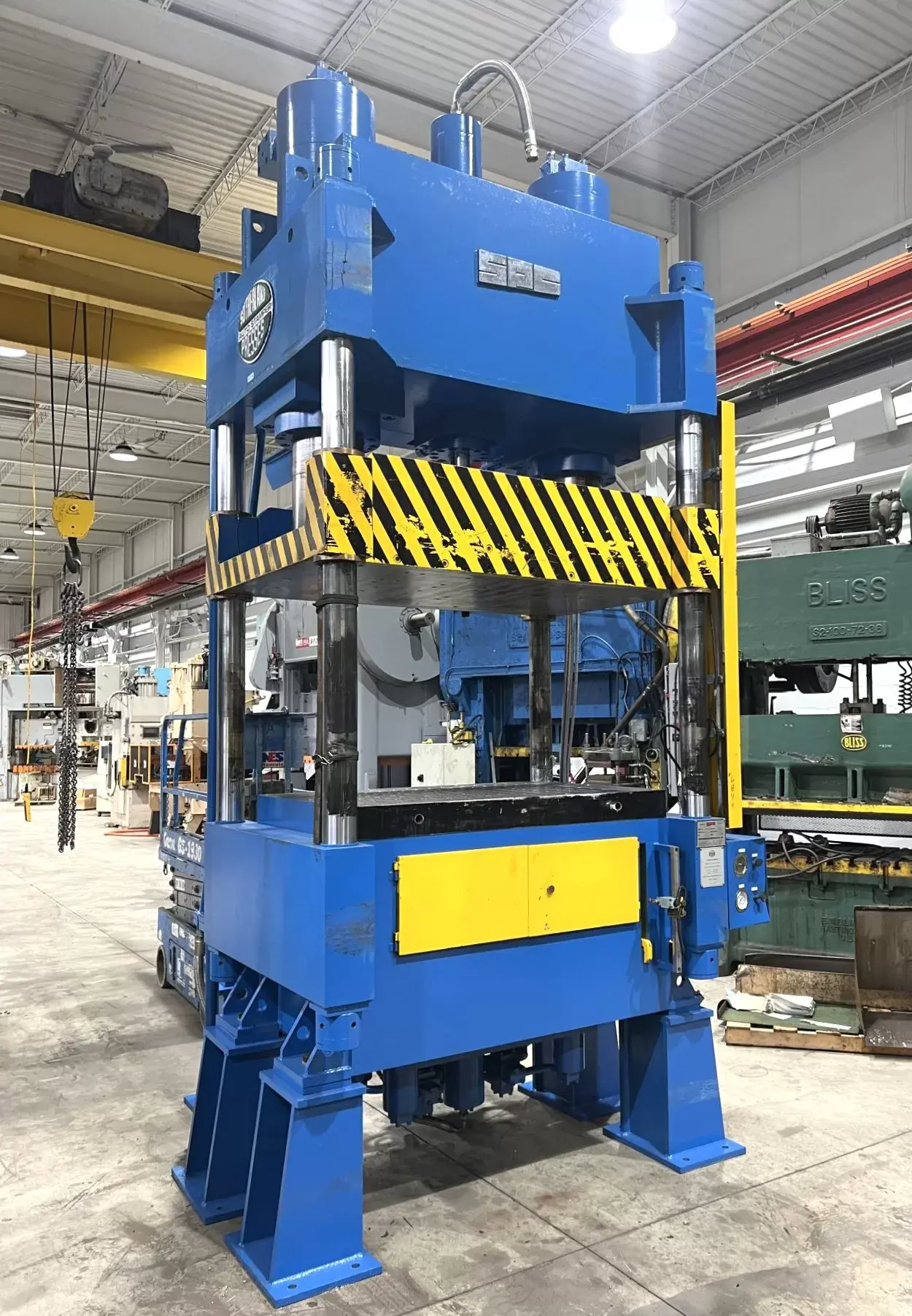

Description

44" Stroke, 47" Daylight, 59" x 39" Bolster Plate, 70 Ton Cushion in Bed (15" Stroke), AB MicroLogix 1500 Controls

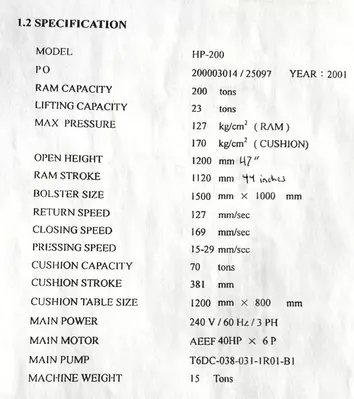

Specifications
Dimensions96" x 84" (LR x FB) x 192" HIGH96" x 84" (LR x FB) x 192" HIGH
WeightAPPROX. 30,000 lbsAPPROX. 30,000 lbs

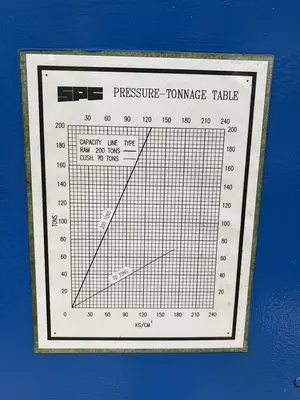

MAX. CAPACITY: 200 TONS
Stroke: 44"

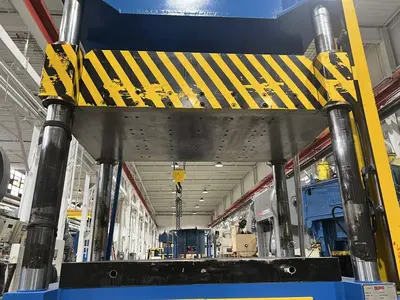

Max Daylight: 47"
Overall Bed & Ram Area: 73" x 39.375" (RL X FB)
Distance Between Posts: 61" X 41.5" (RL X FB)
Useable Bed Area: 61" X 39.375" (RL X FB)

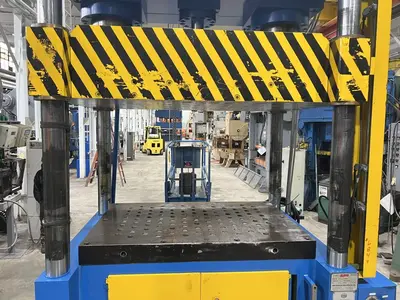

bolster plate: 59" x 39.375" (RL X FB) X 4.75" THICK
SpeedS: 396 CLOSING / 36-69 PRESSING / 300 RETURN - INCHES PER minute
Floor to Bed Height: 57.625"
cylinder size: 12.2" DIA Bore
ram rod size: 11.4" dia.
posts/4 column size: 4.5" DIA.

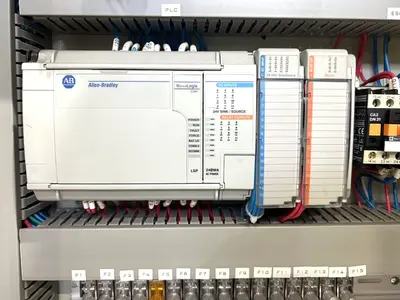

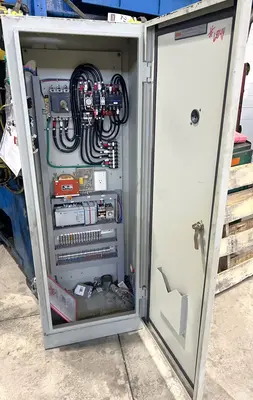

press controls: ALLEN-BRADLEY MICROLOGIX 1500 CONTROLLER

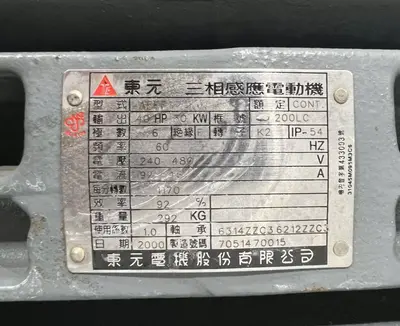

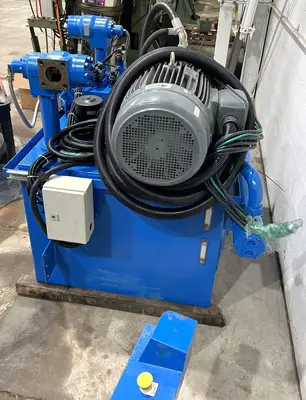

main motor: 40 HP 240/460V-3-60 AEEF MOTOR | 92/46 AMPS

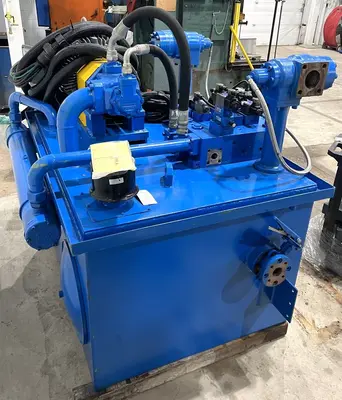

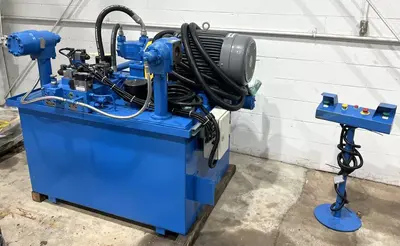

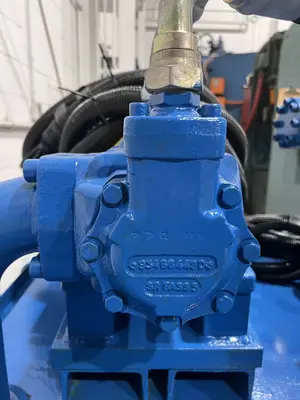

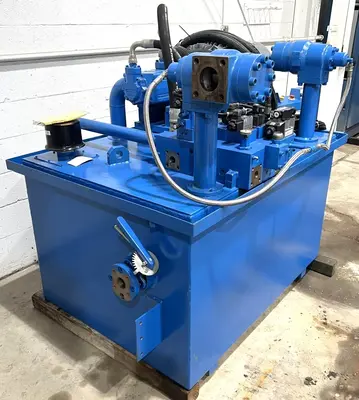

HYDRAULIC UNIT: T6DC-038-031-1r01-b1 PARKER HANNIFIN VANE PUMP
Note: __
Location: This Used Press is Located in Our Jackson, MI Cooper Building

Equipped With

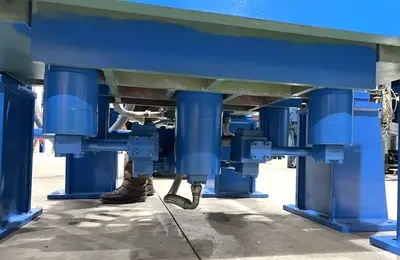

70 TON CUSHION IN BED - 15" STROKE - CUSHION TABLE SIZE: 47" x 31.5" (LR x FB)
